Biomechanics and Biology

1

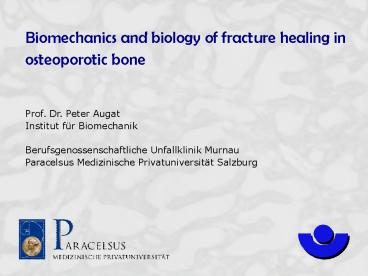

Biomechanics and biology of fracture healing in
osteoporotic boneProf. Dr. Peter
AugatInstitut für BiomechanikBerufsgenossenscha
ftliche Unfallklinik MurnauParacelsus
Medizinische Privatuniversität Salzburg
2
Age related changes in musculoskeletal tissue

• decrease in the amount of tissue
• altered molecular composition
• accumulation of degraded molecules
• reduced synthetic capacity of differentiated
  cells
• altered levels of circulating hormones, growth
  factors and cytokines
• altered ability of the cellular response
• alterations in the loading patterns of the tissue
  or the tissues response to loading

Freemont, J Pathol 2007 211 252259
3
Age related changes in hormones

• Growth Hormones Insuline Like Growth Factors
• IGF-1 production decreases
• Growth Hormone production decreases
• Sex hormones
• Androgens decrease
• Oestrogens decrease
• Cytokines
• Increase in TNF-a, IL-1 and IL-6

Freemont, J Pathol 2007 211 252259
4
Age-associated cellular senescence

• Replicative senscence
• Teleomere shortening
• Stress-induced premature senescence (SIPS)
• mitochondrial injury

Age-associated stem cell changes

• Reduction of MSC stem cell pool
• Changes in differentiation characteristics
• Preference of adipogenteic pathway (mediated by
  PPAR?)
• Reduction of regeneration response

Freemont, J Pathol 2007 211 252259
5

• Age related changes in
• bone quality and quantity
• bone volume
• bone architecture
• porosity
• geometry
• mechanical properties

6

• reduction in bone volume
• change in bone architecture

images courtesy of R. Müller
7
peak bone mass
BMD
age in years
8
changes in the cortical geometry

• endosteal resorption
• periosteal apposition

• increase of intramedullary width
• reduction of cross sectional area
• (i.e. tibial diaphysis 7 per decade)
• cortical thinning
• (i.e. vertebral body cortex 450µm
  250µm)

9
Increase in cortical porosity
R2 0.5
pore diameter in µm
Wachter K., Bone 2002
10
Aging of cortical bone
old osteons are stiffer increased
brttleness accumulation of microcracks reductio
n in thoughness
Schaffler MB, BONE 1995 Burr D, OI 2003
11
osteoporosis and fracture
"Bone failure not implant breakage is the primary
mode of failure inosteoporotic boneCornell J
AAOS 11109 (2003)
12
Screw fixation in osteoporotic bone

• Cancellous screws (humerus, femur)
• Cortical screws
• Cortical locking screws
• Lag screws (femoral head)
• Pedicle screws

Augat et al. JOR 16(5) 2002
13
Implant fixation in osteoporotic bone

• Proximal humerus plates
• Anterior cervical plates
• Vertebral body replacement
• Hip implants (nails, DHS, pins)
• External fixators (tibia)
• Locking plates (proximal tibia)

/ /
/
affected / not affected by BMD
/ /
/ / /
Bonnaire et al. OI 16(S2) 2005
14
