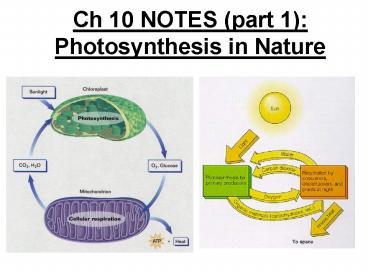

Ch 10 NOTES part 1: Photosynthesis in Nature

1
Ch 10 NOTES (part 1) Photosynthesis in Nature
2
PHOTOSYNTHESIS

• ? PHOTOSYNTHESIS the capture of light energy
  the conversion of this energy to stored chemical
  energy (in the form of sugar)
• -AUTOTROPHS producers capable of producing
  their own food ?PHOTOAUTOTROPHS use light energy
  to synthesize food (e.g. plants)

3
(No Transcript)
4

• ? Photosynthesis occurs in plants, algae, certain
  other protists, and some prokaryotes
• ? These organisms feed not only themselves but
  also the entire living world

5
Plants
Unicellular protist
10 µm
Purple sulfur bacteria
1.5 µm
Multicellular algae
Cyanobacteria
40 µm
6
(No Transcript)
7

• ? HETEROTROPHS consumers live on compounds
  produced by other organisms
• -animals that eat plants or other animals
• ? Almost all heterotrophs, including humans,
  depend on photoautotrophs for food and oxygen

8

• some heterotrophs are
• -decomposers live on dead matter

9
Chloroplasts The Sites of Photosynthesis in
Plants

• ? Leaves are the major locations of
  photosynthesis
• ? Their green color is from CHLOROPHYLL, the
  green pigment within chloroplasts
• ? Light energy absorbed by chlorophyll drives the
  synthesis of organic molecules in the chloroplast
• ? Through microscopic pores called STOMATA, CO2
  enters the leaf and O2 exits

10
(No Transcript)
11
CHLOROPLASTS

• ? organelles in which photosynthesis occurs
• ? found primarily in leaves (about 500,000
• per mm2)
• ? contain green pigment CHLOROPHYLL
• (absorbs light energy)
• ? found mainly in mesophyll (tissue inside leaf)
• ? a typical mesophyll cell has 30-40 chloroplasts

12
(No Transcript)
13
Leaf cross section
Vein
Mesophyll
Stomata
O2
CO2
Mesophyll cell
Chloroplast
5 µm
Outer membrane
Thylakoid
Intermembrane space
Thylakoid space
Granum
Stroma
Innermembrane
1 µm
14

• ? CO2 enters and O2 leaves through STOMATA
• ? water is delivered to leaves from the roots via
  veins

15
CHLOROPLAST

• ? enclosed by 2 membranes
• ? STROMA fluid within the chloroplast
• ? THYLAKOID MEMBRANES are interconnected
  contain the thylakoid space, or lumen (are
  usually in stacked columns called GRANA)
• ? chlorophyll is stored in the thylakoid
  membranes

16
(No Transcript)
17
PATHWAYS OF PHOTOSYNTHESIS

• ? TOTAL equation for photosynthesis
• 6CO2 12H2O light ? C6H12O6 6O2 6H2O

• energy
• ? NET EQUATION
• 6CO2 6H2O light ? C6H12O6 6O2
• energy

18
The Splitting of Water

• ? Chloroplasts split water into hydrogen and
  oxygen, incorporating the electrons of hydrogen
  into sugar molecules

19
Tracking Atoms Through Photosynthesis
12 H2O
6 CO2
Reactants
C6H12O6
6 H2O
6 O2
Products
20
Photosynthesis as a Redox Process

• ? Photosynthesis is a redox process in which
  water is oxidized and carbon dioxide is reduced

21

• ? like respiration, photosynthesis is a series of
  redox reactionsBUT, the electron flow is
  reversed!the electrons increase in potential
  energy as they move from water ? sugar an uphill
  process!
• (the required energy boost comes from light
  energy)

22
Two Stages of Photosynthesis

• 1) the LIGHT REACTIONS
•
• 2) the CALVIN CYCLE
• (a.k.a. the dark reactions
• or light-independent
• reactions)

23
The Two Stages of Photosynthesis A Preview

• ? Photosynthesis consists of the light reactions
  (the photo part) and the Calvin cycle (the
  synthesis part)

24
LIGHT REACTIONS

• ? convert solar energy ? chemical energy
• ? light is absorbed by chlorophyll and drives a
  transfer of electrons and H from water to an
  acceptor called NADP
• ? water is split and O2 is produced as a waste
  product
• ? NADP is reduced to NADPHALSO, ATP is
  generated via phosphorylation of ADP
• (photophosphorylation!)

25
(No Transcript)
26
CALVIN CYCLE

• ? CO2 from air is incorporated into organic
  molecules by carbon fixation
• ? NADPH and ATP from the light reactions power
  the production of sugar
• ? also called the dark reactions or
  light-independent reaction

27

• Locations of the Photosynthesis Reactions
• ? Light reactions occur in the THYLAKOIDS
• ? Calvin cycle occurs in the STROMA

28
H2O
Light
LIGHT REACTIONS
Chloroplast
29
H2O
Light
LIGHT REACTIONS
ATP
NADPH
Chloroplast
O2
30
H2O
CO2
Light
NADP
ADP
P

i
CALVIN CYCLE
LIGHT REACTIONS
ATP
NADPH
Chloroplast
CH2O (sugar)
O2
