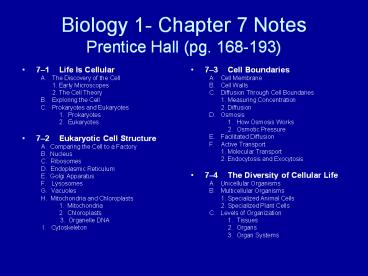

Biology 1- Chapter 7 Notes Prentice Hall (pg. 168-193)

1
Biology 1- Chapter 7 NotesPrentice Hall (pg.
168-193)

• 71 Life Is Cellular
• A. The Discovery of the Cell
• 1. Early Microscopes
• 2. The Cell Theory
• B. Exploring the Cell
• C. Prokaryotes and Eukaryotes
• 1. Prokaryotes
• Eukaryotes
• 72 Eukaryotic Cell Structure
• A. Comparing the Cell to a Factory
• B. Nucleus
• C. Ribosomes
• D. Endoplasmic Reticulum
• E. Golgi Apparatus
• F. Lysosomes
• G. Vacuoles
• H. Mitochondria and Chloroplasts
• 1. Mitochondria

• 73 Cell Boundaries
• A. Cell Membrane
• B. Cell Walls
• C. Diffusion Through Cell Boundaries
• 1. Measuring Concentration
• 2. Diffusion
• D. Osmosis
• 1. How Osmosis Works
• 2. Osmotic Pressure
• E. Facilitated Diffusion
• F. Active Transport
• 1. Molecular Transport
• 2. Endocytosis and Exocytosis
• 74 The Diversity of Cellular Life
• A. Unicellular Organisms
• B. Multicellular Organisms
• 1. Specialized Animal Cells
• 2. Specialized Plant Cells

2
7.1 The History of the Cell Theory

• Before microscopes were invented, people believed
  that diseases were caused by curses and
  supernatural spirits.
• As scientists began using microscopes, they
  quickly realized they were entering a new
  worldone of microorganisms.
• Microscopes enabled scientists to view and study
  cells, the basic units of living organisms.

3
Development of Light Microscopes

• The first person to record looking at water under
  a microscope was Anton van Leeuwenhoek.
• The microscope van Leeuwenhoek used is considered
  a simple light microscope because it contained
  one lens and used natural light to view objects.
• Compound light microscopes use a series of lenses
  to magnify objects in steps.

• These microscopes can magnify objects up to 1500
  times.

4
The Cell Theory

• Robert Hooke was an English scientist who lived
  at the same time as van Leeuwenhoek.
• Hooke used a compound light microscope to study
  cork, the dead cells of oak bark.
• He thought the structures he observed resembled
  the one room cells
• Hooke is credited with giving cells their name
• Cells are the basic building blocks of all living
  things.

5
The cell theory is made up of three main ideas

• 1. All organisms are composed of one or more
  cells.
• 2. The cell is the basic unit of structure and
  function of organisms.
• 3. All cells come from preexisting cells.
• Three Scientists contributed to the Cell Theory
• 1838- Schleiden plants are made of cells
• 1839- Schwann animals are made of cells
• 1855- Virchow New cells are produced from the
  division of old cells

6
Development of Electron Microscopes

• The electron microscope was invented in the
  1940s.
• This microscope uses a beam of electrons to
  magnify structures up to 500,000 times their
  actual size.

• There are two basic types of electron
  microscopes.
• The scanning electron microscope scans the
  surface of cells to learn their three dimensional
  shape.
• The transmission electron microscope allows
  scientists to study the structures contained
  within a cell.

7
Scanning Probe Microscope

• Discovered in the 1990s
• Produces images by tracing the surfaces of
  samples with a fine probe
• Can observe single atoms in the air or in solution

SEM Picture of Neuron
Condensed DNA by Scanning probe
8
Two Basic Cell Types
Prokaryotic and Eukaryotic Cells
9
Prokaryotic Cells

• Cells that do not contain internal membrane-bound
  structures and do not have a nucleus are called
  prokaryotic cells.

• Unicellular organisms such as bacteria are very
  simple.
• They still carry out all of lifes activities
  such as respiration, cell reproduction, growth,
  etc.

Prokaryotic Cell
10
Eukaryotic Cells

• Cells containing membrane-bound structures and a
  nucleus are called eukaryotic cells.

• Most of the multi-cellular plants and animals
  are made up of cells that are very specialized
  and diverse in their structures and functions

Eukaryotic Cell
11
7.2 Eukaryotic Cell Structure

• Organelles
• The membrane-bound structures within eukaryotic
  cells are called organelles.
• Each little organ has a specific function that
  contributes to cell survival.
• Separation of organelles into distinct
  compartments benefits the eukaryotic cells.
• Lysosomes
• Nucleus
• Plasma Membrane
• Endoplasmic Reticulum
• Mitochondrion

• Biologists divide the cell into
• two major parts
• The nucleus is the central membrane-bound
  organelle that manages cellular functions.
• Everything between the cell membrane and the
  nucleus is called the cytoplasm.

12
Nucleus

• Nuclear envelope double layered membrane
  surrounding nucleus contains small pores
• Nuclear pores- allow transport of materials in
  and out of nucleus
• Chromatin-granular material visible within the
  nucleus consists of DNA tightly coiled around
  proteins

Nucleolus

• Chromosomes threadlike structure within the
  nucleus containing the genetic information that
  is passed from one generation of cells to the
  next (chromosomes are formed when chromatin
  condenses during cell division)
• Nucleolus dense material in nucleus makes
  ribosomes which make proteins

Chromatin
Nuclear Envelope
Nuclear Pore
13
Ribosomes

• Ribosomes are made in the nucleolus.
• They travel in and out of the nucleus through the
  nuclear pores.

• Ribosomes are small particles within the cell on
  which proteins are assembled made of RNA and
  protein
• They can be free (in the cytoplasm)
• They are also attached to the rough endoplasm
  reticulum

Ribosomes
14
Endoplasmic reticulum

• The endoplasmic reticulum (ER) is responsible for
  assembly, transport, and storage of molecules
  within cell.
• There are two types

• Rough ER- contains ribosomes and makes proteins
• Smooth ER- lacks ribosomes has enzymes that make
  membrane lipids and detoxifies drugs
• Liver cells contain many smooth ER for
  detoxification

15
Golgi Apparatus

• Stacks of membranes in the cell that modifies,
  sorts, and packages proteins from the endoplasmic
  reticulum

• The Golgi apparatus is like a customization shop
  where finishing touches are added to proteins.

16
Lysosomes

• Lysosomes are organelles that contain digestive
  enzymes. They digest excess or worn out
  organelles, food particles, and engulfed viruses
  or bacteria.
• The lysosomes are the clean-up crew of the cell
• Tay-Sachs disease is caused by excess lipid
  accumulation on the brain. The cause of this
  disease has been traced to lysosomes that failed
  to function properly

17
Vacuoles

• Vacuoles are membrane-bound spaces used for
  temporary storage of materials (such as water,
  salts, proteins, and carbohydrates)
• Notice the difference between vacuoles in plant
  and animal cells.

Plant Cell
Vacuole
Animal Cell
18

• Paramecium have a contractile vacuole that pumps
  excess water out of the cell, which aids with
  homeostasis

19
Mitochondria

• Mitochondria are membrane-bound organelles in
  plant and animal cells that transform energy for
  the cell.
• A mitochondria, like the endoplasmic reticulum,
  has a highly folded inner membrane.
• The folds increase the surface area of the
  mitochondrion in order to make more energy (ATP)
• Cellular Respiration takes place in the
  mitochondria of cells

• Cellular respiration is the process that converts
  chemical energy stored in food into ATP energy
  for cells to use.
• Muscles cells (needed for movement) contain a
  large number of mitochondria for energy
  production

20
Chloroplasts

• Chloroplasts are found in cells of plants and
  some other organisms
• Chloroplasts are organelles that capture light
  energy and produce food to store for a later
  time.
• Photosynthesis takes place in the chloroplasts
• Chloroplasts contain green pigment called
  chlorophyll.

• Chlorophyll traps light energy and gives leaves
  and stems their green color.
• Chloroplasts acts like a solar power plant

21
Organelle DNA

• Lynn Margulis - described mitochondria and
  chloroplasts as free-living aerobic prokaryotes
  which developed a partnership with host cell
  endosymbiosis hypothesis
• chloroplasts and mitochondria have their own
  circular DNA ribosomes, make their own
  proteins, reproduce on their own

22
Cytoskeleton

• Cells have a support structure called the
  cytoskeleton within the cytoplasm.
• It is a network of proteins that help maintain
  cellular shape and movement
• The cytoskeleton is composed of microtubules and
  microfilaments.

• Microtubules are thin, hollow cylinders made of
  protein that maintain cell shape
• Microfilaments are thin solid protein fibers that
  help cells move (amoeba)

23
Centrioles

• Made of microtubules and cytoskeleton
• one of two tiny structures located in the
  cytoplasm of animal cells near the nuclear
  envelope
• help to organize cell division (helps cells split
  into two)
• only found in animal cells

24
Cilia and Flagella
Cilia

• Some cell surfaces have cilia and flagella, which
  are structures aid in locomotion or feeding.
• Made of microtubules from the cytoskeleton
• Cilia and flagella can be distinguished by their
  structure and by the nature of their action.
• Cilia are short, numerous, hair-like projections
  that move in a wavelike motion.
• Flagella are long projections that move in a
  whip-like motion.
• Flagella and cilia are the major means of
  locomotion in unicellular organisms.

Flagella
25
Microscope Lab

• Purpose To compare the basic structures and
  shape of plant and animals cells by looking at
  onion (epidermal) cells and cheek (epithelial)
  cells
• epidermal cells- cells that make up the
  protective outer covering of plants tissue that
  covers the human body
• epithelial cells- cells that make up tissues that
  cover bodies or organs
• To review basic microscope parts and lab
  techniques like staining cells and preparing a
  wet mount for microscope slides

• Plant Cells Animal Cells
• Shape Rectangular Circular
• Components Cell wall Cell Membrane
• Cell Membrane Nucleus
• Nucleus

26
Plant cells have structures not found in animal
cells

• Cell wall - help give plants shape, support and
  protection
• Chloroplast-site of photosynthesis

• Large central vacuole - contains water which
  helps keep plant from wilting when the vacuole
  is full it presses against the cell wall to give
  the plants rigidity (turgid pressure)

27
Animal cells have structures not found in plant
cells

• Cytoskeleton- animal cells use the cytoskeleton
  to help with support and aid in movement

• Centrioles-aid in cell division

28
Differences between Plant/Animal Cells
29
Animal Cell
30
Plant Cell
31
7.3 Cellular Boundaries

• The cell membrane acts as a semi-permeable
  membrane.

• The cell wall is a fairly rigid structure located
  outside the plasma membrane that provides
  additional support and protection.
• It is present in plants, algae, fungi, and many
  prokaryotes.
• Allows water oxygen, carbon dioxide to pass
  through easily
• Plant cell walls are made of cellulose (fiber)

32
Cell Membrane

• All cells are surrounded by the cell membrane
• It regulates what enters and leaves the cell and
  provides protection and support
• It protects against viral and bacterial invaders
• It consists of two layers called the lipid
  bilayer.
• The cell membrane is also called the plasma
  membrane

33
The Structure of the Cell Membrane

• Lipids (lipid bilayer)
• Proteins embedded in bilayer
• Some proteins form channels or pumps to move
  material across the membrane
• Carbohydrates attached to proteins
• These act as signals or identification cards,
  allowing the cells to recognize each other
• Because it allows different components to move
  through it, it is also called the fluid mosaic
  model

34
The Plasma Membrane

• All living cells must maintain a balance
  regardless of internal and external conditions.
  Survival depends on the cells ability to
  maintain the proper conditions within itself.
• Why cells must control materials
• The plasma membrane is the boundary between the
  cell and its environment.

• It is the plasma membranes job to
• allow a steady supply of glucose, amino acids,
  and lipids to come into the cell no matter what
  the external conditions are.
• remove excess amounts of these nutrients when
  levels get so high that they are harmful.
• allow waste and other products to leave the cell.

35
Cell membrane

• This process of maintaining the cells
  environment is called homeostasis.
• Semi- (selectively) permeability is a process
  used to maintain homeostasis in which the plasma
  membrane allows some molecules into the cell
  while keeping others out.

36
Diffusion

• The process by which molecules tend to move from
  an area where they are more concentrated to an
  area where they are less concentrated.
• Molecules move through cell boundaries
• Concentration- the amount of solute in a given
  amount of solution
• Equilibrium- when the concentration of a solute
  is the same throughout the solution
• Does not require energy moves down the
  concentration gradient (H?L)
• Moves oxygen, carbon dioxide and water

37
Osmosis

• diffusion of water through a selectively
  permeable membrane

Water will keep moving until equilibrium is
reached
38
Hypertonic Solution

• concentration of solutes in solution is higher
  than the concentration of solutes inside the cell
• causes water to diffuse out of the cell may
  cause cell to shrivel and shrink disrupts
  metabolism and may kill cell

39
Hypotonic Solution

• concentration of solutes is lower than the
  concentration inside the cell
• causes water to diffuse into the cell
• animal cells may burst in a hypotonic solution
• plant (and many bacteria) cells do not burst
  because they are surrounded by a rigid cell wall

40
Isotonic Solution

• the concentration of solutes equals the
  concentration of solutes inside the cell
• does not result in the net diffusion of water
  into or out of the cell
• kidneys and skin help to maintain isotonic
  conditions in your body

41
The Effects of Osmosis on Cells
42
Facilitated Diffusion

• movement of specific molecules across cell
  membranes through protein channels
• passive - does not require an input of energy
• always moves particles down a concentration
  gradient (H?L)
• because these molecules re polar they must travel
  through channels in transport proteinsex glucose

Glucose molecules
High Concentration
Cell Membrane
Protein channel
Low Concentration
43
Active Transport

• energy-requiring process that moves material
  across a cell membrane against a concentration
  difference
• requires energy from ATP molecules
• can move particles up a concentration gradient
  (from low to high)
• requires carrier proteins to pump particles
  across membrane
• ex Na-K pumps in nerve cells, movement of
  nutrients into plant roots

44
Bulk transport - large molecules, food, and other
substances are packaged in membrane-bound sacs
and moved across the membrane

• The graph to the right shows the relative size of
  molecules that move in and out of the cell
• Requires energy
• Endocytosis
• Phagocytosis
• Pinocytosis
• Excoytosis

45
Endocytosis

• process by which a cell takes material into the
  cell by infolding of the cell membrane
• Two Types
• Phagocytosis (cell eating)-process in which
  extensions of cytoplasm surround and engulf large
  particles and take them into the cell
• Pinocytosis (cell drinking)-process by which a
  cell takes in a liquid from the surrounding
  environment

Amoeba ingesting food
46
Exocytosis

• wastes and cell products leave the cell by fusing
  with membrane
• products packaged by Golgi apparatus and excreted
  from cell
• Removal of water by the contractile vacuole of
  paramecium.

47
7.4- Diversity of Cellular Life

• Unicellular Organisms
• Sometimes single cells are the organism
• Grow, respond to the environment, transform
  energy, and reproduce

• Multicellular Organisms
• Made up of many cells
• Very diverse
• Depend on communication and cooperation between
  specialized cells
• Cell specialization
• Cells throughout an organism can develop in
  different ways to perform different tasks

Yeast Volvox Bacterium
48
Cell Specialization

• Animal cells
• Red Blood Cells- carries oxygen small and round
  to fit through vessels
• Pancreatic Cells- produce enzymes to break down
  food contains many ribosomes and rough ER to aid
  in this process
• Muscle Cells- long and threadlike to aid in
  movement contain many mitochondria for energy
  production
• Plant Cells
• Guard cells- in the pores of leaves aids in
  water exchange

49
Cell Shape is Related to Function
50
Levels of Organization
Muscle cell
Smooth muscle tissue
Stomach
Digestive system

• Many multicellular organisms have structures
  called organs that have a specific function and
  work with other organs.
• Working together, these organs carry out the life
  processes of the entire organism.
• Multicellular organisms contains cells, tissues,
  organs and organ systems
