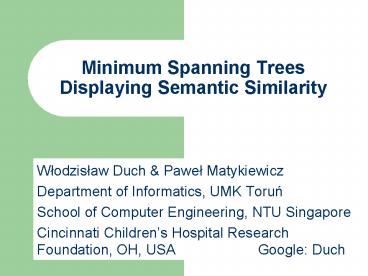

Minimum Spanning Trees Displaying Semantic Similarity

1
Minimum Spanning TreesDisplaying Semantic
Similarity

• Wlodzislaw Duch Pawel Matykiewicz
• Department of Informatics, UMK Torun
• School of Computer Engineering, NTU Singapore
• Cincinnati Childrens Hospital Research
  Foundation, OH, USA Google Duch

2
The Problem

• Finding people who share some of our interests in
  large organizations or worldwide is difficult.
• Analyzing peoples homepages and their lists of
  publications is a good way to find groups and
  individuals sharing common scientific interest.
• Maps should display individuals and groups.
• The structure of graphical representations
  depends strongly on the selection of keywords or
  dimensionality reduction.

3
The Data

• Reuters-215785 datasets, with 5 categories and 1
  176 elements per category.
• 124 Personal Web Pages of the School of
  Electrical and Electronic Engineering (EEE) of
  the Nanyang Technological University (NTU) in
  Singapore, with 5 categories (control,
  microelectronics, information, circuit, power),
  and 14 41 documents per category.

4
Document-word matrix

• Document1 word1 word2 word3. word4 word3 word5.
• Document2 word1 word3 word5. word1 word3 word6.
• The matrix documents x word frequencies

5
Methods used

• Inverse document frequency and term weighting.
• Simple selection of relevant terms.
• Latent Semantic Analysis (LSA) for dimensionality
  reduction.
• Minimum Spanning Trees for visual representation.
• TouchGraph XML visualization of MST trees.

6
Data Preparation

• Normalize columns of F dividing by highest word
  frequencies
• Among n documents, term j occurs dj times
  inverse document frequency idfj measures
  uniqueness of term j

• tf x idf term weights

7
Simple selection

• Simple selection take wij weights above certain
  threshold, binarize and remove zero rows

• Calculate similarity using cosine measure

8
Dimensionality reduction

• Latent Semantic Analysis (LSA) use Singular
  Value Decomposition on weight matrix W

with U eigenvectors of WWT and V of WTW. Remove
small eigenvalues, recreate reduced W and
calculate similarity
9
Kruskals Algorithm and Top - Down Clusterization
10
Modified Kruskals Algorithm and Bottom - Up
Clusterization
11
Reuters results

• Method topics clusters accuracy
• No dim red. 41 129 78.2
• LSA dim red. 0.8 (476) 41 124 76.2
• LSA dim red. 0.6 (357) 41 127 75.2
• Simple Selection 41 130 78.5
• W rank in SVD 595

12
Results for EEE NTU Web pages

• Method topics clusters accuracy
• No dim red. 10 142 84.7
• LSA dim red. 0.8 (467) 10 129 84.7
• LSA dim red. 0.6 (350) 10 137 82.8
• Simple Selection 10 145 85.5

13
Examples

• TouchGraph LinkBrowser
• http//www.neuron.m4u.pl/search

14
Results for Summary Discharges

• New experiments on medical texts.
• 10 classes and 10 documents per class
• Plain Doc-Word matrix 23
• Stop-List, TW-IDF, S.S. 64
• Concept Space 64
• Transformation 93

15
Simple Word-Doc Vector Space
16
Meta-Map Concept Vector Space
17
Concept Vector Space after transformation
18
Summary

• In real application knowledge-based approach is
  needed to select only useful words and to parse
  their web pages.
• Other visualization methods (like MDS) may be
  explored.
• People have many interests and thus may belong to
  several topic groups.
• Could be a very useful tool to create new shared
  interest groups in the Internet.
