Title: National Science Foundation IndustryUniversity Cooperative Research Center IUCRC

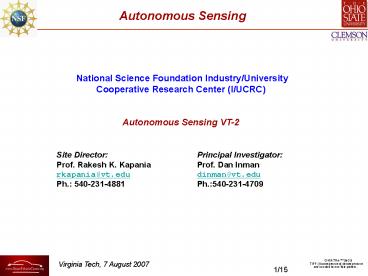

1
National Science Foundation Industry/University
Cooperative Research Center (I/UCRC)
Autonomous Sensing VT-2 Site Director
Principal Investigator Prof. Rakesh K.
Kapania Prof. Dan Inman rkapania_at_vt.edu dinma
n_at_vt.edu Ph. 540-231-4881 Ph.540-231-4709
2
  • Primary Industry Partners
  • Automotive
  • Aircraft
  • Civil structure owners
  • Power plants
  • Research Thrust Areas
  • Applications of Structural health monitoring for
  • Lose bolts, delaminations, corrosion, cracking
  • Applications to remote wireless sensing

3
What is Autonomous Sensing and how does it differ
from wireless sensing
  • Autonomous sensing is wireless but also includes
  • Self power
  • Computing
  • Decision making
  • Adaptability
  • Transmission
  • Self diagnostics

4
Most Structural Health Monitoring Require Known
Inputs As Well As Measured Responses
  • This requires the transduction sensor to also
    have an actuation component
  • This energy of excitation must be considered in
    designing an autonomous sensor system
  • A nice fit to these requirements is the
    electrical impedance method

5
The Properties of the impedance method making it
suitable for autonomous sensing are
  • Not model based
  • Qualitative approach to damage detection
  • Uses small PZTs as co-located actuators and
    sensors
  • Can be remotely controlled and automated
  • High frequency excitation provides
  • Detection of incipient structural faults, such as
    cracks or loose bolts
  • Localized sensing area
  • Insensitivity to changes in boundary conditions,
    loading, or operational vibrations
  • Low excitation forces produce low power
    requirements

There are many other good methods in the
literature
6
Impedance Based Methods Have a History of
Successes
Blades
Thermal Protection Tiles
Large Bolted Structures
Rail Track
7
What is needed to make such systems autonomous?
  • Harvested Energy
  • Computing
  • Wireless transmission
  • Transducers
  • And most importantly a synergy between these
    elements

8
State of the Art Here is where we are now in
researching this idea.
  • The basic building block has been developed
    around the impedance based structural health
    monitoring algorithm, reduced to a board and
    tested on laboratory structures under self
    powered operation.

NASA SBIR Phase II Extreme Diagnostics, Inc
9
In order to reduce the required energy to levels
available from harvesting, the impedance method
is emulated with less power hungry computation
  • The measuring path passes through the
  • piezoelectric, an Opamp, and a comparator
  • Differences between the paths are represented in
  • terms of a variation count of the number of
  • differences between the received reference path
  • sequence and measuring path sequence at each
  • frequency component
  • An ensemble average of variation counts
  • produces a signature
  • The damage metric is calculated as a sum of
  • absolute differences between the baseline and a
  • signature through the frequency components

10
By decreasing the core clock frequency, the power
is greatly reduced
A LED is used as a damage indicator if the
absolute sum of differences exceeds a set
threshold level The LED increases power
dissipation by 105 mW when lit At the lowest
core clock frequency, the prototype operates at
under 1 W
11
Autonomous SHM hardware via a battery and
thermoelectric power harvesting
  • A Powerizer 3.7 V, 170 mAh lithium ion cell
  • (Li-ion) is used to operate the TMS320F2812
  • 32-bit fixed point DSP evaluation board from TI
  • With a fully charged cell, the prototype ran for
    57 minutes
  • Four 3 x 3 x 0.36 cm Melcor R high temperature
    thermoelectric coolers with cooling fins are
    placed on a hot plate
  • At a temperature gradient of 80 C, the battery
    is recharged in just over an hour, and could
    operate the prototype for about five minutes

12
Milestones for the first year of the proposed
research
  • Determine and implement a sensor failure
    diagnostic
  • Determine a multiple sensor networking scheme and
    demonstrate this
  • Clarify the sensing scales for available
    transducers in preparation of multiple scale
    structural monitoring

13
The Vision for Future Years
  • Adapt the autonomous sensor concept to a partner
    need
  • Develop a multiple scale autonomous sensor system
  • Develop a reconfigurable sensor system
  • Develop a multiple physics sensor system
    (temperature, strain, flow)

14
Other ongoing projects at CIMSS
  • Energy Harvesting (AFOSR 06 MURI, U. Washington)
  • Structural Health Monitoring (AFOSR 06 MURI,
    Arizona State)
  • Structural Mechanics for Adaptive Optics
    (AFOSR/NA)
  • Active Sensing (NSF, Extreme Diagnostics, Inc)
  • Smart Control Sticks (ARL,Stirling Dynamics, Inc)
  • Morphing Aircraft (AFR, AVID, Inc, Barron
    Associates)

15
Autonomic Structures The way forward
  • Autonomic structures and materials formed the
    topic of a recent workshop sponsored by the
    European Science Foundation, and the US funding
    agencies (NSF, AFOSR, ARO, ONR)
  • While no clear definition emerged the following
    idea evolved
  • An Autonomic Structure is a load bearing
    composite, multifunctional material structure
    capable of (i) sensing and diagnosis of threats,
    (ii) penetration prevention, (iii) load capacity
    preservation, and (iv) functionality restoration.
  • Integrated systems that become more then sensing
    and monitoring and include
  • Decision making
  • The ability to react
  • The ability to change physical configuration
  • Our proposed research is a step in this direction
