Title: OPERATIONAL AMPLIFIER PHE10


1

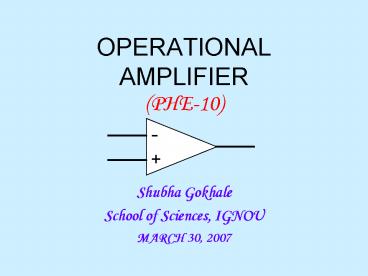

OPERATIONAL AMPLIFIER(PHE-10)
  • Shubha Gokhale
  • School of Sciences, IGNOU
  • MARCH 30, 2007

2
Typical Op Amp IC Packages
Metal Can Package
Dual-in-Line package (DIP)
3
Op Amp Pin-out connectionsDual-in-Line Plastic
Package
4
Op Amp Pin-outs Metal Can
5
WHAT IS INSIDE AN OP AMP?
6
Phases of output signal wrt input
input
7
Common Emitter Amplifier
8
Two matched transistors form a differential
amplifier
VC1VCC-I1R2
VC2VCC-I2R4
I1
I2
input
0 V
-VEE0.7 V
Constant current I1I2
9
Transisterized Differential Amplifier
Double ended input - double ended output diff.
amp voutA (v1-v2)
10
Transistorized Differential Amplifier
11
Single Ended Differential Amplifier (commonly
used in op-amps)
Inverting input
12
Op Amp stages with pin-outs of IC741
13
Op amp Comparator
  • Open loop gain of op amp is defined as
  • AOL Vo / VD
  • where VD VNI VINV
  • Open loop gain of op amp is very high
    (ideally infinite).
  • Any small difference between VNI and VINV
    results into saturation of output voltage VSAT
  • i.e. for VNI lt VINV output is VSAT and
  • for VNI gt VINV output is VSAT
  • Value of VSAT is limited by the supply voltage of
    op amp

14
Op amp Voltage Level Detector
15
Important features of Op Amp
  • High open loop gain (ideally infinite) which
    implies that even the smallest difference between
    the two inputs results into saturated output
    voltage
  • High input impedance (ideally infinite) implies
    that there is no current flowing into the input
    of an op amp

16
Virtual Ground
  • These two conditions give rise to VIRTUAL GROUND,
    where the voltages at both the inputs are
    maintained at exactly same level.
  • To achieve this condition, a feedback circuit
    between the output and the inverting input
    terminal of the op amp is necessary.
  • This results into many applications of op amp,
    which qualify it to be OPERATIONAL adder,
    subtractor, multiplier, divider etc.

17
Op amp Applications
18
Inverting Amplifier
  • Multiplier/Divider circuit, whose gain is decided
    by the values of resistors

19
Inverting Amplifier Analysis
Due to virtual ground Iin Vin / Rin If
( Vout / Rf ) ?Vout (Rf / Rin ) Vin Rf gt
Rin ?multiplier Rf lt Rin? divider
20
Non-inverting Amplifier
Due to virtual ground VINV VNI Vin If
(VoutVin) / Rf Iin Vin / Rin ?Vout 1 (Rf
/ Rin ) Vin
21
Unity Gain Amplifier (Non-inverting Buffer)
22
Inverting Adder
Vout Rf (V1 / R1) (V2 / R2) (V3 / R3)
23
Subtractor
Vout Rf (V2V1)/ Rin
24
Subtractor Analysis
Vout V1Rf / Rin 1 (Rf / Rin ) V
Rf (V2 V1) / Rin
25
Op amp integrator
Iin Vin / Ri n If Cf ( dVout / dt )
26
Op amp Differentiator
Iin CindVin /dt If Vout / Rf
27
Op amp Characteristics
28
Common Mode Rejection Ratio (CMRR)
  • It is the ability of an op amp to reject the
    signal which is present at its both inputs
    simultaneously i.e. the common mode signal
  • CMRR AOL / ACM, where ACM is common mode
    voltage gain defined by Vout / VCM
  • Ideally CMRR is infinite
  • For IC 741 it is 90 dB

29
Slew Rate
  • Maximum rate of change of output voltage (when
    typically a step voltage is given at the input
    terminal)

30
Slew Rate (cont)
  • Slew rate is caused by the finite response time
    of the circuit elements of an op amp
  • It limits the highest possible frequency of
    operation

31
  • Open Loop Gain
  • AOL is ideally infinite
  • In case of typical practical op amp like IC 741
    it is of the order of 105 i.e. about 100 dB
  • Input Resistance
  • RI is ideally infinite
  • In case of IC 741 it is 2 MO
  • Output Resistance
  • RO is ideally zero
  • In case of IC 741 it is 75 O

32
  • Input Offset Voltage
  • Small voltage needed to be applied between INV
    and NI terminals to get zero output voltage
  • Ideally it should be 0 V (CM operation)
  • Output Offset Voltage
  • Under common mode operation, output voltage
    should be zero, but due to mismatch is devices it
    is non-zero (Can be corrected by applying
    voltage between Pins 1 and 5 of IC 741)

33
Summary
  • Op amp can be used for various (mathematical)
    operations like addition, subtraction,
    multiplication, division, differentiation,
    integration etc.
  • Infinite open loop gain and infinite input
    resistance give rise to VIRTUAL GROUND
  • Op amp is available in a simple to use IC form
    which require dual supply
  • Many other applications can be implemented using
    op amp

34
ACKNOWLEDGMENT
  • Some circuits in this presentation are based
    on following materials
  • HANDBOOK OF OPERATIONAL AMPLIFIER APPLICATIONS
  • by Texas Instruments
  • www.williamson-labs.com

35
Thank you !
