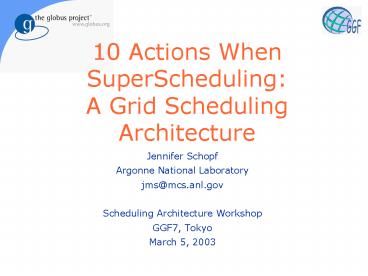

10 Actions When SuperScheduling: A Grid Scheduling Architecture

1
10 Actions When SuperSchedulingA Grid
Scheduling Architecture

• Jennifer Schopf
• Argonne National Laboratory
• jms_at_mcs.anl.gov
• Scheduling Architecture Workshop
• GGF7, Tokyo
• March 5, 2003

2
10 Actions History

• 10 Actions for Superscheduling
• June 2000-July 2001
• How does a user schedule on the grid?
• Resulted in GGF document GWD-CI.5
• Late 2002 this was updated, sent to special issue
• Includes examples from current approaches
• www.mcs.anl.gov/jms/Pubs

3
Context

• Grid scheduling defined as the process of making
  scheduling decisions involving resources over
  multiple administrative domains
• User is currently the most common Grid
  Scheduler
• The steps defined are currently performed by
  other Grid-level schedulers, but none of them by
  any one approach

4
Context, cont.

• Grid schedulers arent Local Resource Managers
  (LRMS)
• no ownership or control over resources
• jobs get submitted to LRMS as user
• Grid scheduler doesnt have control or often even
  info about job submitted at this level
• We did not consider errors

5
In a nutshell...
6
Ordering is approximate(from GGF doc)

• We use the word step and a numbering system
  for easy reference. This does not imply that
  these actions are actually performed in this
  order, or that they all MUST occur in every
  system. In general, dont pay too much attention
  to the numbering. Some of the steps may be
  interactive, recursive, repeated, or just plain
  ignored by a given system.

7
Phase One Resource Discovery
Phase One-Resource Discovery

8
1. Authorization Filtering

• Where do you have an account?
• User
• List in a drawer
• Ideally
• A wallet of credentials, smart enough to
  remember my username at different sites as well
• Todays systems
• EDG and GridLab scheduler use MDS for this info

9
2. Application Definition

• User
• Generally user defined
• Often inaccurate, incomplete
• Ideally
• Smart compilers or other tools to automatically
  generate information about application
  requirements and runtimes
• Todays systems
• User defined at the command line info or Condor
  ClassAds

10
3. Minimum Requirement Filtering

• Use static data to limit the search space
• Used to cut down dynamic queries needed
• Can be combined with dynamic search (4)
• User
• I know I need Linux, I dont consider others
• Ideally
• Automatic, part of dynamic search
• Todays systems
• Part of dynamic search (4)

11
Phase One Resource Discovery
Phase One-Resource Discovery
Phase Two - System Selection

12
4. Information Gathering

• Dynamic searches to match resources with
  application requirements
• User
• Might use the Globus MDS or a portal information
  service like HotPage, might just know
• Ideally
• Seamless interface to global monitoring
• Todays systems
• EDG interacts with MDS, PBS has its own
  internally

13
5. System Selection

• Matching between resources and application
  information
• Users
• Best estimate
• Ideally
• Perfect matches based on current information,
  using variance information and other predictions
• Todays systems
• Condor - matchmaking
• PBS - heuristic algorithms
• Maui/Silver - submit to local sites, evaluate

14
Phase One Resource Discovery
Phase One-Resource Discovery
Phase Three- Job Execution

15
6. Advance Reservation (Optional)

• Reserve resources in a guaranteed way
• Users
• Call up sys admins and friends (call, on the
  phone)
• Ideally
• Automatically done when you submit a job based on
  user requirements
• Current systems
• Enabled in PBSPro and Maui

16
7. Job Submission

• Run the job on the resources selected
• User
• Qsub
• Ideally
• Make it so
• Current systems
• Each has its own API

17
8. Preparation tasks(11. Clean-up tasks)

• File transfers, directory set ups
• Users
• Scp, ftp, mkdir
• Ideally
• Automatically done as part of job submission
• Current systems
• Condor/DagMan can do file staging

18
9. Monitoring Progress

• How is my job doing?
• Should I move it somewhere else?
• Users
• qstat
• Moving is hard to do, so generally not done
• Ideally
• System takes care of it based on intuitive
  knowledge of user requirements, and good
  prediction techniques
• Current Systems
• Every LRMS has a stat command

19
Summary
20
For more information

• Jennifer Schopf
• jms_at_mcs.anl.gov
• Current document
• www.mcs.anl.gov/jms/Pubs/sched.arch.2002.pdf
