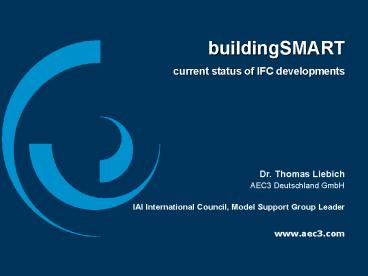

buildingSMART current status of IFC developments

1
buildingSMART current status of IFC developments

• Dr. Thomas Liebich
• AEC3 Deutschland GmbH
• IAI International Council, Model Support Group
  Leader

2
Status of IFC specification

• Development of IFC2x Platform and ISO16739 PAS
• Current IFC Specification and Implementation
  ahead

3
Next development steps

• New extension of IFC2x platform - plus some
  changes?
• To be ready of application on market in 2010 ?
  IFC2010
• Could be the starting point for ISO/IS 16739
• Note schedule beyond IFC2010 not yet confirmed

4
IFC development cycle

• IFC development cycle
• Define the specification
• Implement it in software
• Test it in a test bed ? currently gt 400 unit test
  cases
• Standardize it (IFC final release IFC as ISO/IS)

5
IFC2x3 Certification

• Against a view definition (ako DEX ?)
• Against a test bed
• Against a series of real project files
• Toughest certification so far
• But still a facilitated self certification

6
IFC certified implementation today

• Archimen Active3D
• Autodesk AutoCAD Architecture
• Autodesk Revit Architecture
• Bentley Bentley Architecture
• DDS DDS-CAD Building Service
• Nemetschek Allplan
• Graphisoft ArchiCAD
• Solibri Solibri Model Checker
• Tekla Tekla Structures
• Progman MagiCAD
• Vizelia Facility Online
• Nemetschek NA VectorWorks
• NorConsult IFC3DX - Oracle CADView-3D
• SCIA ESA-PT

7
BIM/IFC in Norway

• Mission
• Establish an IFC based BIM Hand over an as
  built model to running FM operations.

• Statsbygg (670 employees)
• acts on behalf of the Norwegian government as
  manager and advisor in construction and property
  affairs

Norway Central Government Budget "Statsbygg
shall ... initiate and participate in RD
projects, including making accessible own
building projects for piloting, thus contributing
to the gradual proliferation of digital BIM
models in the AEC/FM industry through the
lifespan of buildings.
8
BIM/IFC in Denmark

• State clients
• 10 requirements regarding ICT. The requirements
  have be developed as a joint effort between The
  National Agency for Enterprise and Construction,
  Realdania and parties from the industry
• should be used by 1 January 2007
• Requirement regarding 3D building models and IFC
• in construction projects above 400k1 clients
  shall consider to demand building models in IFC
  format from consultants in design competitions
  and detailed design
• in construction projects above 2000k1 clients
  can demand building models in IFC format as
  as-built information
• in construction projects above 5300k1 clients
  shall demand building models in IFC format from
  consultants in design competitions and detailed
  design

Note 1 Estimated construction cost Text
approved by Nicolai Hellmann from The National
Agency for Enterprise and ConstructionPictures
made by Holscher, Kjær Richter, Plot and Friis
Moltke
9
BIM/IFC in Finland

• SENAATTI Propertieslandlord on behalf of the
  Finish government for financing, managing and
  operating facilities
• already supported gt10 construction projects using
  BIM and IFC (at several levels)

Senaatti Properties started to demand BIM/IFC in
2007
Statement from SENAATII product modeling
requirements In the first phase, all design
software packages which have passed IFC 2x3
certification may be used for modeling.
10
BIM/IFC in USA

• Strategy
• establish the 3D-4D-BIM Program, incl.
• GSA BIM Guide
• BIM pilot application on current capital projects
• Contractual language for 3D-4D-BIM adoption

• GSA (13.000 employees)
• is a federal agency , acting as the
  governments landlord, it manages ca. 32 Mio
  m² workspace for the civilian federal government

The Office of the Chief Architect (OCA) will work
with the regions to implement this new technology
. The goal will be to provide IFC-based
building information models in support of all
national office concept reviews on projects
receiving design funding in FY 2007 and beyond.
11
BIM/IFC in Singapur

• CORENETIT initiative led by the Ministry of
  National Development, driven by Building and
  Construction Authority
• Re-engineer the business process of the
  construction industry
• e-Submission System
• today compulsory electronic submission via web
  portal
• future (beta-test today) Automated code
  checking process for IFC based BIM models

12
BIM/IFC in Germany
What should public planning authorities do ?

• Increase support for standardization in
  construction by the public building
  administration

• General support for non-proprietary open
  interfaces in construction (to avoid vendor
  dependence)

• Support the IAI by setting up a task force on
  public planning authorities to specify
  technical requirements and document them in a
  project manual

There is an urgent need for neutral,
non-proprietary data formats and their general
dissemination and application.
13
Total picture of buildingSMART

• from process needs
• from exchange req.
• from software avail.
• to open standard
• in software interfaces
• in exchange contracts
• in process improvement
