Title: L 31 Light and Optics 1


1

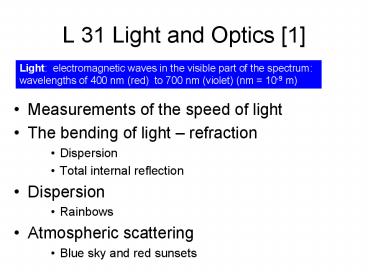

L 31 Light and Optics 1
Light electromagnetic waves in the visible part
of the spectrum wavelengths of 400 nm (red) to
700 nm (violet) (nm 10-9 m)
  • Measurements of the speed of light
  • The bending of light refraction
  • Dispersion
  • Total internal reflection
  • Dispersion
  • Rainbows
  • Atmospheric scattering
  • Blue sky and red sunsets

2
Galileos attempt to measure the speed of light c
Galileos assistant Sagredo
Galileo
D 1 mile
  • Galileo was first to even consider that the speed
    was finite
  • Galileo turns on his flashlight and starts his
    clock
  • When Sagredo sees Galileos light, he turns on
    his flashlight
  • When Galileo sees the light from Sagredos
    flashlight, he notes the time
  • the actual delay would be t 2D/c 10
    microseconds, so the attempt failed.

3
The speed of light inside matter
  • The speed of light c 300,000,000 m/s
  • 3 x 108 m/s 186,000 mi/s in vacuum
  • In any other medium such as water or glass, light
    travels at a lower speed.
  • The speed of light in a medium can be found by
    using v c/n, where c is the speed in vacuum
    (300,000,000 m/s) and n is a number (greater than
    1) called the index of refraction.

4
v(speed in medium) c(speed in vacuum) / n
5
VISIBLE LIGHT
Color ? WAVELENGTH OR FREQUENCY Wavelength X
Frequency c
6
COLOR
  • Any color can be made by combining primary colors
    ? Red, Green and Blue
  • A color TV uses mixtures of the primary colors to
    produce full color images
  • Perceived color is a physiological effect ?
    depends on how our eyes work

7
Refraction? the bending of light
  • One consequence of the fact that light travels
    more slowly in say water compared to air is that
    a light ray must bend when it enters water? this
    is called refraction
  • the amount of refraction (bending) that occurs
    depends on how large the index of refraction (n)
    is, the bigger n is, the more bending that takes
    place

8
Reflection and refraction at a surface
Normal line
Incident Light ray
reflected Light ray
refracted Light ray
9
Refraction of light
Incident ray
refracted ray
Water n 1.33
Glass (n1.5)
The refracted ray is bent more in the glass
10
Refraction from air into water
When a light ray goes from air into water, the
refracted ray is bent away toward the normal.
normal
n 1.0
n 1.33
water
11
Refraction works both ways water into air
normal
When a light ray goes from water into air, the
refracted ray is bent away from the normal.
n 1.0
n 1.33
water
12
Windows can be mirrors
13
Some interesting effects due to refraction
  • Underwater objects appear to be closer to the
    surface than they actually are
  • Total internal reflection? fiber optics
  • Seeing through a window
  • Dispersion ? rainbows

14
What does it mean to see something?
  • To see something, light rays from the object
    must get into your eyes.
  • unless the object if a light bulb or some other
    luminous object, the light rays from some light
    source (like the sun) reflect off of the object
    and enter our eyes.

BEER!
15
Where is the fish? Closer than you think!
Apparent location Of the fish
fish
16
Total internal reflection
n2
n1 n2
When the incident angle is too big, the refracted
ray disappears and the incident ray is totally
reflected back.
17
Fiber optics
?A fiber optic cable is a bunch (thousandths)
of very fine (less than the diameter of a hair)
glass strands clad together.
? The light is guided through the cable
by successive internal reflections.
18
fiber optic communications
  • can carry more info with less distortion over
    long distances
  • not affected by atmospheric conditions or
    lightning and does not corrode
  • copper can carry 32 telephone calls, fiber optics
    can carry 32,000 calls
  • takes 300 lbs of copper to carry same info as 1
    lb of fiber optics
  • downside ? expensive

19
The index of refraction (n) dependsof the color
(wavelength) of the light
1 nm 10-9 m
20
Different colors are refracted (bent) by
different amounts
White light
red
contains all wavelengths (colors)
violet
Glass prism
21
The rainbow
  • Rainbows are caused by dispersion of sunlight
    from water droplets which act as tiny prisms

22
Why is it a rain BOW ?
The drops must be At just the right Angle (42
degrees) Between your eyes And the sun to see The
rainbow. This Angle is maintained Along the arc
of a Circle.
Wow!
