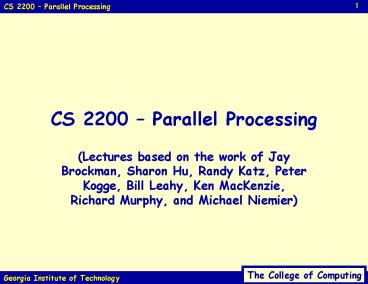

CS 2200 Parallel Processing

1
CS 2200 Parallel Processing

• (Lectures based on the work of Jay Brockman,
  Sharon Hu, Randy Katz, Peter Kogge, Bill Leahy,
  Ken MacKenzie, Richard Murphy, and Michael
  Niemier)

2
Our Road Map
Processor
Memory Hierarchy
I/O Subsystem
Parallel Systems
Networking
3
The Next Step

• Create more powerful computers simply by
  interconnecting many small computers
• Should be scalable
• Should be fault tolerant
• More economical
• Multiprocessors
• High throughput running independent tasks
• Parallel Processing
• Single program on multiple processors

4
Key Questions

• How do parallel processors share data?
• How do parallel processors communicate?
• How many processors?

5
TodayParallelism vs. Parallelism

• Uni
• Pipelined
• Superscalar
• VLIW/EPIC

• SMP (Symmetric)
• Distributed

TLP
ILP
6
Flynns taxonomy

• Single instruction stream, single data stream
  (SISD)
• Essentially, this is a uniprocessor
• Single instruction stream, multiple data streams
  (SIMD)
• Same instruction executed by all processors,but
  each operates on its own data
• Each processor has its own data memory,but all
  share the instr memory and fetch/dispatch

7
Flynns Taxonomy

• Multiple instruction streams, single data stream
  (MISD)
• E.g. a pipeline of specialized processors, each
  does something on the data and passes on to next
  processor
• Multiple instruction streams, multiple data
  streams (MIMD)
• Each processor fetches its own instructionsand
  operates on its own data

8
A history

• Many early parallel processors were SIMD
• Recently, MIMD most common multiprocessor arch.
• Why MIMD?
• Can make MIMD machines using off-the-shelf
  chips
• Many uniprocessors are made, multiprocessors much
  fewer
• Price low for uniprocesor chips (mass
  market),high for specialized multiprocessor
  chips (too few are made)
• Can get cheaper multies if they use the same
  chips as unies

9
A history

• MIMD machines can be further sub-divided
• Centralized shared-memory architectures
• All processors sit on the same bus anduse the
  same centralized memory
• Works well with smaller of processors
• Bus bandwidth a problem with many processors
• Physically distributed memory
• Each processor has some memory near it,can
  access others memory over a network
• With good data locality, most memory accesses
  local
• Works well even with large of processors

10
Ok, so we introduced the two kinds of parallel
computer architectures that were going to talk
about.Well come back to them soon enough. But
1st, well talk about why parallel processing is
a good thing
11
Parallel Computers

• Definition A parallel computer is a collection
  of processing elements that cooperate and
  communicate to solve large problems fast.
• Almasi and Gottlieb, Highly Parallel Computing
  ,1989
• Questions about parallel computers
• How large a collection?
• How powerful are processing elements?
• How do they cooperate and communicate?
• How is data transmitted?
• What type of interconnection?
• What are HW and SW primitives for programmer?
• Does it translate into performance?

(i.e. things you should have some understanding
of after class today)
12
The Plan

• Applications (problem space)
• Key hardware issues
• Shared memory how to keep caches coherent
• Message passing low-cost communication

13
Current Practice

• Some success w/MPPs (Massively Parallel
  Processors)
• Matrix-based scientific and engineering
  computing(Oil, Nukes, Rockets, Cars, Medicines,
  Weather)
• File servers, databases, web search engines
• Entertainment/graphics
• Small-scale machines DELL WORKSTATION 530
• 1.7GHz Intel Pentium IV (in Minitower)
• 512 MB RDRAM memory, 40GB disk, 20X CD, 19
  monitor, Quadro2Pro Graphics card, RedHat Linux,
  3yrs service
• 2,760 for 2nd processor, add 515
• (Can also chain these together)

14
Parallel Architecture

• Parallel Architecture extends traditional
  computer architecture with a communication
  architecture
• Programmming model (SW view)
• Abstractions (HW/SW interface)
• Implementation to realize abstraction efficiently
• Historically, implementations have been tied to
  programming models but that is changing.

15
Parallel Applications

• Throughput-oriented (want many answers)
• multiprogramming
• databases, web servers
• Latency oriented (want one answer, fast)
• Grand Challenge problems
• See http//www.nhse.org/grand_challenge.html
• See http//www.research.att.com/dsj/nsflist.html

• global climate model
• human genome
• quantum chromodynamics
• combustion model
• cognition

16
Programming

• As contrasted to instruction level parallelism
  which may be largely ignored by the programmer
• writing efficient multiprocessor programs is
  hard.
• Wizards write programs with sequential
  interface(e.g. Databases, file servers, CAD)
• Communications overhead becomes a factor
• Requires a lot of knowledge of the hardware!!!

17
Speedupmetric for performance on
latency-sensitive applications

• Time(1) / Time(P) for P processors
• note must use the best sequential algorithm for
  Time(1) b/c the best parallel algorithm may be
  different.

linear speedup (ideal)
speedup
typical rolls off w/some of processors
1 2 4 8 16 32 64
occasionally see superlinear... why?
1 2 4 8 16 32 64
processors
18
Speedup Challenge

• To get full benefit of parallelism need to be
  able to parallelize the entire program!
• Amdahls Law
• Timeafter (Timeaffected/Improvement)Timeunaffec
  ted
• Example We want 100 times speedup with 100
  processors
• Timeunaffected 0!!!

19
Hardware Two Main Variations

• Shared-Memory
• may be physically shared or only logically shared
• communication is implicit in loads and stores
• Message-Passing
• must add explicit communication

20
Shared-Memory Hardware (1)Hardware and
programming model dont have to match, but this
is the mental model for shared-memory programming

• Memory centralized with uniform access time
  (UMA) and bus interconnect, I/O
• Examples Dell Workstation 530, Sun Enterprise,
  SGI Challenge

• typical
• 1 cycle to local cache
• 20 cycles to remote cache
• 100 cycles to memory

21
Sharing Data (another view)
Uniform Memory Access - UMA
Memory
Symmetric Multiprocessor SMP
22
Shared-Memory Hardware (2)

• Variation memory is not centralized.Called
  non-uniform access time (NUMA)
• Shared memory accesses are converted into a
  messaging protocol (usually by HW)
• Examples DASH/Alewife/FLASH (academic), SGI
  Origin, Compaq GS320, Sequent (IBM) NUMA-Q

P
P
Network
NI
NI
M
M
23
More on distributed memory

• Distributing memory among nodes has 2 pluses
• Its a great way to get more bandwidth
• Most accesses are to local memory within a
  particular node
• Each node gets its own bus, instead of all using
  one
• Can have a fancy (not bus) network for inter-node
  accesses
• Reduces latency for accesses to local memory
• It also has 1 big minus!
• Have to communicate among various processors
• Leads to a higher latency for inter-node
  communication
• Also need bandwidth to actually handle
  communication

24
Message Passing Model

• Whole computers (CPU, memory, I/O devices)
  communicate as explicit I/O operations
• Essentially NUMA but integrated at I/O devices
  instead of at the memory system
• Send specifies local buffer receiving process
  on remote computer

25
Message Passing Model

• Receive specifies sending process on remote
  computer local buffer to place data
• Usually send includes process tag and receive
  has rule on tag match 1, match any
• Synch when send completes, when buffer free,
  when request accepted, receive wait for send
• Sendreceive gt memory-memory copy, where each
  each supplies local address, AND does pairwise
  sychronization!

26
Two terms multicomputers vs. multiprocessors
27
Communicating between nodes

• One way to communicate b/t processors treats
  physically separate memories as 1 big memory
• (i.e. 1 big logically shared address space)
• Any processor can make a memory reference to any
  memory location even if its at a different node
• Machines are called distributed shared
  memory(DSM)
• Same physical address on two processors refers to
  the same one location in memory
• Another method involves private address spaces
• Memories are logically disjoint cannot be
  addressed be a remote processor
• Same physical address on two processors refers to
  two different locations in memory
• These are multicomputers

28
Multicomputer
Proc Cache A
Proc Cache B
interconnect
memory
memory
29
MultiprocessorSymmetric Multiprocessor or SMP
Cache A
Cache B
memory
30
But both can have a cache coherence problem
Cache A
Cache B
Read X Write X
Read X ...
Oops!
X 1
X 0
memory
X 0
31
Simplest Coherence StrategyExactly One Copy at
a Time
Cache A
Cache B
Read X Write X
Read X ...
X 1
X 0
memory
X 0
32
Exactly One Copy
Read or write/ (invalidate other copies)
INVALID
VALID
More reads or writes
Replacement or invalidation

• Maintain a lock per cache line
• Invalidate other caches on a read/write
• Easy on a bus snoop bus for transactions

33
Exactly One Copy

• Works, but performance is crummy.
• Suppose we all just want to read the same memory
  location
• one lousy global variable n the size of the
  problem, written once at the start of the program
  and read thereafter

Permit multiple readers (readers/writer lock per
cache line)
34
Multiprocessor Cache Coherence

• Means
• values in cache and memory are same, or
• we know they are different and can act
  accordingly
• Considered to be a good thing
• Becomes much more difficultwith multiple
  processors and multiple caches!
• Popular technique Snooping!
• Write-invalidate
• Write-update

35
Cache coherence protocols

• Directory Based
• Whether or not some physical memory location is
  shared or not is recorded in 1 central location
• Called the directory
• Snooping
• Every cache w/entries from centralized main
  memory also has a particular blocks sharing
  status
• No centralized state kept
• Caches connected to shared memory bus
• If there is bus traffic, caches check (or
  snoop) to see if they have the block being
  transferred on bus
• Main focus of upcoming discussion

36
Side note Snoopy Cache
CPU
CPU references check cache tags (as
usual) Cache misses filled from memory (as
usual) Other read/write on bus must check tags,
too, and possibly invalidate
State Tag Data
Bus
37
Maintaining the coherence requirement

• Method one make sure writing processor has the
  only cached copy of data word before it is
  written
• Called the write invalidate protocol
• Write invalidates other cached copies of the data
• Most common for both snooping and directory
  schemes

38
Maintaining the coherence requirement

• What if 2 processors try to write at the same
  time?
• The short answer one of them does it first
• The others copy will be invalidated,
• When the first write done, the other gets that
  copy
• Then it again invalidates all cached copies and
  writes
• Probably more on how later, but briefly
• Caches snoop on the bus, so theyll detect a
  request to write so whichever machine gets to
  the bus 1st, goes 1st

39
Write invalidate example

• Assumes neither cache had value/location X in it
  1st
• When 2nd miss by B occurs, CPU A responds with
  value canceling response from memory.
• Update Bs cache memory contents of X updated
• Typical and simple

40
Maintaining the cache coherence requirement

• Method two update all cached copies of a data
  item when we write it
• Called a write update/broadcast protocol
• Bandwidth quickly becomes a problem
• Every write needs to go to the bus, cant just
  write to cache
• Solution track whether or not a word in the
  cache is shared (i.e. contained in another cache)
• If the word is not shared, theres no need to
  broadcast on a write

41
Write update example
(Shaded parts are different than before)

• Assumes neither cache had value/location X in it
  1st
• CPU and memory contents show value after
  processor and bus activity both completed
• When CPU A broadcasts the write, cache in CPU B
  and memory location X are updated

42
Comparing write update/write invalidate

• What if there are multiple writes and no
  intermediate reads to the same word?
• With update protocol, multiple write broadcasts
  required
• With invalidation protocol, only one invalidation
• Writing to multiword cache blocks
• With update protocol, each word written in a
  cache block requires a write broadcast
• With invalidation protocol, only 1st write to any
  word needs to generate an invalidate

43
Comparing write update/write invalidate

• What about delays between writing and reading?
• With update protocol delay b/t writing a word on
  one processor and reading a word in another
  usually less
• Written data is immediately updated in readers
  cache
• With invalidation protocol, reader invalidated,
  later reads/stalls

44
Messages vs. Shared Memory?

• Shared Memory
• As a programming model, shared memory is
  considered easier
• automatic caching is good for dynamic/irregular
  problems
• Message Passing
• As a programming model, messages are the most
  portable
• Right Thing for static/regular problems
• BW , latency --, no concept of caching
• Model implementation?
• not necessarily...

45
More on address spaces(i.e. 1 shared memory vs.
distributed, multiple memories)
46
Communicating between nodes

• In a shared address space
• Data could be implicitly transferred with just a
  load or a store instruction
• Ex. Machine X executes Load 5, 0(4). 0(4)
  actually stored in the memory of Machine Y.

47
Communicating between nodes

• With private/multiple address spaces
• Communication of data done by explicitly passing
  messages among processors
• Usually based on Remote Procedure Call (RPC)
  protocol
• Is a synchronous transfer i.e. requesting
  machine waits for a reply before continuing
• This is OS stuff no more detail here
• Could also have the writer initiate data
  transfers
• Done in hopes that a node will be a soon to be
  consumer
• Often done asynchronously sender process can
  continue right away

48
Performance metrics

• 3 performance metrics critical for communication
• (1) Communication bandwidth
• Usually limited by processor, memory, and
  interconnection bandwidths
• Not by some aspect of communication mechanism
• Often occupancy can be a limiting factor.
• When communication occurs, resources wi/ nodes
  are tied up or occupied prevents other
  outgoing communication
• If occupancy incurred for each word of a message,
  sets a limit on communication bandwidth
• (often lower than what network or memory system
  can provide)

49
Performance metrics

• (2) Communication latency
• Latency includes
• Transport latency (function of interconnection
  network)
• SW/HW overheads (from sending/receiving messages)
• Largely determined by communication mechanism and
  its implementation
• Latency must be hidden!!!
• Else, processor might just spend lots of time
  waiting for messages

50
Performance metrics

• (3) Hiding communication latency
• Ideally we want to mask latency of waiting for
  communication, etc.
• This might be done by overlapping communication
  with other, independent computations
• Or maybe 2 independent messages could be sent at
  once?
• Quantifying how well a multiprocessor
  configuration can do this is this metric
• Often this burden is placed to some degree on the
  SW and the programmer
• Also, this metric is heavily application dependent

51
Performance metrics

• All of these metrics are actually affected by
  application type, data sizes, communication
  patterns, etc.

52
Advantages and disadvantages

• Whats good about shared memory? Whats bad
  about it?
• Whats good about message-passing? Whats bad
  about it?
• Note message passing implies distributed memory

53
Advantages and disadvantages

• Shared memory good
• Compatibility with well-understood mechanisms in
  use in centralized multiprocessors used shared
  memory
• Its easy to program
• Especially if communication patterns are complex
• Easier just to do a load/store operation and not
  worry about where the data might be (i.e. on
  another node with DSM)
• But, you also take a big time performance hit
• Smaller messages are more efficient w/shared
  memory
• Might communicate via memory mapping instead of
  going through OS
• (like wed have to do for a remote procedure call)

54
Advantages and disadvantages

• Shared memory good (continued)
• Caching can be controlled by the hardware
• Reduces the frequency of remote communication by
  supporting automatic caching of all data
• Message-passing good
• The HW is lots simpler
• Especially by comparison with a scalable
  shared-memory implementation that supports
  coherent caching of data
• Communication is explicit
• Forces programmers/compiler writers to think
  about it and make it efficient
• This could be a bad thing too FYI

55
More detail on cache coherency protocols with
some examples
56
More on centralized shared memory

• Its worth studying the various ramifications of a
  centralized shared memory machine
• (and there are lots of them)
• Later well look at distributed shared memory
• When studying memory hierarchies we saw
• cache structures can substantially reduce memory
  bandwidth demands of a processor
• Multiple processors may be able to share the same
  memory

57
More on centralized shared memory

• Centralized shared memory supports private/shared
  data
• If 1 processor in a multiprocessor network
  operates on private data, caching, etc. are
  handled just as in uniprocessors
• But if shared data is cached there can be
  multiple copies and multiple updates
• Good b/c it reduces required memory bandwidth
  bad because we now must worry about cache
  coherence

58
Cache coherence why its a problem

• Assumes that neither cache had value/location X
  in it 1st
• Both a write-through cache and a write-back cache
  will encounter this problem
• If B reads the value of X after Time 3, it will
  get 1 which is the wrong value!

59
Coherence in shared memoryprograms

• Must have coherence and consistency
• Memory system coherent if
• Program order preserved (always true in
  uniprocessor)
• Say we have a read by processor P of location X
• Before the read processor P wrote something to
  location X
• In the interim, no other processor has written to
  X
• A read to X should always return the value
  written by P
• A coherent view of memory is provided
• 1st, processor A writes something to memory
  location X
• Then, processor B tries to read from memory
  location X
• Processor B should get the value written by
  processor A assuming
• Enough time has past b/t the two events
• No other writes to X have occurred in the interim

60
Coherence in shared memory programs (continued)

• Memory system coherent if (continued)
• Writes to same location are serialized
• Two writes to the same location by any two
  processors are seen in the same order by all
  processors
• Ex. Values of A and B are written to memory
  location X
• Processors cant read the value of B and then
  later as A
• If writes not serialized
• One processor might see the write of processor P2
  to location X 1st
• Then, it might later see a write to location X by
  processor P1
• (P1 actually wrote X before P2)
• Value of P1 could be maintained indefinitely even
  though it was overwritten

61
Coherence/consistency

• Coherence and consistency are complementary
• Coherence defines actions of reads and writes to
  same memory location
• Consistency defines actions of reads and writes
  with regard to accesses of other memory locations
• Assumption for the following discussion
• Write does not complete until all processors have
  seen effect of write
• Processor does not change order of any write with
  any other memory accesses
• Not exactly the case for either one reallybut
  more later

62
Caches in coherent multiprocessors

• In multiprocessors, caches at individual nodes
  help w/ performance
• Usually by providing properties of migration
  and replication
• Migration
• Instead of going to centralized memory for each
  reference, data word will migrate to a cache at
  a node
• Reduces latency
• Replication
• If data simultaneously read by two different
  nodes, copy is made at each node
• Reduces access latency and contention for shared
  item
• Supporting these require cache coherence
  protocols
• Really, we need to keep track of shared blocks

63
Detail about snooping
64
Implementing protocols

• Well focus on the invalidation protocol
• And start with a generic template for
  invalidation
• To perform an invalidate
• Processor must acquire bus access
• Broadcast the address to be invalidated on the
  bus
• Processors connected to bus snoop on addresses
• If address on bus is in processors cache, data
  invalidated
• Serialization of accesses enforces serialization
  of writes
• When 2 processors compete to write to the same
  location, 1 gets access to the bus 1st

65
Its not THAT easy though

• What happens on a cache miss?
• With a write through cache, no problem
• Data is always in main memory
• In shared memory machine, every cache write would
  go back to main memory bad, bad, bad for
  bandwidth!
• What about write back caches though?
• Much harder.
• Most recent value of data could be in a cache
  instead of memory
• How to handle write back caches?
• Snoop.
• Each processor snoops every address placed on the
  bus
• If a processor has a dirty copy of requested
  cache block, it responds to read request, and
  memory request is cancelled

66
Specifics of snooping

• Normal cache tags can be used
• Existing valid bit makes it easy to invalidate
• What about read misses?
• Easy to handle too rely on snooping capability
• What about writes?
• Wed like to know if any other copies of the
  block are cached
• If theyre NOT, we can save bus bandwidth
• Can add extra bit of state to solve this problem
  state bit
• Tells us if block is shared, if we must generate
  an invalidate
• When write to a block in shared state happens,
  cache generates invalidation and marks block as
  private
• No other invalidations sent by that processor for
  that block

67
Specifics of snooping

• When invalidation sent, state of owners
  (processor with sole copy of cache block) cache
  block is changed from shared to unshared (or
  exclusive)
• If another processor later requests cache block,
  state must be made shared again
• Snooping cache also sees any misses
• Knows when exclusive cache block has been
  requested by another processor and state should
  be made shared

68
Specifics of snooping

• More overhead
• Every bus transaction would have to check
  cache-addr. tags
• Could easily overwhelm normal CPU cache accesses
• Solutions
• Duplicate the tags snooping/CPU accesses can go
  on in parallel
• Employ a multi-level cache with inclusion
• Everything in the L1 cache also in L2 snooping
  checks L2, CPU L1

69
An example protocol

• Bus-based protocol usually implemented with a
  finite state machine controller in each node
• Controller responds to requests from processor
  bus
• Changes the state of the selected cache block and
  uses the bus to access data or invalidate it
• An example protocol (which well go through an
  example of)

70
P
One of many processors.
71
P
Addr
000000
R
W
This indicates what operation the processor is
trying to perform and with what address.
72
P
The processors cache Tag (4 bits), 4 lines
(ID), Valid, dirty and Shared bits.
73
P
Note For this somewhat simplified example we
wont concern ourselves with how many bytes (or
words) are in each line. Assume that its more
than one.
74
P
The Bus with indication of address and operation.
Addr
000000
R
W
75
P
These bus operations are coming from other
processors which arent shown.
Addr
000000
R
W
76
P
Addr
000000
R
W
Main Memory
MEMORY
77
P
Processor issues a read
Addr
101010
R
W
Addr
000000
R
W
MEMORY
78
P
Cache reports...
Addr
101010
R
W
MISS
Tag
ID
V
D
S
0000
00
0
0
0
0000
01
0
0
0
0000
10
0
0
0
Addr
0000
11
0
0
0
000000
R
W
MEMORY
79
P
Cache reports...
Addr
101010
R
W
MISS
Tag
ID
V
D
S
0000
00
0
0
0
0000
01
0
0
0
0000
10
0
0
0
Addr
0000
11
0
0
0
000000
R
W
Because the tags dont match!
MEMORY
80
P
Data read from memory
Addr
101010
R
W
Tag
ID
V
D
S
0000
00
0
0
0
0000
01
0
0
0
1010
10
1
0
1
Addr
0000
11
0
0
0
000000
R
W
MEMORY
81
P
Data read from memory
Addr
101010
R
W
Tag
ID
V
D
S
0000
00
0
0
0
This bit indicates that this line is shared
which means other caches might have the same
value.
0000
01
0
0
0
1010
10
1
0
1
Addr
0000
11
0
0
0
000000
R
W
MEMORY
82
P
From now on we will show these as 2
step operationsstep 1 the request.
Addr
101010
R
W
Tag
ID
V
D
S
0000
00
0
0
0
0000
01
0
0
0
0000
10
0
0
0
Addr
0000
11
0
0
0
000000
R
W
MEMORY
83
P
Step 2what was the result and the change to the
cache.
Addr
101010
R
W
MISS
Tag
ID
V
D
S
0000
00
0
0
0
0000
01
0
0
0
1010
10
1
0
1
Addr
0000
11
0
0
0
000000
R
W
MEMORY
84
P
A write...
Addr
111100
R
W
Tag
ID
V
D
S
0000
00
0
0
0
0000
01
0
0
0
1010
10
1
0
1
Addr
0000
11
0
0
0
000000
R
W
MEMORY
85
P
Addr
111100
R
W
Write Miss
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
86
P
Keep in mind that since most cache
configurations have multiple bytes per line a
write miss will actually require us to get the
line from memory into the cache first since we
are only writing one byte into the line.
Addr
111100
R
W
Write Miss
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
87
P
Note The dirty bit signifies that the data in
the cache is not the same as in memory.
Addr
111100
R
W
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
88
P
Another read...
Addr
101010
R
W
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
89
P
this time a hit!
Addr
101010
R
W
Tag
ID
V
D
S
HIT!
Addr
000000
R
W
MEMORY
90
P
Now another write...
Addr
111100
R
W
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
91
P
To a dirty line!
Addr
111100
R
W
Tag
ID
V
D
S
This is a write hit and since the shared bit is
0 we know we are in the exclusive state.
Addr
000000
R
W
MEMORY
92
P
Now another processor failing to find what it
needs in its cache goes to the busa bus
read miss
Addr
000000
R
W
Tag
ID
V
D
S
Addr
010101
R
W
MEMORY
93
P
Our cache which is monitoring the bus or snooping
sees the miss but cant help.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
010101
R
W
MEMORY
94
P
Another bus request...
Addr
000000
R
W
Tag
ID
V
D
S
Addr
101010
R
W
MEMORY
95
P
Since we have this value in our cache we can
satisfy the request from our cache assuming that
this will be quicker than from memory.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
101010
R
W
MEMORY
96
P
And another request. This time to a dirty line.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
97
P
We have to supply the value out of our
cache since it is more current than the value in
memory.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
98
P
Addr
000000
R
W
We also mark it as shared. Why?
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
99
P
Addr
111100
R
W
If, for example, our next operation was a
write to this line...
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
100
P
We would have to note that it was again exclusive
and let the other caches know
Addr
111100
R
W
ZAP
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
101
P
We could then write repeatedly to this line and
since we have exclusive ownership no one has to
know!
Addr
111100
R
W
Tag
ID
V
D
S
Addr
000000
R
W
MEMORY
102
P
In a similar way we must respond to write misses
by other caches.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
101010
R
W
MEMORY
103
P
In this case we know that some other processor is
going to have a newer value so we must mark
this line as invalid.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
101010
R
W
MEMORY
104
P
Now assume some other processor requests a
byte from the 111100 line of its cache.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
105
P
Since our line is marked valid and exclusive the
other caches should be marked as invalid.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
106
P
So the first thing that the other cache will do
is a read to get the correct value for all the
bytes in the line before it writes the one
new byte.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
107
P
Our cache supplies the value and goes to the
shared state.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
108
P
Sometime later, for whatever reason, the other
cache writes back the value.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
109
P
This requires us to mark our line as invalid
since we no longer have the most current value
for this line.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
110
P
We dont need to worry about the dirty bit
since we already supplied that value to the other
cache. Its entry should now be marked as dirty.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
111
P
This concludes our demonstration of some basic
multiprocessor techniques for guaranteeing cache
coherency and consistency.
Addr
000000
R
W
Tag
ID
V
D
S
Addr
111100
R
W
MEMORY
