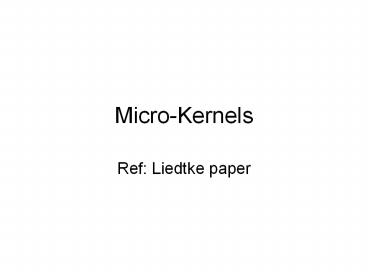

Micro-Kernels

• Ref Liedtke paper

2
The Linux is obsolete Debate 1992(from
http//www.oreilly.com/catalog/opensources/book/ap
pa.html)

• Andy Tanenbaum As a result of my occupation, I
  think I know a bit about where operating
  systems are going in the next decade or so. Two
  aspects stand out
• MICROKERNEL VS MONOLITHIC SYSTEM
• Most older operating systems are monolithic, that
  is, the whole operating system is a single a.out
  file that runs in 'kernel mode.' This binary
  contains the process management, memory
  management, file system and the rest. Examples of
  such systems are UNIX, MS-DOS, VMS, MVS, OS/360,
  MULTICS, and many more.
• The alternative is a microkernel-based system, in
  which most of the OS runs as separate processes,
  mostly outside the kernel. They communicate by
  message passing. The kernel's job is to handle
  the message passing, interrupt handling,
  low-level process management, and possibly the
  I/O. Examples of this design are the RC4000,
  Amoeba, Chorus, Mach, and the not-yet-released
  Windows/NT.
• While I could go into a long story here about the
  relative merits of the two designs, suffice it to
  say that among the people who actually design
  operating systems, the debate is essentially
  over. Microkernels have won. The only real
  argument for monolithic systems was performance,
  and there is now enough evidence showing that
  microkernel systems can be just as fast as
  monolithic systems (e.g., Rick Rashid has
  published papers comparing Mach 3.0 to monolithic
  systems) that it is now all over but the
  shoutin'.
• MINIX is a microkernel-based system. The file
  system and memory management are separate
  processes, running outside the kernel. The I/O
  drivers are also separate processes (in the
  kernel, but only because the brain-dead nature of
  the Intel CPUs makes that difficult to do
  otherwise). LINUX is a monolithic style system.
  This is a giant step back into the 1970s. That
  is like taking an existing, working C program and
  rewriting it in BASIC. To me, writing a
  monolithic system in 1991 is a truly poor idea.

3
The Linux is obsolete Debate (cont.)

• Andy Tanenbaum
• PORTABILITY
• Once upon a time there was the 4004 CPU. When
  it grew up it became an 8008. Then it underwent
  plastic surgery and became the 8080. It begat
  the 8086, which begat the 8088, which begat the
  80286, which begat the 80386, which begat the
  80486, and so on unto the N-th generation. In
  the meantime, RISC chips happened, and some of
  them are running at over 100 MIPS. Speeds of 200
  MIPS and more are likely in the coming years.
  These things are not going to suddenly vanish.
  What is going to happen is that they will
  gradually take over from the 80x86 line. They
  will run old MS-DOS programs by interpreting the
  80386 in software. (I even wrote my own IBM PC
  simulator in C, which you can get by FTP from
  ftp.cs.vu.nl 192.31.231.42 in dir
  minix/simulator.) I think it is a gross error to
  design an OS for any specific architecture, since
  that is not going to be around all that long.
• MINIX was designed to be reasonably portable, and
  has been ported from the Intel line to the 680x0
  (Atari, Amiga, Macintosh), SPARC, and NS32016.
  LINUX is tied fairly closely to the 80x86. Not
  the way to go.
• Don't get me wrong, I am not unhappy with LINUX.
  It will get all the people who want to turn MINIX
  in BSD UNIX off my back. But in all honesty, I
  would suggest that people who want a MODERN
  "free" OS look around for a microkernel-based,
  portable OS, like maybe GNU or something like
  that.

4
Linux is obsolete (cont.)

• Linus Torvalds
• 1. MICROKERNEL VS MONOLITHIC SYSTEM
• True, linux is monolithic, and I agree that
  microkernels are nicer. With a less argumentative
  subject, I'd probably have agreed with most of
  what you said. From a theoretical (and
  aesthetical) standpoint linux looses. If the GNU
  kernel had been ready last spring, I'd not have
  bothered to even start my project the fact is
  that it wasn't and still isn't. Linux wins
  heavily on points of being available now.
• MINIX is a microkernel-based system.
  deleted, but not so that you

• miss the point LINUX is a monolithic style
  system.

• If this was the only criterion for the "goodness"
  of a kernel, you'd be right. What you don't
  mention is that minix doesn't do the micro-kernel
  thing very well, and has problems with real
  multitasking (in the kernel). If I had made an
  OS that had problems with a multithreading
  filesystem, I wouldn't be so fast to condemn
  others in fact, I'd do my damndest to make
  others forget about the fiasco. yes, I know
  there are multithreading hacks for minix, but
  they are hacks, and bruce evans tells me there
  are lots of race conditions

5
Linux is obsolete (cont.)

• Linus Torvalds
• 2. PORTABILITY
• "Portability is for people who cannot write new
  programs"

• -me, right now (with tongue in
  cheek)

• The fact is that linux is more portable than
  minix. What? I hear you say. It's true - but
  not in the sense that ast means I made linux as
  conformant to standards as I knew how (without
  having any POSIX standard in front of me).
  Porting things to linux is generally /much/
  easier than porting them to minix.
• I agree that portability is a good thing but
  only where it actually has some meaning. There
  is no idea in trying to make an operating system
  overly portable adhering to a portable API is
  good enough. The very /idea/ of an operating
  system is to use the hardware features, and hide
  them behind a layer of high-level calls. That is
  exactly what linux does it just uses a bigger
  subset of the 386 features than other kernels
  seem to do. Of course this makes the kernel
  proper unportable, but it also makes for a /much/
  simpler design. An acceptable trade-off, and one
  that made linux possible in the first place.

6
Approaches to OS Organization

• Macro-Kernels (aka Monolithic kernels)
• High-level interface over hardware
• System calls to provide services for process
  management, concurrency, memory management that
  all run in supervisor mode

• Tightly integrated code, all parts of kernel
  operate under one address space can be made
  highly efficient

• But an error in one module can bring entire
  system down

• Examples BSD Unix, Linux, older systems (e.g.,
  OS/360)

• Micro-Kernels
• Low-level interface over hardware
• System calls implement minimal amount of
  functionality, rest is implemented outside the
  kernel via servers

• What does this mean? Return to this later
• Servers operate in different address spaces
• Examples Mach, Spring OS (Sun)

7
Micro- vs. Macro-Kernel

• Micro-kernels offer
• More modular structure (though monolithic kernels
  can also be modular)

• Fault isolation fault in one server does not
  bring down other services (just like user
  processes)

• System more flexible and tailorable - different
  strategies implemented in different servers (with
  different APIs) can co-exist within the same
  system
• Disadvantages of Micro-kernels (conventional
  wisdom)

• Slower (e.g., due to more address space changes)
• Not sufficiently flexible
• Liedtke argues this is not the case

8
What is in the Micro-Kernel?

• Functionality should determine this, not
  performance

• Traditional performance bottlenecks can be
  eliminated, e.g., author reports 22x faster IPC
  than Mach micro-kernel

• Put in microkernel only if leaving it outside
  (allowing competing implementations) would
  prevent implementing required OS functionality

• Independence between subsystems must be able to
  implement an arbitrary subsystem S so that it
  cannot be disturbed or corrupted by another
  subsystem S
• Integrity Must be a way for S1 to address S2 and
  establish a communication channel that can
  neither be corrupted nor eavesdropped by S

• Based on this principal, kernel should implement
  only three things

• Address spaces (independence)
• Threads and IPC (independence and integrity)
• Unique identifiers (integrity)

9
Address Spaces

• Fundamental concepts
• Initial address space that represents physical
  memory, three operations to implement protected
  address spaces above it

• Map
• Owner of address space A maps page into another
  address space B

• Page can be accessed in both address spaces
• Receipient has to agree
• Mapper can only map pages it can already access
• Grant
• Like map, but owner gives up access to the page
• Used in specialized cases when a server is an
  intermediary passing on pages

• Flush
• If A flushes a page, the page is removed from
  address spaces that received the page from A
  through a (direct or indirect) grant or map

10
Example Address Space Use

• A memory manager is just a process (server)
  managing the initial address space, entirely
  outside the kernel

• Standard pager process maps pages to memory
  manager process

• Memory managers can be stacked one can grant
  parts of the physical memory to a second manager,
  other parts to a third memory manager e.g., to
  help implement virtual machines
• A pager can be a totally separate server,
  communicating through IPC

• Of course, it could also be integrated in a
  memory manager

• Allows one to easily implement specialized
  policies (e.g., real-time)


11
Threads and IPC

• Thread is an activity executing inside an address
  space

• Thread registers, PC, SP, State, address space
  in which it executes

• Thread management must be part of the kernel.
  Why?

• Thread may modify (corrupt) address space
• For protection reasons, kernel must control
  accesses to a threads address space

• Follows that cross-address space communication
  (IPC) must also be within kernel

• IPC enforces rules (agreements between sender and
  receiver) for communications

• Needed for grant and map address space
  operations

• Interrupt can be viewed as hardware threads
  sending messages to other interrupt handler
  threads interrupt handling code outside the
  micro-kernel

12
Unique Identifiers

• Micro-kernel must assign unique identifiers (uid)
  for something (threads or tasks or communication
  channels)

• If S1 wants to send a message to S2, the
  micro-kernel must know which uid corresponds to S2

13
Flexibility Examples

• Allows for multiple memory managers/pagers to be
  implemented outside microkernel, as discussed
  earlier

• Device drivers can be implemented outside
  microkernel as ordinary processes

• Access hardware I/O ports by having them mapped
  into its address space

• Process interrupts via IPC mechanism
• RPC can be implemented outside microkernel as
  communications servers that talk to network
  device drivers through IPC

• Unix system calls can be implemented by a Unix
  server process

14
Performance

• Concern Micro-kernel based OS can suffer from
  poor performance due to

• switching between kernel and user mode,
• switching between address spaces,
• context switching between threads
• True?
• Liedtke argues no! Look at the concept, not a
  particular implementation

15
Kernel-User Mode Switches

• Calling kernel from user mode essentially
• Indirect procedure call
• Switch from user to kernel stack
• Setting internal kernel bit to allow privileged
  instructions

• Cost (50 MHz x86 machine)
• 71 cycles for call, 36 cycles for return
• Measured cost (Mach kernel) 900 cycles!
• Liedtke argues this is a solvable implementation
  artifact counter example is L3 kernel takes 15
  extra cycles (plus if infrequent, 3 TLB misses,
  10 cache misses) or total 123 to 180 cycles
  (misses cost more today)

16
Address Space Switches

• Main cost is in TLB (Translation lookaside
  buffer) that caches recent virtual to physical
  page mappings

• Tagged TLB keep address space tag to distinguish
  between virtual addresses from different address
  spaces, allowing TLB to hold translations for
  different virtual address spaces
• Cost is loading TLB entries for micro-kernel when
  invoked OK if microkernel has small memory
  footprint

• Untagged must flush TLB when switching to a new
  process (virtual address space)

• Costly to reload TLB
• Idea map several address spaces into one linear
  address space, e.g., keep small commonly used
  server address spaces shared with large user
  address spaces
• Liedtke argues cost can be kept low

17
Thread Switches and IPC

• Similarly, RPC can be made very fast with careful
  design

• 10 microseconds round trip time for RPC on
  several OSs (e.g., Spring, L3)

18
Memory Effects

• Measurements of microkernel implementation (Mach
  Unix server) have less efficient cache behavior
  compared to a monolithic (Ultrix) kernel

• Liedtke tracks problem down to cache misses in
  microkernel, which can be solved by reducing
  working set size of microkernel implementation
  (his L3 microkernel OS demonstrates this), e.g.,
  IPC implementation

19
Portability

• Argues microkernel are inherently not portable
  must be optimized to exploit hardware details to
  obtain reasonable performance

• Take advantage of hardware details for fastest
  possible implementation

• Algorithms in microkernel processor dependent
• Describes case study porting from 486 to Pentium
• So Liedtke agrees with Linus Torvalds on this
  issue, while (ironically) making the case for
  microkernels!

20
Summary

• Makes case for microkernels
• Modularity, flexibility
• Common concerns regarding performance can be
  overcome with careful design

• Methodology Be careful with empirical
  measurements! You may be seeing implementation
  artifacts rather than fundamental behaviors
