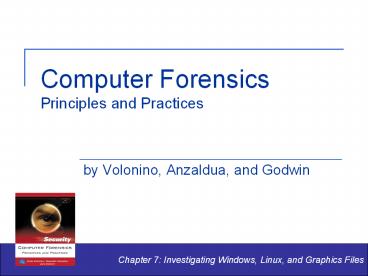

Computer Forensics Principles and Practices

1
Computer ForensicsPrinciples and Practices

• by Volonino, Anzaldua, and Godwin

Chapter 7 Investigating Windows, Linux, and
Graphics Files
2
Objectives

• Conduct efficient and effective investigations of
  Windows systems

• Find user data and profiles in Windows folders
• Locate system artifacts in Windows systems
• Examine the contents of Linux folders

3
Objectives (Cont.)

• Identify graphic files by file extensions and
  file signatures

• Identify what computer forensics graphic tools
  and techniques can reveal and recover

4
Introduction

• In many cases you may have gigabytes or even
  terabytes of data that must be searched for
  evidence. This chapter helps maximize efficiency
  of the search by showing default locations of
  file storage and hiding techniques of wrongdoers.

5
Investigating Windows Systems

• Activities of the user result in user data
• User profiles
• Program files
• Temporary files (temp files)
• Special application-level files

6
Investigating Windows Systems (Cont.)

• System data and artifacts are generated by the
  operating system

• Metadata
• Windows system registry
• Event logs or log files
• Swap files
• Printer spool
• Recycle Bin

7
Hidden Files

• Files that do not appear by default are hidden
  files

• These can be viewed through the following steps
• Open Windows Explorer
• Go to Tools Folder Options View Hidden
  files and folders

• Select Show hidden files and folders
• Click OK

8
Investigating Windows Systems (Cont.)

• Data and user authentication weaknesses of FAT
• Userids are not required
• Only attributes are associated with files or
  folders

• Data and user authentication improvements in
  NTFS

• Separation of duties
• Anonymity of the user

9
Investigating Windows Systems (Cont.)

• Identify the operating systems of a target hard
  drive by

• Operating system folder names
• The folder for the Recycle Bin
• The construction of the user root folders because
  of the differences in the way user data is kept

10
Finding User Data and Profiles in Windows Folders

• Documents and Settings folder
• Contains a user root folder for each user account
  created on the computer

• Windows NT and above automatically install
• Administrator
• All users
• Default user (hidden)

11
Finding User Data and Profiles in Windows Folders
(Cont.)

• Data stored in the user root folder
• Desktop settings, such as wallpaper,
  screensavers, color schemes, and themes

• Internet customizations, such as the homepage,
  favorites, and history

• Application parameters and data, such as e-mail
  and upgrades

• Personal files and folders, such as My Documents,
  My Pictures, and so on

12
Finding User Data and Profiles in Windows Folders
(Cont.)

• Some of the subfolders in the user root folder
  include

• Application data (hidden)
• Cookies
• Desktop
• Favorites
• Local Settings (hidden)
• My Documents
• NetHood (hidden)

13
Location of User Root Folders
14
In Practice Temp Internet Files Provide Valuable
E-Evidence

• Data stored in the Temporary Internet Files
  folder can be valuable supporting evidence, even
  if deleted

• Statute 18 U.S.C. 2256(8) rules as pornography
  any data stored on computer disk that can be
  converted into a visual image

15
Investigating System Artifacts

• Types of metadata
• Descriptive describes a resource for purposes
  such as discovery and identification

• Structural indicates how compound objects are
  put together

• Administrative provides information to help
  manage a resource, such as when it was created,
  last accessed, and modified

• Be alert for alternate data streams (ADS)

16
In Practice Searching for Evidence

• Do not use the suspect system itself to carry out
  a search for evidence

• Using Windows to search and open files can change
  the files metadata

• Such changes may cause evidence to be disallowed
  in court

17
Investigating System Artifacts (Cont.)

• Registry
• Can reveal current and past applications, as well
  as programs that start automatically at bootup

• Viewing the registry requires a registry editor
• Event logs track system events
• Application log tracks application events
• Security log shows logon attempts
• System log tracks events such as driver failures

18
Investigating System Artifacts (Cont.)

• Swap file/page file
• Used by the system as virtual memory
• Can provide the investigator with a snapshot of
  volatile memory

• Print spool
• May contain enhanced metafiles of print jobs
• Recycle Bin/Recycler
• Stores files the user has deleted

19
Shredding Data

• Third-party software packages can be used to
  delete data and actually overwrite the
  information, essentially shredding the data

20
Investigating Linux Systems

• Windows can have many users with administrator
  access, but Linux has only one administrative
  account, called root

• Root account has complete control of the system
• In Linux, all devices, partitions, and folders
  are seen as a unified file system

• A typical installation creates three partitions
  the root, boot, and swap partitions

21
Investigating Linux Systems (Cont.)

• The Linux file system includes the data structure
  as well as the processes that manage the files in
  the partition

• Linuxs virtual file system provides a common set
  of data structures

• Superblock
• Inode
• Dentry
• Data block

22
Investigating Linux Systems (Cont.)

• Seven different file types available in Linux
• Normal files
• Directories
• Links
• Named pipes
• Sockets
• Block devices
• Character devices

23
Investigating Linux Systems (Cont.)

• Default Linux installations generally include
  system directories such as the following

• /boot
• /dev
• /etc
• /home
• /lib
• /lostfound
• /mnt

/proc /root /sbin /tmp /usr /var
24
Investigating Linux Systems (Cont.)

• Key Linux files and directories to investigate
• /etc/passwd
• /etc/shadow
• /etc/hosts
• /etc/sysconfig/
• /etc/syslog.conf

25
Investigating Linux Systems (Cont.)

• Deleted files
• Check the Trash can for each login user for
  deleted files that can be recovered

• Using grep to search file contents
• Grep allows for sophisticated character-based
  data searches

• Compressed files
• Some Linux applications such as OpenOffice
  automatically compress data files

26
Graphic File Forensics

• The investigator can use file signatures to
  determine where data starts and ends and the file
  type

• File extension (such as .jpg) one way to identify
  a graphic file

• A user can easily change the file extension, but
  the data header does not change

• Forensic tools can resolve conflicts between file
  extensions and file types


27
Graphic File Forensics (Cont.)

• The process of retrieving all relevant pieces of
  a file is called data carving or data salvaging

• An investigator may have to reconstruct the data
  header using file signature information

• Layered graphic files (such as Photoshop or
  Corel) can hide information behind layers

• Graphics saved as JPEG, TIFF, GIF, or BMP do not
  have layers

28
Graphic File Forensics (Cont.)

• Steganography is a form of data hiding in which a
  message is hidden within another file

• Data to be hidden is the carrier medium
• The file in which the data is hidden is the
  steganographic medium

• Both parties communicating via steganography must
  use the same stego application

29
Graphic File Forensics (Cont.)

• Steganography is difficult to detect the
  following clues may indicate stego use

• Technical capabilities or sophistication of the
  computers owner

• Software clues on the computer
• Other program files that indicate familiarity
  with data-hiding methods

• Multimedia files
• Type of crime being investigated

30
In Practice Child Pornography

• Hiding criminal content within innocent files
  can allow perpetrators such as child
  pornographers to exchange information

• A scenario is described by which child
  pornographers can easily pass information to
  others in the ring

31
Summary

• Search times can be reduced through the use of
  default folders and operating system artifacts

• The skill level of the user will determine
  whether this is an effective use of time in the
  case

32
Summary (Cont.)

• A savvy user can hide data through
• Nonstandard file folders
• Renaming file types
• Using layered graphics
• Masquerading data with steganographic techniques
