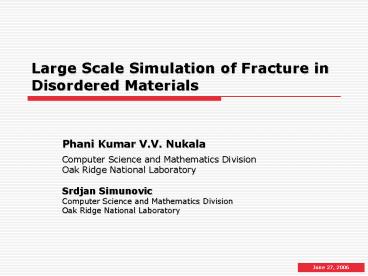

Large Scale Simulation of Fracture in Disordered Materials

1
Large Scale Simulation of Fracture in Disordered
Materials

• Phani Kumar V.V. Nukala
• Computer Science and Mathematics Division
• Oak Ridge National Laboratory
• Srdjan Simunovic
• Computer Science and Mathematics Division
• Oak Ridge National Laboratory

2
Collaborators

• Stefano Zapperi
• Dipartimento di Fisica
• Universita La Sapienza, Roma, Italy
• Mikko Alava
• Laboratory of Physics,
• Helsinki University of Technology, Finland
• Richard Mills
• Oak Ridge National Lab

3
Acknowledgements

• MICS DOE Office of Science
• INCITE Award Computer resources on BG/L at ANL
• NLCF allocation on Cray-XT3 (Jaguar) at ORNL

• Relevant Journal Publications
• J. Phys. Math. Gen. 36 (2003) 37 (2004) IJNME
  62 (2005)
• European Physical Journal B 37 (2004)
• JSTAT, P08001 (2004) JSTAT (2006)
• Physical Review E 71 (2005a, 2005b, c) 73 (2006a
  2006b)
• Advances in Physics (2006)
• International Journal of Fracture (2006)

4
Motivation Size Effect

• Fracture is controlled by
• Stress concentrations
• Material disorder induced fluctuations

5
Effect of Disorder

• Weak disorder Stress concentrations dominate the
  disorder effects
• Extreme-value theory
• Size effect L-1/2
• Strong disorder Disorder dominates the stress
  concentration effects
• What is the strength distribution?
• Size effect?

6
Motivation Crack Roughness

• Initially, fracture surface roughness and
  toughness were thought to be correlated
• Mandelbrot (1984)
• Experiments on several materials (metals, glass,
  rocks, ceramics)
• Fracture surface is self-affine
• Roughness exponent displays a universal value
  over five decades of length scales (5nm to 0.5
  mm)

7
Anisotropic Roughness Scaling
8
Anomalous Roughness

• Recent experiments with granite and wood samples
• There exist two roughness exponents (local and
  global)
• Only the local exponent appears to be universal
• Open Question
• How can the fracture surfaces of materials as
  different as metallic alloys and glass, for
  example, be so similar?

• Family-Vicsek scaling
• Anomalous scaling

9
Motivation

• What are the size effects and scaling laws of
  fracture of disordered materials?
• What are the signatures of approach to failure?
• What is the relation between toughness and crack
  surface roughness?
• Universality of crack surface roughness?

10
Outline

• Random Thresholds Fuse Model
• Numerical Algorithms and HPC
• Numerical Simulation Results (2D and 3D)
• Damage and Percolation
• First- or second-order phase transition?
• Fracture Strength Distributions and Size Effects
• Crack Roughness
• Summary

11
Random Thresholds Fuse Model

• Scalar or electrical analogy
• For each bond, assign unit conductance and the
  thresholds are prescribed based on a random
  thresholds distribution
• The bond breaks irreversibly whenever the current
  (stress) in the fuse exceeds the prescribed
  thresholds value
• Currents (stresses) are redistributed
  instantaneously
• The process of breaking one bond at a time is
  repeated until the lattice falls apart

12
Algebraic Problem

• Simulation Procedure
• Assemble the initial conductivity matrix of the
  lattice system
• Increase external loads until a bond threshold is
  reached
• Irreversibly break the bond en1 that satisfies
  the failure criterion
• Redistribute forces within the lattice network
• Repeat steps 2-4 until the lattice network is
  disconnected

O(L1.8) in 2D O(L2.8) in 3D
13
Sparse Direct Solvers for 2D RFM

• Each An is sparse
• Factorization ( ) can be done
  efficiently
• But, too expensive to factorize every An directly
  (O(L1.8))
• Successive An matrices differ by a rank-p matrix.
• For 2D or 3D fuse and spring models, p 1
• For 2D beam models, p 3
• For 3D beam models, p 6
• Since
• the sparsity of Ln1 is contained in Ln
• for all m lt n, , where is the
  sparsity of Ln
• Multiple rank sparse Cholesky downdate

14
Optimal/Block Circulant Preconditioners

• Circulant matrices can be diagonalized by
  discrete Fourier matrices O(N logN)
• Circulant preconditioners can be chosen such that
  the condition number of the system is minimized
• Exhibit favorable clustering of eigenvalues. In
  general, the more clustered the eigenvalues are,
  the faster the convergence rate is
• If A is positive definite, then c(A) is also
  positive definite.

unique optimal circulant preconditioner of A
15
Largest Ever System Size Simulations and
Extensive Statistical Sampling

• Large system sizes and extensive sampling
• Largest system sizes ever analyzed
• L 1024 in 2D and L 64 in 3D
• Extensive ensemble sample averaging (2D)
• 50000 samples for system sizes (L 8, 16, 24,
  32, 64)
• 12000 samples for (L 128)
• 1200 samples for (L 256)
• 200 samples for (L 512)
• 10 samples for (L 1024)
• In 3D
• 50000 (L 10), 20000 (L 16), 2512 (L 24)
• 1200 samples for L 32
• 200 samples for L 48
• 12 samples for L 64

16
Typical Fracture of a 2D Lattice System

• CPU O(L4.5)
• Capability Issue Previous simulations have been
  limited to a system size of L128.
• Largest 2D lattice system (L1024) analyzed for
  investigating fracture and damage evolution.
• Effective computational gain 80 times

Peak
Failure
J. Phys. A Math. Gen. 36 (2003)
17
Fracture of 3D Cubic Lattice System

• CPU O(L6.5)
• Largest cubic lattice system analyzed for
  investigating fracture and damage evolution in 3D
  systems (L64)

peak
Progressive damage accumulation in a 3D cubic
lattice network, L 64. Pre-peak damage
(a)-(c), and (d)-(i) is post-peak damage.
Failure
J. Phys. A Math. Gen. 37 (2004)
18
High-Performance Computing

• Parallel computing
• L 64 on 128 processors takes 3 hours
• L 100 on 512 processors takes a day
• L 128 on 1024 processors takes 3 days
• L 200 on 2048 processors takes 20 days!
• Algorithmic development
• Recycling Krylov subspace
• 30 faster

19
Scientific Significance

• Damage and percolation
• Is damage in the same universality class as
  percolation?
• Correlated or gradient percolation?
• Is fracture a first-order or second-order phase
  transition?
• Fracture strength distribution and size-effects
• Crack surface roughness
• Anomalous scaling
• Multiscaling
• Origin of universality

20
Damage and Percolation
JSTAT, P08001, 2004
21
Damage and Percolation
Damage for strong disorder case is it in the
same universality class as that of percolation?
Clearly, percolation scaling is not obeyed
JSTAT P08001 (2004)
22
How about Correlated Percolation?
Response flattens for large systems

• There is no correlated percolation at failure

23
First or Second-Order Phase Transition?
JSTAT, P08001, 2004 PRE, 2006
24
Scaling of Failure Probability Distribution
Cumulative Distribution
Uniform and power law threshold distributions
(p mf)/Df
(p mf)/Df

• Cumulative distribution is universal
• Normal distribution
• No divergent correlation length
• First-order phase transition

25
Stiffness (Order Parameter)
Mean field
Peak load
L 1024
L 256
L 512
26
Fracture Strength Distribution and Size Effects
EPJB, 37, 2004 PRE, 71, 2005a Advances in
Physics, 2006
27
Fracture Strength Distribution Weibull, Gumbel
or Lognormal?

• Lattice topology Triangular and diamond
• Disorder Uniform (D 1), and power law (D
  20)
• Model type Fuse and central-force (spring)
  models

28
Size Effects in Notched Specimens
D 1

• Size effect
• Logarithmic in the un-notched case
• L-1/2 scaling when a0/L is large

29
Influence of Disorder on Size Effect

• Size effect
• Model recovers strength scaling even when a0 is
  irrelevant, and D is relevant!

• Size effect
• Logarithmic when D 1
• L-1/2 scaling when D is small

a0
30
Crack Roughness
PRE, 71, 2005b PRE, 2006 Advances in Physics,
2006 IJF, 2006
31
Anomalous Scaling

• Model recovers anomalous scaling as observed in
  experiments
• Local roughness Global roughness

32
Anomalous Scaling Power Spectrum Analysis
zloc 0.4
zloc 0.74
z 0.5
z 0.85
3D
33
Effect of Notch and Disorder on Roughness

• Anomalous scaling of crack surface
• Disorder
• Notch
• Lattice type

• Universality of roughness.
• Disorder, notch and lattice type are irrelevant
  parameters

34
Conclusions and Significant Results

• Percolation vs Localization
• Damage evolution is not in the percolation
  universality class ( ).
• Damage is accumulated in a uniform manner in the
  pre-peak regime, and then suddenly localizes in
  the post-peak regime.
• Damage profiles are uniform until the peak-load,
  and show a peak with exponential tails in the
  post-peak regime.
• Failure Probability Distributions
• Universal and do not depend on lattice topology
  (even 2D and 3D).
• Gaussian distribution indicating that there is no
  divergent correlation length at failure.

35
Conclusions and Significant Results

• Fracture Strength
• Lognormal distribution is more adequate than
  Weibull or Gumbel.
• Mean fracture strength decreases logarithmically.
• Weak disorder or large crack size results in
  L-1/2 scaling.
• Crack Roughness
• Exhibits anomalous scaling as recently observed
  in experiments.
• Local roughness is estimated to be 0.72 /- 0.03
• Global roughness is estimated to be 0.83 /- 0.04
• Global width distributions are found to be
  universal with respect to lattice geometry.
