Space Network SN Access System SNAS Orientation

1

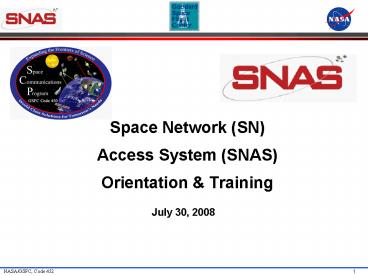

Space Network (SN)Access System (SNAS)
Orientation Training

• July 30, 2008

2
Agenda

• Project Status
• Training
• System Installation and Setup
• MOC Client Basics
• MOC Manager Setup
• Vector Processing Overview
• Scheduling Process Overview (NCCDS)
• Real-Time Operations
• Troubleshooting
• SNAS Acronyms
• Glossary

3
Project Status Release 1 Release 2 Beta and
WSC Management
4
Release 1

• TRR held June 6th
• 11 Request for Action (RFA) submitted and
  responded to
• Acceptance Testing started 6/16, running through
  8/15
• MOC Client functions
• Group 1 - System Configuration for Mission and
  User
• 9 of 13 tests completed
• EPS Configuration and DAS set-up tests still to
  be completed
• Group 2  - MOC Client Functions
• 15 of 35 tests completed
• DAS Scheduling, Recurrent Scheduling, and Reports
  still be completed (most all of the SNAS/NCCDS
  functionality has been tested, e.g., SAR, SDR,
  WLR, GCMR, etc.)
• Other Groups OM Client Functions, System
  Security, Server and Performance
• ORR Scheduled for September 4th at WSC

5
Release 2

• Major Wishlist items implemented in Release 2
• Push updated TUT to MOC client
• Retrieve latest TUT within 5 minutes of
  availability
• Automatically send updated TUT to MOC client
• Allow the user to select schedule requests in a
  bulk file for transmission or save to database
  only
• Each request has transmission/save to DB/no
  action options
• Add a Confirmed Events Report
• Show confirmed events/services/parameters
• Enhancement to Timeline
• Graphical SAR panel
• Drag and drop of cloned SAR
• Allow user configurable alarm limits on numeric
  UPD parameters
• Five configurable ranges low critical, low
  warning, normal, high warning, high critical
• Enable/disable connections to NCCDS without
  restarting SNIF process
• Applicable to both schedule and real time
  connections
• Provide TCP/IP interface as alternative to EPS
• Streaming of messages that conform to SN/CSM ICD
• Provide OM client with display of alerts
• Display alerts on request

6
Beta and WSC Management

• Release 0.1 06/10/08 Version for Acceptance
  Testing
• (and ongoing Beta testing on IT)
• Test team to determine need for updates to
  complete AT
• Release 0.2, Release 0.3, etc. until testing
  completed
• Beta version will be kept in step with AT version
• Release 1.0 08/22/08 Version to go to
  Operations
• Release 2.0 10/08/08 Added R2 Wishlist
  functionality
• AT testers to repeat functional and regression
  testing
• MOC transitioning can start after 9/04/08 using
  Release 1.0
• Follow WSC registration and approval process
• Work with OM DBA for mission data (SIC, SSC, PE,
  etc,)
• Capability for NCCDS connectivity only, as DAS
  users must transition all at one time (DAS port
  limitation)

7
SNAS Training

• Section 1System Installation and Setup
• CapabilitiesSNAS architecture components
• Certificate and Client Download
• Client Configuration

8
Capabilities

• Standards-based customer interface for performing
  TDRS scheduling, real-time service monitoring and
  control
• Supports full NCCDS / Mission Operations Center
  interface (ICD Space Network / Customers for
  Service Management)
• Supports full Demand Access System (DAS) ICD
  SNAS/DAS
• Java-based Graphical User Interface (GUI)
• Cross-platform compatible client application
  (Windows, Unix, etc.)
• Accessible from the Internet, NISN Open Closed
  IONets
• Secure access through encryption (between Client
  and Server), certification, and authentication

9
Capabilities (contd)

• Provides Internet and Open IONet access to TDRSS
  Unscheduled Time (TUT)
• Orbiting or stationary state vector generation
  based on user input of geocentric (time, position
  velocity) or geodetic (time, latitude,
  longitude, altitude) coordinates
• Provides local External Processing System (EPS)
  interface for exchange of files between SNAS MOC
  Client and other MOC platforms
• Supports legacy Orbital Data Processing and
  Recurrent Scheduling functionality performed by
  User Planning System
• Test mode for performing Engineering Interface
  (EIF) testing and user training
• Maintenance of mission data by MOC Manager

10
SNAS Architecture
11
SNAS Components

• Client platform
• Desktop, laptop or workstation with static IP
  address
• Minimum hardware requirements
• 1.5 GHz processor or greater
• 2 GB Random Access Memory (RAM) (testing with
  .5GB)
• 60 GB hard disk space (application, log space,
  file storage)
• 1024x768, 32 bit color display
• Open Server
• Proxy server to allow
• Open IONet and Internet-based users to connect to
  SNAS and access TUT
• User requests directed to Closed Server through
  NISN Secure Gateway
• Responses to users from Closed Server through
  NISN Secure Gateway
• Closed Server
• Hosts most of SNAS server applications
• Manages user login sessions and communications
  with NCCDS, ANCC, and DAS
• Data Server
• Manages (Oracle) database storage, RAID access

12
Software Components

• Client
• Provides Graphical User Interface for performing
  SNAS MOC activities
• Software requirements
• Java Runtime Environnent (JRE) 1.6, available
  from client download or from Sun Microsystems
  websites
• Standard Web browser (e.g., Internet Explorer,
  Apple Apache, Mozilla Firefox) to download
  Client, digital certificates, and view TUT
• Supported OS(s) Windows (XP), MAC OS (10),
  Linux, UNIX
• sFTP server is supplied by the MOC (for
  Client-EPS node transfers)
• Servers
• Service Access Method (SAM)
• Process that allows user Clients to access SNAS
  services
• Tracks user requests and provides responses to
  the Client
• Separate instances run on Open and Closed Servers
• Service Enabler (SvE)
• Server process provides interface for Client with
  Data Server and DB
• Processes users requests and generates responses
• Communicates with Client through SAM
• Separate SvE required for each SNAS server string
  (Ops versus EIF)

13
Software Components (contd)

• SNAS-NCCDS Interface (SNIF)
• Server process that communicates with NCCDS using
  SN/CSM ICD messaging protocol
• Separate SNIF required for each of NCC and ANCC
  operations
• SNAS-DAS Interface (SDIF)
• Server process that communicates with DAS using
  DAS/SNAS ICD messaging protocol
• Separate SDIF required for each of DAS
  (Operational DAS and HMD DAS test bed)
• Data Manager
• Provides connection to Oracle RDBMS and SNAS
  Database
• Interface to RAID storage for customer
  configuration and scheduling data
• Open TUT Server
• Web server mirrors TUT services provided by NCCDS
  on Closed IONet
• TUT data updated hourly on the Open Closed
  servers by the NCCDS
• MOC Clients will need to pull the TUT data from
  either server manually (Release 10

14
Certificate and Client Download (1 of 7)

• New User Preparation
• Rules of Behavior must be read and signed by each
  user and the users supervisor, and submitted to
  SNAS OM DBA prior to access privileges being
  granted (users role should be specified)
• Static IP address(es) must be provided (faxed or
  phoned) to the SNAS OM DBA so that access to
  SNAS Server for first time Client download and
  certificate generation can be set up.
• SNAS OM DBA will update the filter allowing
  user access, and notifies the new user via email
  (or phone)
• User visits SNAS download website to generate
  certificate and download Client software (JRE
  software also provided on servers)
• Beta
• Open IONet address http//snastest-www.nascom.nasa
  .gov
• Operations
• Open IONet address http//snas-www.nascom.nasa.gov
  /
• Closed IONet address http//snas-www.ops.nascom.na
  sa.gov/
• Note certificate is only available for download
  for 30 minutes after generation.

15
Certificate and Client Download (2 of 7)

• Opening screen for Certificate / Client download
• Select Accept to respond to NASA Website
  Privacy Statement

16
Certificate and Client Download (3 of 7)

• Select Generate Certificate button and follow
  the step by step instructions
• Note Client version, requirements, and JRE
  download link

17
Certificate and Client Download (4 of 7)

• Follow Certificate generation instructions
• Eventually move certificate zip file to the SNAS
  certs folder

18
Certificate and Client Download (5 of 7)

• Download Client Software
• Patch
• Full

19
Certificate and Client Download (6 of 7)

• Windows installation
• Once file is on computer open the archive
  (SNASmocclient.zip). Select "extract" to extract
  the SNAS application files to a directory. The
  default directory is is the current directory
  where the archive is located.
• The user can specify which directory to install
  the software. Ensure that the "All Files" and
  "Use folder names" options are selected.
• Locate your key archive file (xyz-jdoe-key.zip)
  and select "extract" to extract the cert files.
• This file should have been downloaded first as it
  contains your private key and your public SNAS
  certificate. If you have not already done so, you
  will need to generate your user certificates at
  the SNAS website.
• Copy your certificate files into the "certs"
  directory in your expanded client.
• See the MOC Users Guide for Client setup and
  installation instructions (including the
  client.prop cert adjustments)

20
Certificate and Client Download (7 of 7)

• Unix/Linux installation
• Untar the archive (SNASmocclient.tar.gz or
  SNASmocclient.zip). This results in a directory
  tree that begins with "snas"
• cd to/an/installation/directory
• cp /my/download/directory/SNASmocclient.tar
  .gz .
• If using the ".tar.gz" archive
• gzip -d SNASmocclient.tar.gz
• tar xf SNASmocclient.tar
• If using the ".zip" archive
• unzip SNASmocclient.zip
• cd snas
• Locate your key archive file (xyz-jdoe-key.zip).
  This file should have been downloaded first as it
  contains your private key and your public SNAS
  certificate.
• This file should have been downloaded first as
  it contains your private key and your public SNAS
  certificate. If you have not already done so, you
  will need to generate your user certificates at
  the SNAS website.
• Copy your certificates file into the "certs"
  directory in your expanded client
• cp /my/download/directory/xyz-jdoe-key.zip
  certs/
• See the MOC Users Guide for Client setup and
  installation instructions (including the
  client.prop cert adjustments)

21
Digital Certificates

• Each SNAS MOC Client user generates their own
  unique digital certificate using the web-based
  generation tool
• User certificates expire one year after creation
  then the user will revisit the SNAS website to
  generate a new certificate
• Certificates remain available for download by the
  user for 30 minutes

22
Client Configuration (1 of 5)

• Preplanning step decide your Client usage
• Configure SNAS directory structure for single
  user versus multiple users of single Client
  application
• Single application, single user directory
  (currently in Install.txt)
• snas
•

• ----------------------------------------
  -------------------------------------------
•

• active_sched bulk_sched logs certs rctdm
  ttm upd sv_DAS sv_NCC tsw
•

• --------
  --------
•

• archive current
  archive current archive archive archive
• active_sched/ -- Directory to Store
  Active Schedule
• bulk_sched/ -- Directory to Store Bulk
  Schedule Requests
• certs/ -- Certificate Directory
• certs/SNAS-ca-cert.der -- SNAS Certificate
  Authortity Public Certificate

23
Client Configuration (2 of 5)

• Single application, multiple users with External
  Processing
• System

24
Client Configuration (3 of 5)

• Critical configuration steps after Client
  download
• Move certificate files to appropriate SNAS folder
  (/certs)
• Re-specify certificate location and name in the
  property file (client.prop)
• Configure MOC platform directory structure if
  single Client application is shared among
  multiple users
• Configure additional user settings in client.prop
  file
• Reset runclients .bat file command
• javaw no log display (Windows only)
• java display log dynamically
• Configure the correct Java Runtime Environment
  (JRE) for your Client
• If MOC platform running multiple java
  applications requiring different java versions,
  each Java application has a start-up script, i.e.
  runclient.bat for a Windows environment, or
  runclient.bash or runclient.csh for a Linux or
  Unix environment.

To view the MOC Client logging in real-time for
debugging purposes, modify the runclient.bat
file, changing javaw to java before executing
it.
25
Client Configuration (4 of 5)

• For Windows environment, put JREs Program Files
  folder
• a. JRE 1.5.0 located at C\"Program
  Files"\jre1.5.0\
• b. JRE 1.6.0 located at C\"Program
  Files"\jre1.6.0\
• Locate the applications runclient.bat file and
  open it with notepad to
• a. Change javaw to C\"Program
  Files"\jre1.5.0\bin\javaw (to use v1.5.0 )
• b. Change javaw to C\"Program
  Files"\jre1.6.0\bin\javaw (to use v1.6.0)
• Save change
• When you start your Client it will then run under
  the JRE you assigned to it in the start up file
  (i.e. .bat).

26
Client Configuration (5 of 5)

• For Linux or Unix environment the JREs may be
  located in the home directory
• a. JRE 1.5.0 located at /home/cots/jre1.5.0/bin/ja
  va
• b. JRE 1.6.0 located at /home/cots/jre1.6.0/bin/ja
  va
• Locate the applications runclient.bash (or .csh)
  file and open it with your text editor and insert
  a line before your JAVA statement
• a. set JAVA "/home/cots/jre1.5.0/bin/java"
• b. set JAVA "/home/cots/jre1.6.0/bin/java
• Save change
• When you start your Client it will then run under
  the JRE you assigned to it in the start up file
  (i.e. .bash or .csh).

27
Section 2MOC Client Basics Client
Properties User Login Main Menu Display
options User Options View Options
28
MOC Client Functionality

• MOC Client overview
• MOC Manager is setup by the OM DBA at WSC
• MOC Manager can then establish and edit mission
  data including users and roles, spacecraft
  characteristics, EPS extensions for file/message
  transfers, Service Specification Codes and
  Prototype Event IDs, default scheduling and
  orbital parameters, prototype and superprototype
  events (recurrent scheduling), user and orbital
  constraints (orbital processing), and TSW Set IDs
• Create separate mission roles for users
  Planner/Scheduler, Controller, Support, and
  Observer
• MOC User based on Role (i.e. Scheduler,
  Controller, etc.)
• Generate or Import and transfer state vector,
  TCW/TSW, IIRV, PSAT/UAV, and bulk schedule files
• Plan, create, modify, transmit and monitor
  schedule requests for NCC and/or DAS resources
• Monitor NCC and DAS network connections and
  real-time event performance, and reconfigure
  real-time parameters (GCMRs)
• Execute reports and canned queries for schedule
  requests and user environment configuration
  information

29
MOC Client Properties (1 of 14)

• MOC Client properties in client.prop file in
  client download folder
• Ten panels (view only) align with sections in
  client.prop file to view clients configuration
  parameters but for Release 1 parameter changes
  made directly to client.prop file using text
  editor (prior to logon)
• Certificates
• CaPropFilePath - file name of the properties file
  that contains the fingerprint(s) of the
  Certificate Authority's public certificate that
  is to be accepted. The file is distributed with
  the Client software, and the user should change
  neither the file nor the property value.
• caPropFilePath ./CA.prop
• CertificateAuthorityFile - file name of the
  certificate authority's public digital
  certificate. This is used to check the digital
  signature on the certificate presented by the
  server for authentication. The file is
  distributed with the Client software, and the
  user should change neither the file nor the
  property value.
• CertificateAuthorityFile ./certs/SNAS-ca-cert.de
  r

30
MOC Client Properties (2 of 14)

• ClientCertificateFile - file name of the user's
  public digital certificate. The user enters this
  when installing the Client software for the first
  time, or when installing a new certificate with a
  different file name. SNAS Client will allow
  multiple users to share the same application
  folder. For this to work, the Client needs to
  know all the registered users and where they
  store their certificates and passphrases.
• mocuser1 certificates
• mocuser1ClientCertificateFile
  ./mocuser1/certs/company-user-cert.der
• mocuser1PrivateKeyFile ./mocuser1/certs/enc-c
  ompany-user-key.der
• mocuser2 certificates
• mocuser2ClientCertificateFile
  ./mocuser1/certs/company-user-cert.der
• mocuser2PrivateKeyFile ./mocuser1/certs/enc-c
  ompany-user-key.der
• mocuser3 certificates
• mocuser3ClientCertificateFile
  ./mocuser1/certs/company-user-cert.der
• mocuser3PrivateKeyFile ./mocuser1/certs/enc-c
  ompany-user-key.der
• CertificateExpirationWarning - number of days
  before a certificate expires that the user will
  receive an expiration warning during login. The
  warning will appear during each login session
  until a new certificate is installed.
  Certificates are generated with an expiration of
  365 days. The warning value is initially set to
  30 days.
• CertificateExpirationWarning 30

31
MOC Client Properties (3 of 14)

• Login and Connection Properties
• ServerIPAddress - domain name or IP address of
  the server used in the Login Panel.
• Note SNAS has two servers, one for the OPS and
  one for EIF. Their preferred host names and
  ports might be different, by specifing host names
  for each mode, the application will attempt to
  find the appropriate host name and a port when
  given mode is selected.
• for OPS
• ServerIPAddressOPS snas-ops.nascom.nasa.gov
• ServerPortNumberOPS 7810
• for EIF
• ServerIPAddressEIF snas-eif.nascom.nasa.gov
• ServerPortNumberEIF 7820
• ConnMode - defines whether to open the Login
  Panel with EIF mode selected.
• ConnMode OPS
• Fictitious port numbers

32
MOC Client Properties (4 of 14)

• UseSSL - defines whether the socket connection to
  the server will be encrypted. Since the
  operational servers do not allow unencrypted
  connections, this should always be set to true.
• UseSSL true
• CipherSuite - defines the algorithm used to
  establish the SSL connection to the server. This
  is normally set to match the setting on the
  server and should not be changed unless under the
  direction of the SNAS DBA or System
  Administrator.
• CipherSuite SSL_RSA_EXPORT_WITH_RC4_40_MD5
• AccountExpirationWarning - number of days before
  a user's account expires that the user will
  receive an expiration warning during login. The
  warning will appear during each login session
  until the account is renewed. The SNAS DBA sets
  the account expiration time.
• AccountExpirationWarning 30

33
MOC Client Properties (5 of 14)

• AckFrequencyMultiple - maximum time, in seconds,
  that the Client should wait before sending an
  acknowledgment (ack) to the server when the
  Client is receiving no data. The Client normally
  sends an ack after receiving data from the
  server, but only after the Client is able to
  process all the outstanding data on the socket.
  The redundant ack produced by this time ensures
  that the Client continues to receive data even if
  the server fails to receive the normal ack. The
  ack timeout also functions as a keepalive message
  to notify the Client when a connection problem
  has occurred, so that the connection doesn't
  remain in a half-open state where the server has
  closed the connection but the Client may think it
  is still open.
• AckFrequencyMultiple 120
• InputBufferSize - TCP socket read buffer size,
  normally set to match the server's output buffer
  size. The user should not change this unless
  directed to do so by the SNAS DBA or System
  Administrator.
• InputBufferSize 1024000

34
MOC Client Properties (6 of 14)

• OutputBufferSize - TCP socket write buffer size,
  normally set to match the server's input buffer
  size. The user should not change this unless
  directed to do so by the SNAS DBA or System
  Administrator.
• OutputBufferSize 1024000
• AutoReconnect - option to try to automatically
  reconnect to the server if the socket connection
  to the server is lost.
• AutoReconnect true
• MaxReconnectAttempts - if AutoReconnect is true,
  this property is the maximum number of
  reconnection attempts that will be made each time
  the connection is lost. If AutoReconnect is
  false, this property has no effect.
• MaxReconnectAttempts 10
• ReconnectDelay - if AutoReconnect is true, this
  is the delay in seconds between each reconnection
  attempt.
• ReconnectDelay 30
• CompressSocket - indicates whether incoming data
  on TCP socket is compressed. This is normally
  set to match the setting on the server and should
  not be changed unless under the direction of the
  SNAS DBA or System Administrator.
• CompressSocket true

35
MOC Client Properties (7 of 14)

• SelectSICsAtLogin - for multimission users,
  defines whether a dialog will appear prior to
  completion of login to allow selection of which
  SICs will be used for that session. This is
  normally set to false since most users are
  authorized for only a single SIC. Setting to
  false also indicates to use all authorized SICs
  for each session.
• selectSICsAtLogin true
• Alert Panel Properties
• BringToFront - option to bring the Alert Panel to
  the front (on top of any open panels or windows)
  when an alert message is received. Note that if
  the Set Warnings option in the Alert Panel is set
  and a critical message is received, the pop-up
  message will bring the Alert Panel to the front
  even if the BringToFront property is false.
• BringToFront false
• DisplayWarnings - defines whether to display a
  dialog box whenever a critical (red) alert is
  received. If true, display a dialog box.
• DisplayWarnings false
• Alert Audible - play a sound when a critical
  alert occurs. Acceptable values BELL, WHISTLE,
  NONE
• AlertAudible BELL

36
MOC Client Properties (8 of 14)

• Logging Properties
• WriteToLog - indicates whether alerts should be
  logged. Alerts are logged to a file if this is
  set to true.
• WriteToLog true
• LogDir - directory where the current (active) log
  file is created.
• LogDir ./logs/current
• ArchiveDir - directory to which archived (old)
  log files are moved.
• ArchiveDir ./logs/archive
• ArchiveLogAge - Keep logs that are younger than
  this value (days).
• ArchiveLogAge 120
• PurgeArchiveAfter - Archieve that are older that
  this value (days) will be purged
• PurgeArchiveAfter 90
• AlertAge - Alerts that are as young as this value
  (hours) will be kept
• AlertsAge 24

37
MOC Client Properties (9 of 14)

• Logging Properties (contd)
• MaxLogFileSize - maximum output log file size in
  bytes. When the log file reaches this size and
  SwitchLogFileAtMax is set to true, the current
  log file is closed and a new log file is started.
• MaxLogFileSize 100000
• UPD Properties
• UPDDefaultFilePath - for User Performance Data
  (UPD), this property defines the path to the
  properties file that defines the default UPD
  layouts to use for each SIC and service type.
• UPDDefaultFilePath ./UPDs.prop
• DASUPDPrimaryExpirationTime - time in seconds by
  which another DAS UPD must arrive after which a
  service is flagged as expired.
• DASUPDPrimaryExpirationTime 120
• DASUPDSecondaryExpirationTime - time in seconds
  by which another DAS UPD must arrive after which
  a service is removed from the list of active
  services in the UPD Summary Frame.
• DASUPDSecondaryExpirationTime 360

38
MOC Client Properties (10 of 14)

• UPD Properties (contd)
• NCCUPDPrimaryExpirationTime - time in seconds by
  which another NCC UPD must arrive after which a
  service is flagged as expired.
• NCCUPDPrimaryExpirationTime 20
• NCCUPDSecondaryExpirationTime - time in seconds
  by which another NCC UPD must arrive after which
  a service is removed from the list of active
  services in the UPD Summary Frame.
• NCCUPDSecondaryExpirationTime 30
• UPDLogging - defines whether UPD messages
  received from NCCDS or DAS are logged.
• UPDLogging false
• UPDAge - UPDs that are as young as this value
  (hours) will be kept
• UPDAge 24
• UPDLogDir - directory where UPD messages received
  from NCCDS or DAS are written to.
• UPDLogDir ./upd/current

39
MOC Client Properties (11 of 14)

• UPD Properties (contd)
• UPDArchiveDir - directory to which archived (old)
  UPD messages are moved.
• UPDArchiveDir ./upd/archive
• UPDMaxLogSize - maximum UPD log file size in
  bytes. When the UPD log file reaches this size,
  the current UPD log file is closed and a new UPD
  log file is started.
• UPDMaxLogSize 1048576
• DAS Playback Properties
• DefaultPlaybackIP - default Destination IP
  Address for DAS Playback Planning Requests
• DefaultPlaybackIP 123.123.123.123
• DefaultPlaybackPort - default Destination Port
  Number for DAS Playback Planning Requests
• DefaultPlaybackPort 0722

40
MOC Client Properties (12 of 14)

• Active Schedule Properties
• asEnable - defines whether the Active Schedules
  received automatically from the SNAS server are
  written to files.
• asEnable true
• asOutputPath - directory where Active Schedule
  files received automatically from the SNAS server
  are stored. If asEnable is false, this property
  has no effect.
• asOutputPath ./active_sched
• Bulk Schedule Properties
• BulkSchedDir - set the default directory for the
  file chooser when users select Bulk Schedule
  Requests from the Main Control Panel
• BulkSchedDir ./bulk_sched
• Recommended Bulk Data File Size 300 kilobytes 1
  kilobyte 1024 bytes
• BulkDataFileSize 307200
• Recommended BulkRequestSubmissionInterval is 2
  seconds
• BulkRequestSubmissionInterval 2

41
MOC Client Properties (13 of 14)

• Return Receipt Properties
• MinutesToWaitForReceipt - Maximum number of
  minutes to wait for a Return Receipt from the
  server prior to retransmitting.
• MinutesToWaitForReceipt 2
• HoursToStaleReceipt - Number of hours that a
  server request will be managed after which it is
  purged from the receipt management queue.
• HoursToStaleReceipt 24
• RetransmitsOnDbFailure - Maximum number of times
  to retransmit when a return receipt indicates a
  server database error.
• RetransmitsOnDbFailure 2
• EPS Properties
• EpsImportDirPollTime - time (in minutes) delay
  between searches for files in EPS import dir.
  Minimum is 1 minute.
• EpsImportDirPollTime 10
• EpsEnabled false

42
MOC Client Properties (14 of 14)

• Squawk Box Properties
• ShowSquawkBox true
• Debug Properties
• SSLDebug - defines whether debug output is
  generated by the SSL security system. If true,
  generate debug output. This is normally only
  useful to a developer when trying to troubleshoot
  problems. This can generate a lot of output,
  thus slowing down the SSL connection, default is
  set to false.
• SSLDebug false
• ClientDebug - defines whether debug output is
  generated by the Client application. As with
  SSLDebug, this is normally only useful to a
  developer when trying to troubleshoot problems.
• ClientDebug true

43
User Login (1 of 6)

• Executing the runclient.bat (Windows) or
  runclient.bash (Unix/Linux) file, a splash screen
  (with version identification) and Main Control
  menu appear, then a NASA IT Security Warning
  panel is displayed for the user to read and
  acknowledge, otherwise the client will terminate.

44
User Login (2 of 6)

• Once the Security Warning is acknowledged, the
  Login and System Status Indicator panels appear
  (with the Host, Port and Mode defaulting to the
  client.prop settings).
• User supplies User ID, Password, and
• Passphrase, and change Mode if necessary.
• Clicking on the Login button, the Client attempts

• to establish a connection to server (using
• passphrase), and then validates user credentials.

45
User Login (3 of 6)

• If the Client is out of date with the server, the
  User is notified of the version mismatch (occurs
  when the SNAS system has been updated and user
  has not downloaded the required Client version).
• Once the server validates the user credentials,
  the client-server connection is fully
  established, allowing the User to select their
  assigned SIC(s) and role.
• If the User tries to proceed
• without selecting a SIC and Role,
• the system will generate the
• following notification.

46
User Login (4 of 6)

• If multiple SICs differing in
• role levels are selected, the
• user will be notified of the
• role mismatch.
• Be aware of account and
• certificate expirations dates
• After selecting the appropriate
• SIC and Role, the User is
• notified of a successful login
• to the designated IONet
• server for the chosen SIC.

47
User Login (5 of 6)

• The User will notice that the Main Control panel
  will change
• User Id, Role, and Mode will appear in the Main
  Control status area
• System Status Indicators panel will automatically
  update showing the current connection state of
  the Client with the server processes
• The Indicators panel can be terminated, and then
  re-displayed from the Main Control View option

48
User Login (6 of 6)

• User should notice the Main Control options are
  limited to the Role selected. For example User
  has logged in as a Controller
• Specific options assigned
• No Mission parameter editing
• Limited Scheduling options
• Full Control Monitor
• (see MOC Users Guide for details)

49
Main Menu Display options (1 of 2)

• Area for mission data exchanges notices from OM
  (Hide or Show) depending on number of messages

50
Main Menu Display options (2 of 2)

• Font sizing changes in all windows (smallest to
  largest)

51
User Options Save / Load Workspace

• Workspace contains all open panels user was
  working with from when it was last saved
  however data will be stale and will require
  refresh.

52
User Options Switch User

• Any user with same role level can login an active
  MOC Client to replace current session without
  interrupting activity (e.g. UPDs)
• New user will use previous users login
  parameters until after logging out and back in
  again.

53
User Options Password Changes

• User Main Control
• menu options
• New users are required to change their
• password after their first login entry.
• Passwords not including the prescribed categories
• will be notified and prevented from continuing
• Successful password changes
• are acknowledged

54
User Options Switch User

• Switch User option used to transition on-going
  operations (ex. real-time UPD monitoring) without
  interruption from current logged on User to
  another
• Next User must have same Role or Mission
• Manager role
• Same privileges of previous User passed on
• Mission Manager privileges are not available
• New User must enter their User Id and
• Password, then select their assigned Role
• New User not possessing required Role
• nor has access to the current SIC(s)
• is notified of error
• New User is notified
• of successful
• login switch

55
View Options Clock Connection Status

• View option provides Clock and two Connection
  Status panels
• Clock floats with local and UTC times
• System Status Indicator provides status on SNAS
  server processes
• useful for troubleshooting server problems with
  OM personnel

• Clients connect to SAM on either Open or Closed
  IONet server if SAM is disconnected all others
  appear disconnected
• SAM exchanges user data with SvE if SvE is
  disconnected , all processes to the right of it
  appear disconnected
• SvE uses Data Server to retrieve or store data
  if Data Server is disconnected, data cannot be
  retrieved from/stored to DB or file(s)
• SNIF and SDIF are interface processes to NCCDS
  and DAS if disconnected, no messages can be
  exchanged with the interface

56
View option System Status Graphic

• Status Graphics useful for determining NCCDS or
  DAS messaging status
• Like the Status Indicator panel, it shows
  condition of server processes but also provides
  status of SNIF channels used to exchange data
  to/from NCCDS (or ANCC) for SIC

• SchReq for sending requests to NCC
• SchStatus for receiving responses from NCC
• AcqStore for sending Vectors to NCC
• TswStore for sending TSWs to NCC
• PmData for receiving UPDs from NCC
• Reconfig sending GCMRs to NCC

57
Alert Message Panel

• Alert Severity
• Information (green) successful processing with
  additional information
• Warning (yellow) - successful processing by SNAS,
  but with warning information, such as request
  rejected by NCCDS or DAS
• Critical (red) SNAS software, system, or
  Database problem. Requires resolution by SNAS
  operator, SysAdmin, or developer
• Source
• Client, SAM, SvE, SNIF, SDIF, or DAS

58
Main Control Panel

• Main Menu user options
• User option for logging in and out, password
  changes, property file viewing, switching users
• View option provides clock, and system status
  indicator and graphics
• Mission Setup mainly for Mission Manager to
  reconfigure various mission parameters and codes
• Orbital View Vector option for file imports and
  transfers
• Scheduling option used by Planner/Scheduler for
  NCC/DAS request planning, creation, editing, and
  monitoring
• Control/Monitor option used by Controller for
  real-time activities
• Reports and Queries generates user, system, and
  mission reports
• Help provides an on-line User Guide

59
Section 3MOC Manager Setup New Users and Role
Assignments Basic Mission/Spacecraft
Characteristics Default Scheduling
Parameters External Processing Node Setup Service
Specification Code Administration
60
Mission Setup


• Mission Setup option form Main Control Menu
• MOC Manager is required to configure mission
  parameters, user accounts and roles, spacecraft
  characteristics, default scheduling parameters,
  spacecraft specification codes, prototype events,
  node assignments and file transfer options

61
New Users Role Assignments


• OM DBA will provide account details for MOC
  Manager
• MOC Manager will create additional mission user
  accounts and assign users to Roles for each
  mission SIC(s)
• All fields are textual
• Password will convert to encrypted field
• Enabled box activates logon for user, and
  requires reset when user is locked out due to
  three failed login attempts
• Account expiration dates will default to 2810.1A
  default periods
• Passwords expire after 90 days
• Only single role can be assigned to User ID
• Each User can have multiple Roles/User IDs

62
Basic Mission/Spacecraft Characteristics

• General mission data used in
• report generation,
• file identification,
• orbital data processing,
• recurrent scheduling

63
Default Scheduling Parameters


• Parameters used in
• SAR generation
• time display preference,
• Request start time tolerances,
• Request waitlisting,
• TSW usage,
• Recurrent scheduling
• Graphic Timeline display

64
External Processing Node Setup (1 of 4)


• EPS nodes are used to exchange files between an
  active MOC Client and the nodes configured on
  other platforms on the MOC network
• Right click on panel,
• selecting Add EPS
• Node

65
External Processing Node Setup (2 of 4)


• Clicking on Browse buttons will allow user to
  specify folders to
• Import files from,
• Export files to,
• Archive files to once they are processed

• Enter new Node identifier
• and settings
• When Pass Msg Enabled is set to True, the
  specified files will be processed for that node

66
External Processing Node Setup (3 of 4)


• After node is specified,
• then select messages
• that will passed between
• Client and node

67
External Processing Node Setup (4 of 4)


• Once nodes are
• configured with
• assigned message
• files, they will appear
• on the lower half of
• the EPS node panel

• But make sure all directories are specified or
  warnings will occur

68
SSC Administration

• SNAS OM DBA or MOC Manager function used to
  maintain default SSC parameter values
• Important for maintenance of DAS parameter
  values, since the values themselves are sent to
  DASCON rather than just the SSC code

69
Section 4Vector Processing Overview Orbital
View Vector Options State Vector
Generation Importing Vectors Importing Orbital
Data Importing TDRS Window Data Transfer of TSWs
to NCCDS
70
Orbital View Vector (OVV) Options

• For Projects that do not utilize FDF for SN
  Vector support
• Generate Geocentric vectors
• Generate Geodetic vectors
• Import State Vectors, Bulk IIRVs, TCWs, and
  Orbital Data consisting of PSATs, UAVs or both
  PSATs and UAVs, and TSWs
• Initiating Transfer of TSWs

71
State Vector Generation

• Generating Geocentric or Geodetic State Vectors
  for NCC or DAS
• Geocentric can be Type 1 or 8 Geodetic can only
  be Type 8

72
Importing Vectors

• Importing State Vectors or IIRV data
• Manual selection of pre-generated vector data
  from FDF or from tool like STK by user

73
Importing Orbital Data

• Import Orbital Data consisting of PSATs, UAVs or
  both PSATs and UAVs (supplied by FDF or other
  data producer)

74
Importing TDRS Window Data

• Import TCW or TSWs

75
Transfer of TSWs to NCCDS

• TSWs must exist within the SNAS database prior to
  initiation of this process.

76
Section 5Scheduling Processing Overview
(NCCDS) TDRSS Unscheduled Time (TUT)Creating
Schedule Add Requests Monitoring
Requests Modifying the Request Active Schedule
Summary Bulk Scheduling Reports
Queries Graphical Timeline Scheduling Tool
77
SN Scheduling Process

• NCCDS Scheduling divided into Forecast and Active
  periods
• User Schedule Messages (USM) are received only
  within Active period

78
TDRSS Unscheduled Time (1 of 3)

• Using TUT info, user finds open TDRS time for
  mission services
• TUTs updated by NCC every hour on Closed IONet
  server and website, then passed on to Open
  server
• TUT Summary window provides ability to
• create SAR from selected TUT record.

79
TDRSS Unscheduled Time (2 of 3)

• External to SNAS, user can retrieve TUTs
  viaWebsite

80
TDRSS Unscheduled Time (3 of 3)

• TUT Website

81
Scheduling - Generating NCC Requests

• SARs, in addition to TUT panel, can be created
  along with other NCC scheduling requests from NCC
  Requests option

82
Creating Schedule Add Requests (1 of 11)

• Selecting a SUPIDEN from the drop down list will
  alert NCC to the the type of operations the SAR
  will need TDRS resources for

83
Creating Schedule Add Requests (2 of 11)

• Once SUPIDEN is selected, user can define
  services for the mission (SIC) using Prototype
  Event (PE) Codes, or

84
Creating Schedule Add Requests (3 of 11)

• Select from a list of individual Service
  Specification Codes (SSC) as needed, e.g. SSA
  Forward

85
Creating Schedule Add Requests (4 of 11)

• and/or SSA Return

86
Creating Schedule Add Requests (5 of 11)

• Then user can modify a services nominal start
  time or duration, tolerance, or minimal duration,
  or link it to a CSN (Coupled Service Number) or
  SBSN (Service Bounded By Service Number)

87
Creating Schedule Add Requests (6 of 11)

• Also the user may want to verify the Fixed
  parameters of the selected SSAF SSC, or

88
Creating Schedule Add Requests (7 of 11)

• Modify some of its Respecifiable parameters

89
Creating Schedule Add Requests (8 of 11)

• Same with the Fixed parameters of the selected
  SSAR SSC, or

90
Creating Schedule Add Requests (9 of 11)

• its Respecifiable parameters

91
Creating Schedule Add Requests (10 of 11)

• User may or may not use TSWs submitted previously
  to the NCC to schedule the SAR

92
Creating Schedule Add Requests (11 of 11)

• User can put the request on the NCC Waitlist if
  it is unschedulable after NCC receipt

93
Monitoring Requests (1 of 2)

• User can monitor processing of the SAR using the
  Alert Stream panel which shows Client activity,
  server processing, and NCCDS/DAS responses
• Server SvE initiates the Request port, reports
  SAR SAVED to SNAS DB, is QUEUED for transmission,
  and transmitted to NCC
• NCC returns Schedule Response Message (SRM)
  verifying a good SAR was received and lists it as
  NCC_QUEUED for placement, and service requests
  were GRANTED
• NCC sends User Schedule Message (USM) notifying
  user that the request has been placed in the
  Active Schedule queue

94
Monitoring Requests (2 of 2)

• Selecting Schedule Request Summary panel displays
  all requests and their current status submitted
  by schedulers (only for the missions a user has
  privileges for)
• Selecting a SAR that has been Granted a scheduler
  can replace the original request by submitting a
  Replacement Request (RR), or delete it by
  submitting a Schedule Delete Request (SDR)

95
Modifying the Request (1 of 2)

• An RR is similar to a Delete and Add of the
  original SAR some adjustments to time and
  services can be made without it being rejected

96
Modifying the Request (2 of 2)
97
Active Schedule Summary

• Selecting the Active Schedule Summary displays
  requests confirmed by the NCC and within the
  Active period (confirmed events are requests that
  SNAS has received a USM for)
• Only events scheduled to occur in the future or
  are in-progress appear on the panel

98
Bulk Scheduling (1 of 9)

• Process to load and transmit file of multiple
  schedule requests to NCC or DAS
• Blocked messages follow User Planning System
  (UPS) format
• Headerless messages follow SN Web Services
  Interface (SWSI)
• Note currently addressing problem with maximum
  file size and number of requests

99
Bulk Scheduling (2 of 9)

• Here, User selects a prepared set of bulk NCC
  schedule requests (includes SAR, RR, SDR, WLR,
  ASAR)
• Confirms selection

100
Bulk Scheduling (3 of 9)

• System lists the schedule requests for
  confirmation or correction
• User selects invalid request

101
Bulk Scheduling (4 of 9)

• Error message indicates which service (SSC) has
  the problem, and the parameter value at issue
• User selects the service and clicks on the
  Parameters button

102
Bulk Scheduling (5 of 9)

• User selects the illegal parameter and supplies
  the correct value, clicking on the SAVE button to
  return to the request list

103
Bulk Scheduling (6 of 9)

• If all corrections fall with the correct
  parameter range or values, the invalid request
  will change to valid status
• User can proceed to transmit requests to NCC by
  selecting the Submit button
• If any invalid requests remain, they will not be
  transmitted

104
Bulk Scheduling (7 of 9)

• User can save the modified bulk request file for
  future submissions (basically editing start times
  for future period)
• Once Saved the individual requests
• will be transmitted at an interval of
• every 2 seconds

105
Bulk Scheduling (8 of 9)

• A notification panel will indicate
• when the tranmission is complete
• (in some cases requests may fail
• transmission and will automatically
• be recycled)
• The Alert Stream panel will record the process
  and start receiving responses (SRMs, USMs)from
  the NCC
• However, some requests will fail NCCs
  inter-service checks

106
Bulk Scheduling (9 of 9)

• Schedule Request Summary panel will list the
  requests and their disposition based on the SRMs

107
Reports And Queries (1 of 10)

• Generating Confirmed Event Listing

108
Reports And Queries (2 of 10)

• Generating Confirmed Schedule Report

109
Reports And Queries (3 of 10)

• Generating Rejected/Declined Report

110
Reports And Queries (4 of 10)

• Querying the database for Schedule Data

111
Reports And Queries (5 of 10)

• Querying the database for Service Type Data

112
Reports And Queries (6 of 10)

• Query Prototype Event Codes

113
Reports And Queries (7 of 10)

• Query Service Specification Codes

114
Reports And Queries (8 of 10)

• Query User Environment

115
Reports And Queries (9 of 10)

• Query TSW

116
Graphical Timeline Scheduling Tool (1 of 2)

• User selects the TDRS and SUPIDENs of
• the information to display as well as the
• start and stop times (range of display)
• Timeline displays requests, TUT availability,
  USMs, TSWs, and User Constraints for the
  specified period

117
Graphical Timeline Scheduling Tool (2 of 2)

• To view detailed schedule items, select the item,
  right clicking on the panel to place the detailed
  info in the panes below

118
Section 6Real-time Operations User Performance
Data and GCMRs(UPDs) Miscellaneous Functions
119
User Performance Data and GCMRs (1 of 9)

• The Active Schedule Summary page will display
  requests as they become A
