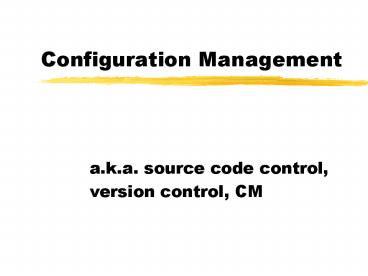

Title: Configuration Management


1
Configuration Management
  • a.k.a. source code control,
  • version control, CM

2
Why CM?
  • Multiple developers
  • Multiple phases (alpha, beta, released)
  • Multiple released versions of software
  • Multiple platforms for software

3
Simple CM
  • A directory for each version
  • Make new version by copying old
  • Two developers never edit same file at same time

4
More complex CM
  • All versions stored in a database
  • Each file is stored in database separately
  • fetch version 3.4 of all files and put them into
    johnson/project3.4
  • Edit files, compile, test, etc.
  • store johnson/project3.4 as next version

5
Problems
  • What if two developers want to change the same
    file?
  • 1) Dont let them. You must lock a file
    before you can edit it. Only one person can lock
    a file.
  • 2) Let them. You must resolve differences when
    you check the files back into the database.

6
Locking
  • Checkout for reading - readonly file.
  • Checkout for writing - writable, but must lock
    file.
  • Checkin writable file - create new version,
    unlock file.

7
Problem
  • How can you tell whether a set of files are
    compatible?
  • 1) Label them. Each file has something like
    version that is put in a comment.
  • 2) Group them. The CM system keeps track of all
    related files, and checks them in and out as a
    group.

8
Building software
  • make knows all the files it takes to build a
    program
  • Why not have CM system know all the files?
  • Can check them all out at once
  • Can check them in

9
Building software
  • Good CM system should be able to retrieve any
    version.
  • 1) Store binaries of old versions.
  • 2) Know how to rebuild binaries of old versions.
  • Must keep old versions of libraries.
  • Must keep old versions of compiler, etc.

10
How to use a CM system
  • To fix bug
  • Check-out most recent version
  • Change, compile, test, etc.
  • Check-in next version.
  • If someone checked-in before you, get the
    changes, manually merge them, compile, test, etc.
    Try again.

11
How to use a CM system
  • If you dont check out code for a long time then
  • When you check-in, youll find lots of conflicts.
    It will take a long time to make your code ready
    to check-in.
  • So, make lots of small changes rather than a few
    big ones.

12
CM tools
  • Unix - CVS
  • Windows - SourceSafe
  • See http//www.enteract.com/bradapp/links/scm-lin
    ks.html

13
CVS
  • Records history of source files
  • Efficiently records every version
  • Helps developers work concurrently
  • Runs on a server

14
Connecting to server
  • Must specify server by setting environment
    variable
  • Must have account on the server
  • There can be many directories on the server
  • setenv CVSROOT pserverjohnson_at_cvsserver.cs.uiuc
    .edu/cvsroot
  • cvs login

15
CVS
Developer 4
Repository
Developer 1
Developer 3
Developer 2
16
Things to do with CVS
  • Get source code
  • Put new version back into repository
  • Compare differences between versions
  • Create, delete, change permissions, etc

17
Checking out source code
  • cvs checkout poker
  • cd poker
  • ls
  • CVS makefile cards.c cards.h poker.c

18
Checking in source code
  • emacs poker.c
  • cvs commit poker.c
  • CVS will ask you for a comment to describe the
    change

19
Conflict
  • cvs update driver.c
  • RCS file /usr/local/cvsroot/uiuc/poker/poker.c,v
  • retrieving revision 1.4
  • retrieving revision 1.6
  • Merging differences between 1.4 and 1.6 into
    poker.c

20
Conflict (continued)
  • rcsmerge warning overlaps during merge
  • cvs update conflicts found in poker.c
  • C poker.c
  • emacs poker.c

21
Conflict (continued_
  • ltltltltltltltltltltpoker.c
  • old lines
  • new lines
  • gtgtgtgtgtgtgtgtgtgt 1.6

22
Merging
  • CVS does a good job at merging
  • Reports conflicts it cannot merge
  • Merges usually work unless there is a conflict
  • But not always!

23
Summary
  • cvs co get source code from repository
  • cvs update d get latest version
  • cvs ci put source code in repository
  • cvs ci will complain if it is not the latest
  • cvs update will merge and complain if it cant
    merge

24
Basic activity of using CVS
  • Check out/update code.
  • Modify and test it.
  • Check it back in. If there are conflicts, fix
    them and check back in again.
  • The longer your code is checked out, the more
    conflicts there will be.

25
Cleaning up
  • cvs release -d poker
  • M poker.c
  • You have 1 altered files in this repository.
  • Are you sure you want to release (and delete)
    module poker' n
  • release' aborted by user choice.

26
Coordinating developers
  • cvs watch on files - make readonly
  • cvs watch off files
  • cvs watch add files - notify me if written
  • cvs watch remove files
  • cvs edit files - let me write, notify others
  • cvs unedit files

27
Revisions
  • Revision number 2.4 or 1.7.3.3 or 6.3.1.3.1.1
  • Normal commit will increment last number
  • Creating a branch will add .1.1 to the end
  • Different files will have different revision
    numbers

28
Tag
  • A release of a system will have many different
    revision numbers
  • To let you find all the files in a release, use
    tags.
  • cvs tag poker-2-2 .c .h makefile

29
Branch
  • Reasons to branch
  • fix bugs in product while working on next version
  • work on subproject that will take a week to finish

30
Branches
  • Create a branch
  • cvs tag -b poker2.0-beta
  • Create a directory holding a branch
  • cvs checkout -r poker2.0-beta poker
  • Change your directory to a particular branch
  • cvs update -r poker2.0-beta poker

31
Merging branches
  • cvs update j poker2.0-beta
  • Merges changes between the current version and
    the version tagged poker2.0-beta
  • Then do cvs ci to store changes in the
    repository.

32
Branches
  • Avoid branches if possible.
  • Reasons to branch
  • Fixing bugs in customer version
  • Experimental version
  • Political fights

33
Bad reasons to branch
  • Support different hardware platform
  • Make subclasses / use conditional compilation /
    make portability library
  • Support different customer
  • Separate unchanged code from changed code
  • Unchanged code goes in a library
  • Make subclasses / use conditional compilation for
    changed code

34
For more info on CVS see
  • http//www.cvshome.org
  • http//cvsbook.red-bean.com/
  • http//www.loria.fr/molli/cvs/doc/cvs_toc.html
  • www.sourceforge.net
