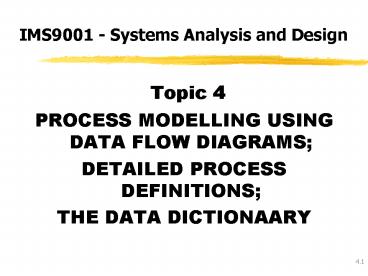

IMS9001 - Systems Analysis and Design
  • Topic 4
  • PROCESS MODELLING USING DATA FLOW DIAGRAMS
  • DETAILED PROCESS DEFINITIONS
  • THE DATA DICTIONAARY

2
Logical and physical DFDs
  • Data flow diagrams may focus on either
  • the physical view of the systems processing
  • OR
  • the logical view of the systems processing

3
Physical DFDs
  • represent a particular way of implementing the
    processes and data in a system
  • they are technology dependent
  • they show how the processing takes place and how
    the data is implemented

4
Logical DFDs
  • represent what a system must do regardless of how
    it is implemented
  • they are technology independent
  • they show what processing, data movements and
    data storage must occur in a system
  • they show the essential aspects of a system

5
Using Logical and Physical DFDs
  • physical DFDs help systems analysts become
    familiar
  • with how a business or system operates
  • physical DFDs help systems analysts understand
    and
  • document problems with existing systems
  • users can relate to physical DFDs more readily
    because
  • they contain implementation details
  • landmarks e.g. people or roles, actual
    locations
  • implementation details can be removed
  • from physical DFDs

6
Physical to Logical DFDs
  • use names for data flows and data stores which
    indicate their content, not their physical form
    or location
  • use names for processes that indicate what, not
    how

7
Physical to Logical DFDs
2.1
checked AZ104 form
AZ104 form
Bill checks form
Master File
valid sales order
2.1
sales order
Validate sales order
Sales orders
8
Physical to Logical
eliminate physical processes that refer to
physical activities only and do not transform data
1.1.1
1.1.2
daily mail delivery
opened mail
1.1.3
mail orders
Retrieve mail orders
Open mail
Register mail orders
registered mail orders
1.1.1
customer order
received customer order
Record customer order
9
Physical to Logical
remove any data stores that are implementation
dependent
1.1.2
1.1.1
Update master file
Validate trans- actions
transactions
Transaction file
Master file
1.1.1
Validate employee details
employee details
Employees
10
Physical to Logical
avoid arbitrary sequencing
2.1.3
2.1.2
A
B
only show this sequence if process B requires
data produced by process A
11
Physical to Logical
  • consider the implications for processing cycles
    of
  • showing data stores

1.1.2
1.1.1
customer invoice
Produce customer invoice
Validate sales order
sales order
Sales orders
OR
1.1.2
1.1.1
Produce customer invoice
customer invoice
valid sales order
Validate sales order
sales order
12
Example Physical DFD and Logical DFD
an example physical DFD for part of an order
processing system
AZ4-order form
Sorted orders file
2..1.1
2.1.3
2..1.2
checked order forms
Run the orders program
Orders clerk
Sort into order number
reject
Stock file
processed orders
a logical DFD derived from the physical DFD above
Products
2..1.3
2..1.1
2..1.2
sales orders
valid sales orders
Complete sales orders
Check sales orders
Check stock available
accepted sales orders
reject
filled sales orders
13
Logical and Physical DFDs
Physical DFDs Logical DFDs
View How processing is What the system
does implemented Processes
Actual sequence Essential sequence
Naming Forms, locations, Underlying
data and people/roles
activities Data flows
Excess/duplicated data Only essential
inputs for implementation
and outputs of the needs
processes
14
Building a Set of Data Flow Diagrams
  • originally there were four different types of
    DFDs
  • used in a four stage modelling process
  • current physical model
  • build a set of physical DFDs representing
  • the current system
  • current logical model
  • derive a logical equivalent
  • new logical model
  • incorporate new system requirements
    identified
  • new physical model
  • add physical implementation details to reflect
    the
  • selected implementation option

15
Building a Set of Data Flow Diagrams
disadvantages of the four stage modelling
approach
  • unnecessary emphasis on detailed modelling

of existing system
  • inhibits creative problem solving and redesign

preferred approach
  • create a set of physical DFDs for the current
    system
  • which are detailed enough to understand and
    grasp
  • any problems
  • focus on the essential model of the system, i.e.
    the
  • new logical model which identifies what the
    new
  • system must do

16
Data Dictionary (Repository)
  • the data dictionary is a database or repository
    of information about objects identified during
    systems development
  • every object (and each of its components) must
    have a definition in the data dictionary
  • the data dictionary is a major source of
    documentation about the information system

17
Data Dictionary Entries for Components of DFDs
  • the data dictionary must contain precise
    definitions of all components of all data flow
    diagrams
  • to fully explain the meaning of the DFDs
  • to describe the contents of all data flows and
    data stores
  • to describe the processing that occurs in
    primitive processes
  • to ensure that names and meanings of components
    are used consistently (a common vocabulary)

18
Data Dictionary Entries
  • a data dictionary entry must be included for each
  • data flow
  • data store
  • higher level process
  • primitive process
  • external agent (source/sink)

19
Data elements
  • each data flow consists of a series of data
    elements
  • a data element is a unit of data that cannot be
    further broken down into meaningful units of data
  • each data element should also have an entry in
    the data dictionary
  • data flows and data stores are made up of data
    elements

20
Data Elements
  • a data dictionary entry for a data element should
    include any aliases (alternative names), a brief
    description of its meaning, the kinds of values
    it can take, and the range of values it can have
    (if appropriate)
  • E.g. Data element product code
  • Alias product number
  • Description identifies a product held in
    the warehouse
  • Values must be a positive integer
  • Range between 1000 and 5000

21
Data Flows
  • a data dictionary entry for a data flow describes
    the sequence of data elements and data structures
    in the data flow using the following connectors
  • is equivalent to
  • and
  • select one of
  • iterations of
  • ( ) optional
  • comments

22
Example Data Flow Entry
  • sales order sales order no.
  • sales order date
  • customer number
  • account customer
  • cash customer
  • customer name
  • customer address
  • (customer telephone no)
  • item no item desc item price
  • item qty
  • sales order total amount

23
Data Stores
  • a data store is made up of data flows and data
    elements
  • where a data store consists of a collection of
    data flows it is described as repetitions of that
    data flow
  • e.g. Data Store customer invoice
  • data stores may also be described by listing
    their data elements
  • e.g customer deposit account no
  • deposit date
  • deposit amount
  • account balance

24
Describing Processes
  • each process in higher level DFDs is defined by
    the DFD that decomposes the process at the next
    level down
  • these are parent processes
  • each such process should have a data dictionary
    entry which includes a brief description of the
    overall nature and purpose of the process

25
Describing Processes
  • example data dictionary entry for a process
  • Treat patients Patient consultations are carried
    out to determine the causes of patients
    illnesses/ medical problems. Further
    treatment/ follow up is recommended if
    appropriate. Details of consultations are
    recorded.
  • specific process description (minispecs)

26
Describing External Agents
  • each external agent (source or sink) should have
    a data dictionary entry which describes its
    relationship with the system
  • e.g.
  • Referring Doctors
  • These are doctors who refer their patients to a
    specialist medical practitioner for treatment.
    They are usually general practitioners.

27
Building and Maintaining the Data Dictionary
  • determine standard formats and information
    content for all types of data dictionary entries
  • have a standard means of organising and storing
    the entries in the data dictionary
  • ensure that all components of the DFDs have
    entries in the data dictionary and that they are
    kept up-to-date
  • cross-referencing of entries in the data
    dictionary can help to check the completeness and
    consistency of the DFDs and other types of models

28
Detailed Process Definitions
  • the processing that occurs within the bottom
    level (primitive) processes in DFDs needs to be
    defined
  • detailed process descriptions are also known as
    minispecs
  • detailed process descriptions form part of the
    data dictionary they define the contents of
    primitive processes

29
Detailed Process Definitions
  • many techniques can be used to define the
    details of processing
  • e.g. narrative text
  • Structured English
  • decision tables
  • decision trees
  • flow charts

30
Detailed Process Definitions
  • detailed process descriptions should
  • express what the process does (i.e. policy), not
    how the process is carried out (i.e. procedure)
  • be in a form that can be easily understood and
    verified by both users and systems analysts
  • be in a form that can be easily communicated to
    all potential stakeholders
  • e.g. end-users, systems analysts, managers,
    system designers, project leaders, programmers

31
Structured English
  • Structured English is a modified form of English
    with some major restrictions on vocabulary and
    structure
  • only action (imperative) verbs such as get, put,
    add, calculate, find, delete are used
  • only nouns/noun phrases which refer to components
    of the DFDs should be used, i.e. data flows, data
    stores, data elements

32
Structured English
  • sentences consist of action verbs and DFD
    components
  • sentences are combined to form process
    descriptions using the control structures of
    sequence, condition, and repetition

33
Control Structures
  • Condition uses If... Then...Else
  • or
  • Select Case Case 1...Case 2...End Case
  • E.g.
  • If qty-in-stock is less than minimum-order-qty
  • Then update stock-reorder indicator
  • Else do nothing

34
Control Structures
  • e.g.
  • Select Case
  • CASE 1 qty-in-stock is less than
    minimum-order-qty
  • Do update stock-reorder indicator
  • CASE 2 qty-in-stock is equal to
    minimum- order-qty
  • Do nothing
  • CASE 3 qty-in-stock is greater than
    minimum- order-qty
  • Do nothing
  • End Case

35
Control Structures
  • Sequence is represented with one sentence
    following another in sequence
  • Add student to class list
  • Decrease available-places
  • Calculate class-fee

36
Control Structures
  • Repetition uses Do-Until or Do-While loops
  • Do
  • Accept customer-account-details
  • Calculate daily-interest daily balance
    daily interest rate
  • Add daily-interest to monthly-interest-due
  • Until
  • no more customer-accounts

37
Example Structured English
  • Accept sales-order
  • Find customer-details
  • If customer-details not found
  • Then reject sales-order
  • Else
  • Create sales-order-header
  • Do while more sales-order-items
  • find item-details
  • calculate sales-order-item price
  • item price order-qty
  • Enddo
  • Authorise sales-order
  • Endif

38
Guidelines for Structured English
  • use indentation to indicate control structures
    and their scope assists readability and
    understanding
  • avoid more than three levels of nesting
    complicated logic can be represented using other
    techniques
  • Stuctured English descriptions should illustrate
    the logic of the processing, not the
    implementation of the processing

39
Decision Tables
  • decision tables are useful for describing
    processes where several different conditions
    apply and the particular actions that are taken
    are determined by combinations of the values of
    the conditions
  • decision tables are useful where the process
    logic is complex
  • decision tables show all the possible choices and
    the conditions they depend on in a tabular form

40
Decision Tables
decision tables have three stubs (four quadrants)
combinations of condition values
conditions
rules
actions
41
Example Decision Table
Y
Y
Y
Y
N N N N
approve
X X
X
X
reject
X
X X X
42
Decision Trees
  • decision trees are an alternative graphical
    representation of a decision situation as a
    connected series of nodes and branches

15
local item
10
imported item
local item
12
7
imported item
Determine Customer Discount
43
Selecting Techniques for Process Descriptions
  • Structured English is useful where a process has
    a sequence of activities and there is no more
    than three levels of nesting of decisions
  • decision trees and decision tables are useful
    where a process involves a decision based on
    combinations of values of several conditions

44
Selecting Techniques for Process Descriptions
  • decision trees visually distinguish the decision
    conditions and their values from the actions
  • they show the paths that decisions can follow
    but soon become cluttered if each condition has
    several possible values
  • decision tables are able to show decisions
    involving many conditions each with many possible
    values

45
Overview of Process Modelling
  • several techniques are available for representing
    the processing within systems
  • the aim of process modelling in systems analysis
    is to define the processing that occurs within a
    system

46
Process Modelling Techniques
  • models representing
  • an overview of the system processing
  • the structure of the system processing
  • the flow of data into and out of the processes
  • the detailed logic of the processes
  • can be constructed

47
References
  • HOFFER, J.A., GEORGE, J.F. and VALACICH (2005)
    Modern Systems Analysis and Design, (4th
    edition), Pearson Education Inc., Upper Saddle
    River, New Jersey, USA. Chapters 7, 8
  • WHITTEN, J.L., BENTLEY, L.D. and DITTMAN, K.C.
    (2001) 5th ed., Systems Analysis and Design
    Methods, Irwin/McGraw-HilI, New York, NY.
    Chapter 8
Write a Comment
User Comments (0)
