Resampling techniques

1

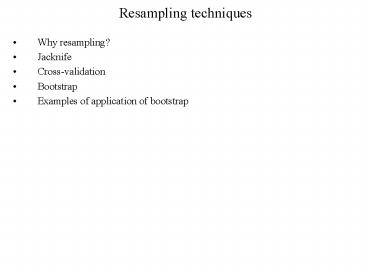

Resampling techniques

• Why resampling?
• Jacknife
• Cross-validation
• Bootstrap
• Examples of application of bootstrap

2
Why resampling?

• One of the purposes of statistics is to estimate
  some parameters and their reliability. Since
  estimators are functions of sample points they
  are random variables. If we could find
  distribution of this random variable (sample
  statistic) then we could estimate reliability of
  the estimators. Unfortunately apart from the
  simplest cases, sampling distribution is not easy
  to derive. There are several techniques to
  approximate them. These include Edgeworth
  series, Laplace approximation, saddle-point
  approximations. They give analytical forms for
  the approximate distributions. With advent of
  computers computationally intensive methods are
  emerging. They work in many cases satisfactorily.

• Examples of simplest cases where sample
  distributions are known include
• Sample mean, when sample is from a population
  with normal distribution, has normal distribution
  with mean value equal to the population mean and
  variance equal to variance of the population
  divided by the sample size if population variance
  is known. If population variance is not known
  then variance of sample mean is the sample
  variance divided by n.
• Sample variance has the distribution of multiple
  of ?2 distribution. Again it is valid if
  population distribution is normal and sample
  points are independent.
• Sample mean divided by square root of sample
  variance has the multiple of the t distribution
  again normal and independent case
• For independent samples and normal distribution
  sample variance divided by sample variance has
  the multiple of F-distribution.

3
Resampling techniques

• Three of the popular computer intensive
  resampling techniques are
• Jacknife. It is a useful tool for bias removal.
  It may work fine for medium and large samples.
• Cross-validation. Very useful technique for model
  selection. It may help to choose best model
  among those under consideration.
• Bootstrap. Perhaps one of the most important
  resampling techniques. It can reduce bias as well
  as can give variance of the estimator. Moreover
  it can give the distribution of the statistic
  under consideration. This distribution can be
  used for such wide variety purposes as interval
  estimation, hypothesis testing.

4
Jacknife

• Jacknife is used for bias removal. As we know,
  mean-square error of an estimator is equal to the
  square of the bias plus the variance of the
  estimator. If the bias is much higher than
  variance then under some circumstances Jacknife
  could be used.
• Description of Jacknife Let us assume that we
  have a sample of size n. We estimate some sample
  statistics using all the data tn. Then by
  removing one point at a time we estimate tn-1,i,
  where subscript indicates the size of the sample
  and the index of the removed sample point. Then
  new estimator is derived as
• If the order of the bias of the statistic tn is
  O(n-1) then after the jacknife the order of the
  bias becomes O(n-2).
• Variance is estimated using
• This procedure can be applied iteratively. I.e.
  for the new estimator jacknife can be applied
  again. First application of Jacknife can reduce
  bias without changing variance of the estimator.
  But its second and higher order application can
  in general increases the variance of the
  estimator.

5
Jacknife An example

• Let us take a data set of size 12 and perform
  jacknife for mean value.

data
mean 0) 368 390 379 260 404 318 352 359 216 222
283 332 323.5833 Jacknife
samples 1) 390 379 260 404 318 352 359
216 222 283 332 319.5455 2) 368
379 260 404 318 352 359 216 222 283 332
317.5455 3) 368 390 260 404 318
352 359 216 222 283 332 318.5455 4)
368 390 379 404 318 352 359 216 222 283
332 329.3636 5) 368 390 379 260
318 352 359 216 222 283 332
316.2727 6) 368 390 379 260 404 352 359
216 222 283 332 324.0909 7) 368
390 379 260 404 318 359 216 222 283 332
321.0000 8) 368 390 379 260 404 318
352 216 222 283 332 320.3636
9) 368 390 379 260 404 318 352 359 222
283 332 333.3636 10) 368 390 379
260 404 318 352 359 216 283 332
332.8182 11) 368 390 379 260 404 318 352 359
216 222 332 327.2727 12) 368
390 379 260 404 318 352 359 216 222 283
322.8182 tjack 12323.5833-11mean(t)
323.5833. It is an unbiased estimator var(t)
345.7058
6
Cross-validation

• Cross-validation is a resampling technique to
  overcome overfitting.
• Let us consider a least-squares technique. Let us
  assume that we have a sample of size n
  y(y1,y2,,,yn). We want to estimate the
  parameters ?(?1, ?2,,, ?m). Now let us further
  assume that mean value of the observations is a
  function of these parameters (we may not know
  form of this function). Then we can postulate
  that function has a form g. Then we can find
  values of the parameters using least-squares
  techniques.
• Where X is a fixed matrix or a matrix of random
  variables. After minimisation of h we will have
  values of the parameters, therefore complete
  definition of the function. Form of the function
  g defines model we want to use. We may have
  several forms of the function. Obviously if we
  have more parameters, the fit will be better.
  Question is what would happen if we would have
  new observations. Using estimated values of the
  parameters we could estimate the square of
  differences. Let us say we have new observations
  (yn1,,,ynl). Can our function predict these new
  observations? Which function predicts better? To
  answer to these questions we can calculate new
  differences
• Where PE is the prediction error. Function g that
  gives smallest value for PE have higher
  predictive power. Model that gives smaller h but
  larger PE corresponds to overfitted model.

7
Cross-validation Cont.

• If we have a sample of observations, can we use
  this sample and choose among given models. Cross
  validation attempts to reduce overfitting thus
  help model selection.
• Description of cross-validation We have a sample
  of the size n.
• Divide sample into K roughly equal size parts.
• For the k-th part, estimate parameters using K-1
  parts excluding k-th part. Calculate prediction
  error for k-th part.
• Repeat it for all k1,2,,,K and combine all
  prediction errors and get cross-validation
  prediction error.
• If Kn then we will have leave-one-out
  cross-validation technique.
• Let us denote an estimate at the k-th step by
  ?k (it is a vector of parameters). Let k-th
  subset of the sample be Ak and number of points
  in this subset is Nk.. Then prediction error per
  observation is
• Then we would choose the function that gives the
  smallest prediction error. We can expect that in
  future when we will have new observations this
  function will give smallest prediction error.
• This technique is widely used in modern
  statistical analysis. It is not restricted to
  least-squares technique. Instead of least-squares
  we could could use other techniques such as .
  maximum-likelihood, Bayesian estimation.

8
Bootstrap

• Bootstrap is one of the computationally expensive
  techniques. Its simplicity and increasing
  computational power makes this technique as a
  method of choice in many applications. In a very
  simple form it works as follows.
• We have a sample of size n. We want to estimate
  some parameter ?. The estimator for this
  parameter gives t. For each sample point we
  assign probability (usually equal to 1/n, i.e.
  all sample points have equal probability). Then
  from this sample with replacement we draw another
  random sample of size n and estimate ?. Let us
  denote an estimate of the parameter by ti at the
  j-th resampling stage. Bootstrap estimator for ?
  and its variance is calculated as
• It is a very simple form of application of the
  bootstrap resampling. For the parameter
  estimation, the number of the bootstrap samples
  is usually chosen to be around 200. When
  distribution is desired then the recommended
  number is around 1000-2000
• Let us analyse the working of bootstrap in one
  simple case. Consider a random variable X with
  sample space x(x1,,,,xM). Each point have the
  probability fj. I.e.
• f (f1,,,fM) represents the distribution of the
  population. The sample of size n will have
  relative frequencies for each sample point as

9
Bootstrap Cont.

• Then distribution of conditional on f will
  be multinomial distribution
• Multinomial distribution is the extension of the
  binomial distribution and expressed as
• Limiting distribution of
• Is multinormal distribution. If we resample from
  the given sample then we should consider
  conditional distribution of the following (that
  is also multinomial distribution)
• Limiting distribution of
• is the same as the conditional distribution of
  the original sample. Since these two distribution
  converge to the same distribution then well
  behaved function of them also will have same
  limiting distributions. Thus if we use bootstrap
  to derive distribution of the sample statistic we
  can expect that in the limit it will converge to
  the distribution of sample statistic. I.e.
  following two function will have the same
  limiting distributions

10
Bootstrap Cont.

• If we could enumerate all possible resamples from
  our sample then we could build ideal bootstrap
  distribution. In practice even with modern
  computers it is impossible to achieve. Instead
  Monte Carlo simulation is used. Usually it works
  like
• Draw a random sample of size of n with
  replacement from the given sample of size n.
• Estimate parameter and get the estimate tj.
• Repeat step 1) and 2) B times and build
  frequency and cumulative distributions for t

11
Bootstrap Cont.

• While resampling we did not use any assumption
  about the population distribution. Si this
  bootstrap is a non-parametric bootstrap. If we
  have some idea about the population distribution
  then we can use it in resampling. I.e. when we
  draw randomly from our sample we can use
  population distribution. For example if we know
  that population distribution is normal then we
  can estimate its parameters using our sample
  (sample mean and variance). Then we can
  approximate population distribution with this
  sample distribution and use it to draw new
  samples. As it can be expected if assumption
  about population distribution is correct then
  parametric bootstrap will perform better. If it
  is not correct then non-parametric bootstrap will
  overperform its parametric counterpart.

12
Balanced bootstrap

• One of the variation of bootstrap resampling is
  balanced bootstrap. In this case, when resampling
  one makes sure that number of occurrences of each
  sample point is the same. I.e. if we make B
  bootstrap we try to make the number of xi equal
  to B in all bootstrap samples. Of course, in each
  sample some of the observation will be present
  several times and other will be missing. But for
  all of them we want to make sure that all sample
  points are present and their number of
  occurrences is the same. It can be achieved as
  follows
• Let us assume that the number of sample points is
  n.
• Repeat numbers from 1 to n, B times
• Find a random permutation of numbers from 1 to
  nB. Call it a vector N(nB)
• Take the first n points from N and the
  corresponding sample points. Estimate parameter
  of interest. Then take the second n points (from
  n1 to 2n) and corresponding sample points and do
  estimation. Repeat it B times and find bootstrap
  estimators, distributions and etc.

13
Balanced bootstrap Example.

• Let us assume that we have 3 sample points and
  number of bootstraps we want is 3. Our
  observations are (x1,x2,x3)
• Then we repeat numbers from 1 to 3 three times
• 1 2 3 1 2 3 1 2 3
• Then we take one of the random permutations of
  numbers from 1 to 3x39. E.g.
• 4 3 9 5 6 1 2 8 7
• First we take observations x1,x3,x3 estimate the
  parameter
• Then we take x2,x3,x1 and estimate the parameter
• Then we take x2,x2,x1 and we estimate parameter.
• As it can be seen each observation is present 3
  times.
• This technique meant to improve the results of
  bootstrap resampling.

14
Bootstrap Example.

• Let us take the example we used for Jackknife. We
  generate 10000 (simple) bootstrap samples and
  estimate for each of them the mean value. Here is
  the bootstrap distribution of the estimated
  parameter. This distribution now can be used for
  various purposes (for variance estimation, for
  interval estimation, hypothesis testing and so
  on). For comparison the normal distribution with
  mean equal to the sample mean and variance equal
  to the sample variance divided by number of
  elements is also given (black line) .

It seems that the approximation with the normal
distribution was sufficiently good.
15
References

• Efron, B (1979) Bootstrap methods another look
  at the jacknife. Ann Statist. 7, 1-26
• Efron, B Tibshirani, RJ (1993) An Introduction
  to the Bootstrap
• Chernick, MR. (1999) Bootstrap Methods A
  practitioners Guide.
• Berthold, M and Hand, DJ (2003) Intelligent Data
  Analysis
• Kendalls advanced statistics, Vol 1 and 2

16
Exercise 2

• Differences between means and bootstrap
  confidence intervals
• Take data set from R - sleep. Find differences
  between means for treatments 1 and 2. Find
  confidence intervals using t.test and bootstrap
  technique.
• Necessary commands
• data(sleep)
• a sleepextrasleepgroup1
• b sleepextrasleepgroup2
• t.test - standard t-test
• boot_mean - It is available from
  mres_course/2006 webpage.
• Write a report.
