Parallel Garbage Collection

1

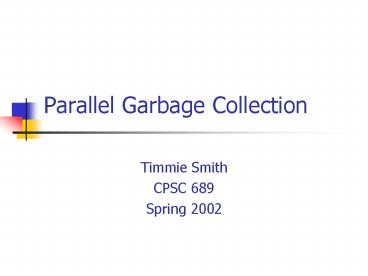

Parallel Garbage Collection

• Timmie Smith
• CPSC 689
• Spring 2002

2
Outline

• Sequential Garbage Collection Methods
• Multi-threaded Methods
• Parallel Methods for Shared Memory
• Parallel Methods for Distributed Memory

3
Motivation

• Good software design requires it
• Modular programming, OO even more so, mandates
  components be independent
• Explicit memory management requires modules to
  know what others are doing so they can deallocate
  objects safely.
• Introduces bookkeeping that makes modules
  brittle, hard to reuse, and hard to extend
• Garbage collection allows modules to not worry
  about memory management
• Modules dont have to have bookkeeping code
• Reusability and extensibility are improved
  immediately
• Memory leaks are avoided

4
Sequential Garbage Collection

• Basic Collection Techniques
• Reference Counting
• Mark-Sweep
• Mark-Compact
• Copying
• Non-Copying Implicit Collection
• Incremental Tracing Techniques
• Generational Techniques

5
Garbage Collection Abstraction

• An object is not garbage if it is live, or is
  reachable from any live object.
• 2-phase abstraction of garbage detection followed
  by collection used.
• Detection determines which objects are live.
• Root Set all global objects,local objects, and
  objects on stack
• Iteratively find and add objects to the Root Set
  reachable from the Root Set until nothing is
  added
• Collection frees any object that is not live.

6
Reference Counting

• Object headers store number of references to
  object
• Object collected as soon as there are no
  references to it
• Operations to update count make technique
  expensive
• Reference cycles between objects limit
  effectiveness
• Method can be incremental to limit program pauses
• Overhead of method is proportional to work done
  by program

7
Mark-Sweep Collectors

• Traces from the root set and marks all live
  objects, then sweeps heap to collect unmarked
  objects
• Collected objects linked to free lists used by
  allocator
• Disadvantages include fragmentation, cost of
  collection, and decrease of locality
• Fragmentation caused by objects not being
  compacted
• Cost of collection is proportional to size of the
  heap
• Spatial locality lost as objects allocated among
  older objects

8
Mark-Compact Collectors

• Sweep phase of Mark-Sweep modified
• Collected objects not linked to free list
• Marked objects copied into contiguous memory
• Pointer to end of contiguous space maintained for
  new allocation
• Overhead of Sweep not improved
• Entire heap still swept to find unreachable
  objects
• Live objects must be swept several times
• First pass relocates objects
• Additional passes required to update pointers
• Mechanisms to handle pointers also adds overhead
• Lookup table kept while objects being relocated
• Indirection of forward pointers used if program
  not stopped

9
Copying Collectors

• Heap is split into from space and to space
• Collection triggered when object cannot be
  allocated in the current space
• Program stopped to avoid pointer inconsistencies
• Forward pointers used to handle objects
  referenced multiple times
• Work proportional to number of live objects
• Collection frequency decreased by increasing size
  of memory spaces

10
Non-copying Collectors

• Spaces of copying collector treated as a set
• Tracing moves live objects to second set
• After tracing objects in first set are garbage
• Sets are implemented as a linked list
• Subject to same locality and fragmentation issues
  as Mark-Sweep collectors

11
Incremental Tracing Collectors

• Collection interleaved with program execution
• No Stop the World pause in program execution.
• Program can change reachability of objects while
  collector is running.
• Program is referred to as the mutator.
• Collector must be conservative to be correct
• Restarting to collect all garbage caused by
  changes doesnt help.
• Some garbage floating until the next collection

12
Tri-color marking system

• Object traversal status kept by object coloring
• Simple mark-sweep or copying need only two colors
  because collection occurs when mutator paused.
• Incremental approaches require third color to
  handle changes in reachability.
• Black object is live and all children have been
  traversed
• Grey object is live, children have not been
  traversed
• White object not yet reached
• Mutator must coordinate with collector if a
  pointer to a white object is added to a black
  object.

13
Tri-color Marking Example
A
A
B
C
C
B
D
D

• Mutator modifies A and B while garbage collector
  examines Bs descendants
• Mutator must coordinate with garbage collector to
  prevent D being collected.

14
Mutator/Collector Coordination

• Coordination must update collector when a pointer
  is overwritten.
• Read Barrier detects when mutator accesses a
  pointer to a white object and immediately colors
  the object grey.
• Write Barrier mutator attempts to write a
  pointer into an object are trapped.
• Two different write barrier approaches

15
Write Barrier Approaches

• Snapshot-at-the-Beginning
• Ensures a pointer to an object is not destroyed
  before the collector traverses it.
• Pointers are saved before they are overwritten.
• Incremental Update
• When a pointer is written into a black object,
  the object is changed to gray and is rescanned
  before collection is completed.
• No extra bookkeeping structure needed.

16
Generational Collectors

• Based on empirical evidence that most objects are
  short lived.
• Heap space split into generational spaces
• Older generation spaces are smaller
• Spaces collected when allocation in the space
  fails
• Live objects found during collection of a
  generation advanced to older generation
• Long-lived objects copied fewer times than in
  copying collector
• Heuristics used to determine when to advance
  objects to next generation

17
Intergenerational References

• Method must be able to collect one generation
  without collecting others
• Pointers from older generations to younger
  generation.
• Table to store pointers in older objects used in
  root set
• Write barrier technique used in incremental
  collectors
• Pointers from young generations into older
  generations
• Write barrier technique to trap all pointer
  assignments
• Use live objects in all younger generations in
  root set

18
Multi-threaded Methods

• Attempt to reduce pauses caused by stopping the
  world 2
• Garbage collector is a separate thread that is
  run concurrently with the application.
• Coordination with application is minimized
• Sweep proceeds while application running
• Application marks pages when object modified
• Dirty pages rescanned before collection

19
Parallel Garbage Collection

• Parallelization of sequential methods
• Mark-and-Sweep
• Reference Counting
• Different issues in each environment
• Shared variable access in shared memory systems
• Disjoint address spaces in distributed memory
  systems
• Scheduling in both environments involves stopping
  application threads during tracing.
• Long pauses avoided by incremental collection
• Improves performance in SPMD programs since
  application has frequent global synchronizations.

20
Shared Memory

• Reference Counting
• References to object updated by all processors
• Locks on object headers limit scalability
• Mark-Sweep
• Each processor begins marking from a local root
  set, and atomically marks an object
• Poor scalability unless some mechanism for load
  balancing implemented
• Processor must mark all descendants of an object
  it marks
• Work stealing allows load rebalancing and
  improved results
• Splitting large objects also allows for better
  load balance.

21
Distributed Memory

• Biggest challenge is representing cross-processor
  references.
• Remote Processor a stub entry is pointed to by
  the pointer
• Processor id of the object owner
• Complement of the remote object address
• Local Processor an entry table maintains all
  references
• First export of an object reference enters object
  in table
• Object is never reclaimed without cooperation of
  processors
• Fields of stub and entry table objects are the
  same
• Flag distinguishes type of object
• Count a count of the number of unrecieved
  messages referencing the object.

22
Distributed Memory

• Marking Phase
• Processors begin with local root set and mark all
  local objects
• When local marking is complete, mark messages
  are sent to remote processors for each marked
  stub
• Remote processor receives message and adds object
  to mark stack and continues local marking.
• When local marking complete and no more messages
  are received, remote processor acknowledges
  messages sent.
• Marking complete when acknowledgement for first
  message sent is received.

23
Distributed Memory

• Collection Phase
• Expand the heap
• Processors notified of largest local heap at end
  of each collection. ?H? lt cM, where c lt 1 and M
  is the max heap size.
• Local collection occurs when the heap cannot be
  expanded.
• Global collection occurs when local collection is
  insufficient.
• Global collection allows entry tables to be
  cleared.
• Infrequent global collections minimize impact of
  collector on application performance.

24
Summary

• Non-copying methods are the safest for languages
  where pointers are not identifiable
• Fragmentation and loss of locality limit
  performance of these methods
• Copying collectors are preferred in cases where
  memory is limited and pointers can be found
• Parallel Garbage Collection can be based on
  parallelization of sequential methods.
• Parallel collectors subject to same issues as
  their sequential counterparts
• Parallel collectors also subject to
  synchronization and communication issues while
  maintaining references and performing collection.

25
References

• 1 Hans Boehm and Mark Weiser. Garbage
  Collection in an Uncooperative Environment.
  Software Practice and Experience. September,
  1988.
• 2 Hans-J. Boehm, Alan J. Demers, and Scott
  Shenker Mostly Parallel Garbage Collection.
  Proceedings of the Conference on Programming
  Language Design and Implementation (PLDI). 1991

• 3 Hans-J. Boehm Fast Multiprocessor Memory
  Allocation and Garbage Collection. External
  Technical Report HPL-2000-165, HP Labs. December
  2000.
• 4 David L. Detlefs, Al Dosser and Benjamin
  Zorn. Memory Allocation Costs in Large C and C
  Programs. Technical Report CU-CS-665-93,
  University of Colorado - Boulder, 1993.
• 5 John R. Ellis and David L. Detlefs. Safe,
  efficient garbage collection for c. Technical
  report, Xerox Palo Alto Research Center, June
  1993.
• 6 Kenjiro Taura and Akinori Yonezawa An
  Effective Garbage Collection Strategy for
  Parallel Programming Languages on Large Scale
  Distributed-Memory Machines. Proceedings of the
  Symposium on Principles and Practice of Parallel
  Programming (PPOPP). 1997.
• 7 Paul R. Wilson Uniprocessor Garbage
  Collection Techniques. Proceedings of the
  International Workshop on Memory Management
  (IWMM). 1992.
• 8 Toshio Endo, Kenjiro Taura and Akinori
  Yonezawa, A Scalable Mark-Sweep Garbage Collector
  on Large-Scale Shared-Memory Machines in
  Proceedings of High Performance Networking and
  Computing (SC97), November 1997.
• 9 Hirotaka Yamamoto, Kenjiro Taura, and Akinori
  Yonezawa. Comparing Reference Counting and Global
  Mark-and-Sweep on Parallel Computers in Lecture
  Notes for Computer Science (LNCS), Languages,
  Compilers, and Run-time Systems (LCR98), volume
  1511, pp. 205-218. May 1998.
