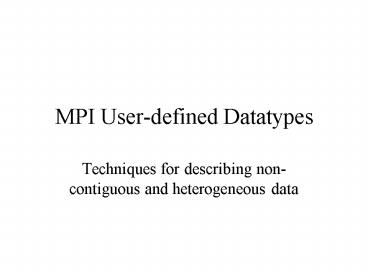

MPI User-defined Datatypes

• Techniques for describing non-contiguous and
  heterogeneous data

2
Derived Datatypes

• Communication mechanisms studied to this point
  allow send/recv of a contiguous buffer of
  identical elements of predefined datatypes.
• Often want to send non-homogenous elements
  (structure) or chunks that are not contiguous in
  memory
• MPI allows derived datatypes for this purpose.

3
MPI type-definition functions

• MPI_Type_Contiguous a replication of datataype
  into contiguous locations
• MPI_Type_vector replication of datatype into
  locations that consist of equally spaced blocks
• MPI_Type_create_hvector like vector, but
  successive blocks are not multiple of base type
  extent
• MPI_Type_indexed non-contiguous data layout
  where displacements between successive blocks
  need not be equal
• MPI_Type_create_struct most general each block
  may consist of replications of different
  datatypes
• Note the inconsistent naming convention is
  unfortunate but carries no deeper meaning. It is
  a compatibility issue between old and new version
  of MPI.

4
MPI_Type_contiguous

• MPI_Type_contiguous (int count, MPI_Datatype
  oldtype, MPI_Datatype newtype)
• IN count (replication count)
• IN oldtype (base data type)
• OUT newtype (handle to new data type)
• Creates a new type which is simply a replication
  of oldtype into contiguous locations

5
MPI_Type_contiguous example
/ create a type which describes a line of ghost
cells / / buf1..nxl set to ghost cells / int
nxl MPI_Datatype ghosts MPI_Type_contiguous
(nxl, MPI_DOUBLE, ghosts) MPI_Type_commit(ghost
s) MPI_Send (buf, 1, ghosts, dest, tag,
MPI_COMM_WORLD) .. .. MPI_Type_free(ghosts)
6
Typemaps

• Each MPI derived type can be described with a
  simple Typemap, which specifies
• a sequence of primitive types
• A sequence of integer displacements
• Typemap (type0, disp0), ,(typen-1, dispn-1)
• ith entry has type typei and displacement buf
  dispi
• Typemap need not be in any particular order
• A handle to a derived type can appear in a send
  or recv operation instead of a predefined data
  type (includes collectives)

7
Question

• What is typemap of MPI_INT, MPI_DOUBLE, etc.?
• (int,0)
• (double, 0)
• Etc.

8
Typemaps, cont.

• Additional definitions
• lower_bound(Typemap) min dispj , j 0, , n-1
• upper_bound(Typemap) max(dispj sizeof(typej))
  e
• extent(Typemap) upper_bound(Typemap) -
  lower_bound(Typemap)
• If typei requires alignment to byte address that
  is a multiple of ki then e is least increment to
  round extent to next multiple of max ki

9
Question

• Assume that Type (double, 0), (char, 8) where
  doubles have to be strictly aligned at addresses
  that are multiples of 8. What is the extent of
  this datatype?
• ans 16
• What is extent of type (char, 0), (double, 8)?
• ans 16
• Is this a valid type (double, 8), (char, 0)?
• ans yes, order does not matter

10
Detour Type-related functions

• MPI_Type_get_extent (MPI_Datatype datatype,
  MPI_Aint lb, MPI_Aint extent)
• IN datatype (datatype you are querying)
• OUT lb (lower bound of datatype)
• OUT extent (extent of datatype)
• Returns the lower bound and extent of datatype.
• Question what is upper bound?
• lower_bound extent

11
MPI_Type_size

• MPI_Type_size(MPI_Datatype datatype, int size)
• IN datatype (datatype)
• OUT size (datatype size)
• Returns number of bytes actually occupied by
  datatype, excluding strided areas.
• Question what is size of (char,0), (double, 8)?

12
MPI_Type_vector

• MPI_Type_vector (int count, int blocklength, int
  stride, MPI_Datatype oldtype, MPI_Datatype
  newtype)
• IN count (number of blocks)
• IN blocklength (number of elements per
  block)
• IN stride (spacing between start
  of each block, measured in
  elements)
• IN oldtype (base datatype)
• OUT newtype (handle to new type)
• Allows replication of old type into locations of
  equally spaced blocks. Each block consists of
  same number of copies of oldtype with a stride
  that is multiple of extent of old type.

13
MPI_Type_vector, cont

• Example Imagine you have an local 2d array of
  interior size mxn with ng ghostcells at each
  edge. If you wish to send the interior (non
  ghostcell) portion of the array, how would you
  describe the datatype to do this in a single MPI
  call?
• Ans
• MPI_Type_vector (n, m, m2ng, MPI_DOUBLE,
  interior)
• MPI_Type_commit (interior)
• MPI_Send (f, 1, interior, dest, tag,
  MPI_COMM_WORLD)

14
Typemap view

• Start with
• Typemap (double, 0), (char, 8)
• What is Typemap of newtype?
• MPI_Type_vector(2,3,4,oldtype,newtype)
• Ans
• (double, 0), (char, 8),(double,16),(char,24),(d
  ouble,32),(char,40), (double,64),(char,72),(double
  ,80),(char,88),(double,96),(char,104)

15
Question

• Express
• MPI_Type_contiguous(count, old, new)
• as a call to MPI_Type_vector.
• Ans
• MPI_Type_vector (count, 1, 1, old, new)
• MPI_Type_vector (1, count, num, old, new)

16
MPI_Type_create_hvector

• MPI_Type_create_hvector (int count, int
  blocklength, MPI_Aint stride, MPI_Datatype old,
  MPI_Datatype new)
• IN count (number of blocks)
• IN blocklength (number of elements/block)
• IN stride (number of bytes
  between start of each block)
• IN old (old datatype)
• OUT new (new datatype)
• Same as MPI_Type_vector, except that stride is
  given in bytes rather than in elements (h
  stands for heterogeneous).

17
Question

• What is the MPI_Type_create_hvector equivalent of
  MPI_Type_vector (2,3,4,old,new), with
  Typemap(double,0),(char,8)?
• Answer
• MPI_Type_create_hvector(2,3,416,old,new)

18
Question
For the following oldtype
Sketch the newtype created by a call
to MPI_Type_create_hvector(3,2,7,old,new)
Answer
19
Example 1 sending checkered region
Use MPI_type_vector and MPI_Type_create_hvector
together to send the shaded segments of the
following memory layout
20
Example, cont.
double a65, e33 MPI_Datatype oneslice,
twoslice MPI_Aint lb, sz_dbl int mype,
ierr MPI_Comm_rank (MPI_COMM_WORLD,
mype) MPI_Type_get_extent (MPI_DOUBLE, lb,
sz_dbl) MPI_Type_vector (3,1,2,MPI_DOUBLE,
oneslice) MPI_Type_create_hvector
(3,1,10sz_dbl, oneslice, twoslice) MPI_Type_com
mit (twoslice)
21
Example 2 matrix transpose
double a100100, b100100 int
mype MPI_Status status MPI_Aint row, xpose, lb,
sz_dbl MPI_Comm_rank (MPI_COMM_WORLD,
mype) MPI_Type_get_extent (MPI_DOUBLE, lb,
sz_dbl) MPI_Type_vector (100, 1, 100,
MPI_DOUBLE, row) MPI_Type_create_hvector (100,
1, 100sz_dbl, row, xpose) MPI_Type_commit
(xpose) MPI_Sendrecv (a00, 1, xpose, mype,
0, b00, 100100,
MPI_DOUBLE, mype, 0, MPI_COMM_WORLD,
status)
22
Example 3 -- particles
Given the following datatype Struct
Partstruct char class / particle class
/ double d6 / particle x,y,z,u,v,w /
char b7 / some extra info / We want
to send just the locations (x,y,z) in a single
message. Struct Partstruc particle1000 int
dest, tag MPI_Datatype
locationType MPI_Type_create_hvector (1000, 3,
sizeof(struct Partstruct),
MPI_DOUBLE, locationType)
23
MPI_Type_indexed

• MPI_Type_indexed (int count, int
  array_of_blocklengths, int array_of_displacement
  s, MPI_Datatype oldtype, MPI_Datatype newtype)
• IN count (number
  of blocks)
• IN array_of_blocklengths (number of
  elements/block)
• IN array_of_displacements (displacement for
  each block, measured as number of elements)
• IN oldtype
• OUT newtype
• Displacements between successive blocks need not
  be equal. This allows gathering of arbitrary
  entries from an array and sending them in a
  single message.

24
Example
Given the following oldtype
Sketch the newtype defined by a call to
MPI_Type_indexed with count 3, blocklength
2,3,1, displacement 0,3,8
Answer
25
Example upper triangular transfer
Consecutive memory
26
Upper-triangular transfer
double a100100 Int disp100, blocklen100,
i, dest, tag MPI_Datatype upper / compute
start and size of each row / for (i 0 i 100 i) dispi 100i i blockleni
100 i MPI_Type_indexed(100, blocklen, disp,
MPI_DOUBLE, upper) MPI_Type_commit(upper) MPI_
Send(a, 1, upper, dest, tag, MPI_COMM_WORLD)
27
MPI_Type_create_struct

• MPI_Type_create_struct (int count, int
  array_of_blocklengths, MPI_Aint
  array_of_displacements, MPI_Datatype
  array_of_types, MPI_Datatype newtype)
• IN count (number of blocks)
• IN array_of_blocklengths (number of elements
  in each block)
• IN array_of_displacements (byte displacement
  of each block)
• IN array_of_types (type of elements in each
  block)
• OUT newtype
• Most general type constructor. Further
  generalizes MPI_Type_create_indexed in that it
  allows each block to consist of replications of
  different datatypes. The intent is to allow
  descriptions of arrays of structures as a single
  datatype.

28
Example
Given the following oldtype
Sketch the newtype created by a call to
MPI_Type_create_struct with the count 3,
blocklength 2,3,4, displacement 0,7,16
Answer
29
Example
Struct Partstruct char class double d6
char b7 Struct Partstruct
particle1000 Int dest,
tag MP_Comm comm MPI_Datatype
particletype MPI_Datatype type3
MPI_CHAR, MPI_DOUBLE, MPI_CHAR int
blocklen3 1, 6, 7 MPI_Aint
disp3 0, sizeof(double),
7sizeof(double) MPI_Type_create_struct(3,
blocklen, disp, type, Particletype) MPI_Type_com
mit(Particletype) MPI_Send(particle, 1000,
Particletype, dest, tag, comm)
30
Alignment

• Note, this example assumes that a double is
  double-word aligned. If doubles are single-word
  aligned, then disp would be initialized as
• (0, sizeof(int), sizeof(int) 6sizeof(double))
• MPI_Get_address allows us to write more generally
  correct code.

31
MPI_Type_commit

• Every datatype constructor returns an uncommited
  datatype. Think of commit process as a
  compilation of datatype description into
  efficient internal form.
• Must call MPI_Type_commit (datatype).
• Once commited, a datatype can be repeatedly
  reused.
• If called more than once, subsequence call has no
  effect.

32
MPI_Type_free

• Call to MPI_Type_free (datatype) sets the value
  of datatype to MPI_DATATYPE_NULL.
• Datatypes that were derived from the defined
  datatype are unaffected.

33
MPI_Get_elements

• MPI_Get_elements (MPI_Status status,
  MPI_datatype type, int count)
• IN status (status of receive)
• IN datatype
• OUT count (number of primitive elements
  received)

34
MPI_Get_address

• MPI_Get_address (void location, MPI_Aint
  address)
• IN location (locatioin in caller memory)
• OUT address (address of location)
• Question Why is this necessary for C?

35
Additional useful functions

• MPI_Create_subarray
• MPI_Create_darray
• Will study these next week

36
Some common applications with more sophisticated
parallelization issues
37
Example n-body problem
38
Two-body Gravitational Attraction
This is a completely integrable,
non-chaotic system.
m1
F Gm1m2r/r3
m2
F Force between bodies G universal constant m1
mass of first body m2 mass of second body r
position vector (x,y) r scalar distance
a m/F aacceleration dv a dt vo
v velocity dx v dt x0 x position
39
Three-body problem
m1
m2
m3
Case for three-bodies
F1 Gm1m2r1,2/r2 Gm1m3r1,3/r2
General case for n-bodies
F2 Gm2m1r2,1/r2 Gm2m3r2,3/r2
Fn SkGmnmkrn,k/r2
F3 Gm3m1r3,1/r2 Gm3m2r3,2/r2
40
Schematic numerical solution to system
Begin with n-particles with following
properties initial positions x01, x02, ,
x0n initial velocities v01, v02, , v0n
masses m1, m2, , mn
Step 1 calculate acceleration of each particle
as
an Fn/mn SmGmnmmrn,m/r2
Step 2 calculate velocity of each particle over
interval dt as
vn andt v0n
Step 3 calculate new position of each particle
over interval dt as
xn v0ndt x0n
41
Solving ODEs
In practice, numerical techniques for solving
ODEs would be a little more sophisticated. For
example, to get velocity we really have to solve
dvn/dt an
Our discretization was the simplest possible,
knows as Euler
vn(tdt) - vn(t)/dt an
vn(tdt) andt vn(t)
Runge-Kutta, leapfrog, etc. have better stability
properties. Still very simple . Euler ok for
first try.
42
Collapsing galaxy
43
(No Transcript)
44
Parallelization of n-body

• What are main issues for performance in general,
  even for serial code?
• Algorithm scales as n2
• Forces become large as small distances dynamic
  timestep adjustment needed
• Others?
• What are additional issues for parallel
  performance?
• Load balancing
• High communication overhead

45
Survey of solution techniques

• Particle-Particle (PP)
• Particle-Mesh (PM)
• Particle-Particle/Particle-Mesh (P3M)
• Particle Multiple-Mesh (PM2)
• Nested Grid Particle-Mesh (NGPM)
• Tree-Code (TC) Top Down
• Tree-Code (TC) Bottom Up
• Fast-Multipole-Method (FMM)
• Tree-Code Particle Mesh (TPM)
• Self-Consistent Field (SCF)
• Symplectic Method

46
Spatial grid refinement
47
Example Spatially uneven grids
Here, grid spacing dx is a pre-determined
function of x
You know apriori that there will be lots of
activity here high accuracy necessary
48
Sample Application

• A good representative application for a spatially
  refined grid is an Ocean Basin Circulation Model
• A typical ocean basin (e.g. North Atlantic) has
  length scale scale O1000km.
• State-of-the art grids can solve problems on
  grids of size 103103 (10 in vertical).
• This implies a horizontal grid spacing O1km
• Near coast, horizontal velocities change from 0
  to free-stream value over very small
  length-scales.
• This is crucial for energetics of general
  simulation. Require high-resolution.

49
Ocean circulation -- temperature
50
Sea-surface height
51
Spatially refined grid

• What are key parallelization issues?
• More bookkeeping required in distributing points
  across proc grid
• Smaller dx usually means smaller timestep load
  imbalance?
• How to handle fine-coarse boundaries?
• What if one proc needs both fine and coarse mesh
  components for good load balancing?

52
Spatio-temporal grid refinement
53
Spatio-temporal grid refinement

• In other applications, grid refinement is also
  necessary for accurate simulation of dynamical
  hot zones.
• However, the location of these zones may not be
  known apriori.
• Furthermore, they will typically change with time
  throughout the course of the simulation.

54
Example stellar explosion

• In many astrophysical phenomena such as stellar
  explosions, fluid velocities are extremely high
  and shock fronts form.
• To accurately capture dynamics of explosion, very
  high resolution grid is required at shock front.
• This grid must be moved in time to follow the
  shock.

55
Stellar explosion
56
Spatio-temporal refinement

• What are additional main parallelization issues?
• Dynamic load balancing

57
Neuron firing
