Adaptive MPI

1

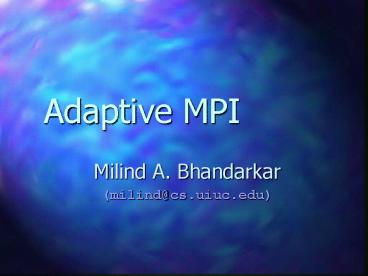

Adaptive MPI

• Milind A. Bhandarkar
• (milind_at_cs.uiuc.edu)

2
Motivation

• Many CSE applications exhibit dynamic behavior
• Adaptive mesh refinement (AMR)
• Pressure-driven crack propagation in solid
  propellants
• Also, non-dedicated supercomputing platforms such
  as clusters affect processor availability
• These factors cause severe load imbalance
• Can the parallel language / runtime system help ?

3
Load Imbalance in Crack-propagation Application
(More and more cohesive elements activated
between iterations 35 to 40.)
4
Load Imbalance in an AMR Application
(Mesh is refined at 25th time step)
5
Multi-partition Decomposition

• Basic idea
• Decompose the problem into a number of
  partitions,
• Independent of the number of processors
• Partitions gt processors
• The system maps partitions to processors
• The system maps and re-maps objects as needed
• Re-mapping strategies help adapt to dynamic
  variations
• To make this work, need
• Load balancing framework runtime support
• But, isnt there a high overhead of
  multi-partitioning ?

6
Overhead of Multi-partition Decomposition
(Crack Propagation code, with 70k elements)
7
Charm

• Supports data driven objects.
• Singleton objects, object arrays, groups, ..
• Many objects per processor, with method execution
  scheduled with availability of data.
• Supports object migration, with automatic
  forwarding.
• Excellent results with highly irregular dynamic
  applications.
• Molecular dynamics application NAMD, speedup of
  1250 on 2000 processors of ASCI-red.
• Brunner, Phillips, Kale. Scalable molecular
  dynamics, Gordon Bell finalist, SC2000.

8
Charm System Mapped Objects
9
Load Balancing Framework
10
However

• Many CSE applications are written in Fortran, MPI
• Conversion to a parallel object-based language
  such as Charm is cumbersome
• Message-driven style requires split-phase
  transactions
• Often results in a complete rewrite
• How to convert existing MPI applications without
  extensive rewrite ?

11
Solution

• Each partition implemented as a user-level thread
  associated with a message-driven object
• Communication library for these threads same in
  syntax and semantics as MPI
• But what about the overheads associated with
  threads ?

12
AMPI Threads Vs MD Objects (1D Decomposition)
13
AMPI Threads Vs MD Objects (3D Decomposition)
14
Thread Migration

• Thread stacks may contain references to local
  variables
• May not be valid upon migration to a different
  address space
• Solution thread stacks should span the same
  virtual address space on any processor where they
  may migrate (Isomalloc)
• Split the virtual space into per-processor
  allocation pool
• Scalability issues
• Not important on 64-bit processors
• Constrained load balancing (limit the threads
  migratability to fewer processors)

15
AMPI Issues Thread-safety

• Multiple threads mapped to each processor
• Process data to be localized
• Make them instance variables of a class
• All subroutines become instance methods of this
  class
• AMPIzer A source-to-source translator
• Based on Polaris front-end
• Recognize all global variables
• Put them in a thread-private area

16
AMPI Issues Data Migration

• Thread-private data needs to be migrated with the
  thread
• Developer has to write subroutines for packing
  and unpacking data
• Writing separate subroutines is error-prone
• Puppers (puppack-unpack)
• A subroutine to show the data to the runtime
  system
• Fortran90 generic procedures make writing the
  pupper easy

17
AMPI Other Features

• Automatic checkpoint and restart
• On different number of processors
• Number of chunks remain the same, but can be
  mapped to different number of processors
• No additional work is needed
• Same pupper used for migration is also used for
  checkpointing and restart

18
Adaptive Multi-MPI

• Integration of multiple MPI-based modules
• Example integrated rocket simulation
• ROCFLO, ROCSOLID, ROCBURN, ROCFACE
• Each module gets its own MPI_COMM_WORLD
• All COMM_worlds form MPI_COMM_UNIVERSE
• Point to point communication between different
  MPI_COMM_worlds using the same AMPI functions
• Communication across modules is also considered
  while balancing load

19
Experimental Results
20
AMR Application With Load Balancing
(Load balancer is activated at time steps 20, 40,
60, and 80.)
21
AMPI Load Balancing on Heterogeneous Clusters
(Experiment carried out on a cluster of Linux
workstations.)
22
AMPI Vs MPI
(This is a scaled problem.)
23
AMPI Overhead
24
AMPI Status

• Over 70 commonly used functions from MPI 1.1
• All point-to-point communication functions
• All collective communications functions
• User-defined MPI data types
• C, C, and Fortran (77/90) bindings
• Tested on Origin 2000, IBM SP, Linux and Solaris
  clusters
• Should run on any platform supported by Charm
  that has mmap
