THE HP AUTORAID HIERARCHICAL STORAGE SYSTEM

1

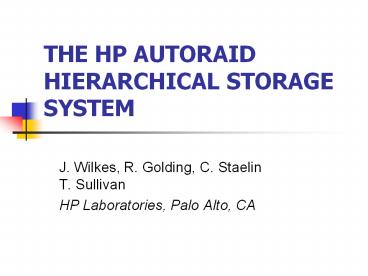

THE HP AUTORAIDHIERARCHICAL STORAGE SYSTEM

• J. Wilkes, R. Golding, C. StaelinT. Sullivan
• HP Laboratories, Palo Alto, CA

2
INTRODUCTION

• must protect data against disk failures too
  frequent and too hard to repair
• possible solutions
• for small numbers of disks mirroring
• for larger number of disks RAID

3
RAID

• Typical RAID Organizations
• Level 3 bit or byte level interleaved with
  dedicated parity disk
• Level 5 block interleaved with parity blocks
  stored on all disks

4
LIMITATIONS OF RAID (I)

• Each RAID level performs well for a narrow range
  of workloads
• Too many parameters to configure data- and
  parity-layout, stripe depth, stripe width, cache
  sizes, write-back policies, ...

5
LIMITATIONS OF RAID (II)

• Changing from one layout to another or adding
  capacity requires downloading and reloading the
  data
• Spare disks remain unused until a failure occurs

6
A BETTER SOLUTION

• A managed storage hierarchy
• mirror active data
• store in a RAID 5 less active data
• This requires locality of reference
• active subset must be rather stablefound to be
  true in several studies

7
IMPLEMENTATION LEVEL

• Storage hierarchy could be implemented
• Manually can use the most knowledge but cannot
  adapt quickly
• In the file system offers best balance of
  knowledge and implementation freedom but specific
  to a particular file system
• Through a smart array controller easiest to
  deploy (HP AutoRAID)

8
MAJOR FEATURES (I)

• Mapping of host block addresses to physical disk
  locations
• Mirroring of write-active data
• Adaptation to changes in the amount of data
  stored
• Starts RAID 5 when array becomes full
• Adaptation to workload changes
• Hot-pluggable disks, fans, power supplies and
  controllers

9
MAJOR FEATURES (II)

• On-line storage capacity expansion system
  switches then to mirroring
• Can mix or match disk capacities
• Controlled fail-over can havedual controllers
  (primary/standby)
• Active hot spares used for more mirroring
• Simple administration and setup appears to host
  as one or more logical units
• Log-structured RAID 5 writes

10
RELATED WORK (I)

• Storage Technology Corporation Iceberg
• also uses redirection but based on RAID 6
• handles variable size records
• emphasis on very high reliability

11
RELATED WORK (II)

• Floating parity scheme from IBM Almaden
• Relocated parity blocks and uses distributed
  sparing
• Work on log-structured file systems at U.C.
  Berkeley and cleaning policies

12
RELATED WORK (III)

• Whole literature on hierarchical storage systems
• Schemes compressing inactive data
• Use of non-volatile memory (NVRAM) for optimizing
  writes
• Allows reliable delayed writes

13
OVERVIEW
Processor,RAM and Control Logic
Parity Logic
2x10MB/s bus
DRAM Read Cache
Matching RAM
NVRAM Write Cache
Other RAM
SCSIController
20 MB/s
Host Computer
14
PHYSICAL DATA LAYOUT

• Data space on disks is broken up into large
  Physical EXTents (PEXes)
• Typical size is 1 MB
• PEXes can be combined to form Physical Extent
  Groups (PEGs) containing at least three PEXes on
  three different disks
• PEGs can be assigned to the mirrored storage
  class or to the RAID 5 storage class
• Segments are the units on contiguous space on a
  disk (128 KB in prototype)

15
LOGICAL DATA LAYOUT

• Logical allocation and migration unit is the
  Relocation Block (RB)
• Size in prototype was 64 KB
• Smaller RBs require more mapping information but
  larger RBs increase migration costs after small
  updates
• Each PEG holds a fixed number of RBs

16
MAPPING STRUCTURES

• Map addresses from virtual volumes to PEGs, PEXes
  and physical disk addresses
• Optimized for finding fast the physical address
  of a RB given its logical address
• Each logical unit has a virtual device table
  listing all RBs in the logical unitand pointing
  to their PEG
• Each PEG has a PEG Table listing all RBs in the
  PEG and the PEXes used to store them

17
NORMAL OPERATIONS (I)

• Requests are sent to the controller in SCSI
  Command Descriptor Blocks (CDB)
• Up to 32 CBs can be simultaneously active and
  2048 other ones queued
• Long requests are broken into 64 KB segments

18
NORMAL OPERATIONS (II)

• Read requests
• Test first to see if data are not already in read
  cache or in non-volatile write cache
• Otherwise allocate space in cache and issue one
  or more requests to back-end storage classes
• Write requests return as soon as data are
  modified in non-volatile write cache
• Cache has a delayed write policy

19
NORMAL OPERATIONS (III)

• Flushing data from cache can involve
• A back-end write to a mirrored storage class
• Promotion from RAID 5 to mirrored storage before
  the write
• Mirrored reads and writes are straightforward

20
NORMAL OPERATIONS (IV)

• RAID 5 reads are straightforward
• RAID 5 writes can be done
• On a per-RB base requires two reads and two
  writes
• In batched writes more complex but cheaper

21
BACKGROUND OPERATIONS

• Triggered when array has been idle for some time
• Include
• Compaction of empty RB slots,
• Migration between storage classes (using an
  approximate LRU algorithm) and
• Load balancing between disks

22
MONITORING

• System also includes
• An I/O logging tool and
• A management tool for analyzing the array
  performance

23
PERFORMANCE RESULTS (I)

• HP AutoRAID configuration with
• 16 MB of controller data cache
• Twelve 2.0GB Seagate Barracuda disks (7200rpm)
• Compared with
• Data General RAID array with64 MB front-end
  cache
• Eleven individual disk drives implementing disk
  striping but without any redundancy

24
PERFORMANCE RESULTS (II)

• Results of OLTP database workload
• AutoRAID was better than RAID array and
  comparable to set of non-redundant drives
• But whole database was stored in mirrored
  storage!
• Micro benchmarks
• AutoRAID is always better than RAID array but has
  smaller I/O rates than set of drives

25
SIMULATION RESULTS (I)

• Increasing the disk speed improves the
  throughput
• Especially if density remains constant
• Transfer rates matter more than rotational
  latency
• 64KB seems to be a good size for the Relocation
  Blocks
• Around the size of a disk track

26
SIMULATION RESULTS (II)

• Best heuristics for selecting the mirrored copy
  to be read is shortest queue
• Allowing write cache overwrites has a HUGE impact
  on performance
• RBs demoted to RAID should use existing holes
  when the system is not too loaded

27
SUMMARY (I)

• System is very easy to set up
• Dynamic adaptation is a big win but it will not
  work for all workloads
• Software is what makes AutoRAID, not the hardware
• Being auto adaptive makes AutoRAIDhard to
  benchmark

28
SUMMARY (II)

• Future work includes
• System tuning especially
• Idle period detection
• Front-end cache management algorithms
• Developing better techniques for synthesizing
  traces
