Title: Software Bundle 6.2

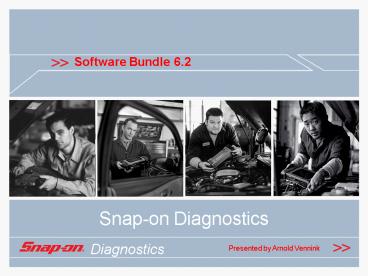

1
Software Bundle 6.2
  • Snap-on Diagnostics

Diagnostics
Presented by Arnold Vennink
2
Program
  • 6.2 VCS
  • 6.2 TS
  • MODIS 6.2
  • EOBD V6 / CAN 1B adaptor
  • US Domestic / Asian bundle 6.2
  • ScanBayTM 6.2
  • VOC

3
6.2 VCS Software Bundle
  • Snap-on Diagnostics

Diagnostics
4
6.2 VCS Software Bundle
  • 6 Brands updated
  • 1 New brand
  • Training mode
  • Movie capabilities

5
Expanded coverage for
  • Audi
  • Ford (Europe)
  • MG Rover
  • SEAT
  • Skoda
  • VW

6
Ford
  • Coverage up to 2005
  • CAN Functionality added
  • Service Interval Resets added
  • Extended coverage for Galaxy

7
Ford CAN Functionality
  • CAN functionality for powertrain and all current
    other systems for the new
  • Fiesta
  • Focus / RS / C-MAX
  • KA / STREET KA
  • Mondeo 2005
  • Codes (View Reset) Data
  • Engine / transmission

8
Ford other CAN systems
  • Transmissions Control Unit
  • Fuel Additive Control Unit
  • ABS
  • Airbag
  • Remote Keyless Entry
  • Electronic Power Steering
  • Electric Parking Brake
  • Parking Aid Module
  • Instrument Cluster
  • Generic Display Module
  • Door Modules
  • CD Player
  • Audio Control
  • Rear Entertainment
  • Climate Control
  • Headlamp Control Module
  • GEM
  • All Codes
  • Codes Data

9
VAG
  • Coverage up to 2005
  • Extended CAN Functionality
  • Service Interval Resets Added
  • CAN functionality in Expert mode

10
VAG CAN Functionality for all sub systems
  • for the
  • VW Golf 5, Touran, Caddy, Golf Plus, Jetta and
    Passat
  • Audi A3, A4, A6 and A8
  • Seat Altea, Toledo and Leon
  • Skoda Octavia

11
VAG Expert mode
  • Added in VAG V8.1 (2004 2005)
  • Added CAN Functionality
  • Test 0 is not jet implemented

12
VAG SIR in Expert mode
  • When the ECU is not recognised, there will be no
    SIR in the normal scanner menu. Proceed then to
    Expertmode
  • Select 17 instrument panel
  • Select 10 Adaptation
  • Select channel 002
  • Enter all zero's (00000)
  • Select 06 End communication
  • SIR is now reset

See example Golf V PowerPoint!
13
VAG
  • Example Golf V

14
MG / Rover
  • Coverage up to 2005
  • Service Interval Resets added
  • For
  • 75
  • Tourer
  • MG ZT
  • MG ZT-T
  • Added missing models / systems

15
MG / Rover Added Models / systems
  • New Models
  • Tourer
  • CityRover
  • MG EXPRESS
  • New systems
  • Engine 2 new system
  • ABS 1 new system
  • Airbag 2 new systems
  • Instrument panel 1 new system

16
New manufacturer Volvo
  • 2000 2005
  • 258 Model variations
  • 66 refer to EOBD and CAN
  • Powertrain Codes and Data
  • Including
  • Brand specific P1 codes and descriptions
  • Clearing codes
  • Manual Service Interval Reset

17
Trainings mode
  • Former DEMO mode return in new software
    modules.
  • Generally it will cover 3 engine and 3 sub
    systems. (however there are exceptions)
  • Use this funtion to demonstrate PID triggering!
  • Trouble Shooter is not covered in the Demo mode.

18
First implementation in
  • all updated modules
  • VAG
  • Ford
  • Volvo
  • MG / Rover
  • And also in
  • BMW
  • Citroën
  • Peugeot

19
Movie capabilities
  • Returned in the New software modules.
  • Use it only in the PDL 1000 , 2000. MODISTM has
    always 500 frames in Graphical mode including PID
    trigering!

20
6.2 TS Software Bundle
  • Snap-on Diagnostics

Diagnostics
21
6.2 TS Software Bundle
  • 6.2 European Troubleshooter contents

22
MODISTM 6.2
  • Snap-on Diagnostics

Diagnostics
23
MODISTM 2006
  • A Subtle New Look
  • Faster Processor
  • Longer Battery Life
  • Protective Shield
  • NEW Display
  • Red Colour

24
6.2 enhancements
  • New 10ms Ignition Scope Sweep
  • Great for Viewing All Firings on Multispark
    Systems
  • Simplified Software Installation
  • Maintains Preferences, Saved Files and Optional
    Software
  • Personalize Your MODISTM with Owner Information
  • Faster File Loading Times
  • Get into Scanner or Component Tests Faster

25
Ignigtion Scope enhancements
  • New sweeps are added to the Ignition Scope
  • Par 10 ms 10 millisecond Parade Sweep
  • Cyl 10 ms 10 millisecond Cylinder Sweep
  • Ras 10 ms 10 millisecond Raster Sweep
  • Sup 10 ms 10 millisecond Superimposed Sweep
  •
  • New scales are added to the Ignition Scope
  • 2 kV
  • 3 kV
  • 30 kV

Necessary for Triggering with the COP Adapter!
26
(No Transcript)
27
Personalize your MODISTM
28
EOBD V6.00 / CAN 1B adaptor
  • Snap-on Diagnostics

Diagnostics
29
CAN 1B adaptor
  • No CAN adaptor needed with
  • MODISTM
  • SOLUSTM
  • EOBD V6
  • Kit P/N MT2500 88A
  • CAN Keys
  • S43 EAP0234E40A for Ford
  • S44 EAP0234E50A for EOBD and VAG
  • Doesnt support Volvo 29 bits Can protocol

30
US Domestic software bundle 6.2
  • Snap-on Diagnostics

Diagnostics
31
US Domestic and Asian
  • New buy PVCI / TSI available from Kings Lynn
    (Including manuals)
  • Upgrade via ScanBay II
  • Dont mix US and European software modules on one
    PVCI!

32
US Domestic software bundle 6.2
  • NEW 2005 Domestic VCS
  • NEW 2004 Domestic Driveability Troubleshooter
  • NEW 2004 Asian Import ABS Troubleshooter

33
Chrysler VCS
  • 2005 Coverage including CAN Vehicles
  • Kelsey Hayes 4WAL ABS Codes and Data for 80 Model
    Configurations
  • 1994-1997 Full-size Trucks and Vans
  • 15 Data Parameters To Tell the Story (OTC has 5)
  • 1994-1996 Dodge Dakota
  • 15 Data Parameters To Tell the Story (OTC has 5)
  • 2001 Newer (non-CAN) EVAP System Self Test
  • Runs Readiness Monitor Testing Conditions
  • Great for Diagnosing Emission Failures
  • OTC provides no such test
  • Integrated Menus with Generic Enhanced
    Functions
  • Readiness Monitors, Freeze Frame, Mode 6, Mode 9

34
Can Do CAN for the Big Three
  • Working on Chrysler, Ford and GM vehicles with
    the enhanced new CAN protocol coverage is
    virtually transparent. Youll possess the most
    advanced capabilities and diagnose todays
    vehicles using familiar adapters and
    functionality.

35
Chrysler Emissions Failure? We Test That
  • Powerful new tests speed you through the
    diagnosis, including a Chrysler EVAP System
    Self-test, which simulates readiness and
    generates codes, so you confirm the repair, not
    your customer.

36
Accurate Repair Made Easy
  • OBD-II compliant vehicles provide unique sets of
    manufacturer specific and OBD-II codes, data and
    functions. Snap-on integrates access to both
    capabilities from one menu, ensuring timely and
    accurate diagnosis and confirmation of repair.

37
Ford VCS
  • 2005 Coverage including More CAN Vehicles
  • 2002 - 2005 Tire Pressure Module Coverage
  • 1996 2005 ABS Brake Bleeding
  • No Brake Bleeding Tests from OTC
  • 1995 2005 ABS Pump Motor Functional Test
  • 1996 2005 Ford Transmission Functional Tests
  • Shift Solenoid 1, 2, 3, 4 and 5, Torque Converter
    Clutch, Electronic Pressure Control, Gear Command
  • No tests like these from OTC
  • Integrated Menus with Generic Enhanced
    Functions
  • Readiness Monitors, Freeze Frame, Mode 6, Mode 9

38
Take the Computer Out of the Equation
  • Bi-pass the transmission computer utilizing new
    Ford automatic transmission shift controls and
    exercise solenoids individually for a more
    informative test drive and more concise diagnosis.

39
GM VCS
  • 2005 Model Year Coverage Including New CAN
    Coverage
  • Both Single Wire and 2-Wire CAN Systems Included
  • 2002 2005 Most Instrument Panel Module Now
    Covered
  • 2002 2005 Tire Pressure Monitor System Coverage
  • Codes Data
  • Integrated Menus with Generic Enhanced
    Functions
  • Readiness Monitors, Freeze Frame, Mode 6, Mode 9

40
More Comfort in the Coverage
  • Snap-on now delivers GM instrument panel codes
    and data. Expand your diagnostic capabilities to
    include the exploding number of comfort and
    safety systems on todays vehicles, while
    significantly reducing diagnostic time.

41
Tire Pressure Monitor Proliferation
  • Mandated for all 2008 model year vehicles, tire
    pressure monitoring is critical for wheel service
    and comprehensive repair. New systems, such as
    TPMS, have been added for all Domestic makes
    enabling your service level to meet your
    customers expectations.

42
Domestic Vehicle Communication Recap
  • Enhanced 2005 Domestic Coverage including
    Chrysler, Ford, and GM CAN Vehicles
  • 1996 2005 Ford Transmission Functional Tests
  • Shift Solenoid 1, 2, 3, 4 and 5, Torque Converter
    Clutch, Electronic Pressure Control, Gear Command
    (OTC offers no such tests)
  • Kelsey Hayes 4WAL ABS Codes and Data for 80 Model
    Configurations
  • 1994-1997 Full-size Trucks Vans and 1994-1996
    Dodge Dakota
  • 15 Data Parameters To Tell the Story (OTC has 5)
  • Chrysler EVAP System Self-test
  • Simulates readiness and generates codes, so
    technicians confirm the repair, not your customer
    - OTC provides no such test
  • 2002-2005 Tire Pressure Monitor System Coverage
    for Ford and GM

43
Troubleshooter Software Highlights
  • Over 64,000 New and Improved Tips and Tests
  • NEW! 2004 Domestic Driveability Troubleshooter
    Software
  • NEW! 2004 Asian Import ABS Troubleshooter
    Software
  • Answers for over 500 New Domestic Engine
    Configurations
  • On-the-job Training for 501 New Asian Import ABS
    Systems
  • New and Updated Code Tips with Integrated Live
    Data
  • Fast-Track Data Scan Offers Component Operation
    Info, Expected Ranges, Specifications and Live
    Data
  • Experienced-based Information for 2004 CAN
    Engines
  • TSBs Updated through 2004

44
FEATURE
ADVANTAGE
WHY TO BUY
  • Code Tips with Live Codes and Data
  • Real World Fixes Strategically Ordered

Bundle 6.2 Offers Over 64,000 New and Improved
Tips and Tests
  • Starting Here Saves You Time

Fast-Track Troubleshooter
  • Code Set Conditions
  • Know Why the Code Set See Live Values
  • Understanding Leads to Repair
  • Symptom Tips
  • Ties Symptoms with Related Scanner Data
  • Expert Help Leads to Repair
  • Tests Procedures
  • Tests for Frequently Suspected Systems
  • Verify System Operation
  • Technical Assistance including TSBs
  • Provides Loads of Vehicle Specific Help
  • Consolidated Information
  • Fast-Track Data Scan Tips with Live Data
  • Provides Expected Parameter Data
  • Quickly Validate Proper Operation
  • Covers Engine, ABS, and Transmission
  • Information Across All Critical Systems
  • Factory-Trained Confidence

45
Troubleshooter Spells Out the Repair
  • Fast-Track Troubleshooter collects vehicle
    identification and codes from the Scanner,
    symptoms from the customer, factory bulletins,
    part numbers, information and real-world
    experience, and puts them all together. Uncover
    the straight path to a satisfied customer!

46
Over 64,000 New Tips and Tests
  • ASE-certified and factory technicians reveal time
    saving, money making tips in the Troubleshooter
    software, including all new coverage for and
    additional 501 Asian Import ABS and 505 Domestic
    engine systems.

47
ScanBayTM 6.2
  • Snap-on Diagnostics

Diagnostics
48
ScanBay II
  • ScanBay II Enhancements

49
Hand Held Diagnostics Customer Feedback Form
  • Snap-on Diagnostics

Diagnostics
50
Hand Held Diagnostics Customer Feedback Form
  • To better understand your diagnostic needs, we
    have implemented a product feedback page.
  • Please fill up this form if you come across a
    feature that is currently missing from our PDL
    1000 / MT 2500, PDL 2000 / MTG 2500, MODIS or
    SOLUS products.

51
Hand Held Diagnostics Customer Feedback Form
  • We appreciate your time to complete this form.
  • No Feedback No Software

www.sun-diagnostics.com/voc
Write a Comment
User Comments (0)
About PowerShow.com
