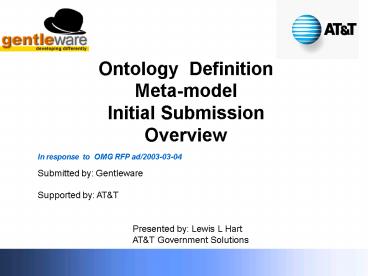

Ontology Definition Meta-model Initial
Submission Overview

• In response to OMG RFP ad/2003-03-04

Submitted by Gentleware
Supported by ATT
Presented by Lewis L Hart ATT Government
Solutions
2
Key Ideas

• UML models are ontologies, not UML modeling of
  ontologies.
• Analogous UML entities used wherever possible
• Un-stereotyped UML entities mapped to reasonable
  ontological concepts
• Maximize applicability and user community
• Leverages the UML user community expertise and
  experience
• Largely applicable to existing legacy of UML
  models

• Ontological representations based on RDF
• Same foundation as DAML and OWL, but not just
  those
• Most widely used ontology language family.
• Ontology management through UML
• Round trip engineering
• Integration with other services

3
Compatibility of UML and OWL
Not a complete overlap of worldviews.

• UML Worldview
• Includes Behavior
• Control Scoping
• Ownership
• Limited Meta-levels
• Optional Naming

• OWL/DL Worldview
• Structure only
• Global Scoping
• No Ownership
• Less Limited Meta-levels
• Required Names

4
Multiple Meta-levels

• Each occurrence of a type-of relations changes
  meta-level.
• RDFS, DAML and OWL allow instance in one
  meta-level to be treated as classes from the
  level below.
• This results in unexpected situations of UML and
  most OO languages
• Entities (e.g. applY) are treated as an
  instance in one level and as classes in another.
• A single ontology can define three or more
  meta-levels with in a single model.

applY
// Invalid Java X Y new X() // Level 2 Y Q
new Y() // Level 3 Class Y extends Z //
Level 2
5
Response Overview
6
ODM Packages

• Generic ODM
• OWL Extension
• UML Profile

7
ODM Core Model (1)

• ODMResource
• Specializes
• constructsClassifier
• constructsTypedElement
• All ODM elements specializes ODMResource

8
ODM Core Model (2)

• .. in addition to ODMResource
• ODMClass
• Specializes constructsClass
• ODMProperty
• Specializes
• constructsClass
• constructsAssociation
• Analogous to AssociationClass

9
ODM OWL Extension

• Adds OWL specific extensions to ODM Core package.
• Allows for other ontology languages

10
UML Profile for OWL
11
Packageable Elements

• Constraint
• OWL
• Dependency
• Import
• References
• IncompatibleWith
• backwardCompatibleWith
• Package
• Ontology

12
Namespaces

• Namespace
• Depricated
• Class
• Class
• AssociationClass
• Property
• Datatype
• Datatype
• Enumeration
• Classifier
• Collection
• Provenance Class

13
OWL Wine Example

• Uses the proposed UML Profile
• Widely know example ontology
• Originated at the KSL at Stanford
• http//www.w3.org/TR/owl-guide/wine.rdf
• Used in the OWL Specifications and Guides.

14
Properties

• Multiple representations
• As associations
• As stereotyped classes
• As Attributes (not shown)

15
Collections

• Anonymous Collection and Enumeration of Instances
• OWL Constraint

16
Individuals

• Links and Objects

17
Proof of Concept
18
Duet Overview

• DUET provides a UML visualization and authoring
  environment for ontologies.
• DAML now and OWL in early 2004
• Core ontology concepts are being mapped into UML
  through a UML profile and an Ontology Definition
  Metamodel.
• UML 1.4 now, UML/MOF 2.0 in late 2004
• DUET will have the capability to work with
  multiple ontologies simultaneously, and to
  interact with other ontology services to
  interactively build ontologies.
• It's intended users are database designers and
  systems engineers, many of who all ready have a
  good understanding of UML and object-oriented
  modeling, which they can leverage to apply
  ontologies to their systems.
• Prototype Version 0.3 of DUET is available as an
  Addin to Rational Rose, ArgoUML and Poseidon for
  UML.

Model Meta-data
Expert Knowledge
Ontology Services
Managed Ontologies
19
WordNet Ontology
Example of an Ontology in UML from Duet.
20
AeroDAML Ontology
21
SONAT Ontology Overview
22
SONAT OntologiesGestalt View
Social
Military
