Binary Heaps

1

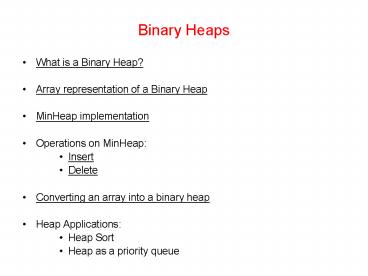

Binary Heaps

• What is a Binary Heap?
• Array representation of a Binary Heap
• MinHeap implementation
• Operations on MinHeap
• Insert
• Delete
• Converting an array into a binary heap
• Heap Applications
• Heap Sort
• Heap as a priority queue

2
What is a Binary Heap?

• A binary heap is a complete binary tree with one
  or both of the following heap order properties
• MinHeap property Each node must have a key that
  is less or equal to the key of each of its
  children.
• MaxHeap property Each node must have a key that
  is greater or equal to the key of each of its
  children.
• A binary heap satisfying the MinHeap property is
  called a MinHeap.
• A binary heap satisfying the MaxHeap property is
  called a MaxHeap.
• A binary heap with all keys equal is both a
  MinHeap and a MaxHeap.
• Recall A complete binary tree may have missing
  nodes only on the right side of the lowest level.

All levels except the bottom one must be fully
populated with nodes
All missing nodes, if any, must be on the right
side of the lowest level
3
MinHeap and non-MinHeap examples
Violates MinHeap property 21gt6
Not a Heap
4
MaxHeap and non-MaxHeap examples
Violates MaxHeap property 65 lt 67
A MaxHeap
Violates heap structural property
Violates heap structural property
5
Array Representation of a Binary Heap

• A heap is a dynamic data structure that is
  represented and manipulated more efficiently
  using an array.
• Since a heap is a complete binary tree, its node
  values can be stored in an array, without any
  gaps, in a breadth-first order, where
• Value(node i1) array i , for i gt 0

• The root is array0
• The parent of arrayi is array(i 1)/2, where
  i gt 0
• The left child, if any, of arrayi is
  array2i1.
• The right child, if any, of arrayi is
  array2i2.

6
Array Representation of a Binary Heap (contd.)

• We shall use an implementation in which the heap
  elements are stored in an array starting at index
  1.
• Value(node i ) arrayi , for i gt 1

• The root is array1.
• The parent of arrayi is arrayi/2, where i gt 1
• The left child, if any, of arrayi is array2i.
• The right child, if any, of arrayi is
  array2i1.

7
MinHeap Implementation

• The class hierarchy for BinaryHeap is

• The PriorityQueue interface is
• 1 public interface PriorityQueue extends
  Container
• 2
• 3 public abstract void enqueue(MyComparable
  comparable)
• 4 public abstract MyComparable findMin()
• 5 public abstract MyComparable dequeueMin()

• 6

8
MinHeap Implementation (contd.)

• 1 public class BinaryHeap extends
  AbstractContainer implements PriorityQueue
• 2
• 3 protected MyComparable array
• 4 // count is inherited from
  AbstractContainer
• public BinaryHeap(int size)
• 7 array new MyComparablesize 1
  // array0 is not used
• 8
• 9
• 10 public BinaryHeap(MyComparable
  comparable)
• 11
• 12 this(comparable.length)
• 13
• 14 for(int i 0 i lt
  comparable.length i)
• 15 arrayi 1 comparablei
• 16 count comparable.length
• 17 buildHeapBottomUp()
• 18
• 19 // . . .

9
MinHeap Insertion

• The pseudo code algorithm for inserting in a
  MinHeap is
• 1 minHeapInsert(e1)
• 2
• 3 if(Heap is full) throw an exception
• 4 insert e1 at the end of the heap
• 5 while(e1 is not in the root node and e1 lt
  parent(e1))
• 6 swap(e1 , parent(e1))
• The process of swapping an element with its
  parent, in order to restore the heap order
  property after an insertion is called percolate
  up, sift up, or reheapification upward.
• Thus, the steps for insertion are
• Insert at the end of the heap.
• As long as the heap order property is violated,
  percolate up.

10
Percolate-Up Via a Hole

• Instead of repeated swappings, it is more
  efficient to use a hole (i.e., an empty node) to
  percolate up
• To insert an element e, insert a hole at the end
  of the heap.
• While the heap order property is violated,
  percolate the hole up.
• Insert e in the hole.

p
p lt e
p
e
e
p gt e
hole
e
p
11
MinHeap Insertion Example
Percolate up
12
MinHeap Insertion implementation

• public void enqueue(MyComparable comparable)
• 3 if(isFull()) throw new
  ContainerFullException()
• 4 // percolate up via a hole
• 5 int hole count
• while(hole gt 1 arrayhole /
  2.isGT(comparable))
• 8 arrayhole arrayhole / 2
• 9 hole hole / 2
• 10
• 11 arrayhole comparable
• 12
• public boolean isFull()
• 3 return count array.length - 1
• 4

13
MinHeap deletion

• The pseudo code algorithm for deleting from a
  MinHeap is
• 1 minHeapDelete()
• 2 if(Heap is empty) throw an exception
• 3 extract the element from the root
• 4 if(root is a leaf node) delete root
  return
• 5 copy the element from the last leaf to
  the root
• 6 delete last leaf
• 7 p root
• 8 while(p is not a leaf node and p gt any
  of its children)
• 9 swap p with the smaller child
• 10 return
• The process of swapping an element with its
  smaller child, in order to restore the heap
  order property after a deletion is called
  percolate down, sift down, or reheapification
  downward.
• Thus, the steps for deletion are
• Replace the value at the root by the last leaf
  value.
• Delete the last leaf.
• As long as the heap order property is violated,
  percolate down.

14
Percolate-Down Via a Hole

• Instead of repeated swappings, it is more
  efficient to use a hole (i.e., an empty node) to
  percolate down
• A hole is created in the root by deleting the
  root element.
• Copy the value in the last node in a temporary
  variable.
• Delete the last node.
• While the heap order property is violated,
  percolate the hole down.
• Insert the value from the temporary variable into
  the hole.

e lt min(l , r)
e gt l gt r
l
r
r
e
e gt l lt r
l
l
r
l
r
15
MinHeap Deletion Example
delete last node
Percolate down
16
MinHeap Deletion Implementation

• 1 public MyComparable dequeueMin()
• 2 if(isEmpty()) throw new
  ContainerEmptyException()
• 3 MyComparable minItem array1
• 4 array1 arraycount
• 5 count--
• 6 percolateDown(1)
• 7 return minItem
• 1 private void percolateDown(int hole)
• 2 int child MyComparable temp
  arrayhole
• 3 while(hole 2 lt count)
• 4 child hole 2
• 5 if(child 1 lt count arraychild
  1.isLT(arraychild) )
• 6 child
• if(arraychild.isLT(temp))
• arrayhole arraychild
• else
• break

17
Converting an array into a Binary heap

• The algorithm to convert an array into a binary
  heap is
• Start at the level containing the last non-leaf
  node (i.e., arrayn/2, where n is the array
  size).
• Make the subtree rooted at the last non-leaf node
  into a heap by invoking percolateDown.
• Move in the current level from right to left,
  making each subtree, rooted at each encountered
  node, into a heap by invoking percolateDown.
• If the levels are not finished, move to a lower
  level then go to step 3.
• Stop.
• The above algorithm can be refined to the
  following method of the BinaryHeap class
• private void buildHeapBottomUp()
• for(int icount/2 igt1 i--)
• 5 // restore heap property for subtree
  rooted at arrayi
• 6 percolateDown(i)
• 7
• 8

18
Converting an array into a MinHeap (Example)
At each stage convert the highlighted tree into a
MinHeap by percolating down starting at the root
of the highlighted tree.

19
Heap Application Heap Sort

• A MinHeap or a MaxHeap can be used to implement
  an efficient sorting algorithm called Heap Sort.
• The following algorithm uses a MinHeap
• 1 public static void heapSort(MyComparable
  array)
• 2
• 3 BinaryHeap heap new
  BinaryHeap(array)
• 4 for(int i 0 i lt array.length
  i)
• 5 arrayi heap.dequeueMin()
• 6
• Because the dequeueMin algorithm is O(log n),
  heapSort is an O(n log n) algorithm.
• Apart from needing the extra storage for the
  heap, heapSort is among efficient sorting
  algorithms.

20
Heap Applications Priority Queue

• A heap can be used as the underlying
  implementation of a priority queue.
• A priority queue is a data structure in which the
  items to be inserted have associated priorities.
• Items are withdrawn from a priority queue in
  order of their priorities, starting with the
  highest priority item first.
• Priority queues are often used in resource
  management, simulations, and in the
  implementation of some algorithms (e.g., some
  graph algorithms, some backtracking algorithms).
• Several data structures can be used to implement
  priority queues. Below is a comparison of some

21
Priority Queue (Contd.)

• 1 priorityQueueEnque(e1)
• 2
• 3 if(priorityQueue is full) throw an
  exception
• 4 insert e1 at the end of the
  priorityQueue
• 5 while(e1 is not in the root node and e1 lt
  parent(e1))
• 6 swap(e1 , parent(e1))
• 7
• 1 priorityQueueDequeue()
• 2 if(priorityQueue is empty) throw an
  exception
• 3 extract the highest priority element
  from the root
• 4 if(root is a leaf node) delete root
  return
• 5 copy the element from the last leaf to
  the root
• 6 delete last leaf
• 7 p root
• 8 while(p is not a leaf node and p gt any
  of its children)

X
Heap
Heap
X is the element with highest priority
