Cost of Misunderstandings

1

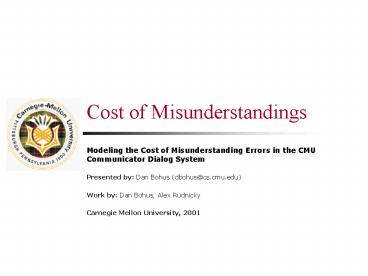

Cost of Misunderstandings

• Modeling the Cost of Misunderstanding Errors in
  the CMU Communicator Dialog System
• Presented by Dan Bohus (dbohus_at_cs.cmu.edu)
• Work by Dan Bohus, Alex Rudnicky
• Carnegie Mellon University, 2001

2
Outline

• Quick overview of previous utterance-level
  confidence annotation work.
• Modeling the cost of misunderstandings in spoken
  dialog systems.
• Experiments results.
• Further analysis.
• Summary, further work, conclusion

3
Utterance-Level Confidence Annotation Overview

• Confidence annotation data-driven
  classification
• Corpus 2 months, 131 dialogs, 4550 utterances.
• Features 12 features from decoder, parsing,
  dialog management levels.
• Classifiers Decision Tree, ANN, BayesNet,
  AdaBoost, NaiveBayes, SVM Logistic Regression
  model (later on).

4
Confidence annotator performance

• Baseline error rate 32
• Garble baseline 25
• Classifiers performance 16
• Differences between classifiers are statistically
  insignificant except for Naïve Bayes
• On a soft-metric, logistic regression model
  clearly outperformed the others
• But is this the right way to evaluate performance?

5
Judging Performance

• Classification Error Rate (FPFN).
• Assumes implicitly that FP and FN errors have
  same cost
• But cost of misunderstanding in dialog systems is
  presumably different for FPs and FNs.
• Build an error function which take into account
  these costs, and optimize for that.
• Cost also depends on
• domain/system not a problem
• dialog state

6
Problem Formulation

• (1) Develop a cost model which allows us to
  quantitatively assess the costs of FP and FN
  errors.
• (2) Use the costs to pick the optimal tradeoff
  point on the classifier ROC.

7
The Cost Model

• Model the impact of the FPs and FNs on the system
  performance
• Identify a suitable performance metric P
• Build a statistical regression model at the
  dialog session level
• P f(FPs, FNs)
• P k CostFPFP CostFNFN (Linear Regr)
• Then we can plot f, and implicitly optimize for P

8
Measuring Performance

• User Satisfaction (i.e. 5-point scale)
• Hard to get
• Very subjective hard to make it consistent
  across users
• Concept transfer efficiency
• CTC correctly transferred concepts per turn
• ITC incorrectly transferred concepts per turn
• Completion

9
Detour The Dataset

• 134 dialogs (2561 utterances), collected using 4
  scenarios
• Satisfaction scores only for 35 dialogs
• Corpus manually labeled at the concept and level
• 4 labels OK / RBAD / PBAD / OOD
• Aggregate utterance labels generated
• Confidence annotator decisions logged
• Computed counts of FPs, FNs, CTCs, ITCs for each
  session

10
Example

• U I want to fly from Pittsburgh to Boston
• S I want to fly from Pittsburgh to Austin
• C I_want/OK Depart_Loc/OK
  Arrive_Loc/RBAD
• Only 2 relevantly expressed concepts
• If Accept CTC 1, ITC 1
• If Reject CTC 0, ITC 0

11
Targeting Efficiency Model 1

• 3 Successively refined models
• CTC FP FN TN k
• CTC - correctly transferred concepts / turn
• TN true negatives

12
Targeting Efficiency Model 2

• CTC - ITC (REC ) FP FN TN k
• ITC - incorrectly transferred concepts / turn
• REC relevantly expressed concepts

13
Targeting Efficiency Model 3

• CTC-ITC RECFPCFPNCFNTNk
• 2 types of FPs
• With concepts - FPC
• Without concepts - FPNC

14
Model 3 - Results

• CTC-ITC RECFPCFPNCFNTNk

15
Other models

• Completion (binary)
• Logistic regression model
• Estimated model does not indicate a good fit
• User satisfaction (5-point scale)
• Based on only 35 dialogs
• R2 0.61 (similar to literature Walker et al)
• Explanation subjectivity of metric limited
  dataset

16
Problem Formulation

• (1) Develop a cost model which allows us to
  quantitatively assess the costs of FP and FN
  errors.
• (2) Use the costs to pick the optimal tradeoff
  point on the classifier ROC.

17
Tuning the Confidence Annotator

• Using Model 3
• CTC-ITC RECFPNCFPCFNTNk
• Drop k REC, plug in the values
• Cost 0.48FPNC2.12FPC1.33FN0.56TN
• Minimize Cost instead of Classification Error
  Rate (FPFN), and well implicitly maximize
  concept transfer efficiency.

18
Operating Characteristic
19
Further Analysis

• Is CTC-ITC really modeling dialog performance ?
• Mean 0.71, Std.Dev 0.28
• Mean for completed dialogs 0.82
• Mean for uncompleted dialogs 0.57
• Difference between means significant at very high
  level of confidence
• P-value 7.2310-9 (in t-test)
• So, looks like CTC-ITC is okay, right ?

20
Further Analysis (contd)

• Can we reliably extrapolate to other areas of the
  operating characteristic ?

21
Further Analysis (contd)

• Can we reliably extrapolate to other areas of the
  operating characteristic ?
• Yes, look at the distribution of the FP and FN
  ratios across dialogs.

22
Further Analysis (contd)

• Impact of baseline error rate ?
• Compared models constructed based on high and low
  error rates
• For low error rate curve becomes monotonically
  increasing
• This clearly indicates that trust everything /
  have no confidence is the way to go in this
  setting

23
Our explanation so far

• Ability to easily overwrite incorrectly captured
  information in the CMU Communicator
• Relatively low error rates
• Likelihood of repeated misrecognition is low

24
Conclusion

• Data-driven approach to quantitatively assess the
  costs of various types of misunderstandings.
• Models based on efficiency fit data well
  obtained costs confirm intuition.
• For CMU Communicator, model predicts that total
  cost stays the same across a large range of the
  operating characteristic of the classifier.

25
Further Experiments

• But, of course, we can verify predictions
  experimentally
• Collect new data with the system running with a
  very low threshold.
• 55 dialogs collected so far.
• Thanks to those who have participated in these
  experiments.
• Help if you have the time to the others
• www.cs.cmu.edu/dbohus/scenarios.htm
• Re-estimate models, verify predictions

26
Confusion Matrix

• FP False acceptance
• FN False detection/rejection
• Fallout FP/(FPTN) FP/NBAD
• CDR 1-Fallout 1-(FP/NBAD)
