Using Linked Lists in java'util Package

1

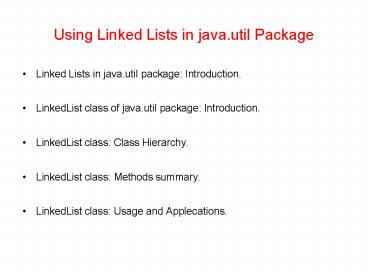

Using Linked Lists in java.util Package

• Linked Lists in java.util package Introduction.
• LinkedList class of java.util package
  Introduction.
• LinkedList class Class Hierarchy.
• LinkedList class Methods summary.
• LinkedList class Usage and Applecations.

2
Linked Lists in java.util package Introduction

• Linked lists as defined in the java.util package
  offer various operations on the nodes of a linked
  list.
• he proposed implementation in the java.util
  package is defined in a class called LinkedList.
• The LinkedList class implements a list as a
  generic doubly linked list with head and tail
  references.
• An instance of such a list that stores Student
  objects is shown below

3
LinkedList class Hierarchy
Object
AbstractCollection
AbstractList
Collection
List
AbstractSequentalList
List
LinkedList
Cloneable
Serializable
4
LinkedList class Methods

• We summarize in the table below the methods of
  LinkedList class

5
LinkedList class Methods (Contd.)
6
LinkedList class Methods
7
Using LinkedList class

• Well demonstrate the use of LinkedList class in
  the code shown below
• 1 import java.util.LinkedList
• 2 import java.util.Iterator
• 3
• 4 public class TestLinkedList
• 5 public static void main(String args)
• 6 LinkedList lst1 new LinkedList()
• 7 lst1.addFirst(new Integer(4))
• 8 lst1.addFirst(new Integer(5))
• 9 lst1.addFirst(new Integer(6))
• 10 lst1.addLast(new Integer(5))
• 11 System.out.println("The index of Element 5
  is " lst1.indexOf(new Integer(5)))
• 12 System.out.println("The index of Element 7
  is " lst1.indexOf(newInteger(7)))
• 13 System.out.println("The first element in the
  list lst1 is " lst1.getFirst())
• 14 System.out.println("The last element in the
  list lst1 is " lst1.getLast(
• 15 LinkedList lst2 new LinkedList(lst1)
• 16 for(int i 0 i lt lst1.size() i)
• 17 System.out.print(lst1.get(i))
• 18 System.out.println()

8
Drill Questions

• Using the JDK documentation, explore the
  remaining methods defined in the LinkedList
  implementation of java.util package. Summarize
  these methods in a table similar to the ones
  presented in this session.
• Write a test class called TestMyLinkedList to
  test MyLinkedList class we have defined in the
  previous sessions.
• Write a method called toString() that prints the
  content of any list instance of type MyLinkedList
  defined in the previous sessions.

9
