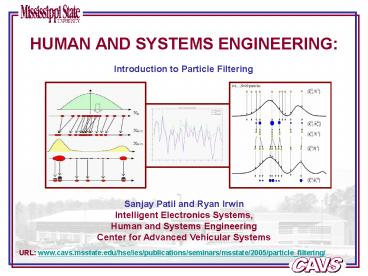

HUMAN AND SYSTEMS ENGINEERING:

1
HUMAN AND SYSTEMS ENGINEERING
Introduction to Particle Filtering
Sanjay Patil and Ryan Irwin Intelligent
Electronics Systems, Human and Systems
Engineering Center for Advanced Vehicular
Systems URL www.cavs.msstate.edu/hse/ies/publica
tions/seminars/msstate/2005/particle_filtering/
2
Abstract

• Most conventional techniques used for speech
  analysis are based on modeling the speech signal
  as Gaussian mixture models.
• Nonlinear approaches are expected to outperform
  the conventional techniques because of their
  abilities to compensate for the mismatched
  channel conditions and to significantly reduce
  the complexity of the models.
• Particle filtering is one such nonlinear method
  based on sequential Monte Carlo technique.
• Particle filtering works by approximating the
  target probability distribution. Thus, it greatly
  reduces the complexities associated with the
  models.

3

• Drawing samples to represent a probability
  distribution function

• Concept of particles and their weights

• Consider a some pdf p(x)
• Generate some random samples
• Conclusion
• More the number of samples better is the
  distribution function represented.
• The number of samples drawn at a particular
  probability represent the weight (contribution)
  by those samples towards the distribution
  function
• The contribution is called as the weight of the
  sample.
• Each sample is called as Particle

weight
4

• Particle filtering algorithm

• Condensation Algorithm
• Survival of the fittest

• Different Names
• Sequential Monte Carlo filters
• Bootstrap filters

Problem Statement

• Tracking the state (parameters or hidden
  variables) as it evolves over time
• Sequentially arriving (noisy and non-Gaussian)
  observations
• Idea is to have best possible estimate of hidden
  variables

5

• Particle filtering algorithm continued

General two-stage framework (Prediction-Update
stages)

• Assume that pdf p(xk-1 y1k-1) is available at
  time k -1.
• Prediction stage
• This is a priori of the state at time k ( without
  the information on measurement). Thus, it is the
  probability of the state given only the previous
  measurements
• Update stage
• This is posterior pdf from predicted prior pdf
  and newly available measurement.

6

• Particle filtering algorithm step-by-step (1)

Initial set-up No observations available Known
parameters x0, p(x0), p(xkxk-1), p(ykxk),
noise statistics Draw samples to represent x0 by
its distribution p(x0)
time
Measurements / Observations
States (unknown / hidden) cannot be measured
7

• Particle filtering algorithm step-by-step (2)

Known parameters x0, p(x0), p(xkxk-1),
p(ykxk), noise statistics Still no observations
or measurements are available. Predict x1 using
equation
time
Measurements / Observations
States (unknown / hidden) cannot be measured
8

• Particle filtering algorithm step-by-step (3)

Known parameters x0, p(x0), p(xkxk-1),
p(ykxk), noise statistics First observation /
measurement is available. Update x1 using equation
time
Measurements / Observations
States (unknown / hidden) cannot be measured
9

• Particle filtering algorithm step-by-step (4)

Known parameters x0, p(x0), p(xkxk-1),
p(ykxk), noise statistics Second observation /
measurement is NOT available. Predict x2 using
equation
time
Measurements / Observations
States (unknown / hidden) cannot be measured
10

• Particle filtering algorithm step-by-step (5)

Known parameters x0, p(x0), p(xkxk-1),
p(ykxk), noise statistics Second observation /
measurement is available. update x2 using equation
time
Measurements / Observations
States (unknown / hidden) cannot be measured
11

• Particle filtering algorithm step-by-step (6)

Known parameters x0, p(x0), p(xkxk-1),
p(ykxk), noise statistics kth observation /
measurement is available. Predict and Update xk
using equation
12

• Particle filtering - visualization

Drawing samples
Predicting next state
Updating this state
What is THIS STEP???
Resampling.
13

• Sampling Importance Resample algorithm (necessity)

14

• Applications

• Most of the applications involve tracking
• Visual Tracking e.g. human motion (body parts)
• Prediction of (financial) time series e.g.
  mapping gold price, stocks
• Quality control in semiconductor industry
• Military applications
• Target recognition from single or multiple images
• Guidance of missiles
• For IES NSF funded project, particle filtering
  has been used for
• Time series estimation for speech signal (Java
  demo)
• Speaker Verification (details on next slide)

15

• Speaker Verification

• Time series estimation of speech signal
• Speaker Verification
• Hypothesis particle filters approximate the
  probability distribution of a signal. If large
  number of particles are used, it approximates the
  pdf better. Only needed is the initial guess of
  the distribution.
• ! How are we going to achieve this..

16

• Pattern Recognition Applet

• Java applet that gives a visual of algorithms
  implemented at IES
• Classification of Signals
• PCA - Principle Component Analysis
• LDA - Linear Discrimination Analysis
• SVM - Support Vector Machines
• RVM - Relevance Vector Machines
• Tracking of Signals
• LP - Linear Prediction
• KF - Kalman Filtering
• PF Particle Filtering

URL http//www.cavs.msstate.edu/hse/ies/projects/
speech/software/demonstrations/applets/util/patter
n_recognition/current/index.html
17

• Classification Best Case

• Data sets need to be differentiated
• Classifying distinguishes between sets of data
  without the samples
• Algorithms separate data sets with a line of
  discrimination
• To have zero error the line of discrimination
  should completely separate the classes
• These patterns are easy to classify

18

• Classification Worst Case

• Toroidals are not classified easily with a
  straight line
• Error should be around 50 because half of each
  class is separated
• A proper line of discrimination of a toroidal
  would be a circle enclosing only the inside set
• The toroidal is not common in speech patterns

19

• Classification Realistic Case

• A more realistic case of two mixed distributions
  using RVM
• This algorithm gives a more complex line of
  discrimination
• More involved computation for RVM yields better
  results than LDA and PCA
• Again, LDA, PCA, SVM, and RVM are pattern
  classification algorithms
• More information given online in tutorials about
  algorithms

20

• Signal Tracking Kalman Filter

• The input signals are now time based with the
  x-axis representing time
• Signal tracking algorithms interpolate data
• Interpolation ensures that the input samples are
  at regular intervals
• Sampling is always done on regular intervals
• Kalman filter is shown here

21

• Signal Tracking Particle Filter

• Algorithm has realistic noise
• Gaussian noise is actually generated at each step
• Noise variances and number of particles can be
  customized
• Algorithm runs as previously described
• State prediction stage
• State update stage
• Average of the black particles is where the
  overall state is predicted

22

• Summary

• Particle filtering promises to be one of the
  nonlinear techniques.
• More points to follow

23

• References

• S. Haykin and E. Moulines, "From Kalman to
  Particle Filters," IEEE International Conference
  on Acoustics, Speech, and Signal Processing,
  Philadelphia, Pennsylvania, USA, March 2005.
• M.W. Andrews, "Learning And Inference In
  Nonlinear State-Space Models," Gatsby Unit for
  Computational Neuroscience, University College,
  London, U.K., December 2004.
• P.M. Djuric, J.H. Kotecha, J. Zhang, Y. Huang, T.
  Ghirmai, M. Bugallo, and J. Miguez, "Particle
  Filtering," IEEE Magazine on Signal Processing,
  vol 20, no 5, pp. 19-38, September 2003.
• N. Arulampalam, S. Maskell, N. Gordan, and T.
  Clapp, "Tutorial On Particle Filters For Online
  Nonlinear/ Non-Gaussian Bayesian Tracking," IEEE
  Transactions on Signal Processing, vol. 50, no.
  2, pp. 174-188, February 2002.
• R. van der Merve, N. de Freitas, A. Doucet, and
  E. Wan, "The Unscented Particle Filter,"
  Technical Report CUED/F-INFENG/TR 380, Cambridge
  University Engineering Department, Cambridge
  University, U.K., August 2000.
• S. Gannot, and M. Moonen, "On The Application Of
  The Unscented Kalman Filter To Speech
  Processing," International Workshop on Acoustic
  Echo and Noise, Kyoto, Japan, pp 27-30, September
  2003.
• J.P. Norton, and G.V. Veres, "Improvement Of The
  Particle Filter By Better Choice Of The Predicted
  Sample Set," 15th IFAC Triennial World Congress,
  Barcelona, Spain, July 2002.
• J. Vermaak, C. Andrieu, A. Doucet, and S.J.
  Godsill, "Particle Methods For Bayesian Modeling
  And Enhancement Of Speech Signals," IEEE
  Transaction on Speech and Audio Processing, vol
  10, no. 3, pp 173-185, March 2002.
