Title: ECSE6963, BMED 6961 Cell

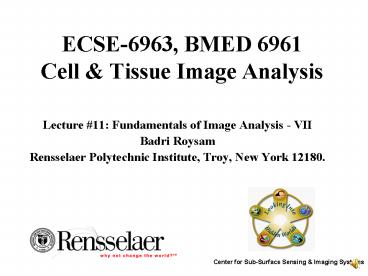

1
ECSE-6963, BMED 6961Cell Tissue Image Analysis
  • Lecture 11 Fundamentals of Image Analysis - VII
  • Badri Roysam
  • Rensselaer Polytechnic Institute, Troy, New York
    12180.

2
Recap Labeling Connected Components
Adaptive Smoothing Thresholding
Connected Components Labeling
Binary image
Regions labeled
Connected Components Labeling
Binary Segmentation
3
CC labeling A Versatile Tool
  • MATLAB Function
  • L,num bwlabel(BW,n) for 2-D images only
  • BW binarized image
  • n 4 or 8 (default) connectivity
  • L label array, same size as BW
  • num number of connected components
  • L,NUM bwlabeln(BW,CONN) for n-dimensional
    images
  • CONN 6/18/26 connectivity in 3-D space
  • RGB label2rgb(L,map,zerocolor) for displaying
    the CC labels
  • Can use CC labeling in diverse ways limited only
    by our imagination
  • Find the background
  • Count components
  • Measure size (area, volume, radius), extent
    (feret box, diameter), location, shape
    (convexity, circularity), and orientation (min.
    enclosing rectangle) features
  • Filter components by size shape
  • Find and fill holes
  • Cleanup results of edge detection

4
Recap Features of Connected Components
  • Area
  • Feret box, and minimum enclosing rectangle
  • Diameter
  • Centroid

5
Want to Invent More Features with Me?
  • Before we think up more features, we must pause
    and learn a few lessons
  • Examine if a given features value can change
    when the imaging conditions are adjusted
  • Features that are invariant or at least robust
    or insensitive to the expected range of imaging
    distortions are preferable. For example, ask if
    the features value changes when the
    magnification is changed (scale invariance), or
    the specimen is rotated (rotational invariance).
  • Dimensionless ratios of some features can
    sometimes provide some kind of invariance

6
Recall More Accurate Size Measurement
  • Most of the variation in area measurement occurs
    due to the pixels at the border.
  • Approximate calculation
  • Assume object is roughly circular, with radius R
  • Random Poisson sampling of the border region
    gives a mean and variance of
  • More generally,
  • Denser sampling leads to better precision

http//www.ph.tn.tudelft.nl/People/albert/papers/I
SBI2004_LVPVTY.pdf
7
Pixels at the Border the Perimeter
  • Simplest Definition Count the number of boundary
    pixels
  • Boundaries often associated with membranes
  • Extremely important sites of biochemical activity
  • CC pixels with at least one 4-connected
    background neighbor are boundary pixels
  • In MATLAB, BW2 bwperim(BW1,CONN) identifies
    perimeter pixels
  • CONN specifies the type of connectivity
  • Two types of boundary pixels
  • Type I only one 4-connected background neighbor
  • Type II Two 4-connected background neighbors
  • For a more accurate estimation, necessary to
    perform contour following
  • Professor Freemans algorithm
  • Weight for Type I pixels 1
  • Weight for Type II pixels ??2

2
2
1
8
More Accurate Estimation of Perimeter
  • Kulpas Algorithm
  • Start with 8-connected contour
  • Scale Freemans estimate by 0.948
  • Many other formulas discussed in the literature
  • 3-D case is analogous
  • Surface area of a connected component

Correction factor for closed surfaces
9
Contours External Internal
  • Usually, external contours are better behaved
  • Form closed curves when object contains no holes
  • Even if parts of object are just 1 pixel wide

Practical notes 1. Internal contour would work
better if we had a single-pixel-wide tunnel 2.
Often convenient to either erode or widen
single-pixel-wide structures to 2 pixels
10
Contour Following
Starting Point
  • Need a way to represent a contour
  • Need algorithms to
  • Find a starting point
  • Find the next point on contour
  • Recognize when contour following is complete

11
Neighbor Labeling
  • A contour can be written as a series of 3-bit
    numbers
  • Chain code directions
  • Invented by Herb Freeman in the 60s
  • An RPI professor

12
Finding the Starting Point
  • Just scan from upper left to bottom right
  • The first background pixel that has a foreground
    neighbor to the right is our starting point for
    contour following
  • Pixel (2, 6) in this example

13
Finding the Second Point
  • Search the neighbors that have not been tested
    before (from 4 to 7)
  • Look for first transition from background to
    foreground
  • Pick the background pixel as the next point on
    the external contour
  • Will always yield counter-clockwise contour

14
Subsequent Points
  • We need a way to keep track of whats already
    been traced and whats not
  • P Previous pixel
  • C Current pixel
  • N Next pixel

Directions
15
The invert() function
Directions
16
Finding Subsequent Points
  • Starting from , search the neighborhood
    counter clockwise for contour candidates,
    including the previous point
  • Allows algorithm to enter and leave a tunnel
  • Pick the last candidate as the next direction

Directions
17
Finding Subsequent Points
  • Note that the previous pixel is also a candidate
    in the search
  • Need that to handle single-pixel wide entrances
  • Taken only when there are no other candidates to
    avoid getting stuck

18
End Point
  • Stop when you encounter the start point while
    finding the subsequent points
  • Works when you dont have holes

19
Doing this in MATLAB
(x, y) sequences, one for each object
Label Matrix
No. of objects
Boundary Array
Adjacency matrix
  • B,L,N,A bwboundaries (BW, CONN, options)

Binarized image
How holes should be treated holes or noholes
Type of Connectivity (4 or 8)
20
Freemans Perimeter Estimate - Revisited
Directions
Number of odd direction codes in contour
Number of even direction codes in contour
21
Perimeter Comments
  • Perimeters, surface areas, and curve lengths are
    notoriously susceptible to estimation errors
  • Small segmentation errors can cause big changes
  • The fractal nature of object perimeters
  • The answer depends the wiggliness of the border
  • More wiggly borders can be dramatically longer
  • Often more meaningful to define these
    measurements at a specific scale
  • We would like to smooth the contour to an
    appropriate extent (scale), and then measure
    perimeter/surface area.
  • We would exercise caution in terms of how the
    perimeter feature is used it is only valid for
    a stated scale, and must be re-estimated for any
    other scale value.

22
Perimeter Based Features
Exercise caution if/when you use these
features! Which of these are dimensionless?
23
Radius Circularity
  • The circularity, C, is defined as the variance of
    the distances around the radius

Circularity of a circular object is zero, and for
non-circular objects, it is greater than 0
24
Convex Hull
  • Convex Hull
  • Smallest convex polygon that encloses the shape
  • Convex Deficiency
  • The difference between the shape and the convex
    hull
  • Simple Algorithm
  • For each point on the boundary, see if it is
    enclosed in a triangle formed by three other
    boundary points
  • Points that are not enclosed are the vertices of
    the convex hull
  • Faster algorithms are available.

Convex deficiency
25
Convex Hull in MATLAB
  • The convex hull is a versatile operation, just
    like connected components
  • Applications are limited only by our imaginaton
  • Computational geometry researchers have developed
    some very fast and effective algorithms
  • Quick Hull (www.qhull.org) is a free software
    library
  • MATLAB uses the routine from Qhull

K, A convhull(x,y) returns indices into the
x and y vectors of the points on the convex
hull, so xk, yk are points on the convex
hull. A is the area of the convex hull.
26
Convexity
Intuition If the convex deficiency is minimal,
then object area and area of the convex hull are
nearly the same. The object is very convex. If
the convex deficiency is a lot, then the object
is not very convex, and the convexity measure is
low
27
Example Compactness
Compact
Invariant to linear image transformations,
but Watch for scale-dependent error in perimeter
estimate
Not so compact
28
Curvature
  • Basic Concept
  • Curvature is the rate of change of the slope of a
    curve
  • Positive curvature means convex, and vice versa
  • Using curvature, we can locate special points of
    interest

29
Curvature Estimation
  • The derivatives can be approximated by differences

30
Practical Method
m is a scale parameter Notwithstanding m, we
still need to smooth the boundary
31
Doing it in MATLAB
  • There is no direct function for estimating
    boundary curvature in MATLAB
  • One method is to fit a polygon to the sequence of
    boundary pixels using the MATLAB polyfit routine
  • p polyfit(x,y,n)
  • n degree of the polynomial
  • Now you can use the calculus-based formulas we
    just discussed to estimate curvature identify
    the special points using your own program!

32
Shape Complexity Feature
  • Find the nearest distance of each pixel to the
    boundary
  • Efficient algorithms, known as Distance
    Transforms are available to do this (coming up
    shortly)
  • Find the average ? of the above distances

Suppose the two shapes had the same area, which
one will have more complexity?
33
Using CC labels as cookie cutters(region of
interest indicators)
  • Keep in mind that the original image data is
    available, and spatially aligned with
    segmentation labels
  • CC labels can help define regions of interest in
    the image
  • Make spatially selective measurements over the
    original image
  • Fluorescence intensity measurements
  • Optical density measurements

34
Example Absorption features
Feret Box
  • Important for transmitted-light images
  • Total Optical Density
  • Measure background within a local neighborhood,
    usually a slightly expanded Feret box, or a
    rounder approximation
  • Mean Optical Density
  • Variance of optical density
  • A texture measure

35
Looking Ahead
6 iterations of smoothing with anisotropic
diffusions
After grayscale min smoothing
Rat hippocampus Nuclei
Big Question How do we begin to clean up these
messy-looking edges??
Adaptive Thresholding of gradient
Gradient
36
Looking Ahead
  • Still need to learn
  • More features, especially boundary features
  • How to separate connected nuclei

37
Reference
  • Shape analysis Classification Theory and
    Practice by Luciano da Fontura Costa
  • Available on-line through the RPI library catalog
  • Chapter 5.2 describes the contour following
    algorithm

38
Summary
  • We covered several common region features today
  • Need to keep in mind the cautionary notes
  • Need to understand what kinds of features are
    better!
  • Invariant
  • Dimensionless
  • Sensitive to desired aspects of objects, but
    insensitive to expected/possible image
    distortions
  • Perimeters and surface areas are tricky features
  • Keep in mind the issue of applicable scale
  • The convex hull is another powerful and versatile
    operation, just like CC labeling
  • Can be used in diverse ways, limited only by our
    imagination
  • Well explore more features next class
  • Good News
  • We now have a grader (Adarsh)!

39
Instructor Contact Information
  • Badri Roysam
  • Professor of Electrical, Computer, Systems
    Engineering
  • Office JEC 7010
  • Rensselaer Polytechnic Institute
  • 110, 8th Street, Troy, New York 12180
  • Phone (518) 276-8067
  • Fax (518) 276-8715
  • Email roysam_at_ecse.rpi.edu
  • Website http//www.ecse.rpi.edu/roysam
  • Course website http//www.ecse.rpi.edu/roysam/CT
    IA
  • Secretary Laraine Michaelides, JEC 7012, (518)
    276 8525, michal_at_.rpi.edu
  • Grader

Center for Sub-Surface Imaging Sensing
Write a Comment
User Comments (0)
About PowerShow.com
