Basic Electrocardiography

1

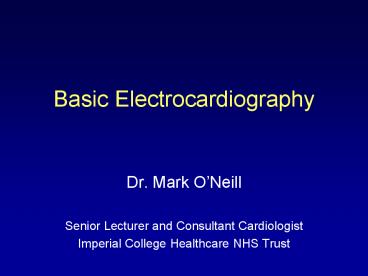

Basic Electrocardiography

• Dr. Mark ONeill
• Senior Lecturer and Consultant Cardiologist
• Imperial College Healthcare NHS Trust

2

• "I do not imagine that electrocardiography is
  likely to find any very extensive use in the
  hospital. It can at most be of rare and
  occasional use to afford a record of some rare
  anomaly of cardiac action.
• Augustus D. Waller
• Barker LF Electrocardiography and
  phonocardiography A collective review. Bull
  Johns Hopkins Hosp 191021358359

3
Outline

• Common Problems with ECG recording
• Interpreting the 12 lead ECG
• Key Diagnosis using ECGs
• Interpreting 24 hour ECGs

4
Problems with ECG recording

• Patient identity
• Lead position
• Paper speed and amplification
• Artifact
• Misinterpretation is much more common than poor
  recording technique.

5
Patient Identity
6
Lead Position
7
Paper Speed and Amplification
1 second
8
Paper Speed
9
Signal Amplification
10
Artifact
11
Artifact
12
(No Transcript)
13
Look at all the leads
14
Interpreting the 12 lead ECG

• There are 2 critical types of information to be
  gleaned from the ECG
• The sequence of Cardiac Electrical Activation
  i.e. electrical recording reflecting electrical
  phenomena
• The anatomy/geography of the abnormality
• Localising conduction disturbance (accurate)
• Localising perfusion disturbance (less accurate,
  because it is not a perfusion recording)

15
Cardiac Activation sequence
SA Node
AV Node
PR Interval
BBs
QRSd
Ventricles
16
The poor mans guide
J point
PR interval
QRSd
17
Interpreting the 12 Lead ECG
18
Key Diagnoses using 12 lead ECG

• Conduction Disturbance
• 2nd Degree AV block
• 3rd Degree AV block
• Arrhythmias
• Atrial fibrillation
• Broad Complex vs Narrow complex tachycardia
• Acute Myocardial ischaemia

19
Conduction Disturbance

• Sinoatrial node
• Failure of impulse initiation
• Sinus node arrest
• Atrioventricular node
• Intermittent failure of impulse conduction
• Ist and 2nd Degree AV block
• Complete failure of impulse conduction
• 3rd Degree AV block

20
Where is the Conduction Problem?
21
1st Degree AV block
22
2nd Degree AV block
Mobitz I or Wenckebach type AV block
Note Progressive PR prolongation followed by
loss of AV conduction
23
2nd Degree AV block
24
2nd Degree AV block
25
3rd Degree AV Block
26
Atrial Fibrillation

• Predominantly of left atrial origin
• High rate of atrial activation (gt300bpm)
• IRREGULAR VENTRICULAR RESPONSE
• Filtering effect of the AV node
• Protects the ventricle from high atrial rates
• Explains why we rate control AF

27
Atrial Fibrillation
28
Atrial Fibrillation
29
Atrial Flutter
30
Narrow Complex Tachycardia
Uses the normal cardiac conduction pathways to
activate the ventricles Generally originates
above the AV node Highly unlikely to be life
threatening In individuals with a normal
heart Common Symptoms are from the ventricles
following the tachycardia from above
31
Narrow Complex tachycardia
32
Ventricular (Broad Complex) Tachycardia
Ignores the normal cardiac conduction pathways to
activate the ventricles Originates below the AV
node Can be life threatening in individuals
with a normal heart Together with VF, accounts
for the vast majority of SCD in patients with
ischaemic HD
33
Broad Complex Tachycardia
34
Interpreting 24 hour ECGs

• You have only 2 leads
• They are not the same as the leads recorded with
  a 12 lead machine
• Artifact is very common
• Morphology of ST segments counts for nothing
• The majority of 24h tapes are normal!

35
Lead Positions
Beijing
London
36
(No Transcript)
37
Occasionally interesting!
38
What is this?
39
Summary

• All information is in front of you on the
  recording
• Take a logical and structured approach to the
  recording
• If in doubt, ask a colleague its what I do

40
