Feature tracking Class 5

1

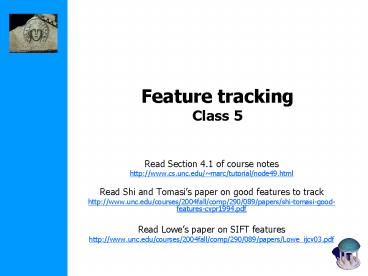

Feature trackingClass 5

• Read Section 4.1 of course notes
• http//www.cs.unc.edu/marc/tutorial/node49.html
• Read Shi and Tomasis paper on good features to
  track
• http//www.unc.edu/courses/2004fall/comp/290/089/p
  apers/shi-tomasi-good-features-cvpr1994.pdf
• Read Lowes paper on SIFT features
• http//www.unc.edu/courses/2004fall/comp/290/089/p
  apers/Lowe_ijcv03.pdf

2
Dont forget Assignment 1(due by next Tuesday
before class)

• Find a camera
• Calibration approach 1
• Build/use calibration grid (2 orthogonal planes)
• Perform calibration using (a) DLT and (b)
  complete gold standard algorithm (assume error
  only in images, model radial distortion, ok to
  click points by hand)
• Calibration approach 2
• Build/use planar calibration pattern
• Use Bouguets matlab calibration toolbox
  (Zhangs approach)
• http//www.vision.caltech.edu/bouguetj/calib_doc/
• (or implement it yourself for extra points)
• Compare results of approach 1(a),1(b) and 2
• Make short report of findings and be ready to
  discuss in class

3
Single view metrology

• Allows to relate height of point to height of
  camera

4
Single view metrology

• Allows to transfer point from one plane to another

5
Feature trackingClass 5

• Read Section 4.1 of course notes
• http//www.cs.unc.edu/marc/tutorial/node49.html
• Read Shi and Tomasis paper on good features to
  track
• http//www.unc.edu/courses/2004fall/comp/290/089/p
  apers/shi-tomasi-good-features-cvpr1994.pdf
• Read Lowes paper on SIFT features
• http//www.unc.edu/courses/2004fall/comp/290/089/p
  apers/Lowe_ijcv03.pdf

6
Feature matching vs. tracking
Image-to-image correspondences are key to passive
triangulation-based 3D reconstruction
Extract features independently and then match by
comparing descriptors
Extract features in first images and then try to
find same feature back in next view
What is a good feature?
7
Comparing image regions

• Compare intensities pixel-by-pixel

I(x,y)
I(x,y)
Dissimilarity measures
Sum of Square Differences
8
Comparing image regions

• Compare intensities pixel-by-pixel

I(x,y)
I(x,y)
Similarity measures
Zero-mean Normalized Cross Correlation
9
Feature points

• Required properties
• Well-defined
• (i.e. neigboring points should all be
  different)
• Stable across views

(i.e. same 3D point should be extracted as
feature for neighboring viewpoints)
10
Feature point extraction
Find points that differ as much as possible from
all neighboring points
homogeneous
edge
corner
11
Feature point extraction

• Approximate SSD for small displacement ?
• Image difference, square difference for pixel

• SSD for window

12
Feature point extraction
homogeneous
edge
corner
Find points for which the following is maximum
i.e. maximize smallest eigenvalue of M
13
Harris corner detector

• Use small local window
• Maximize cornerness

• Only use local maxima, subpixel accuracy through
  second order surface fitting
• Select strongest features over whole image and
  over each tile (e.g. 1000/image, 2/tile)

14
Simple matching

• for each corner in image 1 find the corner in
  image 2 that is most similar (using SSD or NCC)
  and vice-versa
• Only compare geometrically compatible points
• Keep mutual best matches

What transformations does this work for?
15
Feature matching example
What transformations does this work for?
What level of transformation do we need?
16
Wide baseline matching

• Requirement to cope with larger variations
  between images
• Translation, rotation, scaling
• Foreshortening
• Non-diffuse reflections
• Illumination

geometric transformations
photometric changes
17
Wide-baseline matching example
(Tuytelaars and Van Gool BMVC 2000)
18
Lowes SIFT features
(Lowe, ICCV99)

• Recover features with position, orientation and
  scale

19
Position

• Look for strong responses of DOG filter
  (Difference-Of-Gaussian)
• Only consider local maxima

20
Scale

• Look for strong responses of DOG filter
  (Difference-Of-Gaussian) over scale space
• Only consider local maxima in both position and
  scale
• Fit quadratic around maxima for subpixel

21
Orientation

• Create histogram of local gradient directions
  computed at selected scale
• Assign canonical orientation at peak of smoothed
  histogram
• Each key specifies stable 2D coordinates (x, y,
  scale, orientation)

22
Minimum contrast and cornerness
23
SIFT descriptor

• Thresholded image gradients are sampled over
  16x16 array of locations in scale space
• Create array of orientation histograms
• 8 orientations x 4x4 histogram array 128
  dimensions

24
(No Transcript)
25
Matas et al.s maximally stable regions

• Look for extremal regions

http//cmp.felk.cvut.cz/matas/papers/matas-bmvc02
.pdf
26
Mikolaczyk and Schmid LoG Features
27
Feature tracking

• Identify features and track them over video
• Small difference between frames
• potential large difference overall
• Standard approach
• KLT (Kanade-Lukas-Tomasi)

28
Good features to track

• Use same window in feature selection as for
  tracking itself
• Compute motion assuming it is small
• Affine is also possible, but a bit harder (6x6 in
  stead of 2x2)

29
Example
30
Example
31
Synthetic example
32
Good features to keep tracking

• Perform affine alignment between first and last
  frame
• Stop tracking features with too large errors

33
Live demo

• OpenCV (try it out!)

LKdemo
34
Next class triangulation and reconstruction
m1
C1
L1
Triangulation

• calibration
• correspondences
