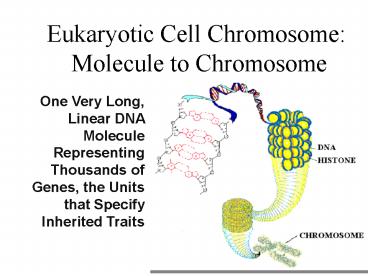

Eukaryotic Cell Chromosome: Molecule to Chromosome

1
Eukaryotic Cell Chromosome Molecule to
Chromosome
One Very Long, Linear DNA Molecule Representing
Thousands of Genes, the Units that Specify
Inherited Traits
2
Eukaryotic Chromosomes Have the Following
Characteristics

• Supercoils of DNA-protein called CHROMATIN.
• Each chromosome consists of the following
• DNA molecule that is long, double-stranded
  segments of which are called GENES.
• Various proteins maintain chromosome structure
  or help with gene expression, DNA replication and
  DNA repair.
• Exist in species-specific numbers (e.g. 46).
• Exist in different states (visible in mitosis
  invisible in interphase)

3
EUKARYOTIC CHROMOSOMES

• 46 chromosomes in human somatic cells... all
  but reproductive cells.
• 23 chromosomes in human reproductive cells
  (sperm or egg), thus half as many chromosomes.

4
Preparation for Eukaryotic Cell Division..

• Complete Genome is duplicated.
• This forms SISTER CHROMATIDS.
• Sister chromatids are identical copies of
  chromosomal DNA.
• Sister chromatids are initially attached at the
  CENTROMERE.
• CELL DIVISION IN TWO STEPS
• Nuclear Division (Mitosis)
• Cytoplasmic Division (Cytokinesis)

5
FIGURE 11.5 THE CELL CYCLE
6
THE CELL CYCLE Mitosis Alternates with
Interphase

• A cell copies its entire genome by duplicating
  each chromosome.
• After replication (duplication), each chromsome
  consists of two SISTER CHROMATIDS

p. 208
7
THE CELL CYCLE

• A CENTROMERE holds the two chromatids together.
• In MITOSIS (division of nucleus), the sister
  chromatids are pulled apart repackaged as
  complete sets of two nuclei (at each end of cell).

8
THE CELL CYCLE

• CYTOKINESIS- division of cytoplasm follows
  mitosis, where there was one cell, now there are
  two cells.

9
THE CELL CYCLE

• Each cell is genetically equivalent to the
  parent cell....chromosome number remains the
  same (e.g. human somatic cell ?)

10
THE CELL CYCLE

• Mitosis is only one part of the cell cycle...the
  M Phase (Mitosis Cytokinesis) is the shortest
  in duration.

11
THE CELL CYCLE

• INTERPHASE 90 of cell lifetime Cell grows
  copies its chromosomes in preparation for cell
  division.

12
THE CELL CYCLE

• INTERPHASE consists of three growth periods
• G1 Phase - Cell Growth
• S Phase - Copies Chromosomes
• G2 Phase - Cell Grows in Prep. for Cell Division.

13
Mitosis M Phase

• M Phase (not interphase) Division

14
CELL CYCLE OVERVIEWG2 INTERPHASE

• Late interphase well defined nucleus with one or
  several nucleoli.
• Additional centrosome formed (2) with CENTRIOLES
  (animals only).
• ASTERS (not flowers) are forming from centrioles.
• Chromsomes have already duplicated in S Phase but
  are not visible yet.

15
G2 of Interphase
16
CELL CYCLE OVERVIEW MITOTIC PROPHASE

• Nucleoli disappear
• Chromatin fibers become more tightly coiled into
  discrete chromsomes
• Each duplicated chromosome is joined at the
  centromere to form two sister chromatids

17
Mitosis CD Clip..
18
Keep in Mind.........Chromosomal Features
19
METAPHASE Bowties in a Line
20
MITOTIC SPINDLEA Closer look (Figure 12.6)
21
CELL CYCLE OVERVIEWMITOTIC ANAPHASE

• Paired centromeres of each chromosome separate
  -liberate sister chromatids.
• Each chromatid is now a CHROMOSOME!

22
MITOTIC ANAPHASE

• The sisters move along microtubules towards
  opposite poles.
• Two poles now have complete sets of chromosomes.

23
ANAPHASE Headed to the Poles
24
MITOTIC TELOPHASE CYTOKINESIS

• Mitosis is complete when identical nuclei are
  formed...cytokinesis is ongoing separates the
  cytoplasm for two daughter cells.

25
Know this scheme in detailUse your Interactive CD
26
(No Transcript)
27
Cleavage furrow vs. Cell plate
28
What Controls the Cell Cycle? EXTERNAL INTERNAL
CUES

• Cells grown in artificial cultures are
  stimulated or inhibited by certain chemical
  physical factors.
• Essential nutrients required for division.

29
Control of Cell Division

• Some mammalian cells only divide if medium has
  specific regulatory substances called GROWTH
  FACTORS.
• e.g. fibroblasts (connective tissue cells)
  require platelet-derived growth factor (PDGF).

30
Control of Cell Division

• Binding of PDGF to receptors stimulates cell
  division when platelets (blood cells) fragment
  release PDGF during an injury to help in wound
  healing.

31
Control of Cell Division

• Cell density regulates division. Crowding
  inhibits cell division, which is called
  DENSITY-DEPENDENT INHIBITION.
