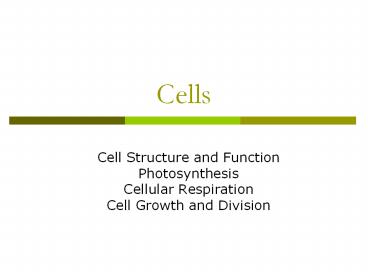

Cells

1
Cells

• Cell Structure and Function
• Photosynthesis
• Cellular Respiration
• Cell Growth and Division

2
Cell Structure and Function(Chapter 7)
3
Life is Cellular

• How did the Cell Theory develop?
• Cell Theory Guided Reading activity
• Know the contributions of the following
  scientists
• Robert Hooke (1665)
• Anton van Leeuwenhoek (1674)
• Matthias Schleiden (1838)
• Theodor Schwann (1839)
• Rudolph Virchow (1855)
• Janet Plowe (1931)
• Lynn Margulis (1970)

4
The Compound Microscope

• Review the microscope lab activity as notes for
  this section!
• Know the parts of the microscope and be able to
  accurately label a microscope diagram!
• Know how to make a wet mount slide!

5
Prokaryotes vs. Eukaryotes

• Prokaryotes

• Eukaryotes

Use my website to determine the major differences
between eukaryotes and prokaryotes.
6
Cellular Diversity

• Protists
• Webquest on What are Protists?
• Protista lab activity
• Animal and Plant Cells
• Observing Animal and Plant Cells lab activity

7
Protist Lab Video Clips

• Paramecium
• http//www.youtube.com/watch?vl9ymaSzcsdYNR1fe
  aturefvwp
• Euglena
• http//www.youtube.com/watch?v7DALQ-XLJ4Qfeature
  related
• Amoeba
• http//www.youtube.com/watch?vI3Jo7moaLdIfeature
  related

8
Cell Structures

• Use the webquest on animal and plant cell
  organelles and their functions as notes for this
  section.
• Go to my website, click on links, then click on
  cells alive!
• Or go to http//www.cellsalive.com for more
  information!
• AND review the Cell part puppet show script!

9
Structure and Function
20 minute research activity

• Choose a cell type and research how its
  structure helps it function.

10
Cells performing the same function often are
similar in shape

• Choose from one of these cell types
• Neuron
• Red Blood Cell
• Cheek Epithelial Cell

11
Neuron
12
Cheek Epithelial Cell
13
Red Blood Cell
14
Neuron Notes
15
Cheek Epithelial Cell Notes
16
Red Blood Cell Notes
17
Levels of Organization in Multicellular Organisms

• Use the Levels of Organization webquest as notes
  for this section.

18
Homeostasis in the Human Body

• Use the Homeostasis in the Human Body Webquest as
  notes for this section.

19
The Cell Membrane

• Structure and Function
• Fluid Mosaic Model

20
The Cell Membrane

• Regulates what enters and leaves
• Provides protection and support
• Made up of
• Phospholipids (lipid bilayer)
• Integral and Peripheral Proteins
• Carbohydrate chains (glycoproteins)
• Cholesterol

21
Cell membrane structure
22
Where are they found?

• Found in
• Nucleus
• Cell membrane
• Golgi apparatus
• endoplasmic reticulum
• lysosomes
• mitochondria
• (basically any membrane bound organelle!)

23
Structure

• Lipid bilayer is made of the following
• 2 types of proteins
• Integral proteins
• Peripheral proteins
• 3 types of lipids
• Membrane Phospholipids
• Membrane glycolipids
• Cholesterol

24
Integral proteins

• Transmembrane proteins (or integral proteins)
• Amphipathic hydrophobic and hydrophilic regions

25
Peripheral proteins

• Peripheral proteins
• linked at the cytoplasmic surface (by attachment
  to a fatty acid chain)
• linked at the external cell surface (attached by
  an oligosaccharide)
• may be bound to other membrane proteins

26
Membrane Phospholipids

• These have a polar head group and two hydrocarbon
  tails
• It is connected by glycerol to two fatty acid
  tails
• One of the tails is a straight chain fatty acid
  (saturated). The other has a kink in the tail
  (unsaturated).

27
(No Transcript)
28
(No Transcript)
29
Membrane glycolipids

• Glycolipids are also a constituent of membranes.
• These components of the membrane may be
  protective, insulators, and sites of receptor
  binding.

30
Cholesterol

• The amount of cholesterol may vary with the type
  of membrane.
• Plasma membranes have nearly one cholesterol per
  phospholipid molecule.
• Other membranes (like those around bacteria) have
  no cholesterol

31
Cholesterol (continued)

• Function
• This makes the lipid bilayer less deformable
• Without cholesterol (such as in a bacterium) a
  cell would need a cell wall.
• Also keeps the cell membrane from becoming too
  stiff.

32
Fluid Mosaic Model

• Based on what you know about the structure and
  function of the cell membrane what does the fluid
  mosaic model mean?

33
Diffusion, Osmosis, and Active Transport
Molecular Workbench Activity

• Complete this online and use your analysis
  packets as additional notes.
• We will be completing this in class!

34
Movement Through the Membrane

• Materials can move through the membrane by
• Diffusion
• Osmosis
• Facilitated Diffusion
• Active Transport
• Protein Pumps
• Endocytosis
• Exocytosis

NO ENERGY (ATP) REQUIRED
high ? low
ENERGY (ATP) REQUIRED
low ? high
35
Diffusion

• Requires no energy (ATP)
• Moves from an area of High concentration ? low
  concentration until dynamic equilibrium is
  reached.
• Dynamic equilibrium activity
• http//www.stolaf.edu/people/giannini/flashanimat/
  transport/diffusion.swf

36
Osmosis

• A type of diffusion (no energy needed)
• Allows water molecules to pass easily through the
  selectively permeable membrane.
• Solution solute solvent
• Solute sugar (or another dissolved
  substance)CANNOT go through the membrane
• Solvent waterCAN go through the membrane

37
Osmosis

• ONLY water moves
• The solute stays put on one side or the other
• Water moves back and forth according to the
  concentration of water on each side of the
  membrane
• http//www.stolaf.edu/people/giannini/flashanimat/
  transport/osmosis.swf

38
Osmotic Pressure

• Isotonic solutions
• The 2 solutions have equal concentrations of
  solute and solvent.
• Hypotonic solutions
• One solution has less solute and more water
  compared to the other solution.
• Hypertonic solutions
• One solution has more solute and less water
  compared to the other solution.

39
What would happen?

• What would happen if
• You placed a selectively permeable membrane bag
  with a hypotonic solution into a beaker with a
  hypertonic solution?
• Which way would the water flow?
• What would happen to the bag?
• What would happen to the beaker?
• How do you know?
• How could you test this?

40
Facilitated Diffusion

• Diffusion with the help of transport proteins
• No energy required
• http//www.stolaf.edu/people/giannini/flashanimat/
  transport/channel.swf

41
Active Transport

• Cell uses energy
• Actively moves molecules to where they are needed

• Movement from an area of low concentration to an
  area of high concentration
• 3 MAIN TYPES
• Protein pumps
• Endocytosis (BULK TRANSPORT)
• Exocytosis (BULK TRANSPORT)

42
Types of Active Transport

• 1. Protein Pumps -transport proteins that require
  energy to do work
• Example Sodium / Potassium Pumps are important
  in nerve responses.
• http//www.stolaf.edu/people/giannini/flashanimat/
  transport/secondary20active20transport.swf
• Protein changes shape to move molecules this
  requires energy!

43
Types of Active Transport

• 2. Endocytosis taking bulky material into a cell

• Uses energy
• Cell membrane in-folds around food particle
• cell eating
• Forms food vacuole digests food
• This is how white blood cells eat bacteria!

44
Types of Active Transport

• 3. Exocytosis Forces material out of cell in
  bulk
• membrane surrounding the material fuses with cell
  membrane
• Cell changes shape requires energy
• EX Hormones or wastes released from cell
• http//www.stolaf.edu/people/giannini/flashanimat/
  cellstructures/phagocitosis.swf

45
Photosynthesis
46
Energy and Life

• Energy ability to do work
• Source of energy on Earth sun
• Autotrophs ? use light energy from the sun (or
  other sources) to make food.
• Heterotrophs ?obtain energy from foods consumed.
• Energy comes in many forms
• Light, heat, and electricity

47
ATP ? like a fully charged battery

• One of the principle chemical compounds that is
  used to store energy
• Adenosine triphosphate (ATP)

48
ADP ? like a ½ charged battery

• When energy is released from ATP ? converts to
  ADP and a phosphate group

49
(No Transcript)
50
Using Biochemical Energy

• Cells use this energy for
• Mechanical work, chemical work, transport work
• Basically, all cellular processes
• ATP in cells good for only a few seconds of
  activity (not efficient storage)
• 1 molecule of glucose stores more than 90xs the
  chemical energy of ATP
• Cells can generate ATP as needed from the glucose
  in carbohydrates consumed during feeding

51
Investigating Photosynthesis

• Jan van Helmont
• Concludes plants gain most of their mass from
  water
• Joseph Priestly
• Concludes that plants release a substance that
  keeps a candle burning (oxygen)
• Jan Ingenhousz
• Concludes that plants produce oxygen bubbles in
  the light but not in the dark (they need
  sunlight).

52
Photosynthesis Equation
53
Light and Pigments

• Photosynthesis requires
• Light
• From sunlight (A mixture of different wavelengths
  of light)
• Chlorophyll (a pigment found in chloroplasts that
  absorbs light energy)
• 2 main types
• Chlorophyll a (absorbs violet and red light)
• Chlorophyll b (absorbs blue and red light)

54
(No Transcript)
55
Structure of a Chloroplast
56
NADPH

• When sunlight hits chlorophyll a double bond is
  broken releasing a high energy electron.
• This high energy electron requires a special
  carrier called NADP.
• Once the electron is combined with NADP it
  becomes NADPH.
• NADPH carries this energy to other reactions
  around the cell.

57
Light-Dependent Reactions

• Use energy from sunlight to produce Oxygen, ATP
  and NADPH.
• Photosystem II is the first to absorb light
  (discovered after photosystem I)
• Light smashes high energy electrons out of the
  chlorophyll molecules which are carried to
  electron transport chains in the thylakoid
  membrane.
• The lost electrons from the chlorophyll molecule
  are replaced by breaking water molecules apart
  which releases oxygen.

58
Light-Dependent Reactions (Continued)

• High energy electrons move from Photosystem II to
  photosystem I.
• Energy from this transport pumps H ions from the
  stroma into the inner thylakoid.
• Pigments in photosystem I use sunlight to release
  additional high energy electrons and a H ion ?
  becomes NADPH
• Inside of thylakoid membrane becomes positively
  charged (from the H ions)/outside ? negatively
  charged
• Charge difference allows ATP to be made.

59
Light-Dependent Reactions (Continued)

• ATP formation
• H ions move through a protein called ATP
  synthase.
• As it rotates the protein binds ADP with an
  additional phosphate to create ATP!

60
(No Transcript)
61
The Calvin CycleOR the light-independent
reactions

• ATP and NADPH from the light reactions are
  required to produce high-energy sugars.
• Step 1 CO2 enters the cycle and is combined with
  6 5-Carbon molecules? forms 12 3-Carbon molecules
• Step 2 Energy from ATP and NADPH are used to
  convert the 12 3-Carbon molecules into
  higher-energy forms

62
The Calvin CycleOR the light-independent
reactions

• Step 3 2 3-Carbon molecules are used to make a
  6-Carbon sugar (glucose!)
• Step 4 The 10 remaining 3-Carbon molecules are
  converted back into 6 5-carbon molecules
• These are reused in the next cycle!!!

63
(No Transcript)
64
Factors affecting photosynthesis

• Availability of Water
• Shortage of water can slow or stop photosynthesis
• Temperature
• Plants function best between 0C and 35C
  (temperatures above or below may damage enzymes
  and slow or stop photosynthesis)
• Intensity of light
• Increasing intensity increases rate of
  photosynthesis until maximum rate of
  photosynthesis is reached.

65
Photosynthesis Molecular Workbench

• We will be completing this online togetherUse
  your analysis packets as additional notes.
• We will be completing this in class!

66
Cellular Respiration
67
Chemical Pathways

• Energy in food
• Calorie amount of energy needed to raise the
  temp. of 1 g of water 1C
• Gradually release energy from glucose and other
  food compounds
• 2 Pathway for energy release
• Aerobic (O2 present)
• Anaerobic (in the absence of O2)

68
Cellular Respiration Overview

• Oxygen glucose ? carbon dioxide water
  energy
• 6O2 C6H12O6 ? 6CO2 6H2O ATP
• 3 main stages
• Glycolysis
• The Krebs cycle (or citric acid cycle)
• Electron Transport Chain (or oxidative
  phosphorylation)

69
Glycolysis (glyco- sweet lysis breaking)

• Occurs in the cytoplasm near the mitochondion
• No oxygen is required for glycolysis
• 1 molecule of glucose (6C) is broken into 2
  molecules of pyruvic acid (3C) (pyruvate)
• Needs to use 2 ATP to get started
• Generates 4 ATP at the end
• Net ATP total 2 ATP
• Produces 4 molecules of NADH (high energy
  electron carrier) ? transports to other reaction
  sites

70
What happens if there is no oxygen?

• Fermentation!
• Cells convert NADH back into NAD by passing
  electrons back to pyruvate
• Allows glycolysis to continue to produce ATP (not
  efficient)
• 2 main types
• Alcoholic Fermentation (bacteria and yeast)
• Lactic Acid Fermentation (humans)

71
Alcoholic Fermentation

• Yeasts and bacteria
• Beer, wine, and bread production
• Pyruvic acid NADH ? alcohol CO2 NAD
• In bread
• CO2 makes the bread rise
• Alcohol is baked off

72
Lactic Acid Fermentation

• Pyruvic acid is converted to lactic acid
• This regenerates NAD so glycolysis can continue
  to generate ATP
• Pyruvic acid NADH ? lactic acid NAD
• Produced in the muscles when there is not enough
  O2 causing burning/pain
• Example Wall sit of death

73
What if there is oxygen present after glycolysis?

• Krebs cycle and electron transport chain!!!
• Most powerful electron acceptor oxygen!!!
• Uses the remaining 90 of energy still trapped in
  the glucose molecule after glycolysis!

74
The Krebs Cycle

• Step 1
• Pyruvic acid enters the mitochodrion
• A carbon is removed forming CO2 and electrons are
  removed forming NADH
• CO2 is combined with coenzyme A and is
  transformed into acetyl-CoA
• Acetyl-CoA adds a 2-C acetyl group to a 4C
  compound forming citric acid.

75
The Krebs Cycle (continued)

• Step 2
• Citric acid is broken down into a 5C compound
  then a 4C compound
• 2 molecules of CO2 are released, electrons form
  NADH and FADH2, and 1 ATP is generated
• From one molecule of pyruvic acid
• 4 NADH, 1 FADH2, 1 ATP
• But remember 2 molecules of pyruvic acid are made
  from each molecule of glucose!!! (so this
  process happens twice)

76
(No Transcript)
77
(No Transcript)
78
Electron Transport

• The high energy electrons in FADH2 and NADH from
  the Krebs cycle
• Are transported to the inner membrane of the
  mitochondrion
• In prokaryotes ? ETC is in the cell membrane
• The ETC uses the high energy electrons to make
  ATP

79
Electron Transport (continued)

• High energy electrons are passed to a series of
  carrier proteins in the membrane
• As electrons move to each carrier, H ions are
  moved to the inner membrane space
• These will be used later to generate ATP via ATP
  synthase
• At the end ? an enzyme that combines the
  electrons with hydrogen ions and oxygen to form
  water

80
Energy Totals

• Aerobic Respiration 36 ATP
• Uses 38 of the total energy of a molecule of
  glucose
• The rest is released as heat (body heat!)
• More efficient than a gasoline car engine
• We are an efficient combustion engine!!!
• Anaerobic Respiration 2 ATP

81
Energy and Exercise

• Quick energy ? (a sprint)
• ATP is short-lived and is used right away
• Stored ATP ? used in a few seconds of intense
  activity
• Then, ATP is generated via lactic acid
  fermentation

82
Energy and Exercise

• Long-term energy ? (marathon)
• For exercise longer than 90 seconds ? cellular
  respiration is the only way to generate enough
  ATP to sustain activity.
• Stored energy glycogen (breaks down into
  glucose and is stored in muscles)
• Lasts only about 15-20 minutes
• Once glycogen is depleted ? body uses fat stores
  (good for weight loss!)

83
Linking to Homeostasis

• How does cellular respiration work to maintain
  homeostasis in the human body? Include body
  systems in your response.

84
Comparing Cellular Respiration to Photosynthesis

• Generate a chart comparing the following

85
Cellular Respiration Molecular Workbench

• Complete this online and use your analysis
  packets as additional notes.
• We will be completing this in class!

86
Cell Growth and Division
87
Limits to Cell Size Activity

• Draw an example of a town with the borders being
  the edges of the paper
• There are 2 main roads into and out of the town.
• Think of a cell and the parts needed to run the
  cell.
• Recreate these parts as parts of a town
• Dont forget nutrients (food trucks) and waste
  (dump trucks)

88
Limits to Cell Size Activity

• Increase the Population
• What does this do to the demands put on the
  town?
• What does this do to the Traffic?
• What does this do to the Waste and Nutrients?
• What does this do to the Resources needed to
  thrive?
• What does this do to the people who run the town?

89
Limits to Cell Size Activity

• Based on the activity
• What are the 2 limits to cell size?
• What happens when a cell becomes too big?

90
Cell Growth

• 2 limits to cell size
• The larger the cell becomes the more demands the
  cell places on its DNA
• The cell has difficulty moving nutrients and
  waste across the membrane
• Thus the size of a cell is limited
• As the length of a cell increases
• Volume increases faster than its surface area

91
What happens when a cell gets too big?

• IT DIVIDES!!!
• Cell division
• 1 cell ? 2 daughter cells (exact copies of the
  original)
• Prokaryotes ? easy
• Circular DNA ? copies then divides
• Eukaryotes ? more involved
• Complex DNA (23 pairs of chromosomes 46 total)

92
The Cell Cycle

• Average time
• 16 20 hours

93
G1 Phase

• Cell Growth
• Intense growth and activity
• Increases in size
• Synthesizes new proteins and organelles

94
The Cell Cycle
95
S Phase

• DNA Synthesis
• Creates a duplicate set of chromosomes
• G0 (or R on diagram) Point of no return

96
Chromosome Structure
supercoils
97
Human Chromosomes (Karyotype)
98
The Cell Cycle
99
G2 Phase

• Preparation for Mitosis
• Shortest of the 3 phases of interphase (G1, S,
  and Gs)
• Organelles and proteins needed for cell division
  are produced.

100
The Cell Cycle
101
Mitosis

• Prophase
• Metaphase
• Anaphase
• Telophase
• Cytokinesis

102
Prophase

• Chromosomes condense (appear)
• Nuclear envelope dissolves
• Centrioles move to opposite sides (poles) of the
  cell

103
(No Transcript)
104
Metaphase

• Centrioles send out spindle fibers that attach to
  the chromosomes
• Chromosomes are lined up in the middle of the cell

105
(No Transcript)
106
Anaphase

• Chromosomes (sister chromatids) are pulled apart
  and move to the poles.

107
(No Transcript)
108
Telophase/Cytokinesis

• Occurs simultaneously
• Telophase
• The nuclear envelope reforms around the
  chromosomes
• The chromosomes uncoil
• Cytokinesis
• The cytoplasm divides
• 2 daughter cells are produced (each are exact
  copies of the original with 46 chromosomes)

109
(No Transcript)
110
(No Transcript)
111
What stages are these cells in?
112
Investigating Cell Reproduction

• Complete the lab activity
• Paper lab

113
GO TO Meiosis PowerPoint
114
Regulating the Cell Cycle
115
Controls on Cell Division

• Cell growth and division can be turned on and off
• Example
• Cells in a petri dish will continue to grow until
  they come in contact with other cells.
• A cut in the skin will cause cells to divide
  until the wound in healed.

116
(No Transcript)
117
Cell Cycle Regulators

• Cyclin
• Protein that regulates the cell cycle in
  eukaryotic cells
• When injected into a non-dividing cell it causes
  a mitotic spindle to form
• Internal Regulators
• Responds to events inside the cell
• Makes sure that a cell does not enter mitosis
  until all chromosomes are replicated

118
Cell Cycle Regulators (cont.)

• External Regulators
• Respond to events outside the cell
• Growth factors that speed up or slow down
  growth and division

119
Uncontrolled Cell Growth

• CANCER
• Cells that lose the ability to control cell
  growth
• Most cancers have damage to the p53 gene
• Normally halts the cell cycle until all
  chromosomes are replicated
• Chromosome damage builds up and the cancer cell
  loses the information that controls normal cell
  growth
• Tumors ? masses of cells that can damage the
  surrounding tissue
• CAUSES smoking tobacco, radiation exposure (UV,
  XRAY, etc.), viral infection

120
Life Spans of Various Human Cells
121
Life Spans of Human Cell Questions

• White blood cells help protect the body from
  infection and disease-producing organisms. How
  might their function relate to their life span?
• If cancer cells were added to the table, predict
  what would be written under the Life Span and
  Cell Division columns. Explain youre the
  reasoning behind your predictions.

122
EXTRA CREDIT

• Write a 1 page (double-spaced) description of
  the latest research on cancer.
• WORTH 10 Points!!!
• Due Friday!!!
