Title: Fatalities in Human Space Flight


1

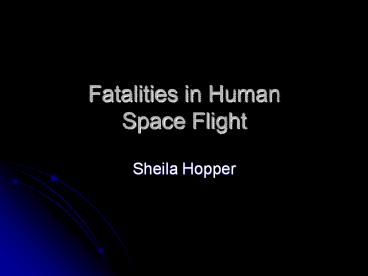

Fatalities in Human Space Flight
  • Sheila Hopper

2
Spaceflight Fatalities
  • 439 individuals have flown on spaceflights
    Russia/Soviet Union (96), USA (277), others (66).
    Twenty-two have died while in a spacecraft
    Apollo 1 (3), Soyuz 1 (1), X-15-3 (1), Soyuz 11
    (3), Challenger (7), Columbia (7), totaling 18
    astronauts (4.1) and 4 cosmonauts (0.9 of all
    the people launched).
  • If Apollo 1 and X-15-3 are included as
    spaceflights, 5 (or 22) of the 439 have died on
    spaceflights.

3
Spaceflight Fatalities
  • In flight accidents have killed 18 astronauts
  • Training accidents have claimed at least 11
    astronauts
  • Launchpad accidents have killed at least 70
    ground crew
  • About 2 of the manned launch/reentry attempts
    have killed their crew
  • About 5 of the people that have been launched
    have died doing so

4
Cosmonaut Fatalities
  • The Soviet/Russian program has had two fatal
    missions for a total of four in-flight
    fatalities.
  • One (Soyuz 1, 1967) due to parachute failure
    during landing (there were other problems, but
    this was the fatal failure), and the other (Soyuz
    11, 1971) when a valve stuck open during
    separation of the descent module during reentry
  • Of all fatal spaceflights by any country (as of
    2006), only the crew of Soyuz 11 actually died in
    space.
  • In addition, the Soviet program suffered 2
    mission-ending launch aborts that were
    potentially fatal.

5
In-flight AccidentsThere have been five fatal
in-flight accidents. In each case all crew were
killed.
  • April 24, 1967 parachute failure Soviet
    cosmonaut Vladimir Komarov died on board Soyuz 1.
    His one-day mission had been plagued by a series
    of mishaps with the new type of spacecraft, which
    ended by the capsule's parachute not opening
    after reentry. Komarov was killed when the
    capsule hit the ground.

6
  • 1967 Nov 15 control failure Michael J Adams.
  • Adams died while piloting a suborbital
    spaceflight in a rocket plane. Major
  • Adams was a U.S. Air Force pilot in the
    NASA/USAF X-15 program. During X-15 Flight 191,
    his seventh flight, the plane first had an
    electrical problem and then developed control
    problems. The pilot may also have become
    disoriented. During reentry from 266,000 ft, the
    X-15 yawed sideways out of control and went into
    a spin at a speed of Mach 5, from which the pilot
    never recovered.
  • Whether or not the incident technically
  • counts as a "spaceflight accident" can be
  • disputed, given that the flight fell short
  • of the internationally recognized 100
  • km boundary of space.

7
  • 1971 June 30 crew exposed to vacuum of space
  • The crew of Soyuz 11, Georgi Dobrovolski, Viktor
    Patsayev and
  • Vladislav Volkov, were killed after undocking
    from space station
  • Salyut after a three-week stay. A valve on their
    spacecraft had accidentally opened when the
    service module separated, letting their air leak
    out into space. The capsule reentered and landed
    normally, and their deaths were only discovered
    when it was opened by the recovery team.

8
  • 1986 January 28 spacecraft broke apart on
    takeoff
  • The first U.S. in-flight fatalities. The Space
    Shuttle Challenger was destroyed 73 seconds
    after launch. Challenger was thrown sideways into
    the Mach 1.8 windstream causing it to break up in
    midair with the loss of all seven crew members
    aboard Greg Jarvis, Christa McAuliffe, Ronald
    McNair, Ellison Onizuka, Judith Resnik, Michael
    J. Smith, and Dick Scobee. NASA investigators
    determined they may have survived the initial
    explosion but, became possibly unconscious from
    anoxia, were killed when the largely intact
    cockpit hit the water at 200 mph.

9
  • 2003 February 1 spacecraft broke apart on
    re-entry
  • The space shuttle Columbia was lost as it
    reentered after a two-week mission, STS-107.
    Damage to the shuttle's thermal protection system
    led to structural failure in the shuttle's left
    wing and, ultimately, the spacecraft breaking
    apart. Investigations after the tragedy revealed
    the damage to the reinforced carbon-carbon
    leading edge wing panel had resulted from a piece
    of insulation foam breaking away from the
    external tank during the launch and hitting
    shuttle's wing. Rick D. Husband, William McCool,
    Michael P. Anderson, David M. Brown, Kalpana
    Chawla, Laurel B. Clark, and Ilan Ramon were
    killed.

10
Training Accidents
  • 1961 March 23 fire on board First space-related
    casualty. Valentin Bondarenko was in training in
    a special low-pressure chamber with a pure oxygen
    atmosphere. He accidentally dropped an
    alcohol-soaked cloth onto an electric hotplate.
    In the pure oxygen environment, the fire quickly
    engulfed the entire chamber. Bondarenko was
    barely alive when the chamber was opened, and
    died of his burns shortly after being
    hospitalized. At the time of the accident,
    Bondarenko's death had been covered up by the
    Soviet government and was not known about in the
    U.S. Many materials become explosively flammable
    in pure oxygen modern spacecraft use mixtures of
    continuously replaced oxygen and nitrogen. It has
    been speculated that knowledge of Bondarenko's
    death might have led to changes that would have
    prevented the Apollo 1 fire.

11
  • 1964 October 31 birdstrike
  • Theodore Freeman was killed when a goose smashed
    through the cockpit canopy of his T-38 jet
    trainer. Flying shards of Plexiglas entered the
    engine intake and caused the engine to flameout.
    Freeman ejected from the stricken aircraft, but
    was too close to the ground for his parachute to
    open properly.
  • 1966, 28 February crash on landing
  • The Gemini 9 crew, Elliott See and
  • Charles Bassett, were killed while
  • attempting to land their T-38 in bad
  • weather. See misjudged his approach and crashed
    into the McDonnell aircraft factory.

12
1967 January 27 Fire Onboard
  • A fire claimed the lives of the Apollo 1 crew as
    they trained in their capsule. An electrical
    fault sparked the blaze that spread quickly in a
    pure oxygen atmosphere, killing Virgil Grissom,
    Edward White and Roger Chaffee.

13
  • 1967 October 5 controls failed Clifton Williams
    died after a mechanical failure caused his T-38's
    controls to stop responding. He had been assigned
    to the back-up crew for what would be the Apollo
    9 mission and would have most likely been
    assigned as Lunar Module pilot for Apollo 12. The
    Apollo 12 mission patch has four stars on it one
    each for the three astronauts who flew the
    mission and one for Williams.
  • 1967, 8 December plane crash Robert Henry
    Lawrence, Jr. was named the first
    African-American astronaut for the U.S. Air Force
    Manned Orbiting Laboratory program, but he never
    made it into space. He died when his F-104
    Starfighter jet crashed at Edwards Air Force
    Base, California.

14
1968 March 27 Plane Crash
  • First man in space Yuri Gagarin died when his
    MiG-15 jet trainer crashed while he prepared for
    the Soyuz 3 mission. An official report at the
    time blamed either birdstrike or that he turned
    too fast to avoid something in the air. But in
    2003 it came out that the KGB had found that the
    official report was false and that the truth was
    negligence by an airforce colonel on the ground,
    who gave an out-of-date weather report the
    flight
  • needed good weather, but the cloud base was
  • nearly at ground level. Since Gagarin was a hero
  • the soviet propaganda engine at that time found
  • it bad publicity to have him killed in a mere
  • training accident and so several newspapers
  • printed the report that he actually died
    heroically
  • testing a top-secret prototype. This again led
    to
  • speculation amongst western conspiracy-proponents
  • whether Gagarin had not died in hushed-up
  • spacecraft accident.

15
Ground crew and On-ground Civilian fatalities
  • 1964 While technicians worked on the Orbiting
    Solar Observatory, in an assembly room at Cape
    Canaveral, a Delta rockets third-stage motor had
    just been mated to the spacecraft in preparation
    for some prelaunch tests. Suddenly the rocket
    ignited, filling the workroom with searing hot
    gases, burning 11 engineers and technicians, 3 of
    them fatally. An investigation following the
    accident showed that a spark of static
    electricity had probably set off the fuse that
    ignited the solid propellant.
  • 1973 Nine technicians were killed in a launch
    pad accident at Plesetsk Cosmodrome in Russia.
  • 1980 48 technicians were killed by an explosion
    while fueling a Vostok-2M booster at Plesetsk
    Cosmodrome in Russia.
  • 1981 During preparations for STS-1, at the end
    of the 33-hour-long Shuttle Dry Countdown
    Demonstration Test, Columbia's aft engine
    compartment was under a nitrogen purge to prevent
    the buildup of oxygen and hydrogen gases from the
    propulsion system. Six technicians entered the
    aft engine compartment and five of the six lost
    consciousness due to the lack of oxygen in the
    compartment. Two died. John Gerald Bjornstad, a
    50-year-old Rockwell employee, was pronounced
    dead at the scene, and Forrest Cole was brought
    to the hospital where he later died.

16
Ground crew and On-ground Civilian fatalities
  • 1995 The European Space Agency (ESA) lost two
    workers in a fatal accident at the Kourou Space
    Centre, Guiana, at the Ariane 5 launch facility.
    Luc Celle and Jean-Claude Dhainaut lost their
    lives during an inspection in the umbilical mast
    of the launchpad. A later report said, "...the
    cause of death was asphyxiation through
    inhalation of air having an excessively low
    oxygen content the reduced oxygen content was
    due to a major nitrogen leak into the confined
    structure of the umbilical mast on the launch
    table the nitrogen leak originated in a
    nitrogen/iced-water exchanger, whose drainage
    plug was found to be missing."
  • 1996 A Long March 3B rocket veered off course
    two seconds after takeoff from Xichang Satellite
    Launch Center, crashing into a nearby village.
    The Chinese news agency Xinhua reported that 80
    homes had been damaged with six people killed and
    57 injured, but unofficial reports and videotape
    from people who visited the scene suggested much
    greater devastation and a significantly higher
    death toll.

17
  • 2001 Boeing worker Bill Brooks was killed in an
    industrial accident at Cape Canaveral Launch
    Complex 37. He was a crane operator involved in
    construction of the new Delta IV launch complex.
    The Delta IV launch site is being built at the
    location of the old Saturn IB launch complex.
  • 2002 A Soyuz U carrying a science payload began
    disintegrating 20 seconds after launch from
    Plesetsk, exploded nine seconds later and
    showered debris around the launch site. The
    explosion killed 20-year-old soldier Ivan
    Marchenko, who had been watching the launch from
    behind a large glass window in a processing
    facility a kilometer from the launchpad. Eight
    other soldiers who were with Marchenko were
    injured, six being hospitalized. Rocket fragments
    fell in the woods in the same area starting a
    forest fire, and a Block D strap-on booster which
    came off during disintegration impacted the
    launchpad, causing structural damage.
  • 2003 An unmanned rocket set to carry two
    satellites into orbit exploded on its launchpad
    in Brazil killing 21 technicians.

18
  • American astronauts that have lost their lives in
    the line of duty are memorialized by the Space
    Mirror Memorial at the Kennedy Space Center
    Visitor Complex in Merritt Island, Florida.
    Cosmonauts that have died in the line of duty in
    the Soviet Union were generally honored by burial
    at the Kremlin Wall Necropolis in Moscow. It is
    unknown whether this remains tradition for
    Russia, since the Kremlin Wall Necropolis was
    largely a Communist honor and no cosmonauts have
    died in action since the Union fell.

19
Fallen Astronaut
aluminum sculpture of an astronaut in a
spacesuit. It is the only piece of art on the
Moon. In 1971, Fallen Astronaut was placed on the
Moon by the crew of Apollo 15, along with a
plaque bearing the names of fourteen American
astronauts and Russian cosmonauts who died during
spaceflights or training exercises.
20
Work Cited
  • McNamara, Bernard. Into the Final Frontier The
    Human Exploration of Space. Brooks Cole, 2000
  • Space Disaster Wilkpedia (2006) August 1, 2006
    http//en.wikipedia.org/wiki/Space_disasters
Write a Comment
User Comments (0)
About PowerShow.com
