Title: CMPUT 412 Motion Control


1

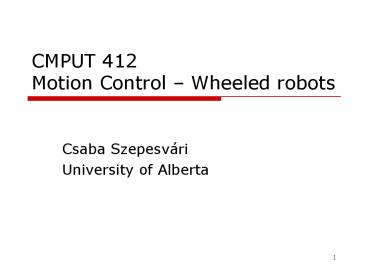

CMPUT 412Motion Control Wheeled robots
  • Csaba Szepesvári
  • University of Alberta

TexPoint fonts used in EMF. Read the TexPoint
manual before you delete this box. AAAAAAAA
2
Motion Control (wheeled robots)
  • Requirements
  • Kinematic/dynamic model of the robot
  • Model of the interaction between the wheel and
    the ground
  • Definition of required motion ?
  • speed control,
  • position control
  • Control law that satisfies the requirements

3
Mobile Robot Kinematics
  • Kinematics
  • Actuator motion ? effector motion
  • What happens to the pose when I change the
    velocity of wheels/joints?
  • Neglects mass, does not consider forces
    (?dynamics)
  • Aim
  • Description of mechanical behavior for design and
    control
  • Mobile robots vs. manipulators
  • Manipulators 9 f ! X, x f(µ)
  • Mobile robots
  • (1 challenge!)
  • Physics Wheel motion/constraints ? robot motion

4
Kinematics Model
  • Goal
  • robot speed
  • Wheel speeds
  • Steering angles and speeds
  • Geometric parameters
  • forward kinematics
  • Inverse kinematics
  • Why not?

5
Representing Robot Positions
  • Initial frame
  • Robot frame
  • Robot position
  • Mapping between the two frames
  • Example Robot aligned with YI

6
Example
7
Differential Drive Robot Kinematics
  • wheels spinning speed ? translation of P
  • Spinning speed ? rotation around P

wheel 2
wheel 1
8
Differential Drive Robot Kinematics II.
9
Wheel Kinematic Constraints Assumptions
  • Movement on a horizontal plane
  • Point contact of the wheels
  • Wheels not deformable
  • Pure rolling
  • v 0 at contact point
  • No slipping, skidding or sliding
  • No friction for rotation around contact point
  • Steering axes orthogonal to the surface
  • Wheels connected by rigid frame (chassis)

10
Wheel Kinematic Constraints Fixed Standard Wheel
11
Example
  • Suppose that the wheel A is in position such that
  • a 0 and b 0
  • This would place the contact point of the wheel
    on XI with the plane of the wheel oriented
    parallel to YI. If q 0, then this sliding
    constraint reduces to

12
Wheel Kinematic Constraints Steered Standard
Wheel
13
Wheel Kinematic Constraints Castor Wheel
14
Wheel Kinematic Constraints Swedish Wheel
15
Wheel Kinematic Constraints Spherical Wheel
16
Robot Kinematic Constraints
  • Given a robot with M wheels
  • each wheel imposes zero or more constraints on
    the robot motion
  • only fixed and steerable standard wheels impose
    constraints
  • What is the maneuverability of a robot
    considering a combination of different wheels?
  • Suppose we have a total of NNf Ns standard
    wheels
  • We can develop the equations for the constraints
    in matrix forms
  • Rolling
  • Lateral movement

17
Example Differential Drive Robot
  • J1(s)J1fC1(s)C1f
  • ? ?
  • Right weel -¼/2, ¼
  • Left wheel ¼/2, 0

18
Mobile Robot Maneuverability
  • Maneuverability
  • mobility available based on the sliding
    constraints
  • additional freedom contributed by the steering
  • How many wheels?
  • 3 wheels ? static stability
  • 3 wheels ? synchronization
  • Degree of maneuverability
  • Degree of mobility
  • Degree of steerability
  • Robots maneuverability

19
Degree of Mobility
  • To avoid any lateral slip the motion vector
    has to satisfy the following constraints
  • Mathematically
  • must belong to the null space of the
    matrix
  • Geometrically this can be shown by the
    Instantaneous Center of Rotation (ICR)

20
Instantaneous Center of Rotation
  • Ackermann Steering Bicycle

21
Degree of Mobility
  • Robot chassis kinematics is a function of the set
    of independent constraints
  • the greater the rank of , the more
    constrained is the mobility
  • Mathematically
  • no standard wheels
  • all direction constrained
  • Examples
  • Unicycle One single fixed standard wheel
  • Differential drive Two fixed standard wheels
  • wheels on same axle
  • wheels on different axle

22
Degree of Steerability
  • Indirect degree of motion
  • The particular orientation at any instant imposes
    a kinematic constraint
  • However, the ability to change that orientation
    can lead additional degree of maneuverability
  • Range of
  • Examples
  • one steered wheel Tricycle
  • two steered wheels No fixed standard wheel
  • car (Ackermann steering) Nf 2, Ns2 ?
    common axle

23
Robot Maneuverability
  • Degree of Maneuverability
  • Two robots with same are not necessary
    equal
  • Example Differential drive and Tricycle (next
    slide)
  • For any robot with the ICR is always
    constrained to lie on a line
  • For any robot with the ICR is not
    constrained an can be set to any point on the
    plane
  • The Synchro Drive example

24
Wheel Configurations M2
  • Differential Drive Tricycle

25
Basic Types of 3-Wheel Configs
26
Synchro Drive
27
Workspace Degrees of Freedom
  • What is the degree of vehicles freedom in its
    environment?
  • Car example
  • Workspace
  • how the vehicle is able to move between different
    configuration in its workspace?
  • The robots independently achievable velocities
  • differentiable degrees of freedom (DDOF)
  • Bicycle
    DDOF1 DOF3
  • Omni Drive DDOF3
    DOF3
  • Maneuverability DOF!

28
Mobile Robot Workspace Degrees of Freedom,
Holonomy
  • DOF degrees of freedom
  • Robots ability to achieve various poses
  • DDOF differentiable degrees of freedom
  • Robots ability to achieve various path
  • Holonomic Robots
  • A holonomic kinematic constraint can be expressed
    a an explicit function of position variables only
  • A non-holonomic constraint requires a different
    relationship, such as the derivative of a
    position variable
  • Fixed and steered standard wheels impose
    non-holonomic constraints

29
Non-Holonomic Systems
s1s2 s1Rs2R s1Ls2L but x1 x2 y1 y2
  • Non-holonomic systems
  • traveled distance of each wheel is not sufficient
    to calculate the final position of the robot
  • one has also to know how this movement was
    executed as a function of time!
  • differential equations are not integrable to the
    final position

30
Path / Trajectory Considerations Omnidirectional
Drive
31
Path / Trajectory Considerations Two-Steer
32
Beyond Basic Kinematics
  • Speed, force mass ? dynamics
  • Important when
  • High speed
  • High/varying mass
  • Limited torque
  • Friction, slip, skid, ..
  • How to actuate motorization
  • How to get to some goal pose controllability

33
Motion Control (kinematic control)
  • Objective
  • follow a trajectory
  • position and/or velocity profiles as function of
    time.
  • Motion control is not straightforward
  • mobile robots are non-holonomic systems!
  • Most controllers are not considering the dynamics
    of the system

34
Motion Control Open Loop Control
  • Trajectory (path) divided in motion segments of
    clearly defined shape
  • straight lines and segments of a circle.
  • Control problem
  • pre-compute a smooth trajectory based on line
    and circle segments
  • Disadvantages
  • It is not at all an easy task to pre-compute a
    feasible trajectory
  • limitations and constraints of the robots
    velocities and accelerations
  • does not adapt or correct the trajectory if
    dynamical changes of the environment occur
  • The resulting trajectories are usually not smooth

35
Feedback Control
  • Find a control matrix K, if exists
    with kijk(t,e)
  • such that the control of v(t) and w(t)
  • drives the error e to zero.

36
Kinematic Position Control Differential Drive
Robot
  • Kinematics
  • a angle between the xR axis of the robots
    reference frame and the vector connecting the
    center of the axle of the wheels with the final
    position

37
Coordinate Transformation
  • Coordinate transformation into polar coordinates
    with origin at goal position
  • System description, in the new polar coordinates

for
for
38
Remarks
  • The coordinates transformation is not defined
    at x y 0 as in such a point the determinant
    of the Jacobian matrix of the transformation is
    not defined, i.e. it is unbounded
  • For the forward direction of the
    robot points toward the goal, for
    it is the backward direction.
  • By properly defining the forward direction of the
    robot at its initial configuration, it is always
    possible to have at t0. However
    this does not mean that a remains in I1 for all
    time t. a

39
The Control Law
  • It can be shown, that withthe feedback
    controlled system
  • will drive the robot to
  • The control signal v has always constant sign,
  • the direction of movement is kept positive or
    negative during movement
  • parking maneuver is performed always in the most
    natural way and without ever inverting its motion.

40
Kinematic Position Control Resulting Path
41
Kinematic Position Control Stability Issue
  • It can further be shown, that the closed loop
    control system is locally exponentially stable if
  • Proof for small x -gt cosx 1, sinx xand
    the characteristic polynomial of the matrix A of
    all roots have negative real parts.

42
Summary
  • Kinematics actuator motion ? effector motion
  • Mobil robots Relating speeds
  • Manipulators Relating poses
  • Wheel constraints
  • Rolling constraints
  • Sliding constraints
  • Maneuverability (DOF) mobility (DDOF)
    steerability
  • Zero motion line, instantaneous center of
    rotation (ICR)
  • Holonomic vs. non-holonomic
  • Path, trajectory
  • Feedforward vs. feedback control
  • Kinematic control
