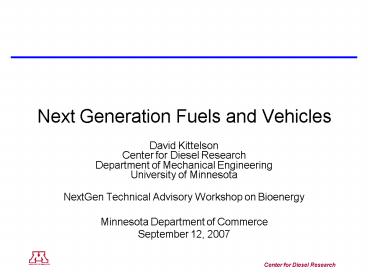

Next Generation Fuels and Vehicles

1
Next Generation Fuels and Vehicles

• David KittelsonCenter for Diesel
  ResearchDepartment of Mechanical
  EngineeringUniversity of Minnesota
• NextGen Technical Advisory Workshop on Bioenergy
• Minnesota Department of Commerce
• September 12, 2007

2
Outline

• Introduction
• Ethanol
• Biodiesel
• DME
• Plug-in Hybrid

3
Alternative transportation fuels

• Non petroleum fossil fuels
• CNG
• LPG
• Coal and natural gas based synthetic fuels
  (Fischer-Tropsch)
• Biofuels
• Near term
• Long term
• Conservation
• Energy carriers
• Electricity (high grade, already work)
• Hydrogen (low grade, must be converted to work)

4
Alternative transportation fuels

• Biofuels
• Near term
• Ethanol (corn, wheat, sugar,..)
• Biodiesel FAME (soy, canola, rapeseed, palm,..)
• Biogas (plant and animal waste)
• Long term
• Biological conversion process
• Ethanol (cellulose, sorghum, cassava,..)
• Biodiesel (camelina, algae, jatropha, castor,..)
• Butanol (beet sugar, cellulose,..)
• Thermochemical conversion process (cellulosic
  materials, wood, grasses, etc.)
• Fischer-Tropsch liquids
• NExBTL biodiesel (from plant and animal oils)
• Dimethyl Ether
• Methanol
• Mixed alcohols

5
Renewable Fuels for Engines

• Gasoline engine fuels
• Ethanol
• Works well in standard automotive engines in
  blends up to 20, any blend to E85 works in
  flexible fuel engines
• Potential efficiency gains in dedicated E85
  engines
• Recent emission concerns
• Non fungible
• Butanol
• Promoted by BP, Dupont and British Sugar
• Similar to gasoline in performance and emissions
• Fungible
• Biogas
• Requires engine modifications for gaseous fuel
• Mainly used in stationary engines but sold in
  service stations in Sweden
• Some power reduction
• Methanol
• Toxic and corrosive but excellent racing fuel
• Has been considered seriously in the past

6
Renewable Fuels for Engines

• Diesel engine fuels
• Biodiesel (FAME fatty acid methyl ester)
• Compatible with most engines in blends up to 20
• Reduced CO, HC, and PM emissions
• Oxidative stability
• Cold weather issues
• Fischer-Tropsch liquids
• Very high grade synthetic diesel fuel
• Reduced emissions
• NexBTL
• Developed by Neste Oil, Finland
• Very similar to Fischer-Tropsch liquids
• Dimethyl Ether (DME)
• Promoted by Volvo, Mitsubishi, Nissan
• LP gas
• Very low emissions
• Requires modified engine and fuel system

7
Ethanol

• E10 (10 ethanol, 90 gasoline) is well
  established and works well in modern vehicles
• Minnesota already produces enough ethanol for
  statewide E20
• E20 has been mandated for Minnesota in 2013 but
  must be demonstrated to be suitable for current
  and future vehicles
• Programs here and in Mankato examines many E20
  issues
• Cold starting, driveability
• Engine wear
• Corrosion, elastomer deterioration
• Emissions
• E85 and any other blend works well in flexible
  fuel vehicles (FFV)
• Gaseous emission similar to gasoline although
  some studies suggest increased emissions
• Lower particle emissions
• Slight increase in engine efficiency but 15 to
  25 fuel consumption penalty due to lower energy
  content of fuel
• Energy balance is a concern
• Current corn based ethanol is only 20 renewable,
  80 fossil
• Cellulosic ethanol much better, roughly 80
  renewable, 20 fossil
• Cellulosic ethanol could be made from corn
  stover, prairie grass, etc.

8
Biodiesel may also be made from animal fat,
restaurant grease, canola, rapeseed, palm, etc.
9
Comparison between biodiesel and petroleum diesel

• Little fuel consumption penalty
• Considerable engine to engine variation in
  emissions
• Reduced emissions of HC, CO, and air toxics
• NOx emissions vary
• Sharply decreased soot emissions but increased
  volatile particle emissions
• Minnesota law mandates most diesel fuels are B2,
  but the state currently produces enough biodiesel
  to replace 8 of diesel fuel
• Most manufacturers dont recommend use of blends
  higher than B5 to B20
• Solvency
• Cold flow
• Oxidative stability
• Quality control and filter plugging still issues
• Energy balance for soy based biodiesel about 50
  renewable, 50 fossil
• New feedstocks being considered
• False Flax (Camelina)
• Algae
• Genetic modifications of seed plants

10
DME properties

• Physical properties similar to propane LP gas
• Nontoxic
• DME is a gas at ambient conditions and unlike
  MTBE is not a groundwater pollution threat
• Uses
• Aerosol propellant in the cosmetic industry to
  replace CFC propellants
• Diesel fuel
• High efficiency
• Soot free combustion
• Fuel system modifications required
• Fuel cell fuel
• Propane replacement
• May be produced from natural gas or biomass
  including wood waste, corn stover, prairie grass

11
Well-to-wheel analysis (Volvo study)Energy
efficiency and Greenhouse gasesCourtesy - Anders
Röj, Volvo Technology Corporation, Fuels and
Lubricants
These figure include production, transport, and
end use. Ethanol figures are based on European
practice from wood or wheat
12
Improving vehicle efficiency - conservation is
effectively a renewable fuel

• Hybrid vehicles (energy storage and second
  propulsion system)
• Electric hybrid
• Battery storage high energy density, low power
  density
• Electric motor/generator
• Hydraulic hybrid
• Hydraulic accumulator storage low energy
  density, high power density
• Hydraulic motor/pump
• Plug in hybrid
• Battery storage to allow electric only range of
  10 to 60 miles
• Larger electric motor, smaller engine
• Batteries are limiting technology
• Very large potential reduction in petroleum use
• Hybrids offer largest benefit for around town
  driving 25-70
• Diesel engines 30 fuel saving at same
  performance level

13
Electricity as a transportation energy carrier
the plug in hybrid

• The efficiency of delivery of renewable energy to
  the wheels is 3 4 times higher for electricity
  than for hydrogen
• The plug in hybrid avoids most of the range and
  battery problems associated with conventional
  electric vehicles
• What is a plug in hybrid?
• Electric hybrid with larger battery and facility
  to plug in and charge from utility power
• A plug in with an all electric range of 40 miles
  could do 80 of all of the daily trips made by a
  typical driver on electricity alone
• This could lead to reductions in petroleum use of
  the same order about 80
• Many aftermarket conversion kits are available
  but the only current prototype from a large
  company is the Daimler-Chrysler Sprinter van with
  an electric only range of about 18 miles and fuel
  savings of up to 50
• Toyota and GM have both announced plans for plug
  in hybrids
• Batteries are the key limiting technology

14
Hybrid systems some examples

• Parallel electric hybrid up to 30 fuel saving
• Honda Insight, Civic
• Allison transit buses
• Series / parallel electric hybrid up to 30
  fuel saving
• Toyota Prius
• Ford Escape
• Series electric hybrid up to 50 fuel saving
• DARPA HMMWV
• Parallel hydraulic hybrid up to 35 fuel saving
• EPA / Eaton / International collaboration
  developed new UPS (50) . FedEx (75) delivery vans
• Eaton / Peterbilt refuse trucks
• Series hydraulic hybrid up to 70 fuel saving
• EPA / Eaton UPS delivery van

15
Conclusions

• Corn based ethanol and soy based biodiesel are
  the are the primary renewable fuels used in the
  US today
• Energy balance an issue
• Competition between food and fuel
• Cellulosic ethanol and biodiesel based on other
  oil seeds and algae offer future promise
• DME offers future promise as a second generation
  biomass to liquid diesel fuel that could be
  produced from many different feedstocks
• The plug-in hybrid offers potential for dramatic
  reductions in petroleum use

16
(No Transcript)
17
Biodiesel Blends and Emissions
SME
SME
RME
FAME
Data from USEPA 2002
18
Black liquor to engine fuels - Ideal use of low
grade biomassCourtesy - Anders Röj, Volvo
Technology Corporation, Fuels and Lubricants
19
DME/Methanol Production Potential

• From black liquor gasification using existing
  pulp mills
• Total use of black liquor in the mill
• Finland 50 transportation fuels
• Sweden 30 transportation fuels
• Minnesota 4 7 transportation fuels
• Adding a small booster plant to existing
  Minnesota mill
• 7 million gallons per year DME enough for about
  700 urban buses (MSP metro fleet 900)
• Or 7 million gallons per year methanol enough
  to supply all the methanol needed by all
  Minnesotas biodiesel plants (6.3 million
  gallons) with some left over
• Estimated cost 2.20-2.30 / gallon gasoline
  equivalent with no subsidies
• Chemrec are talking to mill owners in the MN / WI
  region about building such a plant. They are
  carrying out a conceptual study for one of them.

20
DME/Methanol Production Potential

• Using not just pulp mills but all readily
  available biomass sources
• NREL estimates that Minnesota has available
  biomass streams the could produce the equivalent
  of 100-200 current gasoline use via gasification
• This would require a number of large gasification
  plants but could be a very long term sustainable
  solution
• It is likely that different states will have a
  different mix of long term renewable energy
  solutions. We will no longer have monolithic
  petroleum
• A likely path to DME introduction will be initial
  use as a propane replacement followed by gradual
  introduction of DME vehicles
• Production of green methanol for use in
  biodiesel production and for fuel cells may also
  play a role

21
Hybrid configurations

• A parallel hybrid uses power from an IC engine
  and an electric motor to drive the wheels
• A series hybrid uses power from the IC engine to
  drive a generator that supplies electricity for
  the electric motor to drive the wheels
• Plug-In hybrids use larger batteries to extend
  the range of the car minimizing the uses of the
  IC engine
• A series hybrid designs optimize engine
  performance but reduce vehicle performance
