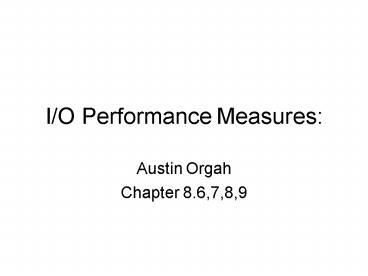

I/O Performance Measures
  • Austin Orgah
  • Chapter 8.6,7,8,9

2
Examples from Disk and File Systems
  • How should we compare I/O systems?
  • - This is complex because I/O performance
    depends on many aspects of the I/O system.
  • - Design can also make complex trade-offs
    between response time and throughput, making it
    impossible to measure just one aspect in
    isolation.

3
Examples from Disk and File Systems contd
  • For Example
  • Handling a request as early as possible generally
    minimizes response time, although greater
    throughput can be achieved handling related
    requests together.
  • Throughput may be increased on a disk by grouping
    requests that access locations that are close
    together.
  • This will increase response time for some
    requests, probably leading to a larger variation
    in response time.

4
Examples from Disk and File Systems contd
  • Though throughput will be increased, some
    benchmarks constrain the maximum response time to
    any request, making any of the optimizations(disk
    and file) potentially problematic.

5
  • Some benchmarks are proposed for determining the
    performance of disk systems.
  • These benchmarks are affected by a variety of
    system features such as
  • Disk technology
  • How the disks are connected
  • The memory system
  • The processor
  • The file system provided by the operating system

6
Important Note
  • Terminology/units
  • Performance of I/O systems depends on the rate at
    which system transfers data.
  • The transfer rate depends on the clock rate,
    which is in GHz109 cycles/sec. It is usually
    quoted in GB/sec.
  • In I/O systems GBs are measured using base 10. So
    GB109 1,000,000,000 bytes.
  • Memory is measured using base 2. GB230
    1,073,741,824.

7
Important Note Contd
  • In base 10 1K 1000
  • In base 2 1K 1024
  • For calculation, instead of converting between
    the two, treating the two as if they are equal
    will introduce little error.

8
Benchmarks
  • Transaction Processing I/O
  • File System and Web I/O

9
Transaction Processing I/O Benchmarks
  • Transaction Processing(TP) A type of
    application that involves handling small short
    operations(transactions) that require both I/O
    and computation. Its applications typically have
    both response time requirements and a performance
    measurement based on the throughput of
    transactions.
  • TP are mainly concerned with I/O rate measured as
    the number of disk accesses/sec instead of data
    rate measured in bytes of data per/sec.

10
Transaction Processing I/O Benchmarks
  • I/O rate Performance measure of I/Os per unit
    time, such as reads per/sec.
  • Data rate performance measure of bytes per unit
    time, such as GB/sec.
  • TP involve changes to a large database, with the
    system meeting some response time requirements as
    well as gracefully handling certain types of
    failures. For example banks use TP systems.

11
Transaction Processing I/O Benchmarks
  • The best-known set of benchmarks is developed by
    the Transaction Processing Council (TPC).
  • TPC-C created in 1992, simulates a complex
    query environment.
  • TPC-H models ad hoc decision support- the
    queries are unrelated and knowledge of past
    queries cannot be used to optimize future queries.

12
Transaction Processing I/O Benchmarks
  • TPC-R simulates a business decision support
    system where users run a standard set of queries.
  • TPC-W web based transaction benchmark that
    simulates the activities of a business-oriented
    transactional web server.
  • Pour plus information visiter sur le internet
    www.tpc.org.

13
File System and Web I/O Benchmarks
  • File systems stored on disks have a different
    access pattern.
  • Measurement of UNIX file systems (engineering
    environment) show that
  • 80 of accesses are to files
  • 90 of all file accesses are to data with
    sequential. addresses on the disk.
  • 67 of the accesses are reads.
  • 27 were writes.
  • 6 were read-modify accesses which read, modified
    and rewrote data to the same location.
  • These measurements have led to the creation of
    synthetic file system benchmarks.

14
File System and Web I/O Benchmarks
  • A popular synthetic file system benchmark with
    its 5 phases using 70 files
  • MakeDir Constructs a directory subtree that is
    identical in structure to the given directory
    subtree.
  • Copy Copies every file from the source subtree
    to the target subtree.
  • ScanDir Recursively traverses a directory
    subtree and examines the status of every file in
    it.
  • ReadAll Scans every byte of every file in a
    subtree once.
  • Make Compiles and links all the files in a
    subtree.

15
File System and Web I/O Benchmarks
  • In addition to processor benchmarks, SPEC offers
    a file server and a web server benchmarks.
    (SPECSFS) and (SPECWeb).
  • SPECSFS is a benchmark for measuring NFS(Network
    File System) performance using a script of file
    server requests. It tests performance of the I/O
    system, disk, and network I/O and the processor.
    It is a throughput-oriented benchmark with
    important response time requirements.
  • SPECWeb is a web server benchmark that simulates
    multiple clients requesting both static and
    dynamic pages from a server. Also clients posting
    data to the server.

16
I/O Performance Versus Processor Performance
  • Impact of I/O on System Performance
  • Suppose we have a benchmark that executes in 100s
    of elapsed time, where 90s is CPU time the rest
    is I/O time. If CPU time improves by 50 per year
    for the next five years but I/O time doesnt ,
    how much faster will our program run at the end
    of five years?
  • Elapsed time CPU time I/O time
  • 100 90 I/O time
  • Therefore I/O time 10s.

17
(No Transcript)
18
  • CPU improvement over 5 years is
  • 90/12 7.5
  • The improvement in elapsed time is
  • 100/22 4.5
  • So the I/O time increased from 10 to 45 of the
    elapsed time.

19
Designing an I/O System
  • Two primary specifications that designers
    encounter in I/O systems
  • Latency Constraints
  • Bandwidth Constraints
  • Knowledge of the traffic pattern affects the
    design and analysis.

20
  • Latency Constraints involve ensuring that the
    latency to complete an I/O operation is bounded
    by a certain amount.
  • Designing an I/O system to meet a set of
    bandwidth constraints given a workload.
  • Find the weakest link in the I/O system which is
    the component in the I/O path that will constrain
    the design. Depending on the workload, this
    component can be anywhere, including the CPU, the
    memory system, the back plane bus, the I/O bus,
    the I/O controllers or the devices. The workload
    and configuration limits may dictate where the
    weakest link is located.
  • Configure this component to sustain the required
    bandwidth.
  • Determine the requirements for the rest of the
    system and configure them to support this
    bandwidth.

21
I/O System Design Example
  • A CPU that sustains 3 billion instructions/sec
    and averages 100,000 instructions in the
    operation system per I/O operation.
  • A memory backplane bus capable of sustaining a
    transfer rate of 1000 MB/sec.
  • SCSI Ultra320 controllers with a transfer rate of
    320 MB/sec and accommodating up to 7 disks.
  • Disk drives with read/write bandwidths of 75
    MB/sec and an average seek plus rotational
    latency of 6 ms.
  • If the workload consists of 64 KB reads(where
    the block is sequential in a track) and the user
    program needs 200,000 instructions per I/O
    operation, find the max sustainable I/O rate and
    the number of disks and SCSI controllers
    required. Assume that the reads can always be
    done on an idle disk if one exists(i.e, ignore
    disk conflicts).

22
Real Stuff A Digital Camera
  • Digital cameras are embedded computers with
    removable, writable, nonvolatile, storage, and
    interesting I/O devices. See Sanyo VPC-SX500

23
(No Transcript)
24
Digital Camera Contd
  • When powered on, the microprocessor first runs
    diagnostics on all components and writes any
    errors messages to the liquid crystal
    display(LCD). When a picture is about to be
    taken, the photographer holds the shutter halfway
    so that the microprocessor can take a light
    reading. The microprocessor then keeps the
    shutter open to get the necessary light which is
    captured by a charged couple device(CCD) as red,
    green, and blue pixels.

25
Digital Camera Contd
  • The pixels are then scanned out row and then
    passed through routines for white balance, color
    and aliasing correction and then stored in a 4MB
    frame buffer. The next step is to compress the
    image into a standard format such as JPEG and
    store it in the removable flash memory. The
    microprocessor updates the LCD display to show
    that there is room for one less picture. The
    camera has other features such as video
    recording, sleep mode, LCD display amongst many.

26
Digital Camera Contd
  • The camera allows the use of a Microdrive disk
    instead of CompactFlash memory. Fig 8.15 shows
    the comparison of both.

27
Digital Camera Contd
  • The electronic brain of the Sanyo camera is an
    embedded computer with several special functions
    embedded on the chip. These kind of chips are
    called systems on a chip(SOC). The SOC integrate
    into a single chip all the parts that were found
    on a small printed circuit board of the past.
    They reduce size and lowers the power compared to
    less integrated solutions. The SOC enables the
    camera to operate on half the number of batteries
    and to offer a smaller form factor than
    competitors cameras.
  • Fig 8.16

28
(No Transcript)
29
  • The SOC has two buses, the 16-bit bus is for the
    many slower I/O devices like the Smart Media
    interface, program and data memory, and DMA. The
    32-bit bus is for the SDRAM, the signal
    processor(which is connected to the CCD), the
    Motion JPEG encoder, and the NTSC/PAL
    encoder(which is connected to the LCD). The SOC
    has a large variety of I/O buses it must
    integrate unlike desktop microprocessors. This
    700 mW chip contains 1.8M transistors in a 10.5 x
    10.5 mm die implemented using a 0.35-micron
    process

30
Fallacies and Pitfalls
  • Fallacy the rated mean time to failure of disks
    is 1,200,000 hours or almost 140 years so disks
    practically never fail.
  • This number exceeds the lifetime of a disk. For
    this large MTTF to make some sense, the
    manufacturer's argue that this calculation will
    correspond to a user who buys a disk, and keeps
    replacing it every 5 years. (lifespan of the
    disk).

31
  • Fallacy Magnetic disk storage is on its last
    legs and will be replaced shortly.
  • This is a fallacy and a pitfall. Magnetic bubbles
    memories, optical storage, and holographic
    storage are unsuccessful contenders. None have
    matched the combination of the characteristics
    that favor magnetic disks high reliability,
    nonvolatility, low cost, reasonable access time
    etc. magnetic storage rather improves at the same
    or faster pace that is sustained over the past 25
    years.

32
  • Fallacy A 100 MB/sec bus can transfer 100 MB of
    data in 1 sec.
  • First you cannot use 100 of any computer
    resource. For a bus you would be fortunate to get
    70 to 80 of the peak bandwidth. Time to send
    the address, time to acknowledge the signals and
    stalls while waiting to use a busy bus are
    deterrents to 100 utilization of a bus. Also the
    MB of storage and the MB/sec of bandwidth do not
    agree.

33
  • Pitfalls Using the peak transfer rate of a
    portion of the I/O system to make performance
    projections or performance comparisons.
  • The components of an I/O system, from the devices
    to the controllers to the buses are specified
    using their peak bandwidth. These peak bandwidths
    measurements are often based on unrealistic
    assumptions about the system or are unattainable
    because of other system limitations. Amdahls law
    tells us that the throughput of an I/O system
    will be limited by the lowest-performance
    component in the I/O path.

34
  • Pitfall Using magnetic tapes to back up disks.
  • This is a fallacy and a pitfall. Tapes use
    similar technology to disks. The cost difference
    between disks and tapes is based on the fact that
    the rotating disk have lower access times than
    sequential tape access. Though tapes could hold
    the contents of many disks and since it was 10 to
    100 times cheaper per gigabyte than disks it was
    a useful backup. Today, disks have improved much
    rapidly than tapes that tapes have compatibility
    problems that are not imposed on disks.

35
  • Pitfall Trying to provide features only within
    the network versus end to end.
  • The concern is providing at a lower level
    features that can only be accomplished at the
    highest level, thus only partially satisfying the
    communication demand.
  • Pitfall Moving functions from the CPU to the I/O
    processor, expecting to improve performance
    without a careful analysis.
  • A frequent instance of this fallacy is the use of
    intelligent I/O interfaces, which, because of the
    higher overhead to set up an I/O request, can
    turn out to have worse latency than a processor
    directed activity.
Write a Comment
User Comments (0)
About PowerShow.com
