Plant Growth

1

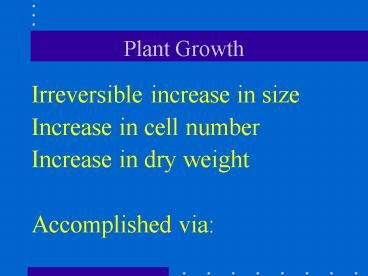

Plant Growth

• Irreversible increase in size
• Increase in cell number
• Increase in dry weight
• Accomplished via

2
Plant Growth

• Photosynthesis
• 6CO2 6H2O ---Light--- C6H12O6 6O2
• Respiration
• C6H12O6 6O2 ------ 6CO2 6H2O Energy in the
  form of ATP and NADPH

3
Photosynthesis
4
Chloroplast
5
Chloroplast
6
Photosynthetic Reactions

• Light Reactions
• ATP and NADPH formed, O2 liberated
• Dark Reactions
• Calvin Cycle, C6H12O6 formed

7
Light Reactions
8
Dark Reactions
9
Dark Reactions
10
Light Dark Reactions
11
Calvin Cycle
12
Photosynthetic Action Spectrum
13
Electromagnetic Spectrum
14
Light Spectrum
15
Factors Affecting Photosynthesis

• Light Quantity - Intensity
• Light Quality - Spectral Quality
• CO2 Levels
• Water
• Temperature-Biochemical Reactions
• Age of Plant Tissue

16
Respiration

• The biological combustion of sugar.
• The process of creating energy for the machinery
  of the cell to run. (ATP, NADPH)
• Oxygen requiring process.

17
Respiration

• C6H12O6 --------- 6CO2 6H2O Energy in form
  of ATP and NADP
• Aerobic-Process requires oxygen
• Anaerobic-If no O2, lactic acid ------
  fermentation

18
Process of Respiration

• Biological combustion of sugar begins with the
  process known as Glycolysis.
• The by-products of glycolysis enter the Krebs
  Cycle where the majority of ATP energy is formed
  for the machinery of the cell to run.

19
Glycolysis
20
Glycolysis
21
Krebs Cycle
22
Krebs Cycle
23
Electron Transport Chain
24
Krebs Cycle Links

• http//www.sp.uconn.edu/terry/images/anim/ATPmito
  .html
• http//www.sp.uconn.edu/terry/images/anim/ETS.htm
  l
• http//www.sp.uconn.edu/terry/images/anim/protgra

25
Plant Growth

• Photosynthesis - Build up of cells, tissues,
  organs.
• Respiration - Breakdown of sugars to provide
  energy for cell to run
• Metabolism
• Anabolism - build up
• Catabolism - breakdown

26
An example of complex tissue is

• Cambium
• Xylem
• Parenchyma
• Sclerenchyma
• None of the above

27
Living companion cells and sieve elements are
components of

• Xylem
• Phloem
• Cambium
• Meristem
• None of the above

28
Dots on the apple are called

• Stomates
• Vetiphores
• Hydathodes
• Lenticels
• None of the above

29
Water Uptake

• Root Pressure
• Transpirational Pull

30
Factors involved in water uptake

• Root tissue
• Availability of water
• Salt levels in water
• Wind
• light

31
Root Pressure
32
Transpirational Pull

• Transpiration-loss of water in the form of vapor
  via stomates
• Continuous process in living plants as long as
  available water is supplied
• Will vary with light, wind speed and
  temperatures, etc.

33
Plant Growth and Development

• Plant Life Cycles
• Annuals
• Biennials
• Perennials
• Monocarpic

34
Seed Germination
35
Seed Germination
36
Plant Development

• Development occurs as a result of
• Genetic Base
• Environment and Adaptation
• Cellular Regulation
• Hormonal systems

37
Plant Hormone Systems

• Auxin
• Cytokinin
• Gibberellin
• Ethylene
• Abscisic Acid

38
Auxin

• Roles of Auxin
• Phototropism
• Apical Dominance
• Gravitropism
• Fruit Development
• Abscission
• Root Initiation

39
Phototropism
40
Auxin
41
Auxin

• Synthetic
• IAA-Indole Acetic Acid
• Artificial
• IBA- Indole Butyric Acid
• NAA- Naphthalene Acetic Acid

42
Auxin

• Artificial derivatives used in
• Rootone
• Hormex
• Hormodin

43
Gibberellin

• Found in
• Leaf Primordia
• Seed Coat - Aleurone Layer
• Stems

44
Gibberellin

• Roles
• Cell Elongation
• Eliminate Dwarfness
• Stimulate Male Flowers
• Overcome Dormancy in Seeds
• Overcome Cold Requirement for Some Plants

45
Gibberellin
46
Cytokinin

• Found in
• Developing fruits and seeds
• New shoots

47
Cytokinin

• Roles
• Promotes shoot formation
• Promotes cell division

48
Cytokinin

• Works with Auxin in tissue differentiation
• High Auxin, low Cytokinin-----Root Development
• Low Auxin, high Cytokinin----- Shoot
  Development
• Equal amounts------- Undifferentiated Tissue

49
Cytokinin
50
Abscisic Acid

• Inhibitor
• Found in
• Fruits
• Gelatinous parts of seeds
• Seed coats
• Abscission Layers

51
Abscisic Acid

• Roles
• Seed Dormancy
• Prevent shoot growth
• Artificial Derivatives
• Bonzi
• Arest
• Chlormequat

52
Abscisic Acid
53
Ethylene

• Roles
• The ripening agent
• Promotes flowering
• Found in
• Ripening or maturing Tissue
• Occurs as a gas

54
Ethylene
55
Photoperiodism

• Response to day length
• Categories
• Short Day Daylengths less than 12 hrs.
• Long Day Daylengths longer than 12 hrs.

56
Photoperiodism

• Phytochrome pigment involved in receiving light
  stimulus.

57
Phytochrome Mechanism
58
Photoperiodism

• Short Day Plants
• Chrysanthemum
• Poinsettia
• Cocklebur

• Long Day Plants
• Shasta Daisy
• Spinach
• Sugar Beets
• Radish

59
Potted Chrysanthemum
60
Poinsettia
61
Shasta Daisy
