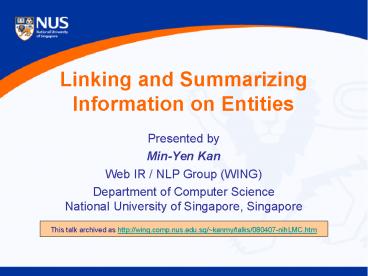

Linking and Summarizing Information on Entities

1
Linking and Summarizing Information on Entities

• Presented by
• Min-Yen Kan
• Web IR / NLP Group (WING)
• Department of Computer ScienceNational
  University of Singapore, Singapore
• This talk archived as http//wing.comp.nus.edu.sg/
  kanmy/talks/080407-nihLMC.htm

2
Singapore, the garden city

• 4M people, sandwiched between Malaysia and
  Indonesia
• 50 km from the equator hot and humid year-long
• Known for urban planning, fondness for
  acronyms and aversion to bubble gum litterers -D

WING _at_ NUS
http//wing.comp.nus.edu.sg

• 1 postdoc, 6 Ph.D. students, 5 undergraduates
• Projects of in natural language processing,
  digital libraries, and information retrieval.

3
Entity Centric Information Management

• Collate all studies on SBP2 that new findings in
  the last year.
• Oh, I meant the PROTEIN SBP2, not the gene.
• What other proteins does SBP2 bind to?
• Tell me more about the contradiction from
  previous results.
• Which Miller did the study on SBP2 in 2002?

4
Entity Centric Information Management

• Two consequences to discuss today
• Linkage
• Joint work with Yee Fan TAN, Dongwon LEE (PSU) et
  al.
• Summarization
• Joint work with Ziheng LIN et al.

5
Whats Entity Linkage?

• Aggregating data on an object together from
  heterogeneous resources
• Problem Entity names are ambiguous!
• Medical terms
• Person names
• Products
• Customer records
• These problems exist even when we have
  controlled vocabulary and lexicons (Specialist,
  UMLS, MeSH)

By UV cross-linking and immunoprecipitation, we
show that SBP2 specifically binds selenoprotein
mRNAs both in vitro and in vivo. The SBP2 clone
used in this study generates a 3173 nt transcript
(2541 nt of coding sequence plus a 632 nt 3 UTR
truncated at the polyadenylation site).
Protein
Gene
6
Examples of Split Records

• Dongwon Lee, 110 E. Foster Ave. 410, State
  College, PA, 16802
• Honda Fix
• Joint Conf. on Digital Libraries
• Apple iPod Nano 4GB
• Entity Linkage

• LEE Dong, 110 East Foster Avenue Apartment 410,
  University Park, PA 16802-2343
• Honda Jazz
• JCDL
• 4GB iPod nano 4GB
• De-duplication

Ironic, isnt it?
7
All over the web!
Jeffrey D. Ullman (Stanford University)
8
Record linkage, formally defined

• Input
• Two lists of records, A and B
• Output
• For each record a in A and for each record b in
  B,does a and b refer to the same entity?
• Note
• Entities do not come with unique identifiers
• To disambiguate (deduplicate) items in a single
  list L, we set A B L

9
Talk Outline

• Linkage using the Web
• Introduction
• gtgt Record linkage using internal knowledge
• String matching
• Classification or clustering
• Graphical formalisms
• Blocking
• Record linkage using search engines
• Update Summarization

10
Fellegi-Sunter model
no-decision region (hold for human review)
designate as definite match
designate as definite non-match
true matches? true non-matches
Frequency of Similarity
false matches
false non-matches
Similarity (a, b)
11
String matching

• String similarity
• Strings as ordered sequences
• Edit distance
• Jaro and Jaro-Winkler
• Strings as unordered sets
• Jaccard similarity
• Cosine similarity
• Abbreviation matching
• Pattern detection e.g. National Institute of
  Health (NIH)

(a, b, c) ? (c, b, a)
a, b, c c, b, a
12
Machine Learning

• Create features
• String similarity, relationships (e.g.
  collaborators)
• Then learn a model
• Naïve Bayes, Support Vector Machine, K-means,
  Agglomerative Clustering,

Yoojin Hong, Byung-Won On and Dongwon Lee.
SystemSupport for Name Authority Control Problem
inDigital Libraries OpenDBLP Approach. ECDL
2004.
Same Person?
Sudha Ram, Jinsoo Park and Dongwon Lee.
DigitalLibraries for the Next Millennium
Challenges andResearch Directions. Information
Systems Frontiers 1999.
13
Graphical Methods Social network analysis

• Nodes entities
• Edges relationships

Analysis Connected components Distance between
nodes Node/edge centrality Cliques Bipartite
subgraphs
14
Talk Outline

• Linkage using the Web
• Introduction
• Record linkage using internal knowledge
• gtgt Record linkage using search engines
• Search Engine Features
• Adaptive Queries
• Query Probing
• Update Summarization

15
Record linkage using search engines

• Previously
• We assumed input data records contain sufficient
  information to perform linkage
• What if
• There is insufficient or only noisy information?
• e.g., linking short forms to long forms
• Ask other people!
• I.e., consult external (vs. internal) sources of
  knowledge
• Use web as collective knowledge base

16
Anatomy of Search Engine Results
Number of results
Ranked list
Title
Programmatically accessible through APIs
Snippet
URL
Web page
17
Derivable Features

• Counts
• Co-occurrence measure between count(q1),
  count(q2) and count(q1 and q2)
• Hyperlinkage
• Count of web pages of q1 point to pages of q2,
  and vice versa?
• Incorporate additional indirect links with less
  weight(e.g., q 1 ? p ? q2)

• Snippets or web pages
• (Cosine) similarity using tokens
• Counts of specific terms
• e.g. number of snippets for q1 containing the
  string q2
• Further natural language processing

18
Web page features

• Named entities (NE)
• We consider people, organizations, locations
• Each NE token a feature
• NE-targeted (NE-T)
• Motivation middle names and titles
• For NEs having a token of target name
• Extract tokens that are not in target name as
  features

Charles, Chelsea, Morrice,Edward, Fox, London,
Born Edward Charles Morrice Fox in
Chelsea,London
Charles, Morrice,
19
Using URLs

• Where web pages are located is also useful
• Hypothesis If web pages of q1 and web pages of
  q2 overlap a lot, q1 and q2 are the same entity
• Measure this using URL / Host information

• Caveat Not all hosts are equally telling
• citeseer vs. harvard.edu for author names
• pubmed vs. diabetes-info.com for diabetic terms
• Solution Weight by Inverse Host Frequency

20
URL Features (cont.)

• Page URLs
• Hypothesis URL itself tells quite a lot
• Home page of lindek
• CS department, University of Alberta, Canada
• MeURLin (Kan and Nguyen Thi, 2005)
• Tokens (http, www, cs, ualberta, ca, lindek)
• URI parts (schemehttp, hostnamecs, userlindek,
  )
• N-grams (ca ualberta, uaberta cs, cs www, www
  lindek)
• Length of tokens

http//www.cs.ualberta.ca/lindek/
21
Web search engine linkage

• Test whether q1 and q2 should be linked
• Hypothesis Web pages of q1 and web pages of q2
  share some representative data I
• Similar to disconnected triples

• Jeffrey D. Ullman 384K pgs
• Jeffrey D. Ullman aho 174K pgs
• J. Ullman 124K pgs
• J. Ullman aho 41K pgs
• Shimon Ullman 27.3K pgs
• Shimon Ullman aho 66 pgs

q1
q2
22
Evaluation - Full web pages in WEPS

• Goal
• To compare the usefulness of various features for
  the Web People Search Task
• Architecture

Cosine similarity Single link hierarchical
agglomerative clustering Minimum
similarity threshold
Input web pages
Feature vectors
Clusters
23
Evaluation

• F(a 0.5) and similarity threshold 0.2

24
Evaluation - Author Disambiguation

• Dataset
• Manually-disambiguated dataset of 24 ambiguous
  names in computer science domain
• Each ambiguous name represented 2 unique authors
  (k 2) except for one where it represented 3
• Each name is attributed to 30 citations on
  average
• Proportion of largest class ranges from 50 to
  97
• Search engine
• Google (http//www.google.com/)

25
Evaluation

• Single link performs best
• Good for clustering citations from different
  publication pages together (some pages list only
  selected publications)
• Some authors have disparate research areas, not
  well represented by a centroid vector
• Resolving hostnames to IP addresses give best
  accuracy

Classification accuracyaveraged over all names
26
Discussion
Per-name accuracies using single link
Per-name average number of URLsreturned per
citation
27
Discussion

• Apparent correlation between accuracy and average
  number of URLs returned per citation
• Author names with few URLs tend to fare poorly
  since results are mainly aggregator web sites
• Whats the cost?
• Lots of queries needed
• Web page downloads are expensive
• Hence, slow
• Can we speed this up?
• Sure thing

28
Query probing

• Consider some publication venues
• Joint Conference on Digital Libraries
• European Conference on Digital Libraries
• Digital Libraries
• Query probing
• Use common n-gram digital libraries as query
  probe
• If we can obtain information on all three
  conferences, we save two queries

29
Adaptive querying

• Combine two methods when needed
• Methods
• Ms stronger method but very slow (e.g. web page
  similarity)
• Mw weaker method but fast (e.g. host overlap)
• Aim
• Accuracy close to Ms
• Significantly reduced running time than Ms

• Algorithm
• Execute Mw
• If heuristic suggests that Mw results are likely
  incorrect
• Execute Ms

30
Entity Linkage - Conclusion

• Important problem with a rich history
• New external methods poll contextual evidence
  for judgment
• Need to combine methods to obtain best aspect of
  each

31
Talk Outline

• Linkage using the Web
• gtgt Graph-based Update Summarization
• Introduction
• Timestamped Graphs
• Evaluation and Conclusions

Now that all this data is linked, how do we
process it?
32
Applications of Summarization
Doing Less Work
Decision Support
33
More seriously an exciting challenge ...

• ...put a book on the scanner, turn the dial to 2
  pages, and read the result...
• ...download 1000 documents from the web, send
  them to the summarizer, and select the best ones
  by reading the summaries of the clusters...
• ...forward the Japanese email to the summarizer,
  select 1 par, and skim the translated summary.
• get a weekly digest of new treatments and
  therapies for pressure ulcers

An update task
34
Simplifying summarization

• Select important sentences verbatim from the
  input text to form a summary
• Input A text document with k sentences
• Output Top n (n ltlt k) sentences with the
  highest numeric scores (each sentence in the
  input document is assigned a numeric score)

Extractive Summarization
35
Summarization

• Heuristics for extractive summarization
• Cue/stigma phrases
• Sentence position (relative to document,
  section, paragraph)
• Sentence length
• TFIDF, TF scores
• Similarity (with title, context, query)
• Machine learning to tune weights by supervised
  learning
• Recently, graphical representations of text have
  shed new light on the summarization problem

36
Revisiting Social Networks Prestige

• One motivation was to model the problem as
  finding prestige of nodes in a social network
• PageRank random walk
• In summarization, lead to TextRank and LexRank
• Did we leave anything out of our representation
  for summarization?
• Yes, the notion of an evolving network

37
Social networks change!

• Natural evolving networks (Dorogovtsev and
  Mendes, 2001)
• Citation networks New papers can cite old ones,
  but the old network is static
• The Web new pages are added with an old page
  connecting it to the web graph, old pages may
  update links

38
Talk Outline

• Linkage using the Web
• Graph-based Update Summarization
• Introduction
• gtgt Timestamped Graphs
• Evaluation and Conclusion

39
Evolutionary models for summarization

• Writers and readers often follow conventional
  rhetorical styles - articles are not written or
  read in an arbitrary way
• Consider the evolution of texts using a very
  simplistic model
• Writers write from the first sentence onwards in
  a text
• Readers read from the first sentence onwards of
  a text
• A simple model sentences get added incrementally
  to the graph

40
Timestamped Graph Construction

• These assumptions suggest us to iteratively add
  sentences into the graph in chronological order.
• At each iteration, consider which edges to add
  to the graph.
• For single document simple and straightforward
  add 1st sentence, followed by the 2nd, and so
  forth, until the last sentence is added
• For multi-document treat it as multiple
  instances of single documents, which evolve in
  parallel i.e., add 1st sentences of all
  documents, followed by all 2nd sentences, and so
  forth
• NB Doesnt really model chronological ordering
  between articles, fix later

41
Timestamped Graph Construction

• Model
• Documents as columns
• di document i
• Sentences as rows
• sj jth sentence of document

42
Timestamped Graph Construction

• A multi document example

doc3
doc2
doc1
sent1
sent2
sent3
43

• An example TSG DUC 2007 D0703A-A

44
Timestamped Graph Construction

• These are just one instance of TSGs
• Lets generalize and formalize them
• Def A timestamped graph algorithm tsg(M) is a
  9-tuple (d, e, u, f,s, t, i, s, t) that
  specifies a resulting algorithm that takes as
  input the set of texts M and outputs a graph G

Input text transformation function
Properties of nodes
Properties of edges
45
Edge properties (d, e, u, f)

• Edge Direction (d)
• Forward, backward, or undirected
• Edge Number (e)
• number of edges to instantiate per timestep
• Edge Weight (u)
• weighted or unweighted edges
• Inter-document factor (f)
• penalty factor for links between documents in
  multi-document sets.

46
Node properties (s, t, i, s)

• Vertex selection function s(u, G)
• One strategy among those nodes not yet
  connected to u in G, choose the one with highest
  similarity according to u
• Similarity functions Jaccard, cosine, concept
  links (Ye et al.. 2005)
• Text unit type (t)
• Most extractive algorithms use sentences as
  elementary units
• Node increment factor (i)
• How many nodes get added at each timestep
• Skew degree (s)
• Models how nodes in multi-document graphs are
  added
• Skew degree how many iterations to wait before
  adding the 1st sentence of the next document
• Skip for today

47
Timestamped Graph Construction

• Representations
• We can model a number of different algorithms
  using this 9-tuple formalism
• (d, e, u, f, s, t, i, s, t)
• The given toy example
• (f, 1, 0, 1, max-cosine-based, sentence, 1, 0,
  null)
• LexRank graphs
• (u, N, 1, 1, cosine-based, sentence, Lmax, 0,
  null)
• N total number of sentences in the cluster
  Lmax the max document length
• i.e., all sentences are added into the graph in
  one timestep, each connected to all others, and
  cosine scores are given to edge weights

48
System Overview

• Sentence splitting
• Detect and mark sentence boundaries
• Annotate each sentence with the doc ID and the
  sentence number
• E.g., XIE19980304.0061 4 March 1998 from Xinhua
  News XIE19980304.0061-14 the 14th sentence of
  this document
• Graph construction
• Construct TSG in this phase

49
System Overview

• Sentence Ranking
• Apply topic-sensitive random walk on the graph
  to redistribute the weights of the nodes
• Sentence extraction
• Extract the top-ranked sentences
• Two different modified MMR re-rankers are used,
  depending on whether it is main or update task

50
Talk Outline

• Linkage using the Web
• Graph-based Update Summarization
• Introduction
• Timestamped Graphs
• gtgt Evaluation and Conclusion

51
Evaluation

• Dataset DUC 2005, 2006 and 2007.
• Evaluation tool ROUGE n-gram based automatic
  evaluation
• Each dataset contains 50 or 45 clusters, each
  cluster contains a query and 25 documents
• Evaluate on some parameters
• Do different e values affect the summarization
  process?
• e 2 works best for DUC dataset
• How do topic-sensitivity and edge weighting
  perform in running PageRank?
• Applying both seems to have best effect
• How does skewing the graph affect the
  information flow in the graph?
• Skew of 1 works best, but need to try other
  possibilities

52
Holistic Evaluation in DUC 2007

• Extractive-based TSG system
• Used modified maximal marginal relevance for
  update tasks
• Penalize links in previously read articles
• Extension of inter-document factor (f)

Cluster 1
Cluster 2
Cluster 3
53
Evaluation Results

• Main task 10th of 32 systems
• Update task 3rd of 24 systems
• Conclusion
• TSG formalism better tailored to deal with
  update / incremental text tasks
• New method that may be competitive with current
  approaches
• Other top scoring systems may do sentence
  compression (abstractive), not just extraction

54
Graph-based Update Summary - Conclusion

• Proposed a timestamped graph model for text
  understanding and summarization
• Adds sentences in an incremental fashion
• Future work
• Freely skewed model
• Empirical and theoretical properties of TSGs

55
Where do we go from here?

• Organizing data around entities, events
• How people deal with data anyways
• Understand objects and their inter/intra-relation
  ship
• Automation requires domain-expertise within a
  generic framework

• Collate all studies on SBP2 that new findings in
  the last year.
• Oh, I meant the PROTEIN SBP2, not the gene.
• What other proteins does SBP2 bind to?
• Tell me more about the contradiction from
  previous results.
• Which Miller did the study on SBP2 in 2002?

• Thank you!
• http//wing.comp.nus.edu.sg/

56
Backup Slides Entity Linkage

• 50 Minute talk total
• 7 Apr 2008, 10 11 AM

57
Social network analysis

• Connected triple
• Random walk

• Maximum flow
• Clustering

x1
s
t
x2
x2
x1
x3
58
Scalability Issues

• Pairwise comparisons
• Requires O(n2) time
• Major bottleneck

• Possible solutions
• Blocking techniques
• Avoiding pairwise comparisons altogether

Input d1, d2, , dn for i 1 to n for j
(i 1) to n compute sim(di, dj)
59
Cost-utility Framework
cost of acquiring fi
utility of acquiring fi
feature fi
known value
value that can be acquired
60
Record Matching
2 Information that canbe acquired at a cost
Training data Assume all feature-valuesand their
acquisition costsknown Testing data Assume 1
known, butfeature-values and theiracquisition
costs in 2unknown Costs Set to MIN_LEN
MAX_LEN
1 Given information
Header-reference pair (instance)
TITLE_MIN_LEN TITLE_MAX_LEN AUTHOR_MIN_LEN AUTHOR_
MAX_LEN VENUE_MIN_LEN VENUE_MAX_LEN
TITLE_SIM AUTHOR_SIM VENUE_SIM
MATCH/MISMATCH?
61
Costs and Utilities

• Costs
• Trained 3 models (using M5), treat as regression
• Utilities
• Trained 23 8 classifiers (each to predict
  match/mismatch using only known feature-values)
• For a test instance with a missing feature-value
  F
• Get confidence of appropriate classifier without
  F
• Get expected confidence of appropriate classifier
  with F
• Utility is difference between the two confidence
  scores
• Note
• Similar to Saar-Tsechansky et al.

62
Results
Without cleaning of header records
With manual cleaning of header records
Increasing proportion of feature-values acquired
Increasing proportion of feature-values acquired
63
Selected Bibliography

• General and surveys
• Ivan P. Fellegi and Alan B. Sunter. A theory for
  record linkage. Journal of the American
  Statistical Association, 64(328)11831210,
  December 1969.
• William E. Winkler and Yves Thibaudeau. An
  application of the Fellegi-Sunter Model of record
  linkage to the 1990 U.S. Decennial Census.
  Technical Report RR91/09, U.S. Bureau of the
  Census, 1991.
• Ahmed K. Elmagarmid, Panagiotis G. Ipeirotis, and
  Vassilios S. Verykios. Duplicate record
  detection A survey. IEEE Transactions on
  Knowledge and Data Engineering (TKDE),
  19(1)116, January 2007.
• William E. Winkler. Overview of record linkage
  and current research directions. Technical Report
  RRS2006/02, U.S. Bureau of the Census, February
  2006.
• Mikhail Bilenko, Raymond J. Mooney, William W.
  Cohen, Pradeep Ravikumar, and Stephen E.
  Fienberg. Adaptive name matching in information
  integration. IEEE Intelligent Systems,
  18(5)1623, January/February 2003.
• Min-Yen Kan and Yee Fan Tan. Record Matching in
  Digital Library Metadata. To appear in
  Communications of the ACM (CACM).

64
Selected Bibliography

• String matching
• Robert A. Wagner and Michael J. Fischer. The
  string-to-string correction problem. Journal of
  the Association of Computing Machinery,
  21(1)168173, January 1974.
• Saul B. Needleman and Christian D. Wunsch. 1970.
  A general method applicable to the search for
  similarities in the amino acid sequence of two
  proteins. Journal of Molecular Biology,
  148(3)443453, March 1970.
• Temple F. Smith and Michael S. Waterman.
  Identification of common molecular subsequences.
  Journal of Molecular Biology, 147(1)195197,
  March 1981.
• Andrés Marzal and Enrique Vidal. Computation of
  normalized edit distance and applications. IEEE
  Transactions on Pattern Analysis and Machine
  Intelligence, 15(9)926932, September 1993.
• Alvaro E. Monge and Charles Elkan. The field
  matching problem Algorithms and applications. In
  ACM SIGKDD International Conference on Knowledge
  Discovery and Data Mining, pages 267270, August
  1996.
• Jie Wei. Markov edit distance. IEEE Transactions
  on Pattern Analysis and Machine Intelligence,
  26(3)311321, March 2004.
• Mikhail Bilenko and Raymond J. Mooney. Adaptive
  duplicate detection using learnable string
  similarity measures. In ACM SIGKDD International
  Conference on Knowledge Discovery and Data
  Mining, pages 3948, August 2003.
• Andrew McCallum, Kedar Bellare, and Fernando
  Pereira. A Conditional Random Field For
  Discriminatively-Trained Finite-State String Edit
  Distance. In Conference on Uncertainty in
  Artificial Intelligence (UAI), July 2005.
• William. W. Cohen, Pradeep Ravikumar, and Stephen
  E. Fienberg. A comparison of string distance
  metrics for name-matching tasks. In Information
  Integration on the Web (IIWeb), pages 7378,
  August 2003.
• Ariel S. Schwartz and Marti A. Hearst. A simple
  algorithm for identifying abbreviation
  definitions in biomedical text. In Pacific
  Symposium on Biocomputing (PSB), pages 451462,
  January 2003.
• Youngja Park and Roy J. Byrd. Hybrid text mining
  for finding abbreviations and their definitions.
  In Conference on Empirical Methods in Natural
  Language Processing (EMNLP), pages 126133, June
  2001.
• Jeffrey T. Chang , Hinrich Schütze, and Russ B.
  Altman. Creating an online dictionary of
  abbreviations from MEDLINE. Journal of the
  American Medical Informatics Association,
  9(6)612620, November/December 2002.
• Hiroko Ao and Toshihisa Takagi. ALICE An
  algorithm to extract abbreviations from MEDLINE.
  Journal of the American Medical Informatics
  Association, 12(5)576586, September/October
  2005.

65
Selected Bibliography

• Direct classification or clustering, and blocking
• Hui Han, Hongyuan Zha, and C. Lee Giles. A
  model-based K-means algorithm for name
  disambiguation. In Workshop on Semantic Web
  Technologies for Searching and Retrieving
  Scientific Data, October 2003.
• Hui Han, C. Lee Giles, Hongyuan Zha, Cheng Li,
  and Kostas Tsioutsiouliklis. Two supervised
  learning approaches for name disambiguation in
  author citations. In ACM/IEEE Joint Conference on
  Digital Libraries (JCDL), pages 296305, June
  2004.
• Hui Han, Wei Xu, Hongyuan Zha, and C. Lee Giles.
  A hierarchical naive bayes mixture model for name
  disambiguation in author citations. In ACM
  Symposium on Applied Computing (SAC), pages
  10651069, March 2005.
• Hui Han, Hongyuan Zha, and C. Lee Giles. Name
  disambiguation in author citations using a K-way
  spectral clustering method. In ACM/IEEE Joint
  Conference on Digital Libraries (JCDL), pages
  334343, June 2005.
• Dongwon Lee, Byung-Won On, Jaewoo Kang, and
  Sanghyun Park. Effective and scalable solutions
  for mixed and split citation problems in digital
  libraries. In ACM SIGMOD Workshop on Information
  Quality in Information Systems (IQIS), pages
  6976, June 2005.
• Byung-Won On, Dongwon Lee, Jaewoo Kang, and
  Prasenjit Mitra. Comparative study of name
  disambiguation problem using a scalable
  blocking-based framework. In ACM/IEEE Joint
  Conference on Digital Libraries (JCDL), pages
  344353, June 2005.
• Andrew McCallum, Kamal Nigam, and Lyle Ungar.
  Efficient clustering of high-dimensional data
  sets with application to reference matching. In
  ACM SIGKDD International Conference on Knowledge
  Discovery and Data Mining, pages 169178, August
  2000.
• Matthew Michelson and Craig A. Knoblock. Learning
  blocking schemes for record linkage. In National
  Conference on Artificial Intelligence (AAAI),
  July 2006.
• Mikhail Bilenko, Beena Kamath, and Raymond J.
  Mooney. Adaptive Blocking Learning to Scale Up
  Record Linkage and Clustering. In IEEE
  International Conference on Data Mining (ICDM),
  December 2006.

66
Selected Bibliography

• Graphical models
• Jie Wei. Markov edit distance. IEEE Transactions
  on Pattern Analysis and Machine Intelligence,
  26(3)311321, March 2004.
• John Lafferty, Andrew McCallum, and Fernando
  Pereira. Conditional random fields Probabilistic
  models for segmenting and labeling sequence data.
  In International Conference on Machine Learning
  (ICML), pages 282289, June/July 2001.
• Andrew McCallum and Ben Wellner. Object
  consolidation by graph partitioning with a
  conditionally-trained distance metric. In ACM
  SIGKDD Workshop on Data Cleaning, Record Linkage,
  and Object Consolidation, pages 1924, August
  2003.
• Ben Wellner, Andrew McCallum, Fuchun Peng, and
  Michael Hay. An integrated, conditional model of
  information extraction and coreference with
  application to citation matching. In Conference
  on Uncertainty in Artificial Intelligence (UAI),
  pages 593601, July 2004.
• Andrew McCallum, Kedar Bellare, and Fernando
  Pereira. A Conditional Random Field For
  Discriminatively-Trained Finite-State String Edit
  Distance. In Conference on Uncertainty in
  Artificial Intelligence (UAI), July 2005.
• Xin Dong, Alon Halevy, and Jayant Madhavan.
  Reference reconciliation in complex information
  spaces. In ACM SIGMOD International Conference on
  Management of Data, pages 8596, June 2005.
• Indrajit Bhattacharya and Lise Getoor. A latent
  dirichlet model for unsupervised entity
  resolution. In SIAM International Conference on
  Data Mining, pages 4758, April 2006.

67
Selected Bibliography

• Social network analysis
• H. A. Kautz, B. Selman, and M. A. Shah. The
  hidden web. AI Magazine, 18(2)2736, 1997.
• P. Mutschke. Mining networks and central entities
  in digital libraries. A graph theoretic approach
  applied to co-author networks. In Intelligent
  Data Analysis (IDA), pages 155166, August 2003.
• M. E. J. Newman. Who is the best connected
  scientist? A study of scientific coauthorship
  networks. In Complex Networks, pages 337370,
  February 2004.
• E. Otte and R. Rousseau. Social network analysis
  a powerful strategy, also for the information
  sciences. Journal of Information Science, 28(6),
  December 2002.
• T. Krichel and N. Bakkalbasi. A social network
  analysis of research collaboration in the
  economics community. In International Workshop on
  Webometrics, Informetrics and Scientometrics
  Seventh COLLNET Meeting, May 2006.
• R. Rousseau and M. Thelwall. Escher staircases on
  the world wide web. First Monday, 9(6), June
  2004.
• D. G. Feitelson. On identifying name equivalences
  in digital libraries. Information Research, 9(4),
  October 2004.
• R. Bekkerman and A. McCallum. Disambiguating web
  appearances of people in a social network. In
  International conference on World Wide Web (WWW),
  pages 463470, May 2005.
• R. Holzer, B. Malin, and L. Sweeney. Email alias
  detection using social network analysis. In
  Workshop on Link Discovery Issues, Approaches
  and Applications (LinkKDD), August 2005.
• B. Malin, E. Airoldi, and K. M. Carley. A network
  analysis model for disambiguation of names in
  lists. Computational and Mathematical
  Organization Theory, 11(2)119139, July 2005.
• G. Flake, S. Lawrence, and C. L. Giles. Efficient
  identification of web communities. In ACM SIGKDD
  International Conference on Knowledge Discovery
  and Data Mining, pages 150160, August 2000.
• P. K. Reddy and M. Kitsuregawa. An approach to
  build a cyber-community hierarchy. In SIAM ICDM
  Workshop on Web Analysis, April 2002.
• Patrick Reuther. Personal name matching New test
  collections and a social network based approach.
  Technical Report Mathematics/Computer Science
  06-01, University of Trier, March 2006.
• Yutaka Matsuo, Junichiro Mori, Masahiro Hamasaki,
  Keisuke Ishida, Takuichi Nishimura, Hideaki
  Takeda, Kôiti Hasida, and Mitsuru Ishizuka.
  POLYPHONET an advanced social network extraction
  system from the web. In International conference
  on World Wide Web (WWW), pages 397-406, May 2006.

68
Selected Bibliography

• Web-based methods
• Jamie P. Callan, Margie E. Connell, and Aiqun Du.
  Automatic discovery of language models for text
  databases. In ACM SIGMOD International Conference
  on Management of Data, pages 479490, June 1999.
• Jamie P. Callan and Margie E. Connell.
  Query-based sampling of text databases. ACM
  Transactions on Information Systems (TOIS),
  19(2)97130, April 2001.
• Panagiotis G. Ipeirotis and Luis Gravano.
  Distributed search over the hidden-web
  Hierarchical database sampling and selection. In
  International Conference on Very Large Databases
  (VLDB), pages 394405, August 2002.
• Luis Gravano, Panagiotis G. Ipeirotis, and Mehran
  Sahami. QProber A system for automatic
  classification of hidden-web databases. ACM
  Transactions on Information Systems (TOIS),
  21(1)141, January 2003.
• Aron Culotta, Ron Bekkerman, and Andrew McCallum.
  Extracting social networks and contact
  information from email and the web. In Conference
  on Email and Anti-Spam (CEAS), July 2004.
• Philipp Cimiano, Siegfried Handschuh, and Steffen
  Staab. Towards the self-annotating web. In
  International conference on World Wide Web (WWW),
  pages 462471, May 2004.
• Philipp Cimiano, Günter Ladwig, and Steffen
  Staab. Gimme the context Context-driven
  automatic semantic annotation with C-PANKOW. In
  International conference on World Wide Web (WWW),
  pages 332341, May 2005.
• Yutaka Matsuo, Junichiro Mori, Masahiro Hamasaki,
  Keisuke Ishida, Takuichi Nishimura, Hideaki
  Takeda, Kôiti Hasida, and Mitsuru Ishizuka.
  POLYPHONET an advanced social network extraction
  system from the web. In International conference
  on World Wide Web (WWW), pages 397-406, May 2006.
• Yee Fan Tan, Min-Yen Kan, and Dongwon Lee. Search
  engine driven author disambiguation. In ACM/IEEE
  Joint Conference on Digital Libraries (JCDL),
  June 2006.
• Ergin Elmacioglu, Min-Yen Kan, Dongwon Lee, and
  Yi Zhang. Googled name linkage. 2007.
• Yee Fan Tan, Ergin Elmacioglu, Min-Yen Kan, and
  Dongwon Lee. Record Linkage of Short Forms to
  Long Forms A Case Study of Publication Venues.
  2007.
• Min-Yen Kan. Web page classification without the
  web page. In International conference on World
  Wide Web (WWW), pages 262263, May 2004.
• Min-Yen Kan and Hoang Oanh Nguyen Thi. Fast
  webpage classification using url features. In
  International Conference on Information and
  Knowledge Management (CIKM), pages 325326,
  October/November 2005.
• Panagiotis G. Ipeirotis, Eugene Agichtein, Pranay
  Jain, and Luis Gravano. To search or to crawl?
  Towards a query optimizer for text-centric tasks.
  In ACM SIGMOD International Conference on
  Management of Data, pages 265276, June 2006.

69
Backup Slides - Summarization

• 50 Minute talk total
• 7 Apr 2008, 10 11 AM

70
A Summarization Machine
MULTIDOCS
QUERY
DOC
50
Very Brief
Brief
Headline
10
100
Long
Extract
Abstract
Indicative
Informative
Generic
Query-oriented
Summary
Just the news
Background
Generate a summary given a text document
71
Summarization, defined

• Definitions
• Take a text document, extract content from it and
  present the most important content to the user in
  a condensed form and in a manner sensitive to the
  users or applications needs
• Summarization requires
• understanding the meaning of a text document
• generating fluent text summary
• Studies of human summarizers
• Cremmins (65) Endres-Niggemeyer (98) showed
  that professional summarizers used clues to pick
  summary content.

72
Skew Degree Examples

• time(d1) lt time(d2) lt time(d3) lt time(d4)

d1 d2 d3 d4
d1 d2 d3 d4
Freely skewed Only add a new document when it
would be linked by some node using vertex
function s
Skewed by 1
Skewed by 2
73
Input text transformation function (t)

• Document Segmentation Function (t)
• Problem observed in some clusters where some
  documents in a multi-document cluster are very
  long
• Takes many timestamps to introduce all of the
  sentences, causing too many edges to be drawn
• ?(G) segments long documents into several sub
  docs
• Solution is too hacked hope to investigate
  more in current and future work

d5b
d5a
d5
74
Evaluation on number of edges (e)

• Tried different e values
• Optimal performance e 2
• At e 1, graph is too loosely connected, not
  suitable for PageRank ? very low performance
• At e N, a LexRank system

e 2
e 2
N
N
N
75
Evaluation (other edge parameters)

• PageRank generic vs topic-sensitive
• Edge weight (u) unweighted vs weighted
• Optimal performance topic-sensitive PageRank
  and weighted edges

Topic-sensitive Weighted edges ROUGE-1 ROUGE-2
No No 0.39358 0.07690
Yes No 0.39443 0.07838
No Yes 0.39823 0.08072
Yes Yes 0.39845 0.08282
76
Evaluation on skew degree (s)

• Different skew degrees s 0, 1 and 2
• Optimal performance s 1
• s 2 introduces a delay interval that is too
  large
• Need to try freely skewed graphs

Skew degree ROUGE-1 ROUGE-2
0 0.36982 0.07580
1 0.37268 0.07682
2 0.36998 0.07489
77
Describing Summaries

• Aspects of summarization (Sparck-Jones 97,
  Hovy and Lin 99)
• Input
• Single-document vs. multi-document
• Purpose
• Situation embedded in larger system (MT, IR) or
  not?
• Generic vs. query-oriented authors view or
  users interest?
• Indicative vs. informative categorization or
  understanding?
• Background vs. just-the-news does user have
  prior knowledge?
• Output
• Extract vs. abstract use text fragments or
  re-phrase content?

78
Differences for main and update task processing

• Main task
• Construct a TSG for input cluster
• Run topic-sensitive PageRank on the TSG
• Apply first modified version of MMR to extract
  sentences

• Update task
• Cluster A
• Construct a TSG for cluster A
• Run topic-sensitive PageRank on the TSG
• Apply the second modified version of MMR to
  extract sentences
• Cluster B
• Construct a TSG for clusters A and B
• Run topic-sensitive PageRank on the TSG only
  retain sentences from B
• Apply the second modified version of MMR to
  extract sentences
• Cluster C
• Construct a TSG for clusters A, B and C
• Run topic-sensitive PageRank on the TSG only
  retain sentences from C
• Apply the second modified version of MMR to
  extract sentences

79
Sentence Ranking

• Once a timestamped graph is built, we want to
  compute an prestige score for each node
• PageRank use an iterative method that allows
  the weights of the nodes to redistribute until
  stability is reached
• Similarities as edges ? weighted edges query ?
  topic-sensitive

Topic sensitive (Q) portion
Standard random walk term
80
Sentence Extraction Main task

• Original MMR integrates a penalty of the
  maximal similarity of the candidate document and
  one selected document
• Ye et al. (2005) introduced a modified MMR
  integrates a penalty of the total similarity of
  the candidate sentence and all selected sentences
• Score(s) PageRank score of s S selected
  sentences
• This is used in the main task

Penalty All previous sentence similarity
81
Sentence Extraction Update task

• Update task assumes readers already read previous
  cluster(s)
• implies we should not select sentences that have
  redundant information with previous cluster(s)
• Propose a modified MMR for the update task
• consider the total similarity of the candidate
  sentence with all selected sentences and
  sentences in previously-read cluster(s)
• P contains some top-ranked sentences in previous
  cluster(s)

Previous cluster overlap
82
References

• Günes Erkan and Dragomir R. Radev. 2004.
  LexRank Graph-based centrality as salience in
  text summari-zation. Journal of Artificial
  Intelligence Research, (22).
• Rada Mihalcea and Paul Tarau. 2004. TextRank
  Bring-ing order into texts. In Proceedings of
  EMNLP 2004.
• S.N. Dorogovtsev and J.F.F. Mendes. 2001.
  Evolution of networks. Submitted to Advances in
  Physics on 6th March 2001.
• Sergey Brin and Lawrence Page. 1998. The anatomy
  of a large-scale hypertextual Web search engine.
  Com-puter Networks and ISDN Systems, 30(1-7).
• Jon M. Kleinberg. 1999. Authoritative sources in
  a hy-perlinked environment. In Proceedings of
  ACM-SIAM Symposium on Discrete Algorithms, 1999.
• Shiren Ye, Long Qiu, Tat-Seng Chua, and Min-Yen
  Kan. 2005. NUS at DUC 2005 Understanding
  docu-ments via concepts links. In Proceedings of
  DUC 2005.
