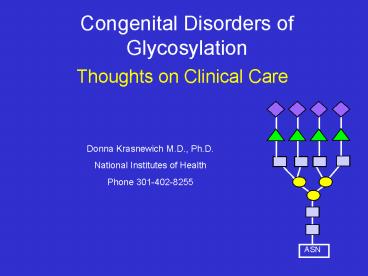

ASN

1
Congenital Disorders of Glycosylation
Thoughts on Clinical Care
Donna Krasnewich M.D., Ph.D. National Institutes
of Health Phone [phone]
ASN
2
CDG A Difficult Clinical Diagnosis
Hematology
Neurology
CDG
Genetics
Pediatrics
3
CDG A Multisystemic Disorder
Gastroenterology
Ophthalmology
Hematology
CDG
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
4
CDG Multiple typesdifferent children and adults
Gastroenterology
Ophthalmology
Hematology
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
5
CDG A Multisystemic Disorder
Gastroenterology
Ophthalmology
Hematology
CDG
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
Lets use CDG-Ia as an example..
6
Presentation of CDG -Ia to the pediatrician
Children had developmental delay documented by
4-6 months of age
7
CDG A Multisystemic Disorder
Gastroenterology
Ophthalmology
Hematology
CDG
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
8
Gastrointestinal manifestations of CDG-Ia

• Feeding and Growth
• growth failure is universal and symmetric
  involving length, weight and head circumference
• infants are difficult feeders with persistent
  vomiting in the first year of life
• children may require G-tube placement for severe
  failure to thrive

9
Gastrointestinal manifestations of CDG-Ia

• Feeding and Growth
• Many children are on elemental formulas
• Many children are treated for gastroesophogeal
  reflux
• Some children had Nissen fundoplications with
  G-tube placement
• anecdotally, enrichment with MCT oil and high
  caloric formulas do not improve growth

10
Gastrointestinal manifestations of CDG-1A

• Hepatopathy-Liver problems
• all children had elevated transaminases in
  infancy
• 80 normalized by 2 years of age and remain
  normal, all normalized by 5 years
• 60 had hypoalbuminemia (low albumin) in infancy

11
CDG A Multisystemic Disorder
Gastroenterology
Ophthalmology
Hematology
CDG
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
12
Cardiac manifestations of CDG-Ia

• Pericardial Effusion
• Some children had documented pericardial effusion
  without clinical problems

13
CDG A Multisystemic Disorder
Gastroenterology
Ophthalmology
Hematology
CDG
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
14
Neurologic manifestations of CDG-1A

• Axial and truncal low tone is seen in infancy

15
Neurologic manifestations of CDG-1A

• Seizures Stroke-like Episodes
• Some children have seizures
• All responded to anticonvulsants medications
  were tapered when children were seizure free for
  two years
• Some children have stroke-like episodes with the
  youngest at 3 years of age all had full
  functional recovery

16
Neurologic manifestations of CDG-Ia

• Many children have cerebellar hypoplasia on MRI

17
Neurologic manifestations of CDG-Ia

• Development
• All children continue to gain skills
• Many use walkers with truncal support
• All communicate with sign, dysarthric speech or
  communication boards
• All are happy, engaging children
• All are enrolled in early intervention or school
  programs for children with disabilities

18
CDG A Multisystemic Disorder
Gastroenterology
Ophthalmology
Hematology
CDG
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
19
Hematologic manifestations of CDG-Ia

• Coagulopathy
• All children had decreased levels of factors IX
  and XI
• Deficiencies of protein C and S are documented
• Children have tolerated surgery well but their
  physicians must be aware of the risks and
  precautions taken

20
CDG A Multisystemic Disorder
Gastroenterology
Ophthalmology
Hematology
CDG
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
21
Endocrinologic manifestations of CDG-Ia

• 70 of children with CDG-1A have hypothyroidism
• Adult females with CDG-1A do not undergo
  pubescence
• Adult males with CDG-1A reach pubescence but have
  small testes

22
CDG A Multisystemic Disorder
Gastroenterology
Ophthalmology
Hematology
CDG
Rehab
Genetics
Cardiology
Pediatrics
Neurology
Endocrinology
23
Ophthalmologic manifestations of CDG-Ia

• All children have esotropia
• Retinitis pigmentosa is seen
• Individuals with CDG have myopia (near
  sightedness)

24
Clinical features of American adults with CDG-Ia

• Ataxia, dysmetria, peripheral neuropathy,
• Muscle bulk ranges from normal to severely
  atrophic
• Retinitis pigmentosa
• Progressive contractures, kyposis, scoliosis,
  thoracic shortening

25
Clinical features of American adults with CDG-Ia

• Hypothyroidism, female non-pubescent, males have
  small testes
• Dysarthric (slurred speech), interesting
  conversations, working in group work sites,
  living at home or in assisted settings

26
Clinical features of CDG-Ib

• Children present with failure to thrive,
  hypoglycemia (low blood sugar) and malabsorptive
  diarrhea
• The children are developmentally normal

27
Diagnosis of CDG
The diagnosis of CDG is initially based on a
clinical suspicion.
If abnormal transferrin patterns are seen, the
diagnosis is CDG
CDG typing is based on enzyme analysis of
fibroblasts or lymphs
28
Issues in Infancy-CDG

• Medical Issues include
• Failure to thrive
• Oral motor dysfunction with persistent vomiting
• Abnormal liver function, coagulopathy and the
  infantile catastrophic phase
• Strabismus
• Pericardial effusion
• Hypothyroidism

29
Issues in Infancy-CDG

• Developmental Delay
• May not be noted by parents or pediatrician until
  3-4 months of age
• Early intervention with speech, occupational and
  physical therapy is essential

30
Management and Counseling Issues in Childhood-CDG

• Liver dysfunction and eating issues improve
• Mobility improves
• Development progresses
• The rigors of physical, occupational and speech
  therapy continue
• Children enter school

• Seizures and stroke-like episodes may begin

31
Management and Counseling Issues in
Adolescents-CDG 1a

• Continued seizures and stroke-like episodes
• Pubescence
• Development continues
• Transition to middle and high school system
• Increasing need of independence and self care
• Friends are funbut where do we find them?

32
Management and Counseling Issues in Adults-CDG 1a

• Joint immobility and progressive scoliosis lead
  to pain and mobilization difficulties
• Few seizures, medically stable
• Vocational goals and care issues take center
  stage
• Where do they work?
• Where do they live?
• How do they spend their time?
• How do their parents prepare for the future care
  of an adult with special needs?

33
Treatment strategies

• Mannose therapy for CDG-Ib has been clinically
  successful
• In general no other sugar therapy has been found
  to be therapeutic in other types of CDG

34
Genetics

• All of us have 46 chromosomes (23 pairs, 1 in
  each pair from our mother and one from our father
• These chromosomes are long strings of genes that
  are the blueprint for how we look, our health and
  even our behavior
• We carry about 30,000 genes, each of us carry
  5-10 changed genes
• In the random event that we conceive a child with
  another person with the same changed gene we have
  a 1 in 4 risk of having an affected child

35
Genetics of CDG

• All known types of CDG are inherited in a
  recessive manner

• Non-carrier

• Carrier CDG

• Carrier CDG

• CDG

• The risk of having another affected child is 1 in
  4 with each pregnancy

36
Prenatal diagnosis

• Prenatal diagnosis is available for some types of
  CDG in families where the mutation is known.
  Prenatal diagnosis is done in CDG-Ia with both
  enzyme analysis and mutational analysis of PMM-2.
  That is not true for other types.
• Amniocentesis and CVS can be used for prenatal
  diagnosis.

37
CDG Family Network

• The American and European families of children
  and adults have established a web based network
  and communicate freely about their experiences
  and feelings

38
Conclusions

• There is a broad spectrum of clinical
  manifestations seen in patients with CDG. This
  heterogeneity is like that reported for other
  single gene disorders but still defies
  explanation.
• CDG is underdiagnosed in the United States,
  physician education will contribute to its
  recognition.

39
CDG Clinical Consensus Meeting during the 2nd
International Meeting on CGD April 2, 2003
40
Objective

• This 2-3 hour session was conceived to bring
  together physicians, with expertise in caring for
  children and adults with CDG, to discuss
  specific medical management issues.
• Obviously, not all medical issues can be
  covered. Strategies and anecdotes will be shared
  and ideally, a brief synopsis statement will be
  given at the end of the International Conference.

• Eventually, a jointly written document will
  summarize the management experience of the
  experts involved.
• These discussions will also elucidate areas where
  clinical research is needed in CDG.

41
Participants

• At the round table
• Jaek Jaeken(Belgium) Pascal de Lonlay(France)
• Stephanie Grunewald(Germany) Brian Winchester(UK)
• Chris Hendriksz(UK) Thorsten Marquardt(Germany)
• Hudson Freeze(US) Agata Fiumara(Italy)
• With expert input from Flemming
  Skovby(Denmark)
• Peter Clayton(UK)
• Rita Barones(Italy)
• Editorial Group now includes Paz
  Briones(Spain), Susanne Kjaergaard(Denmark),
  Dusica Babovic(US), Eva Morava(Netherlands),
  Dulce Quelhas(Portugal)

42
Question

• Is the transferrin IEF always abnormal in child
  affected with CDG-1a?
• Does the transferrin IEF always stay abnormal in
  a child affected with CDG-1a?

43
Consensus

• Several in the group reported that when
  transferrin was normal but the clinical suspicion
  was strong, PMM activity was analyzed as a
  backup..
• There are 2 cases where transferrin IEF in a PMM
  deficient child was abnormal and became normal,
  for 3 years in one case.

44
Consensus

• Consensus is that if transferrin IEF is normal
  but clinical suspicion is strong
• Check other proteins for evidence of abnormal
  glycosylation (ie. increased lysosomal enzymes in
  sera, abnormal alpha-1-antitrypsin IEF ..
• Do PMM assay on WBC pellet

45
Question
What is the appropriate management and
nomenclature of stroke-like episodes
46
Consensus

• Nomenclature We will continue to use the word
  stroke-like episodes. We may revisit this should
  there be documentation of a CNS thrombotic event.
• Management
• Anecdotal evidence in one case suggests that
  aspirin decreases the number of stroke-like
  episodes in an individual with monthly strokelike
  episodes.
• Not all children should be started on ASA.

47
Questions

• Should mannose therapy be given to CDG-1a
  patients?

48
Consensus

• The group consensus is that no child with CDG-1a
  should be started on mannose therapy at this
  time.
• This conclusion was based on no solid evidence in
  previous studies of improvement in biochemical
  parameters, clinical manifestations, growth or
  development.

49
Consensus

• However, there are 5 patients currently being
  followed on 1gm/kg/day divided qid some for
  several years.
• Parents of this group feel that the children are
  doing better.
• Clinical information from this group will either
  support or refute the usefulness of long term
  mannose therapy.
• No plans for another clinical trial of mannose at
  the time.

50
Question.

• How are the CDG-1b patients doing worldwide?
• What is the dosing of mannose therapy for
  patients with CDG-1b?
• Any toxicity noted from the mannose?

51
Consensus

• Dosing 100-200mg/kg/dose given 4 times daily
• Blood levels peak 100-200micromoles/L
• Diarrhea limits the amount given, so monitoring
  is by tolerance
• Clear phenotypic variability including
• the severely affected case, treated with mannose
  for 5 years with cirrhosis
• The 35 yo woman with 2 children not on mannose

52
Consensus

• Clinical concerns include
• Patients with CDG-1b are at risk for thrombosis.
• Long term toxicity of mannose not known(ie. All
  patients with CDG-1b have some fibrosis on
  initial liver biopsy, when do you do another???

• Propose
• Gather clinical experience

53
Question
Do children with CDG-1a have increased risk of
infections? Are these children responding to
vaccinations?
54
Consensus

• It is important to react quickly when these
  children are sick even though there is no
  laboratory evidence of immunocompromise.
• Gather evidence of response to vaccines.

55
Question
What is the appropriate management of ostepenia
in patients with CDG-1a?
56
Consensus

• Although some patients with CDG-1a have multiple
  fractures it is not a common problem.
• Fractures seem to heal well
• Immobilization of these patients is an issue
  because of the risk of thrombosis
• No supplemental phosphorus is needed unless
  clinically indicated.

57
Question
Should we give estrogen replacement to women with
CDG-1a?
58
Consensus

• Estradiol is being started at 16 years of age in
  young women with CDG-1a.
• Group experience is 2 women are on estrodiol
  without problems

59
Other issues discussed..

• Cerebellar hypoplasia versus atrophy
• What is the best nutritional support?
• What is the best management of retinal dystrophy?
• What other CDGs are prenatal available and
  appropriate for??

60
STAY TUNED FOR THE NEXT CHAPTER....
61
Diagnosis of CDG
Anode
Cathodally migrating bands
Cathode
Cathodally migrating bands on serum transferrin
isoelectric focusing are diagnostic for CDG
CDG
Controls
62
N-linked oligosaccharides are complex structures
Composed of

• Monosaccharides
• Linked together in a specific structural pattern
• Synthesis is highly regulated

ASN
-asparigine
-mannose
-glucose
-NANA
-GlcNAc
-galactose
63
N-linked oligosaccharides are complex structures
Localized on

• Cell surfaces
• Extracellular matrix
• Secreted proteins

ASN
-asparigine
-mannose
-glucose
-NANA
-GlcNAc
-galactose
64
The function of N-linked oligosaccharides
N-linked oligosaccharides are involved in

• Proper protein folding
• Protease resistance
• Intracellular trafficking
• Cell-cell interactions

65

• Synthesis begins on a dolichol backbone
• Each sugar is added by a sugar specific and
  linkage specific glycosyltransferase
• Dol-linked oligosaccharides are transferred from
  cytoplasm to the ER lumen during synthesis

DOL
66
ER lumen
67
Phenotypic heterogeneity is expected in CDG

• Because the pathway has about 200 steps
• A defect in any one step may lead to the clinical
  manifestations of a novel CDG type

68
CDG typing

• Each CDG type is the phenotype defined by a
  specific enzyme defect and the mutation in its
  underlying gene
• There are now 7 known types of CDG

69
ER lumen
N-linked oligosaccharide synthetic pathway
ER membrane
Cytoplasm
DOL
2a
1c
DOL
ASN
P
ASN
-asparigine
-mannose
-glucose
-NANA
-dolichol
-GlcNAc
-galactose
DOL
1e
Gene
CDG Types
Enzyme
P
1d
PMM2 PMI Alg6 Alg3 DPM1 MATII
1a 1b 1c 1d 1e 2a
phosphomannomutase phosphomannose isomerase a 1,3
glucosyl transferase dolichol-P-mannose
transferase dolichol-P-mannose synthase N-acetylgl
ucosamine transferase II
DOL
Fructose-6-P
