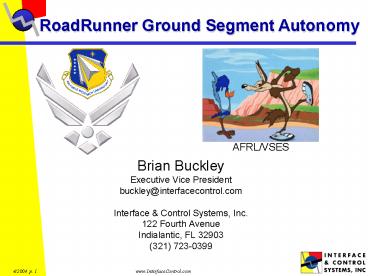

RoadRunner Ground Segment Autonomy
AFRL/VSES
2
Corporate Overview

• Formed in 1988 by 3 Aerospace Engineers
• Currently 35 employees
• Offices in
• Columbia, Maryland
• Indialantic, Florida
• Albuquerque, New Mexico
• Boulder, Colorado
• Sunnyvale, California

3
Company Focus

• State-of-the-art software development for the
  Aerospace Industry. (DoD, National Programs,
  NASA, Commercial Space)
• Multi-platform, portable software development
  (UNIX/ LINUX, Windows NT/2000/XP, Embedded
  systems, etc)
• Specializing in
• Systems Engineering
• Software Development
• Systems Integration
• Distribution, Support and Maintenance
• Software Development
• C/C - Database-Centric Applications
• Java Applications - Web-Enabled Applications
• Java/Web Servlets - Message-Oriented Middleware
• XML - Built upon Open Source Technologies
• Provide value through Core Software Technology
  product used for automation.
• Source code available through Source Alliance
  Program

4
What We Do
Software Development and Integration for

• Workstation Class Software
• Control Centers
• Advisory Systems
• Integration Test
• Bench Test Equipment
• Simulations
• Embedded Software
• Satellite Autonomous Command and Control
• Payload Controller
• Spacecraft CT Controller
• Software Defined Radios
• Avionics

5
The SCL Product

• SCL is
• A COTS software package used to build automated
  command and control systems whose behavior is
  specified by a full-featured scripting language
• The control system can be designed to take action
  as a function of operator directive, time,
  detected system state, or any combination of
  these
• A data fusion platform
• Not limited to Satellite CT, applied to many
  other market segments
• SCL Supports
• Real-time Command Control
• Scripting (sequencing)
• Commanding
• Fault Detection, Isolation Recovery
• Real-time/Offline Diagnostics
• Automation
• Simulation
• Embedded Applications
• Web-based monitor and control (RIMS)
• Commercial Database support built into SCL
  scripting language
• Personalized e-Mail alerts to desktops, cell
  phones, pagers, PDAs, etc.

6
History of the Automation Architecture

• Clementine
• Flight Software
• Ground Segment Support Software
• FUSE
• End-to-end architecture
• TechSat-21
• End-to-end architecture
• Cluster Manager
• Boeing Phantomworks Swarm-bots
• EO-1 on-orbit uplink of TS-21 Architecture
• Northrop Grumman Space Technology/Swales
• Orbital Deep Space Imager
• uSat Testbed
• Formation Flying
• AFRL RoadRunner
• End-to-end architecture

7
AFRL - TechSat-21

• Formation Flying Microsats
• Reusable Cluster Manager Architecture
• Cooperative queuing among satellites (find
  GMTIs)
• SCL - Key Infrastructure, Executive, FDIR
• CASPER - Dynamic onboard planning
• Livingstone - Mode Identification and Recovery

Sparse Aperture Formation
Cooperative Cluster Manager Queuing via
Crosslinks
8
RoadRunner Overview

• Rapid Response
• AFRL Space Vehicles Directorate
• Build in less than a year
• Launch in December of 2004
• Goal fly it with 2 people
• SCL - Key Automation Technology
• ICS Software Systems Integrator

9
RoadRunner Program Objectives

• Demonstrate Rapid Fielding of New Capability
• Stored State to On-orbit in a Week
• Autonomous On-Orbit Checkout in a Day
• Demonstrate Responsive Support to Tactical User
• Field Tasking and Downlink of Mission Data
  (Imagery, Signals) in Same Pass
• Dynamic Tasking Based on Internal/External Cueing

• Collect Phenomenology Data to Characterize New
  Sensing Capability
• Study Ways to Reduce Mission Develop Timeline
• 2004 Launch, 6-12 Month Mission Life
• Costs Under 10 M, Class-D Capability Based
• Explore Mature Payloads, New CONOPs

10
CONOPS Supports 7-day Call-up To Theater Tasking
11
Intelligent Messaging Overview
User/Customer Profile

• Telemetry
• Logistics
• Click Streams
• User Inputs
• Profile Updates
• Transactions
• Commanding
• Tasking Requests

RealTime Event Handler
Messaging Service
DBMS
Business Rules
Logging
Custom Interface
12
Real-Time Infrastructure Overview
RoadRunner Sensors
User Profiles
Data Acquisition Decom
Web Browser
Web Browser
Web Browser
ODBC-Compliant Server DB
SCL Shared Memory
Events
Interface, e-mail address
Derived Values
Current Values
ODBC
Current Values
Messaging Services
Alerts
ODBC-Compliant Server DB
Events
Sensor Data
Commands
Events
Monitor Calibrate Sensors
Trigger
Health Science Rules
Commands
Using SCL Shared Memory, Commercial Database
Product, And Science Processing Applications
Uplink Interface
13
SCL/RIMS Software Architecture
14
Remote Intelligent Monitor System - RIMS

• Intelligent Monitor Control via web
• Uses Standard Web browser
• Monitor Spacecraft Health and Safety
• Email and pager alert for anomalies
• Remote update of scripts, rules and telemetry
  database
• Remote control of the underlying SCL system
• Data fusion of multiple sensor systems using SCL.
• Real-time monitoring gauges, meters, strip
  charts, alarms
• Remote user administration
• Built on Standard Internet protocols, encrypted
  links, and web services

15
RIMS - User Authentication

• Multiple Levels of Security
• NT Challenge-Response Dialog
• User Logins
• SSL encryption using a Secure Server ICS uses
  the Tomcat server.

16
RIMS - Remote Administration

• Start and stop the SCL system remotely

17
RIMS- Private/Public Display Pages
Private Displays
Public Displays
18
RIMS - Text Displays
19
RIMS - Real-time Playback Plots
20
Ocean Buoy Data Telemetry Relay uSAT
21
Data Mining and Adaptive Control

• Automated Machine Learning
• Data Mining Phase II SBIR with NASA (current)
• Generate Monitor and Control Rules based on past
  performance
• Tested against Shuttle Main Engine valve data
• Discovery algorithms uncover relationships in
  data

Sensor Relationship Management/Data Fusion An
structured approach to support adaptive
monitoring and control of your sensors/effectors
22
Automated Machine Learning GUI
23
NASA/KSC - Automated Machine Learning
Interface Control Systems SCL Automated
Command and Control System
Shuttle Main Engine Data
Data Signature
Monitor and Control Rules
Florida Institute of Technologys Automated
Machine Learning Algorithms
24
TS-21 End-to-End Architecture
CASPER
L2
SCLRTE
AUTO-GENERATION
Visual Modeler
ADRRules/Scripts
DB
TLM
Fault Scenarios
SIM
Spacecraft Control Center
SCLRTE
Data
GUI Web.
Screens
OPTIONAL
Operations / ADRRules/Scripts
25
(No Transcript)
26
Model Definition
XML
Back-end Code Generator
Vendor Neutral Algorithms
Rational Rose Modeler with ICS Fault Tree and
other Diagrams
Rose offers a web publishing and collaboration
capability for team coordination via the web
27
Artifacts Web-Access

• XML embedded in scripts and rules
• Cross-referencing of SCL projects
• Self-documenting using XSL -XML style sheet
  language
• Details viewed in Browser

28
Summary
Interface Control Systems

• Heritage 15 year history of mission critical
  software product development
• Industries Aerospace, Intelligence and e-Business
• Infrastructure Clearances, Processes, Products,
  Configuration Management
• Experience Wide cross-section of industries and
  applications. Design, development, deployment,
  maintenance.
• Agility Customer-Centric, small teams, high
  productivity
• Responsive Available, Motivated, Dedicated

29
Local Contact

• Brian Buckley
• Executive Vice President
• Interface Control Systems, Inc.
• 122 Fourth Avenue
• Indialantic, FL 32903
• [phone] x203 (voice)
• [phone] (fax)
• buckley_at_interfacecontrol.com
