Wireless Channels

1

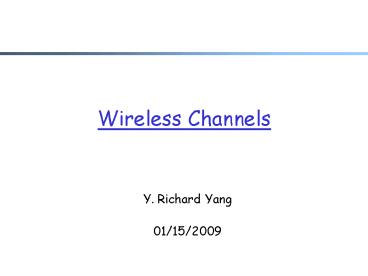

Wireless Channels

• Y. Richard Yang
• 01/15/2009

2
Outline

• Recap
• Characteristic of wireless channels

3
Recap Wireless and Mobile Computing

• Driven by technology and infrastructure
• wireless communication technology
• global infrastructure
• device miniaturization and capabilities
• software development platforms
• Challenges
• wireless channel unreliable, open access
• mobility
• portability
• changing environment
• heterogeneity

4
Recap Overview of Wireless Transmissions
receiver
bit stream
5
Fourier Transform Every Signal Can be Decomposed
as a Collection of Harmonics
Time domain
Frequency domain
1
1
0
0
t
t
ideal periodical digital signal
decomposition

• Two representations
• time domain frequency domain
• Knowing one can recover the other

6
Examples
Try spectrum1.m and spectrum2.m
7
Recap Modulation

• Objective
• encode digital data into analog signals at the
  right frequency range

• Basic schemes
• Amplitude Modulation (AM)
• Frequency Modulation (FM)
• Phase Modulation (PM)

8
Modulation

• Modulation of digital signals known as Shift
  Keying
• Amplitude Shift Keying (ASK)
• Frequency Shift Keying (FSK)
• Phase Shift Keying (PSK)

9
Example

• Suppose fc 1 GHz(fc1 1 GHz, fc0 900
  GHzfor FSK)
• Bit rate is 1 Mbps
• Encode one bit at a time
• Bit seq 1 0 0 1 0
• Q How does the wave look like for each scheme?

t
10
Phase Shift Keying BPSK

• BPSK (Binary Phase Shift Keying)
• bit value 0 sine wave
• bit value 1 inverted sine wave
• very simple PSK
• Properties
• robust, used e.g. in satellite systems

Q What is the spectrum usage of BPSK?
11
Spectral Density of BPSK
Spectral Density bit rate-------------------w
idth of spectrum used
b
fc freq. of carrier
Rb Bb 1/Tb
b
fc
12
Phase Shift Keying QPSK

• QPSK (Quadrature Phase Shift Keying)
• 2 bits coded as one symbol
• symbol determines shift of sine wave
• often also transmission of relative, not absolute
  phase shift DQPSK - Differential QPSK

13
Phase Shift Keying Comparison
fc carrier freq. Rb freq. of data 10dB 10
20dB 100
BPSK
A
QPSK
t
01
11
10
00
14
Quadrature Amplitude Modulation

• Quadrature Amplitude Modulation (QAM) combines
  amplitude and phase modulation
• it is possible to code n bits using one symbol
• 2n discrete levels

• Example 16-QAM (4 bits 1 symbol)
• Symbols 0011 and 0001 have the same phase f, but
  different amplitude a. 0000 and 1000 have same
  amplitude but different phase

Q why would any one use BPSK, but the highest
QAM?
15
Antennas and Signal Propagation
16
Antennas Isotropic Radiator

• Isotropic radiator a single point
• equal radiation in all directions (three
  dimensional)
• only a theoretical reference antenna
• Radiation pattern measurement of radiation
  around an antenna

z
z
y
ideal isotropic radiator
y
x
x
Q how does power level decrease as a function of
d, the distance from the transmitter to the
receiver?
17
Free-Space Isotropic Signal Propagation

• In free space, receiving power proportional to
  1/d² (d distance between transmitter and
  receiver)
• Suppose transmitted signal is x,received signal
  y h x, where h is proportional to 1/d²

• Pr received power
• Pt transmitted power
• Gr, Gt receiver and transmitter antenna gain
• ? (c/f) wave length

Sometime we write path loss in log scale Lp
10 log(Pt) 10log(Pr)
18
Free Space Signal Propagation
at distance d
?
19
Real Antennas

• Real antennas are not isotropic radiators
• Some simple antennas quarter wave ?/4 on car
  roofs or half wave dipole ?/2 ? size of antenna
  proportional to wavelength for better
  transmission/receiving

Q Assume frequency 1 Ghz, ? ?
20
Dipole Radiation Pattern of a Dipole
http//www.tpub.com/content/neets/14182/index.htm
http//en.wikipedia.org/wiki/Dipole_antenna
21
Why Not Digital Signal (revisited)

• Not good for spectrum usage/sharing
• The wavelength can be extremely large to build
  portal devices
• e.g., T 1 us -gt f1/T 1MHz -gt wavelength
  3x108/106 300m

22
Figure for Thought Real Measurements
23
Signal Propagation

• Receiving power additionally influenced by
• shadowing (e.g. through a wall or a door)
• refraction depending on the density of a medium
• reflection at large obstacles
• scattering at small obstacles
• diffraction at edges

diffraction
refraction
scattering
shadow fading
24
Signal Propagation Scenarios

• Details of signal propagation are very
  complicated
• We want to understand the key characteristics
  that are important to our objective

25
Shadowing

• Signal strength loss after passing through
  obstacles
• Some sample numbers

i.e. reduces to ¼ of signal10 log(1/4) -6.02
26
Multipath

• Signal can take many different paths between
  sender and receiver due to reflection,
  scattering, diffraction

27
Multipath Can Reduce Signal Strength

• Example reflection from the ground received
  power decreases proportional to 1/d4 instead of
  1/d² due to the destructive interference between
  the direct signal and the signal reflected from
  the ground

For detail, see page 9 http//www.eecs.berkeley.
edu/dtse/Chapters_PDF/Fundamentals_Wireless_Commu
nication_chapter2.pdf
28
Multipath Fading

• Due to constructive and destructive interference
  of multiple transmitted waves, signal strength
  may vary widely as a function of receiver position

29
Multipath Fading A Simple Two-path Example
d2
d1
receiver
- Wavelength is about 0.3 m for 1 GHz cellular
30
Multipath Fading with Mobility A Simple Two-path
Example
r(t) r0 v t, assume transmitter
sends out signal cos(2? fc t)
r0
More detail see page 16 Eqn. (2.13) http//www.ee
cs.berkeley.edu/dtse/Chapters_PDF/Fundamentals_Wi
reless_Communication_chapter2.pdf
31
Received Waveform
10 ms
v 65 miles/h, fc 1 GHz
fc v/c 109 30 / 3x108 100 Hz
Why is fast multipath fading bad?
32
Small-Scale Fading
33
Multipath Can Spread Delay
signal at sender
LOS pulse
Time dispersion signal is dispersed over time

multipath pulses
signal at receiver
LOS Line Of Sight
34
Delay Spread
RMS root-mean-square
35
Multipath Can Cause ISI

• dispersed signal can cause interference between
  neighbor symbols, Inter Symbol Interference
  (ISI)
• Assume 300 meters delay spread, the arrival time
  difference is 300/3x108 1 ms
• if symbol rate gt 1 Ms/sec, we will have serious
  ISI
• In practice, fractional ISI can already
  substantially increase loss rate

signal at sender
LOS pulse
multipath pulses
signal at receiver
LOS Line Of Sight
36
Summary Wireless Channels

• Channel characteristics change over location,
  time, and frequency

Received
Signal
Large-scale fading
power
Power
(dB)
path loss
log (distance)
time
small-scale fading
frequency
