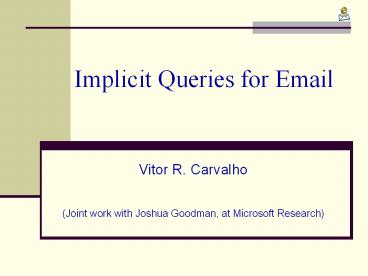

Implicit Queries for Email

1
Implicit Queries for Email

• Vitor R. Carvalho
• (Joint work with Joshua Goodman, at Microsoft
  Research)

2
Search Email

• Email is the number 1 activity on the internet
• Fast, easy and cheap
• Search is number 2
• Highly lucrative (billion market targeted ads)
• Why not put them together?
• Make users happy
• Make more money

3
(No Transcript)
4
Implicit Queries for Email

• Find good search keywords in email messages
• 1 Click (or less) for users to do search
• Lots of possible User Interfaces
• Add hyperlinks to words in message
• List keywords in a sidebar
• Perform search automatically show results
  (Gmail)
• Closely related to finding keywords for
  advertising

5
Main Contributions

• Extract Keyphrases
• Similar to Information Extraction
• Several features
• Rank/Display
• Maxent probability estimates
• Select/Filter
• Restrict to MSN Query Logs (7.5 million entries)

6
Email Dataset

• 20 Hotmail volunteers (not MS employees)
• Spam, subs and wanted folders
• 6 human annotators labeled 1143 msgs according to
  the following instructions

These are mail messages from real Hotmail users.
Imagine that you were the recipient of each
message. If your email program were to
automatically perform a query to a search engine
like MSN Search or Google for you, what words or
phrases would you want the engine to search for?
In some messages, there may be no words worth
searching for. In others, there may be several.
When possible, the words or phrases should
actually occur in the messages you annotate.
7
TF-IDF baseline

• Extract all possible keyphrases from email (up to
  5 tokens)
• Rank keyphrases by TF-IDF scores
• TF term frequency number of times each
  keyphrase occurs in the email message
• IDF 1/DF number of documents the keyphrase
  occurs in corpus
• Top1 percentage of ranked-1st keyphrases that
  were labeled as relevant
• Top10 number of keyphrases in the top-10 rank
  that were labeled as relevant, normalized by the
  total number of relevant keyphrases (no message
  had more than 10 relevant keyphrases)

8
First ImprovementConstrain Results to Query Log
File

• Query log file top 7.5 million queries to MSN
  Search
• Only return keyphrases from an email if they
  occur in the query log file
• Faster only process keyphrases in message that
  occur in the query log file.
• Creates some errors
• Removes some errors such as occur in the
• Works better!

9
Adding More Features

• Query Log Frequency
• Frequency and log(frequency) of keyphrase
• Capitalization
• Word capitalized before/after, capitalized
  initials in phrase, capitalized letters in
  phrase, etc
• Phrase Length
• Number of characters and number of tokens
• TF IDF based features
• TF, IDF, from Body and from Subject
• Punctuation and Alphanumeric
• Punct before/after, has no alpha, has numbers
  only, etc
• Email Specific
• Has FW in subject, has RE in subject

10
Maximum Entropy Learner (a.k.a. Logistic
Regression)

• Computes
• y is 1 if keyphrase is relevant
• is the feature vector (previous slide
  features)
• Weight vector w learned using a type of
  Generalized Iterative Scaling alg. (SCGIS).
• Rank and cutoff based on probability estimate

11
Rank and cutoff based on probability

• Keyphrases
• Port Angeles
• Lake Crescent
• Olympic National Park
• Atlanta
• Mt. Baker
• Hurricane Ridge
• Marymere Fall
• Beaches on the west coast

• Probability
• 0.121
• 0.105
• 0.034
• 0.031
• 0.022
• 0.012
• 0.009
• 0.004

Cutoff 10
12
Performance Analysis
10-fold cross-validation on the 1143 email
messages
13
Performance Analysis
14
Using Other Learning Algorithms
15
Opportunities for Future Work

• Relax the Query Log restriction
• Use real advertisement data
• Use feedback from users (user can be annoyed,
  etc)
• Use personalization (age, gender, place, etc)

16
Conclusions

• Implicit Query task ? finding good search
  keywords
• Use of large query log from MSN Search
• Maxent to combine features and output
  probabilities ranking and display cutoff
• Most meaningful features are associated with
  query frequency and capitalization
• Results several times better than baseline TF-IDF
  (top 1 and top 10 scores)

17
Thank you
