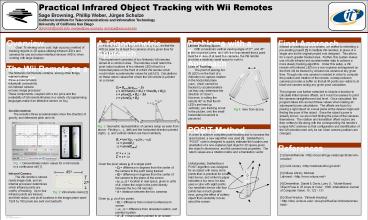

Practical Infrared Object Tracking with Wii
Remotes Sage Browning, Phillip Weber, Jürgen
SchulzeCalifornia Institute for
Telecommunications and Information
Technology University of California San
Diego sbrownin_at_ucsd.edu, pweber_at_soe.ucsd.edu,
jschulze_at_soe.ucsd.edu
Overview
Final Approach
A Trigonometric Approach
Problems with a Trigonometric Approach
The basic model for a trigonometric setup
requires that the HID be seen by at least two
cameras at any given time for tracking to
work. This experiment consisted of two Nintendo
Wii remotes aimed at a common area. The remotes
would return the pixel value locations of two
infrared LEDs fixed in a horizontal plane on the
front of a third Wii remote which would return
accelerometer values for pitch 3. Calculations
on these return values find where the Wii remote
is pointed on a screen.
Limited Working Space With a maximum
vertical viewing angle of 27º, and 45º in the
horizontal plane, and with the requirement that a
point must be in view of at least two cameras,
the Wii remote provides a relatively small space
to work in.
Goal To develop a low cost, high
accuracy method of tracking objects in 3D space
utilizing infrared LED's and cameras for use as
human interface devices (HIDs) when working with
large displays.
Instead of creating our own system, we shifted to
extending a pre-existing project 5 to multiple
Wii remotes, in place of a single one as the
original project was designed. This allows for a
much greater tracked area. Further, this system
makes use of both infrared and accelerometer data
to achieve a more steady tracking algorithm.
Under this setup, a Wii remote with infrared
LEDs in a non-coplanar arrangement on the front
will be tracked by at least one camera at any
given time. Though only one camera is needed in
order to compute the position and rotation of the
remote, overlap between cameras provides a buffer
so that all IR points are visible to at least one
camera during any given pose calculation. The
program was further extended to include a
function to calculate initial camera offsets, as
it would be useless to point the cameras
straightforward and level. Once calculated, the
program takes into account these values when
making all subsequent pose calculations. The
offsets are found by placing a rigid object on a
level plane at the desired origin and finding the
pose of the object. Since the objects pose is
already known, we are in fact finding the pose of
the cameras themselves. The rotation and
translation offset vectors are then written to
file along with the corresponding Wii remotes
unique MAC address so that configuration and
identification of the Wii remotes need only be
run when camera positions are changed.
The Wii Remote as a Sensor
Loss of Tracking The point of placing
two IR LEDs on the front of a Wiimote is to
capture rotation in the horizontal plane (yaw),
which cannot be tracked by accelerometers (as
they only determine the direction of down).
However, in rolling the remote 90º so that the IR
LEDs are lined up vertically, yaw tracking is
lost. In the picture, only the small horizontal
movement is perceived

• The Nintendo Wii Remote contains, among other
  things,
• eleven buttons
• three accelerometers
• bluetooth connectivity
• an infrared camera
• a basic image processor
• These components, coupled with a low price and
  the availability of Wii remote libraries in a
  variety of programming languages make it an
  attractive sensor (or toy).

?i Ømax(pi/pmax - .5) y d/(1/tan(?1 Ø1)
1/tan(?2 Ø2)) x y/tan(?1 Ø1) - .5d z
y/tan(?3 Ø3) Øx tan-1((y1 -
y2)/(x1 - x2)) ?x ytan(Øx)?z
ytan(Øpitch) X x ?x Z z ?z
Fig 4 View from above.
Accelerometers The remotes three
accelerometers show the direction of gravity, and
determine pitch and roll.
Fig. 3 Geometric representation of camera setup
as seen from above. Finding x1, y1 (left) and
the horizontal direction pointed (right). z1 and
vertical rotation are found similarly.
POSIT Method
In order to achieve complete pose tracking and to
increase the area tracked, a new algorithm was
used 4. DeMenthons POSIT code is designed
to quickly estimate the location and orientation
of a non-coplanar rigid object in 3D space given
the objects dimensions, and the camera lens
properties. The return values are a rotation
matrix and a translation vector.
References
1 DarwiinRemote lthttp//sourceforge.net/projects
/darwiin-remote/gt 2 Cwiid Library
lthttp//abstrakraft.org/cwiid/gt 3 Wiiuse
Library, Michael Laforrest, lthttp//www.wiiuse.net
/gt 4 Dementhon, Daniel Davis, Larry S.,
Model-Based Object Pose in 25 Lines of Code,
1995, International Journal of Computer Vision,
15, 123 - 131 5 Oliver Kreylos, Wiimote
Hacking lthttp//idav.ucdavis.edu/okreylos/ResDev
/Wiimote/index.htmlgt
Fig. 1 Demonstrates return values for a Wii
remote in a continuous roll 1
Unfortunately, DeMenthons POSIT algorithm was
designed for an object with many more points than
is practical for a hand held device, and while
his paper indicates a low error, he also uses a
cube with eight points. Our handheld device with
four points has a much greater error, giving the
effect of a jittery object that constantly moves
about the screen.

• Given the pixel values pi of a single point
• ?i difference in degrees from the center of
  the camera to the point being tracked
• Øi difference in degrees from the center of
  the camera to the plane of the screen
• (x, y, z) location in real space, given in
  units of d, where the origin is the point
  directly between the two Wii remotes
• d distance between the two cameras
• Given (x, y, z) of two points
• Øx difference from normal in reference to
  screen
• ?x, ?z difference from absolute location, and
  pointed location
• X, Z final location pointed to on screen

Infrared Camera The Wii remotes camera
reads image data, and an internal processor
determines which infrared points are worthy of
tracking. Up to four infrared points are
tracked, and their radius, and pixel locations
in the image plane sized 1024 by 760 pixels are
sent via bluetooth.
Fig. 2 Wii remote vision 2
