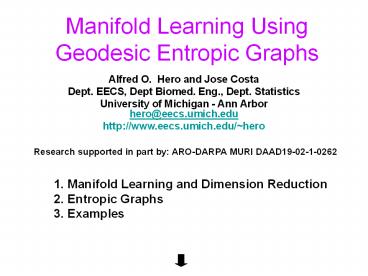

Manifold Learning Using Geodesic Entropic Graphs

• Alfred O. Hero and Jose Costa
• Dept. EECS, Dept Biomed. Eng., Dept. Statistics
• University of Michigan - Ann Arbor
  hero_at_eecs.umich.edu
• http//www.eecs.umich.edu/hero

Research supported in part by ARO-DARPA MURI
DAAD19-02-1-0262

1. Manifold Learning and Dimension Reduction
2. Entropic Graphs
3. Examples

2
1.Dimension Reduction and Pattern Matching

• 128x128 images of three vehicles over 1 deg
  increments of 360 deg azimuth at 0 deg elevation
• The 3(360)1080 images evolve on a lower
  dimensional imbedded manifold in R(16384)

HMMV
T62
Truck
Courtesy of Center for Imaging Science, JHU
3
Land Vehicle Image Manifold
Quantities Of Interest
Embediing (extrinsic) Dimension D
Manifold (intrinsic) Dimension d
Entropy
4
Sampling on a Domain Manifold
2dim manifold
Embedding
Sampling distribution
Sampling
A statistical sample
5
Background on Manifold Learning

1. Manifold intrinsic dimension estimation
2. Local KLE, Fukunaga, Olsen (1971)
3. Nearest neighbor algorithm, Pettis, Bailey, Jain,
   Dubes (1971)
4. Fractal measures, Camastra and Vinciarelli (2002)
5. Packing numbers, Kegl (2002)
6. Manifold Reconstruction
7. Isomap-MDS, Tenenbaum, de Silva, Langford (2000)
8. Locally Linear Embeddings (LLE), Roweiss, Saul
   (2000)
9. Laplacian eigenmaps (LE), Belkin, Niyogi (2002)
10. Hessian eigenmaps (HE), Grimes, Donoho (2003)
11. Characterization of sampling distributions on
    manifolds
12. Statistics of directional data, Watson (1956),
    Mardia (1972)
13. Data compression on 3D surfaces, Kolarov, Lynch
    (1997)
14. Statistics of shape, Kendall (1984), Kent, Mardia
    (2001)

6
2. Entropic GraphsA Planar Sample and its
Euclidean MST
7
MST and Geodesic MST

• For a set of points
  in D-dimensional Euclidean space, the
  Euclidean MST with edge power weighting gamma is
  defined as
• edge lengths of a spanning tree
  over
• When pairwise distances are geodesic
  distances on obtain Geodesic MST
• For dense samplings GMST length MST length

8
Convergence of Euclidean MST
Beardwood, Halton, Hammersley Theorem
9
Convergence Theorem for GMST
Ref CostaHeroTSP2003
10
Special Cases

• Isometric embedding ( distance
  preserving)
• Conformal embedding ( angle preserving)

11
Joint Estimation Algorithm

• Convergence theorem suggests log-linear model
• Use bootstrap resampling to estimate mean MST
  length and apply LS to jointly estimate slope and
  intercept from sequence
• Extract d and H from slope and intercept

12
3. ExamplesRandom Samples on the Swiss Roll

• Ref Tenenbaumetal (2000)

13
Bootstrap Estimates of GMST Length
Bootstrap SE bar (83 CI)
14
loglogLinear Fit to GMST Length
15
Dimension and Entropy Estimates

• From LS fit find
• Intrinsic dimension estimate
• Alpha-entropy estimate (
  )
• Ground truth

16
Dimension Estimation Comparisons
17
Application to Faces

• Yale face database 2
• Photographic folios of many peoples faces
• Each face folio contains images at 585 different
  illumination/pose conditions
• Subsampled to 64 by 64 pixels (4096 extrinsic
  dimensions)
• Objective determine intrinsic dimension and
  entropy of a typical face folio

18
GMST for 3 Face Folios
Ref CostaHero 2003
19
Conclusions
Advantages of Geodesic Entropic Graph Methods

• Characterizing high dimension sampling
  distributions
• Standard techniques (histogram, density
  estimation) fail due to curse of dimensionality
• Entropic graphs can be used to construct
  consistent estimators of entropy and information
  divergence
• Robustification to outliers via pruning
• Manifold learning and model reduction
• LLE, LE, HE estimate d by finding local linear
  representation of manifold
• Entropic graph estimates d from global resampling

• Computational complexity of MST is only n log n

20
References

• A. O. Hero, B. Ma, O. Michel and J. D. Gorman,
  Application of entropic graphs, IEEE Signal
  Processing Magazine, Sept 2002.
• H. Neemuchwala, A.O. Hero and P. Carson,
  Entropic graphs for image registration, to
  appear in European Journal of Signal Processing,
  2003.
• J. Costa and A. O. Hero, Manifold learning with
  geodesic minimal spanning trees, accepted in
  IEEE T-SP (Special Issue on Machine Learning),
  2004.
• A. O. Hero, J. Costa and B. Ma, "Convergence
  rates of minimal graphs with random vertices,"
  submitted to IEEE T-IT, March 2001.
• J. Costa, A. O. Hero and C. Vignat, "On solutions
  to multivariate maximum alpha-entropy Problems",
  in Energy Minimization Methods in Computer Vision
  and Pattern Recognition (EMM-CVPR), Eds. M.
  Figueiredo, R. Rangagaran, J. Zerubia,
  Springer-Verlag, 2003
