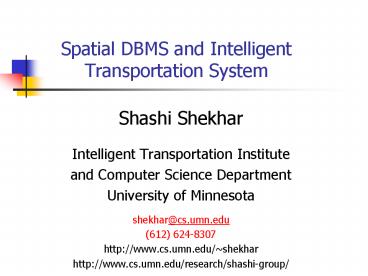

Spatial DBMS and Intelligent Transportation System

1
Spatial DBMS and Intelligent Transportation System

• Shashi Shekhar
• Intelligent Transportation Institute
• and Computer Science Department
• University of Minnesota
• shekhar_at_cs.umn.edu
• [phone]
• http//www.cs.umn.edu/shekhar
• http//www.cs.umn.edu/research/shashi-group/

2
Biography Highlights

• 7/01-now Professor, Dept. of CS, U. of MN
• 12/89-6/01 Asst./Asso. Prof. of CS, U of MN
• Ph.D. (CS), M.B.A., U of California, Berkeley
  (1989)
• Member CTS(since 1990),Army Center, CURA
• Author A Tour of Spatial Database (Prentice
  Hall, 2002) and 100 papers in Journals,
  Conferences
• Editor Geo-Information(2002-onwards), IEEE
  Transactions on Knowledge and Data Eng.(96-00)
• Program chair ACM Intl Conf. on GIS (1996)
• Tech. Advisor UNDP(1997-98), ESRI(1995), MNDOT
  GuideStar(1993-95 on Genesis Travlink)
• Grants FHWA, MNDOT, NASA, ARMY, NSF, ...
• Supervised 7 Ph.D Thesis (placed at Oracle, IBM
  TJ Watson Research Center etc.), 30 MS. Thesis

3
Research Interests

• Knowledge and Data Engineering
• Spatial Database Management
• Spatial Data Mining(SDM) and Visualization
• Geographic Information System
• Application Domains Transportation,
  Climatology, Defence Computations

4
Spatial Data Mining, SDBMS

• Historical Examples
• London Cholera (1854)
• Dental health in Colorado
• Current Examples
• Environmental justice
• Crime mapping - hot spots (NIJ)
• Cancer clusters (CDC)
• Habitat location prediction (Ecology)
• Site selection, assest tracking, spatial outliers

5
ITS Database Systems
Highway Based Sensor
Drivers

• ITS
• Database

Home, office Shopping mall Information center, PCS
Traffic Reports
Road Maps City Maps Construction
Schedule Business Directory
Transportation Planners, Policy Maker
6
SDBMS SDM in ITS

• Operational
• Routing, Guidance, Navigation for travelers and
  Commuters
• Asset tracking in APTS, CVO for security, and
  customer service
• Emergency services
• Ramp meter control (freeway operation)
• Incident management
• Tactical
• Event planning (maintenance, sports connection)
• Infrastructure security - patrol routes
• Snow cleaning routes and schedules
• Impact analysis (e.g. Mall of America)
• Strategic
• Travel demand forecasting for capacity planning
• Public transportation route selection
• Policy decision(e.g. HOV lanes, ramp meter study)

• Research Driving Simulation and Safety

7
SDBMS and SDM in ITS

• Transportation Manager
• How the freeway system performed yesterday?
• Which locations are worst performers?
• Traffic Engineering
• Where are the congestion (in time and space)?
• Which of these recurrent congestion?
• Which loop detection are not working properly?
• How congestion start and spread?
• Traveler, Commuter
• What is the travel time on a route?
• Will I make to destination in time for a meeting?
• Where are the incident and events?
• Planner and Research
• How much can information technique to reduce
  congestion?
• What is an appropriate ramp meter strategy given
  specific evolution of congestion phenomenon?

8
Transportation Projects

• Traffic Database System
• Traffic Data Visualization
• Spatial Outlier Detection
• Roadmap storage and Routing Algorithms
• Road Map Accuracy Assessment
• Other
• Driving Simulation
• In-vehicle headup display evaluation

9
Project Traffic Database System

• Sponsor and time-period MNDOT, 1998-1999
• Students Xinhong Tan, Anuradha Thota
• Contributions to Transportation Domain
• Reduce response of queries from hours to minutes
• Performance tuning (table design, index
  selection)
• Contributions to Computer Science
• GUI design for extracting relevant summaries
• Evaluate technologies with large dataset

10
Map of Station in Mpls
11
Gui Design

• http//www.cs.umn.edu/research/shashi-group/TMC/ht
  ml/gui.html

12
Flow of Data From TMC

Storage at University of Minnesota
FTP link
Data made available for researchers
TMC Server
Binary
ASCII
FTP link
FTP link
PC
FTP link
Conversion programs
Convert binary to 5min data
13
Existing Table
Fivemin
Detector ReadDate Time Dayofweek Volume Occupancy
Validity Speed
14
Table Designs
Fivemin
Current
Detector
ReadDate
Time
Volume
occupancy
validity
speed
Day_week
Fivemn_day
Proposed-1
ReadDate
Detector
Vol_Occ_Validty
Five_min
Proposed-2
Detector
Time_id
Volume
occupancy
validity
DateTime
Time_id
ReadDate
Time
Five_min
MN/Dot
Vol_5_ min
Occl_5_ min
Validity_5_ min
Detector
ReadDate
Hour
time
15mn
1hr
Day_week
Five_min
Binary
Detector
ReadDate
Time
Volume
occupancy
validity
15
Benchmark Queries

• 1. Get 5-min Volume, occupancy for detector ID
  10 on Oct. 1st, 1997 from 7am to 8am
• 2. Get 5-min volume, Occupancy for detector 5
  on Aug1 1997.
• 3. Get 5-min volume, Occupancy for detector 5
  on Aug1 1997 from 6.30am to 7.30am.
• 4. Get average 5-min volume, occupancy, for
  Monday in Aug1997 between 8.00 - 8.05,8.05-8.10
  9.00
• 5. Get maximum volume, Occupancy for detector 5
  on Aug1 1997 from 6am to 7am
• 6. Get the average of AM rushhour hourly volume
  for a set of stations on highway I35W-NB with
  milepoint between 0.0 and 4.0 from Oct. 1st, 1997
  to Oct. 5th , 1997

Conclusion
16
Examples of the Query

• Example1
• Query description
• Get 5-min Volume, occupancy for detector ID 10
  on Oct. 1st, 1997 from 7am to 8am
• SQL statement
• SELECT readdate, time, xtan.fivemin.detector,
  occupancy, volume
• FROM xtan.fivemin, xtan.datetime
• WHERE ReadDate to_date('01-OCT-97',
  'DD-MON-YYYY')
• AND time BETWEEN '0705' AND '0800'
• AND xtan.fivemin.Detector '10'
• AND xtan.fivemin.

17
Examples of the Query

• Query result 1

18
Examples of the Query

• Example2
• Query description
• Get the average of AM rushhour hourly volume for
  a set of stations on highway I35W-NB with
  milepoint between 0.0 and 4.0 from Oct. 1st, 1997
  to Oct. 5th , 1997
• SQL statement
• SELECT hour, xtan.v_stat_hour.station,
  avg(volume)
• FROM tan.v_stat_hour, xtan.statrdwy
• WHERE ReadDate BETWEEN to_date('01-OCT-97','DD-MON
  -YYYY') AND to_date('05-OCT-97','DD-MON-YYYY')

• AND hour BETWEEN '06' AND '09'
• AND statrdwy.route 'I35W-I'
• AND statrdwy.mp gt 0.0
• AND statrdwy.mp lt 4.0
• AND xtan.v_stat_hour.station statrdwy.station
• GROUP BY xtan.v_stat_hour.station, hour

19
Examples of the Query

• Query result 2

20
Conclusions

• MN/Dot model and Proposed-II(Normalized) are the
  two recommended models for the final structure

Proposed-II
MN/Dot
Conversioneffort
Needs new loading program
Little modification on existing loading process
Same format remains
Future Compatibility
Number of columns increases
Effort needed for derived data
Fifteenmin hourly data exist, station data
needs to be derived
Derived data
Query
More flexible
Less flexible
21
Project Traffic Data Visualization

• Sponsor and time-period USDOT/ITS Inst.,
  2000-2001
• Students Alan Liu, CT Lu
• Contributions to Transportation Domain
• Allow intuitive browsing of loop detector data
• Highlight patterns in data for further study
• Contributions to Computer Science
• Mapcube - Organize visualization using a
  dimension lattice
• Visual data mining, e.g. for clustering

22
Motivation for Traffic Visualization

• Transportation Manager
• How the freeway system performed yesterday?
• Which locations are worst performers?
• Traffic Engineering
• Where are the congestion (in time and space)?
• Which of these recurrent congestion?
• Which loop detection are not working properly?
• How congestion start and spread?
• Traveler, Commuter
• What is the travel time on a route?
• Will I make to destination in time for a meeting?
• Where are the incident and events?
• Planner and Research
• How much can information technique to reduce
  congestion?
• What is an appropriate ramp meter strategy given
  specific evolution of congestion phenomenon?

23
Dimensions

• Available
• TTD Time of Day
• TDW Day of Week
• TMY Month of Year
• S Station, Highway, All Stations
• Others
• Scale, Weather, Seasons, Event types,

24
Mapcube Which Subset of Dimensions ?
TTDTDWTMYS
TTDTDWS
TTDTDW
TDWS
STTD
S
TTD
TDW
Next Project
25
Singleton Subset TTD
Configuration

• X-axis time of day Y-axis Volume
• For station sid 138, sid 139, sid 140, on
  1/12/1997

Trends

• Station sid 139 rush hour all day long
• Station sid 139 is an S-outlier

26
Singleton Subset TDW

• Configuration

• X axis Day of week Y axis Avg. volume.
• For stations 4, 8, 577
• Avg. volume for Jan 1997

• Friday is the busiest day of week
• Tuesday is the second busiest day of week

Trends
27
Singleton Subset S
Configuration

• X-axis I-35W South Y-axis Avg. traffic
  volume
• Avg. traffic volume for January 1997

Trends?

• High avg. traffic volume from Franklin Ave to
  Nicollet Ave
• Two outliers 35W/26S(sid 576) and 35W/TH55S(sid
  585)

28
Dimension Pair TTD-TDW
Configuration

• X-axis time of date Y-axis day of Week
• f(x,y) Avg. volume over all stations for Jan
  1997, except Jan 1, 1997

Trends

• Evening rush hour broader than morning rush hour
• Rush hour starts early on Friday.
• Wednesday - narrower evening rush hour

29
Dimension Pair S-TTD

• Configuration
• X-axis Time of Day
• Y-axis Highway
• f(x,y) Avg. volume over all stations for 1/15,
  1997
• Trends
• 3-Cluster
• North sectionEvening rush hour
• Downtown area All day rush hour
• South sectionMorning rush hour
• S-Outliers
• station ranked 9th
• Time 235pm
• Missing Data

30
Dimension Pair TDW-S

• X-axis stations Y-axis day of week
• f(x,y) Avg. volume over all stations for
  Jan-Mar 1997

Configuration

• Busiest segment of I-35 SW is b/w Downtown MPLS
  I-62
• Saturday has more traffic than Sunday
• Outliers highway branch

Trends
31
Post Processing of cluster patterns

• Clustering Based Classification
• Class 1 Stations with Morning Rush Hour
• Class 2 Stations Evening Rush Hour
• Class 3 Stations with Morning Evening Rush
  Hour

32
Triplet TTDTDWS Compare Traffic Videos
Configuration Traffic volume on Jan 9 (Th) and
10 (F), 1997

• Evening rush hour starts earlier on Friday
• Congested segments I-35W (downtown Mpls
  I-62)
• I-94 (Mpls St. Paul) I-494 ( intersection
  I-35W)

Trends
33
Size 4 Subset TTDTDWTMYS(Album)

• Outer X-axis (month of year) Y-axis (highway)

• Inner X-axis (time of day) Y-axis (day of
  week)

Configuration
Trends

• Morning rush hour I-94 East longer than I-35 W
  North
• Evening rush hour I-35W North longer than I-94
  East
• Evening rush hour on I-94 East Jan longer than
  Feb

34
Project Spatial Outlier Detection

• Sponsor and time-period USDOT/ITS Inst.
  (2000-2002)
• Students C T Lu, Pusheng Zhang
• Contributions to Transportation Domain
• Filter/reduce data for manual browsing
• Identify days with spatial outliers
• Identify sensors with anamolous behaviour
• Contributions to Computer Science
• Unified definition of spatial outliers using
  algebraic aggregates
• Spatial outlier detection algorithm scan
  spatial join

35
Algorithms for Spatial outlier detection

• Spatial outlier
• A data point that is extreme relative to
• it neighbors
• Given
• A spatial graph GV,E
• A neighbor relationship (K neighbors)
• An attribute function f V -gt R
• Test T for spatial outliers
• Find
• O vi vi ?V, vi is a spatial outlier
• Objective
• Correctness, Computational efficiency
• Constraints
• Computation cost dominated by I/O op.
• Test T is an algebraic aggregate function

36
Spatial outlier detection

• Example Outlier Detection Test
• 1. Choice of Spatial Statistic
• S(x) f(x)E y? N(x)(f(y))
• Theorem S(x) is normally distributed
• if f(x) is normally
  distributed
• 2. Test for Outlier Detection
• (S(x) - ?s) / ?s gt ?
• Hypothesis
• I/O cost f( clustering efficiency )

f(x)
S(x)
Spatial outlier and its neighbors
37
Spatial outlier detection

• Results
• 1. CCAM achieves higher clustering efficiency
  (CE)
• 2. CCAM has lower I/O cost
• 3. Higher CE leads to lower
• I/O cost
• 4. Page size improves CE for
• all methods

I/O cost
CE value
Cell-Tree
Z-order
CCAM
38
Project Roadmap storage and Routing Algorithms

• Sponsor and time-period FHWA/MNDOT, 1993-1997
• Students Prof. Du-Ren Liu, Dr. Mark Coyle,
• Andrew Fetterer, Ashim Kohli, Brajesh Goyal
• Contributions to Transportation Domain
• CRR measure of storage methods for roadmaps
• In-vehicle navigation devices, routing servers
  on web
• Contributions to Computer Science
• CCAM - Better storage method for roadmaps
• Hierarchical routing - optimal routes
• even when map-size gt memory size

39
Road Map Storage - Problem Statement

• Given roadmaps
• Find efficient data-structure to store roadmap on
  disk blocks
• Goal - Minimize I/O-cost of operations
• Find(), Insert(), Delete(), Create()
• Get-A-Successor(), Get-Successors()
• Constraint
• Roadmaps larger than main memories

40
Mpls map partitioning 1
Another way that we may partition the street
network for Minneapolis among disk blocks for
improving performance of network computations.
41
Mpls map partitioningCCAM
This is one way that we may partition the street
network for Minneapolis among disk blocks for
improving performance of network computations.
42
Road Map Storage

• Insight I/O cost of network operations is
  minimized by maximizing
• CRR Pr. ( road-intersection nodes connected by
  a road-segment edge are together in a disk page)
• WCRR weighted CRR (edges have weights)
• Commercial database support geometric storage
  methods even though CRR is a graph property

43
Measurements of CRR
44
Shortest Path Problem

• Route computation
• Find a rout from current location to destination
• Criteria Shortest travel distance or smallest
  travel time
• Useful for
• Travel during rush hour
• Travel in an unfamiliar area
• Travel to an unfamiliar destination

45
Problem definition

• Given
• Graph G(N,E,C)
• Each edge (u,v) in E has a cost C(u,v)
• Path from source to destination is a sequence of
  nodes
• Cost of path?C(vi-1,vi)
• A path cost estimation is a function f(u,v) that
  computes estimated cost of an optional path
  between the two nodes

46
Smallest Paths
Blue Smallest travel time path between two
points. It follows a freeway (I-94) which is
faster but not shorter in distance. Red
Shortest distance path between the same two points
47
Routing around incidents
48
Algorithm for Single pair Path Computation

• Road Map SizeltltMain Memory Size
• Iterative Algorithm
• Dijkstras Algorithm
• A algorithm
• A with euclidean distance heuristic
• A with manhattan distance heuristic
• Road Map Size gtgt Main Memory Size
• Traditional algorithm run into difficulties!
• Hierarchical Algorithm

49
Motivation for Hierarchical Algorithms

• Road Map Size gtgt Main Memory Size
• Traditional algorithms yield sub-optimal path
• Heuristics - bounding box (source, destination)
  or Freeway first then sideroads
• Example Microsoft Expedia
• route(Tampa FL to Miami, FL via Canada)
• Need an algorithm to give optimal route
• A piece of roadmap in memory at a time
• Intuition - travelling from island to island

50
Hierarchical Routing Step 1

• Step 1 Choose Boundary Node Pair
• Minimize COST(S,Ba)COST(Ba,Bd)COST(Bd,D)
• Determining Cost May Be Non-Travial

51
Hierarchical Routing Step 2

• Step 2 Examine Alternative Boundary Paths
• Between Chosen Pair (Ba,Bd)

52
Hierarchical Routing Step 2 result

• Step 2 Result Shortest Boundary Path

53
Hierarchical Routing Step 3

• Step 3 Expand Boundary Path (Ba1,Bd) -gt Ba1
  Bda2 Ba3 Bda4Bd
• Boundary Edge (Bij,Bj) -gtfragment path
  (Bi1,N1N2N3.Nk,Bj)

54
Project Road Map Accuracy Assessment

• Sponsor and time-period 10 State DOTs,
  2001-2003
• Co-investigators Prof. Max Donath, Dr. Pi-Ming
  Chen
• Students Weili Wu, Hui Xiong, Zhihong Yao
• Contributions to Transportation Domain
• Defining map accuracy for navigable roadmaps
• Site selection for evaluating GPS and roadmap
  accuracy
• Contributions to Computer Science
• Definition of Co-location patterns with linear
  features
• Efficient algorithms for finding those

55
Motivation Identify road given GPS

• GPS accuracy and roadmap accuracy
• Garmin error circle
• USA topo

56
Road Map Accuracy

• Evaluation of digital road map databases
• road user charge system needs accuracy, coverage
• Goals
• Recommend a cost-effective approach
• Develop the content and quality requirements
• Rationale
• Each GIS dataset can contain various errors
• From different sources
• E.g. Map Scale, Area Cover, Density of
  Observations
• Failure to control and manage error
• Limit or invalidate GIS applications

57
Map analysis questions

• Site Selection
• Which road segments are vulnerable for
  mis-classification given GPS accuracy?
• Feasibility Issue
• What fraction of highway miles are vulnerable?

58
Problem Definition

• Given
• A digital roadmap and a Gold standard
• Find
• Spatial Accuracy of the given GIS dataset
• Objective
• Fair, reliable
• Constrains
• Gold-standard accuracy is better than GIS
  dataset accuracy

59
Framework to test positional accuracy

• Compare with a reference of higher accuracy
  source
• find a larger scale map
• use the Global Positioning System (GPS)
• use raw survey data
• Use internal evidence
• Indications of inaccuracy
• Unclosed polygons, lines which overshoot or
  undershoot junctions
• A measure of positional accuracy
• The sizes of gaps, overshoots and undershoots
• Compute accuracy from knowledge of the errors
• By different sources, e.g
• 1 mm in source document
• 0.5 mm in map registration for digitizing
• 0.2 mm in digitizing

60
Approach 1 Visual

• Overlay of GPS Tracks Vs. Road Maps

Tiger-based Map
USGS Digital Map
61
2 National Map Accuracy Standard

• Pr. distance( P on map, real P) lt D gt 0.9
• Tiger file in Windham County, VT (50025)

62
Limitations of Related Work, Our Approach

• Natl. map accuracy standard
• Based on land survey of a sample of points
• Not aware of GPS accuracy
• Mixes lateral error and longitudal error
• Our Approach
• Lateral vs. longitudal positional accuracy
• Road classification accuracy
• Attribute accuracy

63
Positional Accuracy

• Lateral accuracy
• Perpendicular (RMS) distance from GPS reading to
  center line of road in road map.
• Longitudinal accuracy
• Definition horizontal distance from GPS reading
  to corresponding Geodetic point.

Comment Lateral error is more important when
closest road is paralled Longitudinal error is
important for other case
64
Road Classification Accuracy

• Probability of correctly classifying road for a
  given GPS
• Fraction of miles of roads correctly classified
• at given confidence level (e.g. 90)

65
Attribute Accuracy Completeness

• Interesting Attributes
• Economic attributes - administration zone(s),
  congestion zones
• Route attribute - name, type, time restrictions
• Route segment - direction, type (e.g. bridge),
  restrictions
• Routing attributes - intersections, turn
  restrictions
• Definition of Attribute Accuracy
• PrValue of an attribute for given road segment
  is correct
• Definition of Completeness
• Pra roads segment is in digital map
• Prattribute value is not defined for a road
  segment
• Scope
• Small sample

66
Core Activities

• Acquire digital road maps
• Select test sites
• Gather gold standard data for test site
• GPS tracks, Surveys, etc.
• Complete subsets of road maps for test sites
• Compute accuracy measures
• Statistical analysis
• Visualization

67
Map Acquisition

• Etak/Tele Atlas map data for 7 counties of
  metropolitan Twincities

68
Site Selection

• Red another road within digen distance
  threshold (e.g. 30m)
• Blue no other road withindistance threshold

69
Site Selection - Zoom in

• Around Hwy 100, 169,7 in SW metro

70
Comparing GPS tracks and maps

• Overlay of GPS tracks and digital road map (Hwy
  7)

71
Comparing GPS tracks and maps

• Overlay of GPS tracks and digital road map (Hwy
  7)

72
Other Challenges

• Center-line representation of roads
• Two-dimensional maps
• Multi-level roads
• Altitude issues
• Map matching

73
Conclusions

• Spatial databases, data mining and visualization
• Are useful for many ITS problems
• We have only scratched the surface so far
• Many new exciting opportunities
• ATMS visualize freeway operations for
  operations, and planning, communicate impact of
  policies on freeway operations to public and
  lawmakers, new insights into congestion patterns,
• APTS track buses for customer service,
  sercurity communicate impact of APTS in reducing
  congestion.
• ATIS understand traffic behaviour for route and
  transportation mode selection

74
Motivation for Traffic Visualization

• Transportation Manager
• How the freeway system performed yesterday?
• Which locations are worst performers?
• Traffic Engineering
• Where are the congestion (in time and space)?
• Which of these recurrent congestion?
• Which loop detection are not working properly?
• How congestion start and spread?
• Traveler, Commuter
• What is the travel time on a route?
• Will I make to destination in time for a meeting?
• Where are the incident and events?
• Planner and Research
• How much can information technique to reduce
  congestion?
• What is an appropriate ramp meter strategy given
  specific evolution of congestion phenomenon?
