Techniques and Procedures I RC 170

1

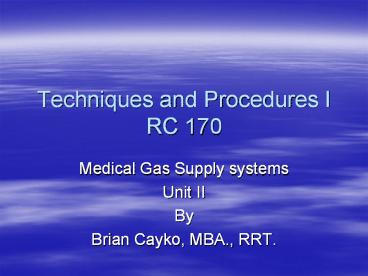

Techniques and Procedures IRC 170

• Medical Gas Supply systems
• Unit II
• By
• Brian Cayko, MBA., RRT.

2
Tank Jockeys O2 Monkeys

• Historically the primary role of OJT Resp techs
  was to supply deliver O2 tanks to patient care
  areas
• Though we have evolved, delivery of medical gases
  remains key
• Therapeutic gases
• Used to relieve symptoms improve hypoxemia
  Lexicon

3
Oxygen (O2)

• Characteristics
• Colorless
• Odorless
• Transparent
• Tasteless
• Nonflammable
• Supports combustion
• Concentration Pressure influence rate

4
O2 Production

• Frax Distilax
• Physical Seperax

5
O2 Producx

• Frax Distilax
• Most common, least expensive
• Method
• Air is filtered
• Then liquefied by comprex, cooled by rapid expanx
  (JT effect)
• The resulting N2 O2 mix is heated slowly in
  distillation tower
• N2 boils off first, liquid O2 remains
• Either stored as liquid in cryogenic cylinder or
  as gas in compressed gas cylinder
• 99.5 pure, FDA requires at least 99.0

6
O2 Producx

• Physical Separax
• Molecular Sieves
• Inorganic Sodium Aluminum Silicate Pellets
• Absorb N2, trace gases, water vapor
• gt90 O2 concentrax
• Semi-permeable membrane vacuum
• 40 O2 concentrax
• Utilized by O2 Concentrators for home caer use
  (Low Flow)

7
Air

• Colorless
• Odorless
• Density 1.29g/L at STPD
• Used as standard for measuring specific gravity
  of gases
• Medical gas must be dry free of
  oil/contanimants
• Cooled to dry
• Filter to clean
• Standard Working Pressure for Medical gases 50
  psi
• Home compressors available providing much lt 50psi
• Ideal for SVN
• Never for vent or other pneumatically powered
  equip.

8
Composition of Room Air

• Nitrogen 78.08
• Oxygen 20.946
• Argon 0.934
• Carbon Dioxide 0.0335
• Helium 0.000524
• Nitrous Oxide 0.000114

9
Carbon Dioxide (CO2)

• Colorless
• Odorless
• Does not support combustion or maintain animal
  life
• 1.5 xs heavier than air, i.e. specific gravity
  of 1.5

10
CO2

• Uses
• Historically
• Singultus or hiccups
• Resorbtive Atelectasis
• Current
• Membrane oxygenation (heart/lung machine)
• Co-oximetry calibration
• 1 is for acid/base balance of blood, diagnostic

11
Helium (He)

• Odorless
• Colorless
• Non-flammable
• Poorly soluble in water
• SG of .1785, second lightest gas to H
• Inert (unreactive)- does not support life
• must always be at least 20 O2 80 He mix, i.e.
  Heliox
• He low density decreases WOB
• Rarely used in severe airway obstruction

12
Nitrous Oxide (N2O)

• Colorless
• Slightly sweet odor test
• Supports combustion
• Beneficial for Anasthetic affect
• CNS depressant
• Does not support life
• Must be at least 80/20 N2O/O2 mix
• Used with other anesthetic agents b/c of its
  toxicity at high levels, gt25ppm
• Full anesthetic effect at high, gt25ppm,
  concentrations.

13
Nitric Oxide (NO)

• colorless
• non-flammable
• supports combustion
• toxic
• FDA approved
• Term/near term neonates w/ hypoxic respiratory
  failure, PHTxN
• To be used before extracorpeal membrane oxygenax
  (ECMO)
• Contra-indicated for premies

14
Nitric Oxide (NO)

• NO air Nitrogen Dioxide NO2
• NO2 is a strong pulmonary irritant, pneumonitis
• Can cause fatal pulmonary edema
• Byproduct of the metabolism of NO is
  Met-hemoglobin
• High levels of methemoglobin reduces the amount
  of available Hgb available for oxygen uptake,
  resulting in tissue hypoxia

15
Storage of Medical Gases

• Gas Cylinders
• Markings
• Front
• DOT or ICC (interstate commerce commix)
  classificax
• 3A Carbon Steel
• 3AA Steel Alloy, stronger
• filling Pressure (psi)
• Owners mark
• Class of Tank, i.e. size
• E H are most common

16
Storage of Medical Gases

• Gas Cylinders
• Markings
• Back
• Material method of manufacture
• EE elastic expansion
• Retesting Dates codes
• indicates ten year retest
• indicates tank is good for 10 fill above
  filling P.
• Hydrostatic Testing

17
Storage of Medical Gases

• Gas Cylinders
• Color Codes Labels T 37-2 united states, KNOW
  These
• Color codes are not standardized internationally
  therefore the labels must always be verified
  before administrax
• O2 green
• Air - Yellow
• NO Teal - Nitric
• N2O Blue - Nitrous
• CO2 gray

18
Storage of Medical Gases

• Gas Cylinders
• Sizes content
• Small (xport anesthesia)
• E AA
• Post Valve connector
• Large
• F-H/K
• Threaded Valve connector

19
Storage of Medical Gases

• Cylinder Safety Relief Valves
• Frangible Disk ruptures
• Fusible Plug
• Melts
• Small Cylinders
• Spring Loaded
• Opens
• Large cylinders

20
Storage of Medical Gases

• Filling or Charging Cylinders
• Compressed Gases
• Filled to service P _at_ 70F or 10 if approved
• Service P is stamped on cylinder shoulder
• Liquified Gases
• For Gases with Critical Temps above Room Temp
• Will store as a liquid
• Filled using ration of liquid stored density to
  water density
• CO2 density is 68 of water, so it fills the
  cylinder 68 of the weight of water that cylinder
  can hold
• Cryongenic to be discussed later

21
Storage of Medical Gases

• Measuring Cylinder Contents
• Compressed Gas Cylinders
• _at_ constant T, V is directly proportional to P
• If 2200psig is 100 then 550psig is 25 full

22
Storage of Medical Gases

• Measuring cylinders
• Liquid Gas Cylinders
• Gauge measures vapor P, thus
• As long as there is liquid present, vapor
  pressure remains constant at a constant T
• Once liquid is fully vaporized, gauge measures
  content
• When empty or
• When temp is allowed to rise above crit temp
• As temp increases more liquid vaporizes gauge
  reads higher P, above crit temp all liquid is
  vapor gauge will read accurately.
• Weighing is the only accurate method to check
  contents of liquid in a cylinder

23
Gas Cylinder

Liquid Cylinder
24
Storage of Medical Gases

• Estimating Duration of Gas Cylinder
• Dependant on
• Flow
• Cylinder size
• Cylinder Pressure
• Duration of flow is directly proportional to the
  contents (pressure) inversely proportional to
  flow
• Cylinder factors T37-5
• Represent the volume of gas leaving a cylinder
  per psi
• Know O2 cylinder factors for E, G, H
• E .28 or 3
• G 2.4 or 2.5
• H 3.14 or 3, or Pi

25
Storage of Medical Gases

• Estimating Durax
• Duraton in min (Psi)(cylinder factor) / Flow
  in L/m
• 154 min (2200)(.28) / 4L/m O2 in an E
  cylinder
• 165 min (2200)(.3) / 4L/m
• Rule of 10
• A full E cylinder _at_ 10 L/m will run for 1 hour, _at_
  5L/m for 2hours, 2.5l/m for 4 hours
• A full H cylinder will last 10 times longer than
  an E

26
Storage of Medical Gases

• Estimating Duration of Liquid Cylinder
• Weight
• 1L liquid O2 weighs 2.5lbs
• 1L liquid O2 860 L O2 gas
• Gas in cylinder (L) liquid O2 weight x 860 /
  2.5 lb/L
• Duration of Gas (min) Gas in cylinder (L) /
  Flow (L/m)

27
Storage of Medical Gases

• Gas Cylinder Safety
• Storage
• Rack em
• Away from combustibles heat
• No smoking signs, oxidizing agents sign
• Separate flammable and combustable supporting
  gases
• Keep cap in place when not in use
• Separate or at least designate full empty
  containers
• Liquid containers must be in well vented, cool
  areas
• Liquid O2 tanks constantly vent gas to prevent
  pressure build ups since at room temp liquid O2
  is constantly vaporizing

28
Storage of Medical Gases

• Gas Cylinder Safety
• Xport
• Use carts cylinder caps
• Protect from hitting other objects
• Use
• Secure cylinders
• No smoking signs
• Do not use flammable materials near them,
  especially oil or grease
• crack cylinder before use
• ASSS for H
• PISS for E

29
Storage of Medical Gases

• Bulk O2
• Required by large acute facilities
• gt20,000 cubic ft of gas
• Liquid storage is most common
• Central storage with piping t/o facility to quick
  connects
• More affordable over the long run
• Less prone to interruption
• Safer than cylinders
• Central pressure regulation rather than at each
  connect
• Low pressure system

30
Storage of Medical Gases

• Gas Supply systems
• Cylinder Manifold or alternating supply
• Cylinder supply with reserve
• Bulk gas with reserve

31
Storage of Medical Gases

• Bulk O2 Safety
• Reserves are mandatory to supply the daily
  average hospital use of O2
• RTs must be ready to provide tanks to vent
  high O2 patients

32
Distribux Regulax of Med Gas

• Central Piping Systems
• Primary function
• Must be piped to pt room
• Must be reduced to 50psi, standard working P
• May include air, O2, vacuum specialty gases
• Pt safety is priority regardless of delivery
  method
• RTs must be familiar with these
  systems/connections
• Safety connectors are used to ensure
  misconnections do not occur
• Zone valves allow shut off to specific areas for
  maintenance/fire

33
Central Supply

34
Zone Valves

35
Distribux Regulax of Med Gas

• Safety Indexed Connector Systems
• ASSS American Standard Safety System
• Large cylinders (high P)
• Uses variation In threads for each gas

36
Distribux Regulax of Med Gas

• Safety Indexed Connector Systems
• PISS Pin Index Safety System
• Small cylinders (high P)
• Pin-holes vary for each gas type

37
Distribux Regulax of Med Gas

• Safety Indexed Connector Systems
• DISS Diameter Index Safety System F37-16
• Low P outlets
• Usually for
• Inlets of flowmeters, blenders, vents other
  Pneumatics
• Outlet valves
• P reducing valves
• Different sizes for different gases

38
DISS

39
Distribux Regulax of Med Gas

• Safety Indexed Connector Systems
• QC Quick Connect System F37-17
• Station outlets, (Low P)
• Unique shaped connectors for each gas

40
Distribux Regulax of Med Gas

• Regulating Gas Pressure Flow
• P Flow must be regulated for use
• Cylinder gases exert to much P to use safely
• Reducing Valve
• Reduces gas Press to 50Psi
• Flowmeter
• Controls gas flow
• Regulator
• Reduces P controls flow

41
Connecxs

42
Distribux Regulax of Med Gas

• High-Pressure Reducing Valves
• Preset
• Inlet Valve
• Inlet P gauge
• Hi P chamber
• Ambient P chamber
• Flexible diaphragm
• Calibrated spring
• Provides constant adjustment
• Keeps P at 50psi
• Valve stem
• Hith P inlet
• Gas outlet
• Safety vent 200psi

43
Distribux Regulax of Med Gas

• Adjustable F37-20
• Just like Preset, but hand control allows spring
  tenx adjustment b/w 0-100psi
• Multi-Stage
• Essentially two single stage valves connected in
  series
• Reduces P in two increments
• Provide very constant P smooth Flow
• Good for research
• Expensive for hospital work

44
Distribux Regulax of Med Gas

• Proper Use B37-1
• Secure cylinder
• Remove cap
• Crack cylinder to remove debris
• Inspect for dirt/damge, check label
• Tighten regulator on to tank
• Slowly open to pressurize gauge

45
Distribux Regulax of Med Gas

• Low-Pressure Gas Flowmeters
• Medical gas is a drug, prescribed in L/m
• Gas mixing delivery devices require expert
  knowledge
• Flow Restrictor F37-21
• Simplest least expensive
• Calibrated to deliver a set flow, psi of 50
  constant
• Fixed orifice
• Non-gravity dependant
• 0.5 l/m 3l/m increments are common
• Common in HO2

46
Distribux Regulax of Med Gas

• Low P gas flowmeters
• Bourdon Gauge F37-22,23
• Controls flow regulates P
• Fixed orifice, variable P
• Gauge senses upstream P but is calibrated to
  indicate flow
• Increasing P increases flow
• Non-gravity dependant
• Ideal for xport
• Disadvantage
• Backpressure downstream from orifice will reduce
  flow delivered, however b./c gauge actually
  measures upstream Pressure, gauge will indicate
  an erroneously High reading of flow. F37-24

47
Bourdon Gauge

48
Distribux Regulax of Med Gas

• Low P gas flowmeters
• Thorpe Tube F37-25,26,27
• Always attached to a reducing valve or low P wall
  outlet
• Constant P
• Variable orifice
• Thorpe tube is increasingly widening from bottom
  to top.
• Gas flow pushes up float in tube against gravity,
  ATM P
• Measures flow only, not P like bourdon gauge
• Compensated V. Noncompensated

49
Thorpe tube Flowmeter

50
Distribux Regulax of Med Gas

• Thorpe Tube
• Non-Compensated
• Downstream P raises the pressure acting downward
  on the float to hyperbaric P, forcing the float
  down at a given flow.
• Scale of tube is calibrated to PB
• Meaning that a reading of 6l/m is actually
  providing a higher flowrate to the patient.
• Needle valve is proximal to Thorpe tube so
  Backpressure acts on entire Thorpe tube
• Some vents anesthesia machines use these

51
Uncompensated

52
Distribux Regulax of Med Gas

• Thorpe Tube
• Compensated
• Scale calibrated to 50psi instead of PB
• Needle valve is distal to Thorpe tube, entire
  tube operates at 50psi
• Float jumps when connected to wall connect b/c
  the tube is being pressureized
• Ideal for most clinical situations
• Gravity dependant
• Poor for xport

53
Compensated
54
Color Codes for Medical Gases

• Air Yellow, black, white
• Oxygen Green and White
• Carbon dioxide gray
• CO2/O2 gray and green
• Helium brown
• Nitrogen black
• Nitrous oxide light blue

55
Distribux Regulax of Med Gas
56
Distribux Regulax of Med Gas
57
Distribux Regulax of Med Gas
58
Distribux Regulax of Med Gas
59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
Safety Systems

• ASI large cylinders
• PISS small cylinders
• DISS wall units-press less then 200 psi

http//www.youtube.com/watch?v9lw_fhNAIQc
65
(No Transcript)
66
(No Transcript)
67
Cylinder duration calculations

• E 0.28
• G 2.41
• H 3.14
• Cylinder pressure (psi) X cylinder factor
• L/Min

68
(No Transcript)
69
Gay-Lussacs Law bulk liquid system.
70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
73
(No Transcript)
74
(No Transcript)
75
(No Transcript)
76
(No Transcript)
77
(No Transcript)
78
(No Transcript)
79
(No Transcript)
80
(No Transcript)
81
(No Transcript)
82
(No Transcript)
83
(No Transcript)
84
(No Transcript)
85
(No Transcript)
