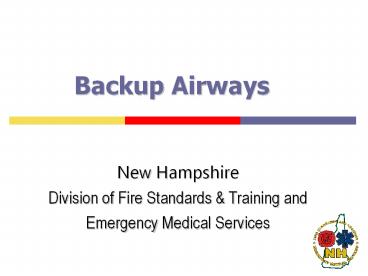

Backup Airways
New Hampshire Division of Fire Standards
Training and Emergency Medical Services
2
Know Your Options!!! Dont hesitate to use them!
3
Purpose

• It is vital that the prehospital crew be
  confident and comfortable with the rescue airways
  approved for their level of licensure.
• During this module you will review and practice
  the back up airways for your level of licensure.

4
Purpose

• Review Backup Airway Devices (Rescue Airways)
• BVM
• LMA
• King-LT-D
• Combitube
• Cricothyrotomy

5
What do we do when we have a difficult airway?
6
The Basics

• Position
• OPA
• BVM
• Suction
• Most difficult airways will still be manageable
  using basic airway maneuvers!

7
The Need for Oxygen

• 0 1 minute cardiac irritability
• 0 4 minutes brain damage not likely
• 4 6 minutes brain damage possible
• 6 10 minutes brain damage very likely
• gt 10 minutes irreversible brain damage

8
Oxygen and Carbon Dioxide Exchange

• Oxygen-rich air is inhaled to alveoli
• O2 exchanged at alveolocapillary level
• Perfusion to capillary beds
• O2/CO2 exchange at cellular level
• Perfusion from capillary beds
• CO2 exhanged at alveolocapillary level
• CO2 exhaled

9
Assessment of Respiration

• Patients level of consciousness
• Respiration quality
• Pulse quality
• Respiratory rate
• Pulse rate
• SPO2
• EtCO2
• Blood pressure
• Glasgow coma score

10
Every TRUE life saving intervention performed by
EMS reverses one or more failing components of
respiration
11
BVM is the most essential intervention in RSI
12
Inadequate Breathing

• Fast or slow rate
• Irregular rhythm
• Abnormal lung sounds
• Reduced tidal volume
• Use of accessory muscles
• Cool, pale, diaphoretic, cyanotic skin

13
Head Tilt-Chin Lift

• One hand on the forehead
• Apply backward pressure
• Tips of fingers under mandible
• Lift the chin

14
Jaw-Thrust Maneuver

• Place fingers behind the angle of the jaw
• Use thumbs to open mouth

15
Look, Listen, and Feel

• Assess that Airway!

16
Basic Airway Adjuncts

• Oropharyngeals
• Keeps tongue from blocking oropharynx
• Eases suctioning
• Used with BVM
• Patients without gag reflex
• Nasopharyngeals
• Maintains patency of oropharynx
• Patients with gag reflex
• Should not be used with head trauma

17
Oxygen

• Nonrebreathing mask
• Provides up to 90 oxygen
• Used at 10 to 15 L/min
• Nasal cannula
• Provides 24 to 44 oxygen
• Used at 1 to 6 L/min

18
Oxygen

• Nasal cannula
• 24-40 at 1-6 liters
• Non-rebreather mask
• Up to 90 at 15 liters
• BVM
• 21 atmosphere
• Up to 100 at 15 liters with reservoir

19
Artificial Ventilation

• Mouth to mask
• BVM one person
• BVM two person

20
Ventilation Rates

• Adults 8 - 10 breaths per minute
• Approximately one breath every 6 8 seconds
• Pediatric 12 20 breaths per minute
• Approximately one breath every 3 6 seconds

21
Bag Valve Mask

• Delivers gt 90 oxygen
• Requires practice and proficiency
• Use with airway adjuncts and/or advanced airways

22
BVM-Problems encountered

• Inattentiveness
• Poor mask seal poor ventilatory ability
• Varying ventilatory rates
• Varying expiration rates
• Varying tidal volumes
• Often excessive airway pressure
• Often hyper-ventilation

Mastering the BVM overcomes these obstacles!
23
BVM One person

• Insert an oral/nasal airway
• Seal mask by placing the apex over the bridge of
  the nose and lower portion of the mask over the
  mouth and upper chin.
• Make a C with your index finger and thumb
  around the mask.
• Maintain the airway with your middle, ring and
  little finger, creating a E, under the jaw to
  maintain the chin lift.
• Squeeze the bag with your other hand slowly at a
  rate of one breath every 68 seconds.
• Monitoring SpO2

24
BVM Two Person

• Insert oral/nasal airway
• First provider hold the bag portion of the BVM
  with both hands.
• Second provider seals the mask with apex over the
  bridge of the nose and base at the upper chin.
• Using two hands the second provider places
  his/her thumbs over the top half of the mask
  index and middle finger over bottom half ring
  and little finger under jaw.
• Second provider also maintains chin-lift
• First provider squeezes bag every 68 seconds
• Monitoring SpO2.

25
Adequate Ventilation

• Equal chest rise and fall
• Appropriate rate
• Heart rate returns to normal

26
Inadequate Ventilation

• Minimal or no chest rise
• Ventilating too fast or too slow
• Heart rate does not return to normal

27
Asthma and COPD

• These patients complicate the traditional RSI
  approach due to the difficulty encountered when
  mask ventilating
• Alveolar hyperinflation secondary to underlying
  pathophysiology must be considered and adequate
  passive ventilation time must be ensured
• Tidal volumes should be reduced, initially, to
  reduce likelihood of barotrauma and air trapping

28
Gastric Distention

• Air fills the stomach from too forceful or too
  frequent ventilations
• Airway may be blocked and ventilations are
  re-routed to stomach
• Decreases lung capacity
• May cause patient to vomit

29
Airway Obstructions

• Tongue
• Vomit
• Blood, clots, traumatized tissue
• Swelling
• Foreign objects

30
Recognizing an Obstruction

• Partial or complete?
• Can patient speak? Cough?
• If unconscious, deliver artificial ventilation
• Does air go in? Does the chest rise?

31
Removing an Obstruction

• Heimlich maneuver
• Suction
• Magills (paramedics)

32
Suctioning

• Turn on unit and ensure proper suctioning
  pressure (300 mmHg)
• Select proper tip and measure
• Insert with suction off
• Suction on the way out
• Suction for no more than 15 seconds

33
Continuous Positive Airway Pressure (CPAP)

• Is the patient a candidate for CPAP?

34
CPAP Indications

• Any patient in respiratory distress associated
  with CHF with any of the below obvious signs and
  symptoms or a history of CHF
• Bibasilar or diffuse rales
• Respiratory rate greater than 25
• Pulse oximetry below 92
• Retractions or accessory muscle use
• Abnormal capnography (rate, waveform, CO2 levels)

35
RSI Indication

• Immediate severe airway compromise in the context
  of trauma, drug overdose, status epilepticus,
  etc. where respiratory arrest in imminent.

36
Always have a back-up plan.

• Plans A, B, and C
• Know the answers before you begin

37
Plan A (ALTERNATIVES)

• Different
• Size of blade
• Type of blade
• Miller
• Macintosh
• Specialty
• Position (patient provider)
• Hockey stick bend in ETT or Directional tip ETT
• Remove the stylette as you pass through the cords
• BURP (aka ELM)
• Gum Elastic Bougie
• 2-person technique
• cowboy or skyhook
• Have someone else try

38
Viewmax Scope

• Easy of use
• Can be used like a Mac or Miller
• Should improve your view by one grade

39
BURP a.k.a. External Laryngeal Manipulation

• Backward, Upward, Rightward Pressure
  manipulation of the trachea
• 90 of the time the best view will be obtained by
  pressing over the thyroid cartilage

Differs from the Sellick Maneuver
40
Plan B (BVM and BACK UP Airways)

• Can you ventilate with a BVM?
• (Consider two NPAs and an OPA, Cricoid
  pressure w/ gentle ventilation)
• KINGLT-D
• Combitube
• LMA

41
King-LT-D
42
King LT-D
43

(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
Combitube
63
CombiTube
64
Insertion Technique

• Tongue-Jaw Lift
• Anatomical Insertion
• Black rings will lie between teeth or alveolar
  ridges
• Bending the tip prior to use may ease insertion

65
CombiTube

• Inflate Blue Balloon
• Inflate White Balloon
• The CombiTube may reposition as the oropharyngeal
  is inflated.

66
Esophageal Placement

• Ventilate Blue Tube
• Visualize
• Auscultate
• EtCO2

67
Tracheal Placement

• Ventilate Clear Tube
• Visualize
• Auscultate
• EtCO2

68
Laryngeal Mask AirLMA
69
LMA

• The LMA was invented by Dr. Archie Brain at the
  London Hospital in Whitechapel in 1981
• The LMA consists of two parts
• The mask
• The tube
• The LMA has proven to be a very effective
  management tool for the airway

70
Introduction continued

• The LMA design
• Provides an oval seal around the laryngeal
  inlet once the LMA is inserted and the cuff
  inflated.
• Once inserted, it lies at the crossroads of the
  digestive and respiratory tracts.

71
Indications

• Situations involving a difficult mask (BVM) fit.
• May be used as a back-up device where
  endotracheal intubation is not successful.
• May be used as a second-last-ditch airway where
  a surgical airway is the only remaining option.

72
Contraindications

• Greater than 14 to 16 weeks pregnant
• Patients with multiple or massive injury
• Massive thoracic injury
• Massive maxillofacial trauma
• Patients at risk of aspiration
• NOTE Not all contraindications are absolute

73
Complications

• Throat soreness
• Dryness of the throat and/or mucosa
• Complications due to improper placement vary
  based on the nature of the placement

74
Equipment for LMA Insertion

• Body Substance Isolation equipment
• Appropriate size LMA
• Syringe with appropriate volume for LMA cuff
  inflation
• Water soluble lubricant
• Ventilation equipment
• Stethoscope
• Tape or other device(s) to secure LMA

75
Preparation

• Step 1 Size selection
• Step 2 Examination of the LMA
• Step 3 Check deflation and inflation of the
  cuff
• Step 4 Lubrication of the LMA
• Step 5 Position the Airway

76
Step 1 Size Selection

• Verify that the size of the LMA is correct for
  the patient
• Recommended Size guidelines
• Size 1 under 5 kg
• Size 1.5 5 to 10 kg
• Size 2 10 to 20 kg
• Size 2.5 20 to 30 kg
• Size 3 30 kg to small adult
• Size 4 adult
• Size 5 Large adult/poor seal with size 4

77
Step 2 Examine the LMA

• Visually inspect the LMA cuff for tears or other
  abnormalities
• Inspect the tube to ensure that it is free of
  blockage or loose particles
• Deflate the cuff to ensure that it will maintain
  a vacuum
• Inflate the cuff to ensure that it does not leak

78
Step 3 Deflation Inflation

• Slowly deflate the cuff to form a smooth flat
  wedge shape which will pass easily around the
  back of the tongue and behind the epiglottis.
• During inflation the maximum air in cuff should
  not exceed
• Size 1 4 ml
• Size 1.5 7 ml
• Size 2 10 ml
• Size 2.5 14 ml
• Size 3 20 ml
• Size 4 30 ml
• Size 5 40 ml

79
Step 4 Lubrication

• Use a water soluble lubricant to lubricate the
  LMA
• Only lubricate the LMA just prior to insertion
• Lubricate the back of the mask thoroughly
• Important Notice
• Avoid excessive amounts of lubricant
• on the anterior surface of the cuff or
• in the bowl of the mask.
• Inhalation of the lubricant following placement
  may result in coughing or obstruction.

80
Step 5 Positioning of the Airway

• Extend the head and flex the neck
• Avoid LMA fold over
• Assistant pulls the lower jaw downwards.
• Visualize the posterior oral airway.
• Ensure that the LMA is not folding over in the
  oral cavity as it is inserted.

81
LMAInsertionTechnique
Step 1
Step 2
Step 3
Step 4
Step 5
82
LMA Insertion Step 1

• Grasp the LMA by the tube, holding it like a pen
  as near as possible to the mask end
• Place the tip of the LMA against the inner
  surface of the patients upper teeth

83
LMA Insertion Step 2

• Under direct vision
• Press the mask tip upwards against the hard
  palate to flatten it out.
• Using the index finger, keep pressing upwards as
  you advance the mask into the pharynx to ensure
  the tip remains flattened and avoids the tongue.

84
LMA Insertion Step 3

• Keep the neck flexed and head extended
• Press the mask into the posterior pharyngeal wall
  using the index finger.

85
LMA Insertion Step 4

• Continue pushing with your index finger.
• Guide the mask downward into position.

86
LMA Insertion Step 5

• Grasp the tube firmly with the other hand
• Then withdraw your index finger from the pharynx.
• Press gently downward with your other hand to
  ensure the mask is fully inserted.

87
LMA Insertion Step 6

• Inflate the mask with the recommended volume of
  air.
• Do not over-inflate the LMA.
• Do not touch the LMA tube while it is being
  inflated unless the position is obviously
  unstable.
• Normally the mask should be allowed to rise up
  slightly out of the hypopharynx as it is inflated
  to find its correct position.

88
Verify Placement of the LMA

• Connect the LMA to a Bag-Valve Mask device or low
  pressure ventilator
• Ventilate the patient while confirming equal
  breath sounds over both lungs in all fields and
  the absence of ventilatory sounds over the
  epigastrium

89
Securing the LMA

• Insert a bite-block or roll of gauze to prevent
  occlusion of the tube should the patient bite
  down.
• Now the LMA can be secured utilizing the same
  techniques as those employed in the securing of
  an endotracheal tube.

90
Verify

• During ventilation observe end-tidal CO2 monitor
  or pulseoximetry to confirm oxygenation

91
Waveform Capnometry

• Prerequisite Requirement
• Becoming a standard of care
• Easy to Use
• Good measure of Pulmonary Perfusion
• Relates well to PaCO2
• Does have limitations

92
Problems with LMA Insertion

• Failure to press the deflated mask up against the
  hard palate or inadequate lubrication or
  deflation can cause the mask tip to fold back on
  itself.

93
Problems with LMA Insertion

• Once the mask tip has started to fold over, this
  may progress, pushing the epiglottis into its
  down-folded position causing mechanical
  obstruction

94
Problems with LMA Insertion

• If the mask tip is deflated forward it can push
  down the epiglottis causing obstruction
• If the mask is inadequately deflated it may
  either
• push down the epiglottis
• penetrate the glottis

95
Plan C Cricothyrotomy

• Last resort!

96
Equipment

• Endotracheal or tracheostomy tube (or commercial
  device)
• Scalpel
• Curved hemostats
• Suction apparatus
• Oxygen Supply
• BVM
• Securing device
• Bandaging materials

97
Procedure

• Have all supplies (including suction) available
  and ready.
• A commercially available device may be desirable.

98
Commercial Cricothyrotomy Kits

• Must perform to recommendation of manufacturer
  and Medical Directors satisfaction for
  proficiency.

99
Find the persons Adam's apple (thyroid cartilage)
100
(No Transcript)
101
Procedure

• Locate the cricothyroid membrane utilizing
  correct anatomical landmarks.

102
Procedure

• Prep the area with an antiseptic swap (e.g.
  Betadine).

103
Procedure

• Using your non-dominant hand, stabilize the
  thyroid cartilage and secure the cricothyroid
  membrane.

104
Procedure

• Make a 1-inch vertical incision through the skin
  and subcutaneous tissue using a scalpel.

105
Procedure

• Using blunt dissection technique, expose the
  cricothyroid membrane.

This is a bloody procedure.
106
Procedure

• Some protocols recommend stabilizing the
  cricothyroid membrane with a skin or trach hook.

107
Procedure

• Make a horizontal, transverse incision
  approximately ½ inch long through the membrane.

108
Procedure

• Using a dilator, hemostat, or gloved finger to
  maintain surgical opening, insert the cuffed tube
  into the trachea.
• Cric tube from the kit of a 6.0 ETT is usually
  sufficient.

109
Procedure

• Using a dilator, hemostat, or gloved finger to
  maintain surgical opening, insert the cuffed tube
  into the trachea.
• Cric tube from the kit of a 6.0 ETT is usually
  sufficient.

110
Procedure

• Inflate the cuff with 5-10cc of air and ventilate
  the patient while manually stabilizing the tube.

111
Procedure

• All of the standard assessment techniques for
  ensuring tube placement should be performed
  (auscultation, chest rise and fall, end-tidal CO2
  detector, etc..
• Secure the tube.

112
Complications

• Incorrect tube placement/ false passage
• Thyroid gland damage
• Severe bleeding
• Subcutaneous emphysema
• Laryngeal nerve damage

113
Always expect the unexpected!
114
RSI Procedure The Seven Ps

• 1. Preparation
• 2. Preoxygenate the patient
• 3. Premedicate the patient
• 4. Paralyze the patient
• 5. Pass the tube
• 6. Proof of placement
• 7. Post intubation care
