Title: Tissue Engineering


1

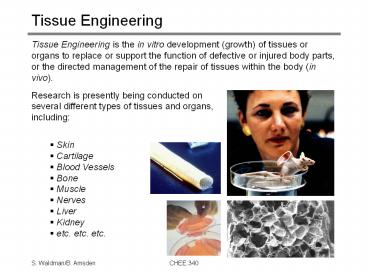

Tissue Engineering
  • Tissue Engineering is the in vitro development
    (growth) of tissues or organs to replace or
    support the function of defective or injured body
    parts, or the directed management of the repair
    of tissues within the body (in vivo).
  • Research is presently being conducted on several
    different types of tissues and organs, including
  • Skin
  • Cartilage
  • Blood Vessels
  • Bone
  • Muscle
  • Nerves
  • Liver
  • Kidney
  • etc. etc. etc.

2
Tissue Organization
  • Before a tissue can be developed in vitro, first
    we must understand how tissues are organized. The
    basic tenet here is that
  • all tissues are comprised of
  • several levels of structural hierarchy
  • These structural levels exist from the
    macroscopic level (centimeter range) all the way
    down the molecular level (nanometer range)
  • there can be as many as 7-10 distinct levels of
    structural organization in some tissues or organs

3
Organization of the Tendon
4
Organization of the Kidney
5
Functional Subunits
  • The smallest level at which the basic function of
    the tissue/organ is provided is called a
    functional subunit
  • functional subunits are in the order of 100 mm
    (whereas cells are of the order of 10 mm)
  • each organ is comprised between 10-100 x 106
    functional subunits
  • each functional subunit is comprised of a mixture
    of different cell types and extracellular matrix
    (ECM) molecules
  • Separation of the functional subunit into
    individual cohorts (i.e. cells and ECM) leads to
    a loss of tissue function. For this reason, this
    is the scale that tissue-engineering tries to
    reconstruct.
  • So, how can the functional subunit be built in
    vitro?

6
Microenvironment
  • Since cells are entirely responsible for
    synthesizing tissue constituents and assembly of
    the functional subunit, much attention is paid to
    the microenvironment surrounding the cell(s) of
    interest.
  • The microenvironment, which can be very different
    depending on the type of cell, is typically
    characterized by the following
  • Cellularity
  • Cellular Communications
  • Local Chemical Environment
  • Local Geometry

7
Cellularity
  • Packing Density
  • maximum theoretical packing density is about 1 x
    109 cells/cm3
  • cell densities in tissues typically vary between
    10 500 x 106 cells/cm3
  • relates to about 100 - 500 cells per
    microenvironment (100 mm)3
  • extreme cases, such as cartilage which has 1
    cell per (100 mm)3
  • thus its microenvironment is essentially 1 cell
    plus associated ECM
  • Cellular Communication
  • Cells communicate in three principal ways
  • secretion of soluble signals
  • cell-to-cell contact
  • cell-ECM interactions
  • Cellular communication can affect all cellular
    fate processes (migration, replication,
    differentiation, apoptosis) and the method(s) of
    communication used depends, in part, on how the
    cells are packed within the tissue.

8
Cellular Communications
  • Soluble Signals
  • includes small proteins such as growth factors
    and cytokines (15-20 kDa), steroids, hormones
  • bind to membrane receptors usually with high
    affinity (low binding constants 10-100 pM)

9
Cellular Communications
  • Cell-to-Cell Contact
  • some membrane receptors are adhesive molecules
  • adherent junctions and desmosomes
  • other serve to create junctions between adjacent
    cells allowing for direct cytoplasmic
    communication
  • gap junctions
  • 1.5-2 nm diameter and only allow transport of
    small molecules 1 kDa

10
Cellular Communications
  • Cell-ECM Interactions
  • ECM is multifunctional and also provides a
    substrate that cells can communicate through
  • since cells synthesize the ECM, they can modify
    the ECM to elicit specific cellular responses
  • cells possess several specialized receptors that
    allow for cell-ECM interactions
  • integrins, CD44, etc.
  • also a mechanism by with cells respond to
    external stimuli (mechanical transducers)

11
Chemical Environment
  • Oxygenation
  • mammalian cells do not consume oxygen rapidly but
    uptake is large in comparison to the amount in
    blood or culture media
  • air-saturated aqueous media (37C) contains only
    21 mM O2
  • mammalian cells consume O2 at rate of 0.05-0.5
    mmol/106 cells/hour
  • cell cultures for tissue engineering have
    relatively large cell densities (106 cells/mL)
    which results in total O2 depletion in 0.4-4
    hours!
  • concentration must be within a specific range
    since oxygenation affects a variety of
    physiological functions
  • low O2 concentration ? can retard growth
  • high O2 concentration ? can be inhibitory or
    toxic (oxidative stress)
  • Metabolism
  • typically, there are no transport limitations for
    major nutrients although uptake rate depends on
    their local concentrations
  • glucose uptake rate 0.1-0.5 mmol/106 cells/hour
  • amino acid uptake rate 1.0-5.0 nmol/106
    cells/hour

12
Local Geometry
  • Geometry of the microenvironment depends on the
    individual tissue
  • needs to be re-created for proper tissue growth
  • two-dimensional layers or sheets
  • three-dimensional arrangements
  • transport issues
  • local geometry also affects how cells interact
    with the ECM
  • remember, the ECM serves as a substrate for
    cellular communications
  • For these reasons, considerable effort has been
    geared at creating artificial ECMs (aka
    scaffolds) to provide the appropriate substrate
    to guide in vitro tissue growth and development.

13
Tissue Engineering
  • General Paradigm

SJ Shieh and JP Vacanti Surgery 137 (2005) 1-7
14
Tissue Engineering Scaffolds
  • Scaffold Materials
  • synthetic polymers
  • poly(lactide) ,poly(lactide-co-glycolide),
    poly(caprolactone).
  • foams, hydrogels, fibres, thin films
  • natural polymers
  • collagen, elastin, fibrin, chitosan, alginate.
  • fibres, hydrogels
  • ceramic
  • calcium phosphate based for bone tissue
    engineering
  • porous structures
  • permanent versus resorbable
  • degradation typically by hydrolysis (except for
    natural materials)
  • must match degradation rate with tissue growth
  • Chemical and Physical Modifications (synthetic
    materials)
  • attachment of growth factors, binding sites for
    integrins, etc.
  • nanoscale physical features

15
Tissue Engineering Scaffolds
smooth muscle cells on unmodified poly(CL-LA)
elastomer (L) and modified surface having bound
peptide sequence (R)
16
Culturing of Cells
  • Types of Cell Culture
  • monolayer (adherent cells)
  • suspension (non-adherent cells)
  • three-dimensional (scaffolds or templates)

17
Culturing of Cells
  • Sterilization Methods
  • ultra-violet light, 70 ethanol, steam autoclave,
    gamma irradiation, ethylene oxide gas
  • Growth Conditions
  • simulate physiological environment
  • pH 7.4, 37C, 5 CO2, 95 relative humidity
  • culture (growth) media replenished periodically
  • Culture (Growth) Media
  • appropriate chemical environment
  • pH, osmolality, ionic strength, buffering agents
  • appropriate nutritional environment
  • nutrients, amino acids, vitamins, minerals,
    growth factors, etc.

18
Cell Sources
  • Since the ultimate goal of tissue engineering is
    to develop replacement tissue (or organs) for
    individuals, the use of autologous cells would
    avoid any potential immunological complications.
  • Various classifications of cells used in tissue
    engineering applications
  • primary cells
  • differentiated cells harvested from the patient
    (tissue biopsy)
  • low cellular yield (can only harvest so much)
  • potential age-related problems
  • passaged cells
  • serial expansion of primary cells (can increase
    population by 100-1000X)
  • tendency to either lose potency or
    de-differentiate with too many passages
  • stem cells
  • undifferentiated cells
  • self-renewal capability (unlimited?)
  • can differentiate into functional cell types
  • very rare

19
Stem Cells
  • Stem cells naturally exist in essentially all
    tissues (especially those that rapidly
    proliferate or remodel) and are present in the
    circulation.
  • There are two predominant lineages of stem cells
  • mesenchymal
  • give rise to connective tissues (bone, cartilage,
    etc.)
  • although found in some tissues, typically
    isolated from bone marrow
  • hematopoietic
  • give rise to blood cells and lymphocytes
  • isolated from bone marrow, blood (umbilical cord)
  • Stem cells are rare bone marrow typically has
  • a single mesenchymal stem cell for every
    1,000,000 myeloid cells
  • a single hematopoietic stem cell for every
    100,000 myeloid cells

20
Stem Cells (Mesenchymal)
21
Stem Cells (Hematopoietic)
22
Proliferation versus Commitment
Proliferation
Commitment or Differentiation
Clonal Succession
Stem Cell
Deterministic or Stochastic Succession
23
Stem Cells
  • Identification
  • Stem cells are identified by the expression of
    specific antigens on their surface, for example
  • hematopoietic stem cells express CD45, CD34 and
    CD14
  • mesenchymal stem cells do not express these
    markers (i.e. CD34-, CD45-, CD14-)
  • Selective separation of positive marker cells (in
    a mixed cell population) can be done by several
    techniques (e.g. immunomagnetic methods).
  • Characterization and Commitment
  • The most common approach to characterize
    multi-lineage- or single lineage-committed stem
    cells is through colony-forming assays
  • cells grown under culture conditions that promote
    their proliferation and differentiation
  • the clonal progeny of a single progenitor cell
    stay together to form a new colony of mature
    cells
  • colony-forming assays are used to
  • characterize stem cells from different sources
    (e.g. BM, umbilical cord blood)
  • investigate responses to growth factors,
    cytokines and other drugs
  • expansion, commitment, etc.
  • quality control for collection, processing and
    cryopreservation

24
Colony-Forming Units (CFUs)
25
Scale Up
  • The conditions of the in vivo microenvironment
    are a fine balance between biological dynamics
    and the physiochemical processes that constrain
    them. Thus, the design of cell and tissue culture
    devices must be such that this balance is
    maintained down to about 100 mm the size of the
    tissue microenvironment.
  • Several important design challenges
  • mass transfer (delivery and removal)
  • fluid flow

26
Mass Transfer
  • The importance of mass transfer in tissue and
    cellular function is often overlooked. The
    diffusional penetration lengths over
    physiological time scales are surprisingly short
    and constrain the in vivo architecture of tissues
    and organs.
  • Similar constraints are faces with the
    construction of cell culture devices and it may
    be difficult to provide the appropriate
    mass-transfer rate into a cell bed of
    physiological cell density.
  • For any nutrient (O2, glucose, growth factor,
    etc.), there are two primary concerns for
    appropriate delivery
  • provided at physiological concentrations
  • provided at the same rate it is consumed

27
Mass Transfer
  • Can estimate the time it takes to deplete a
    nutrient from the media using the following
    relation
  • t time until total depletion hours
  • C concentration of nutrient mM
  • q specific nutrient consumption rate
    mmol/cell/hour
  • X number of viable cells per unit volume
    cells/mL
  • The product (q X) is the total nutrient
    consumption rate for the particular system and
    this rate must be balanced with the total
    delivery rate to ensure proper cellular function.
  • An imbalance between delivery and consumption
    will alter the local nutrient concentration which
    can have adverse affects on cellular function.
  • too high or too low can be inhibitory or even
    toxic

28
Mass Transfer
  • Oxygen
  • physiological concentration 5-30 of saturation
    in air, which is 0.2 mM
  • specific uptake rate 0.05 1 mmol/106
    cells/hour
  • Primary Nutrients (glucose)
  • physiological concentration mM range
  • specific uptake rate 0.05 0.1 mmol/106
    cells/hour
  • Secondary Nutrients (amino acids, growth factors)
  • physiological concentration nM mM range
  • specific uptake rate 0.01 1.0 nmol/106
    cells/hour
  • Waste Products (lactic acid, ammonia)
  • physiological concentration negligible
  • specific production rate 0.01 0.2 mmol/106
    cells/hour

29
Fluid Flow
  • The circulatory system provides blood flow to all
    of the microenvironments of the body. Overall,
    the perfusion rate in humans is about 5
    L/min/person.
  • This is roughly equivalent to 50 400 mL/min/106
    cells
  • different depending on the metabolic activity of
    the specific cell type
  • very low in magnitude compared to fermenters
  • such low flow can lead to additional problems
    such as surface-tension effects and capillary
    action
  • Fluid flow not only provides the delivery of
    nutrients (dissolved gases, glucose, growth
    factors, etc.) but also serves to remove
    inhibitory waste products, cytokines and
    degenerative enzymes
  • waste products of metabolism
  • carbon dioxide (CO2), lactic acid, ammonia
  • inhibitory cytokines
  • inflammatory cytokines (e.g. IL-1, IL-10, TNF-a)
  • reactive oxygen species (e.g. NO-,O2-, H2O2)
  • degenerative enzymes
  • matrix metalloproteinases (MMPs), aggrecanases,
    etc.

30
Fluid Flow
  • Cell culture devices must be uniform down to the
    size of the microenvironment (i.e. 100 mm) which
    can be difficult to achieve.
  • The problem here is that during fluid flow there
    is typically a no-slip condition at any solid
    surfaces creating regions of low flow at walls of
    tubing and sides of bioreactors (boundary layer).

These regions of low flow within the boundary
layer can lead to differences in the local
concentration of solutes compared to the mid-line
flow. Differences in solute concentration within
the flow-field results in non-uniform solute flow
which can pose problems during cell culture.
31
Fluid Flow
  • Some potential problems of non-uniform solute
    flow during cell culture
  • impaired mass transfer if boundary layer is
    relatively thick
  • solute movement in boundary layer governed by
    diffusion rather than convection
  • boundary layer thickness is inversely
    proportional to fluid velocity
  • influence cell and tissue growth
  • induce or alter cellular migration
  • Chemotaxis (directed movement of a cell or
    organism toward (or away from) a chemical source)

32
Fluid Flow
  • Residence time (the time it takes for a fluid
    particle to leave a control volume under
    steady-state), is defined by

tr residence time min V volume of vessel
(bioreactor) mL F volumetric flow-rate
mL/min
With proper mixing, a single residence time
occurs (i.e. plug flow), however, any
non-uniformity in the flow conditions can then
result in a distribution of residence
times. This may potentially cause problems or
simply lead to excessive variability in cell and
tissue growth.
33
Bioreactors
  • a) Spinner Flask
  • semi-controlled fluid shear
  • can produce turbulent eddies which could be
    detrimental
  • b) Rotating Wall
  • low shear stresses, high mass transfer rate
  • can balance forces to stimulate zero gravity
  • c) Hollow Fibre
  • used to enhance mass transfer during the culture
    of highly metabolic cells
  • d) Perfusion
  • media flows directly through construct
  • e) Controlled Mechanics
  • to apply physiological forces during culture

34
Bioreactors
35
Tissue Engineering
  • Most successes have been limited to avascular or
    thin tissues (lt 200 mm)
  • skin, cartilage, cornea
  • The most important problems associated with
    thicker or more complex tissues include
  • the need for multiple cell types
  • the need for the tissue to become vascularized
  • vascularization of the 3-D construct is a
    critical and unresolved problem
Write a Comment
User Comments (0)
About PowerShow.com
