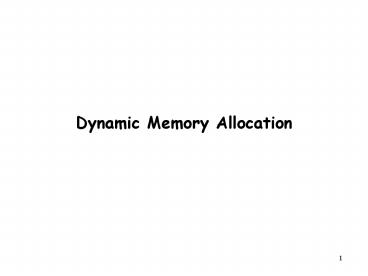

Dynamic Memory Allocation

1
Dynamic Memory Allocation
2
Outline

• Implementation of a simple allocator
• Explicit Free List
• Segregated Free List
• Suggested reading 10.9

3
Dynamic Memory Allocation

• Explicit vs. Implicit Memory Allocator
• Explicit application allocates and frees space
• E.g., malloc and free in C
• Implicit application allocates, but does not
  free space
• E.g. garbage collection in Java, ML or Lisp

4
Dynamic Memory Allocation

• Allocation
• In both cases the memory allocator provides an
  abstraction of memory as a set of blocks
• Doles out free memory blocks to application

5
Malloc package

• include ltstdlib.hgt
• void malloc(size_t size)
• if successful
• returns a pointer to a memory block of at least
  size bytes, aligned to 8-byte boundary.
• if size0, returns NULL
• if unsuccessful returns NULL
• void free(void p)
• returns the block pointed at by p to pool of
  available memory
• p must come from a previous call to malloc,calloc
  or realloc.

6
sbrk() Function

• include ltunistd.hgt
• void sbrk(int incr)
• If successful
• It returns the old value of brk
• If unsuccessful
• It returns 1
• It sets errno to ENOMEM
• If incr is zero
• It returns the current value
• incr can be a negative number

7
Why Dynamic Memory Allocation

• 1 include "csapp.h"
• 2 define MAXN 15213
• 3
• 4 int arrayMAXN
• 5
• 6 int main()
• 7
• 8 int i, n
• 9
• 10 scanf("d", n)
• 11 if (n gt MAXN)
• 12 app_error("Input file too big")
• 13 for (i 0 i lt n i)
• 14 scanf("d", arrayi)
• 15 exit(0)
• 16

8
Why Dynamic Memory Allocation

• 1 include "csapp.h"
• 2
• 3 int main()
• 4
• 5 int array, i, n
• 6
• 7 scanf("d", n)
• 8 array (int )Malloc(n sizeof(int))
• 9 for (i 0 i lt n i)
• 10 scanf("d", arrayi)
• 11 exit(0)
• 12

9
Assumptions

• Assumptions made in this lecture
• memory is word addressed (each word can hold a
  pointer)

10
Allocation examples
11
Constraints

• Applications
• Can issue arbitrary sequence of allocation and
  free requests
• Free requests must correspond to an allocated
  block

12
Constraints

• Allocators
• Cant control number or size of allocated blocks
• Must respond immediately to all allocation
  requests
• i.e., cant reorder or buffer requests
• Must allocate blocks from free memory
• i.e., can only place allocated blocks in free
  memory

13
Constraints

• Allocators
• Must align blocks so they satisfy all alignment
  requirements
• usually 8 byte alignment
• Can only manipulate and modify free memory
• Cant move the allocated blocks once they are
  allocated
• i.e., compaction is not allowed

14
Goals

• Given some sequence of malloc and free requests
• R0, R1, ..., Rk, ... , Rn-1
• Want to maximize throughput and peak memory
  utilization.
• These goals are often conflicting

15
Performance goals throughput

• Number of completed requests per unit time
• Example
• 5,00 malloc calls and 5,00 free calls in 1
  seconds
• throughput is 1,000 operations/second.

16
Performance goals peak memory utilization

• Given some sequence of malloc and free requests
• R0, R1, ..., Rk, ... , Rn-1
• Def aggregate payload Pk
• malloc(p) results in a block with a payload of p
  bytes.
• After request Rk has completed, the aggregate
  payload Pk is the sum of currently allocated
  payloads.

17
Performance goals peak memory utilization

• Given some sequence of malloc and free requests
• R0, R1, ..., Rk, ... , Rn-1
• Def current heap size is denoted by Hk
• Note that Hk is monotonically nondecreasing
• Def peak memory utilization
• After k requests, peak memory utilization is
• Uk ( maxiltk Pi ) / Hk

18
Fragmentation

• Poor memory utilization caused by fragmentation
• Comes in two forms
• internal fragmentation
• external fragmentation

19
Internal Fragmentation

• Internal fragmentation
• For some block, internal fragmentation is the
  difference between the block size and the payload
  size

20
Internal Fragmentation

• Internal fragmentation
• Is caused by overhead of maintaining heap data
  structures, padding for alignment purposes, or
  explicit policy decisions (e.g., not to split the
  block).
• Depends only on the pattern of previous requests,
  and thus is easy to measure.

21
External fragmentation

• Occurs when there is enough aggregate heap
  memory, but no single
• free block is large enough

22
External fragmentation

• External fragmentation depends on
• the pattern of future requests
• and thus is difficult to measure

23
Implementation issues

• How do we know how much memory to free just given
  a pointer?
• How do we keep track of the free blocks?

24
Implementation issues

• What do we do with the extra space when
  allocating a structure that is smaller than the
  free block it is placed in?
• How do we pick a block to use for allocation
• many might fit?
• How do we reinsert freed block?

25
Knowing how much to free

• Standard method
• keep the length of a structure in the word
  preceding the structure
• This word is often called the header field or
  header
• requires an extra word for every allocated
  structure

26
Knowing how much to free
27
Implicit list

• Need to identify whether each block is free or
  allocated
• Can use extra bit
• Bit can be put in the same word as the size if
  block sizes are always multiples of 8 (mask out
  low order bit when reading size).

28
Implicit list
29
Finding a free block

• First fit
• Search list from beginning, choose first free
  block that fits
• Can take linear time in total number of blocks
  (allocated and free)
• In practice it can cause splinters at beginning
  of list
• p start
• while ((p lt end) \\ not passed end
• (p 1) \\ already allocated
• (p lt len) ) \\ too small

30
Finding a free block

• Next fit
• Like first-fit, but search list from location of
  end of previous search
• Research suggests that fragmentation is worse
• Best fit
• Search the list, choose the free block with the
  closest size that fits
• Keeps fragments small --- usually helps
  fragmentation
• Will typically run slower than first-fit

31
Allocating in a free block

• Allocating in a free block - splitting
• Since allocated space might be smaller than free
  space, we might want to split the block

32
Freeing a block

• Simplest implementation
• Only need to clear allocated flag
• But can lead to false fragmentation
• There is enough free space, but the allocator
  wont be able to find it

33
Coalescing

• Join with next and/or previous block if they are
  free
• Coalescing with next block
• But how do we coalesce with previous block?

34
Bidirectional

• Boundary tags Knuth73
• replicate size/allocated word at bottom of free
  blocks
• Allows us to traverse the list backwards, but
  requires extra space
• Important and general technique!

35
Bidirectional
36
Constant time coalescing
37
Constant time coalescing (case 1)
m1
1
m1
1
m1
1
m1
1
n
1
n
0
n
1
n
0
m2
1
m2
1
m2
1
m2
1
38
Constant time coalescing (case 2)
m1
1
m1
1
m1
1
m1
1
nm2
0
n
1
n
1
m2
0
nm2
0
m2
0
39
Constant time coalescing (case 3)
m1
0
nm1
0
m1
0
n
1
n
1
nm1
0
m2
1
m2
1
m2
1
m2
1
40
Constant time coalescing (case 4)
m1
0
nm1m2
0
m1
0
n
1
n
1
m2
0
m2
0
nm1m2
0
41
Implementing a Simple Allocator

• 1 int mm_init(void)
• 2 void mm_malloc(size_t size)
• 3 void mm_free(void bp)

42
Data Structure
43
Initialize

• 1 include "csapp.h"
• 2
• 3 / private global variables /
• 4 static void mem_start_brk / points to
  first byte of the heap /
• 5 static void mem_brk / points to last byte
  of the heap /
• 6 static void mem_max_addr / max virtual
  address for the heap /
• 7
• 8 /
• 9 mem_init - initializes the memory system
  model
• 10 /
• 11 void mem_init(int size)
• 12
• 13 mem_start_brk (void )Malloc(size) /
  models available VM /
• 14 mem_brk mem_start_brk / heap is
  initially empty /
• 15 mem_max_addr mem_start_brk size / max
  VM address for heap /
• 16
• 17

44
Initialize

• 18 /
• 19 mem_sbrk - simple model of the the sbrk
  function. Extends the heap
• 20 by incr bytes and returns the start address
  of the new area. In
• 21 this model, the heap cannot be shrunk.
• 22 /
• 23 void mem_sbrk(int incr)
• 24
• 25 void old_brk mem_brk
• 26
• 27 if ( (incr lt 0) ((mem_brk incr) gt
  mem_max_addr))
• 28 errno ENOMEM
• 29 return (void )-1
• 30
• 31 mem_brk incr
• 32 return old_brk
• 33

45
Macros

• 1 / Basic constants and macros /
• 2 define WSIZE 4 / word size (bytes) /
• 3 define DSIZE 8 / doubleword size (bytes) /
• 4 define CHUNKSIZE (1ltlt12) / initial heap size
  (bytes) /
• 5 define OVERHEAD 8 / overhead of header and
  footer (bytes) /
• 6
• 7 define MAX(x, y) ((x) gt (y)? (x) (y))
• 8
• 9 / Pack a size and allocated bit into a word
  /
• 10 define PACK(size, alloc) ((size) (alloc))
• 11
• 12 / Read and write a word at address p /
• 13 define GET(p) ((size_t )(p))
• 14 define PUT(p, val) ((size_t )(p) (val))
• 15

46
Macros

• 16 / Read the size and allocated fields from
  address p /
• 17 define GET_SIZE(p) (GET(p) 0x7)
• 18 define GET_ALLOC(p) (GET(p) 0x1)
• 19
• 20 / Given block ptr bp, compute address of its
  header and footer /
• 21 define HDRP(bp) ((void )(bp) - WSIZE)
• 22 define FTRP(bp) ((void )(bp)
  GET_SIZE(HDRP(bp)) - DSIZE)
• 23
• 24 / Given block ptr bp, compute address of
  next and previous blocks /
• 25 define NEXT_BLKP(bp) ((void )(bp)
  GET_SIZE(HDRP(bp)))
• define PREV_BLKP(bp) ((void )(bp) -
  GET_SIZE(((void )(bp) - DSIZE)))
• size t size GET SIZE(HDRP(NEXT_BLKP(bp)))

47
mm_init()

• 1 int mm_init(void)
• 2
• 3 / create the initial empty heap /
• 4 if ((heap_listp mem_sbrk(4WSIZE)) NULL)
• 5 return -1
• 6 PUT(heap_listp, 0) / alignment padding /
• 7 PUT(heap_listpWSIZE, PACK(OVERHEAD, 1)) /
  prologue header /
• 8 PUT(heap_listpDSIZE, PACK(OVERHEAD, 1)) /
  prologue footer /
• 9 PUT(heap_listpWSIZEDSIZE, PACK(0, 1)) /
  epilogue header /
• 10 heap_listp DSIZE
• 11
• 12 / Extend the empty heap with a free block
  of CHUNKSIZE bytes /
• 13 if (extend_heap(CHUNKSIZE/WSIZE) NULL)
• 14 return -1
• 15 return 0
• 16

48
mm_init()

• 1 static void extend_heap(size_t words)
• 2
• 3 char bp
• 4 size_t size
• 5
• 6 / Allocate an even number of words to
  maintain alignment /
• 7 size (words 2) ? (words1) WSIZE
  words WSIZE
• 8 if ((int)(bp mem_sbrk(size)) lt 0)
• 9 return NULL
• 10
• 11 / Initialize free block header/footer and
  the epilogue header /
• 12 PUT(HDRP(bp), PACK(size, 0)) / free
  block header /
• 13 PUT(FTRP(bp), PACK(size, 0)) / free
  block footer /
• 14 PUT(HDRP(NEXT_BLKP(bp)), PACK(0, 1)) /
  new epilogue header /
• 15
• 16 / Coalesce if the previous block was free
  /
• 17 return coalesce(bp)
• 18

49
mm_free()

• 1 void mm_free(void bp)
• 2
• 3 size_t size GET_SIZE(HDRP(bp))
• 4
• 5 PUT(HDRP(bp), PACK(size, 0))
• 6 PUT(FTRP(bp), PACK(size, 0))
• 7 coalesce(bp)
• 8
• 9

50
mm_free()

• 10 static void coalesce(void bp)
• 11
• 12 size_t prev_alloc GET_ALLOC(FTRP(PREV_BLKP(
  bp)))
• 13 size_t next_alloc GET_ALLOC(HDRP(NEXT_BLKP(
  bp)))
• 14 size_t size GET_SIZE(HDRP(bp))
• 15
• 16 if (prev_alloc next_alloc) / Case 1 /
• 17 return bp
• 18
• 19
• 20 else if (prev_alloc !next_alloc) /
  Case 2 /
• 21 size GET_SIZE(HDRP(NEXT_BLKP(bp)))
• 22 PUT(HDRP(bp), PACK(size, 0))
• 23 PUT(FTRP(bp), PACK(size,0))
• 24 return(bp)
• 25
• 26

51
mm_free()

• 27 else if (!prev_alloc next_alloc) /
  Case 3 /
• 28 size GET_SIZE(HDRP(PREV_BLKP(bp)))
• 29 PUT(FTRP(bp), PACK(size, 0))
• 30 PUT(HDRP(PREV_BLKP(bp)), PACK(size, 0))
• 31 return(PREV_BLKP(bp))
• 32
• 33
• 34 else / Case 4 /
• 35 size GET_SIZE(HDRP(PREV_BLKP(bp)))
• 36 GET_SIZE(FTRP(NEXT_BLKP(bp)))
• 37 PUT(HDRP(PREV_BLKP(bp)), PACK(size, 0))
• 38 PUT(FTRP(NEXT_BLKP(bp)), PACK(size, 0))
• 39 return(PREV_BLKP(bp))
• 40
• 41

52
mm_malloc()

• 1 void mm_malloc (size_t size)
• 2
• 3 size_t asize / adjusted block size /
• 4 size_t extendsize / amount to extend heap
  if no fit /
• 5 char bp
• 6
• 7 / Ignore spurious requests /
• 8 if (size lt 0)
• 9 return NULL
• 10
• 11 / Adjust block size to include overhead and
  alignment reqs. /
• 12 if (size lt DSIZE)
• 13 asize DSIZE OVERHEAD
• 14 else
• 15 asize DSIZE ((size (OVERHEAD)
  (DSIZE-1)) / DSIZE)
• 16

53
mm_malloc()

• 17 / Search the free list for a fit /
• 18 if ((bp find_fit(asize)) ! NULL)
• 19 place (bp, asize)
• 20 return bp
• 21
• 22
• 23 / No fit found. Get more memory and place
  the block /
• 24 extendsize MAX (asize, CHUNKSIZE)
• 25 if ((bp extend_heap (extendsize/WSIZE))
  NULL)
• 26 return NULL
• 27 place (bp, asize)
• 28 return bp
• 29

54
mm_alloc()

• static void find_fit(size_t asize)
• void bp
• / first fit search /
• for (bp heap_listp GET_SIZE(HDRP(bp)) gt 0
  bp NEXT_BLKP(bp) )
• if (!GET_ALLOC(HDRP(bp))
  (asizeltGET_SIZE(HDRP(bp))))
• return bp
• return NULL /no fit /

55
mm_alloc()

• static void place(void bp, size_t asize)
• size_t csize GET_SIZE(HDRP(bp))
• if ( (csize asize) gt (DSIZE OVERHEAD) )
• PUT(HDRP(bp), PACK(asize, 1))
• PUT(FTRP(bp), PACK(asize, 1))
• bp NEXT_BLKP(bp)
• PUT(HDRP(bp), PACK(csize-asize, 0)
• PUT(FTRP(bp), PACK(csize-asize, 0)
• else
• PUT(HDRP(bp), PACK(csize, 1)
• PUT(FTRP(bp), PACK(csize, 1)

56
Explicit free lists

• Explicit list among the free blocks using
  pointers within the free blocks
• Use data space for link pointers
• Typically doubly linked
• Still need boundary tags for coalescing
• It is important to realize that links are not
  necessarily in the same order as the blocks

57
Explicit free lists
58
Freeing with explicit free lists

• Where to put the newly freed block in the free
  list
• LIFO (last-in-first-out) policy
• insert freed block at the beginning of the free
  list
• pro simple and constant time
• con studies suggest fragmentation is worse than
  address ordered.

59
Freeing with explicit free lists

• Where to put the newly freed block in the free
  list
• Address-ordered policy
• insert freed blocks so that free list blocks are
  always in address order
• i.e. addr(pred) lt addr(curr) lt addr(succ)
• con requires search
• pro studies suggest fragmentation is better
  than LIFO

60
Segregated Storage

• Each size class has its own collection of
  blocks
• Often have separate collection for every small
  size (2,3,4,)
• For larger sizes typically have a collection for
  each power of 2

61
Segregated Storage
62
Simple segregated storage

• Separate heap and free list for each size class
• No splitting
• To allocate a block of size n
• if free list for size n is not empty,
• allocate first block on list (note, list can be
  implicit or explicit)
• if free list is empty,
• get a new page
• create new free list from all blocks in page
• allocate first block on list
• constant time

63
Simple segregated storage

• To free a block
• Add to free list
• If page is empty, return the page for use by
  another size (optional)
• Tradeoffs
• fast, but can fragment badly

64
Segregated fits

• Array of free lists, each one for some size class

65
Segregated fits

• To allocate a block of size n
• search appropriate free list for block of size m
  gt n
• if an appropriate block is found
• split block and place fragment on appropriate
  list (optional)
• if no block is found, try next larger class
• repeat until block is found
• if no blocks is found in all classes, try more
  heap memory

66
Segregated fits

• To free a block
• coalesce and place on appropriate list (optional)
• Tradeoffs
• faster search than sequential fits (i.e., log
  time for power of two size classes)
• controls fragmentation of simple segregated
  storage
• coalescing can increase search times
• deferred coalescing can help

67
Buddy Systems

• A special case of segregated fits
• Each size is power of 2
• Initialize
• A heap of size 2m

68
Buddy Systems

• Allocate
• Roundup to power of 2 such as 2k
• Find a free block of size 2j (k ? j ? m)
• Split the block in half until jk
• Each remaining half block (buddy) is placed on
  the appreciate free list
• Free
• Continue coalescing with the free buddies
