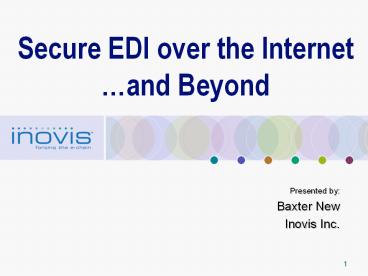

Secure EDI over the Internet …and Beyond

1
Secure EDI over the Internet and Beyond

• Presented by
• Baxter New
• Inovis Inc.

2
Todays Discussion Will Cover

• EDI-INT AS2 Overview
• Who Uses AS2
• EDI-INT AS2 Benefits
• An Ideal EDI-INT Solution
• Beyond EDI-INT to B2B Integration

3
What is AS2?

• Electronic Data Interchange for Internet
  (EDI-INT)Applicability Statement 2 (AS2)
• Developed by the Internet Engineering Task Force
  (IETF.org)
• Endorsed by the UCC and the Global Commerce
  Initiative
• A specification for transporting EDI, XML or
  other documents over the Internet using HTTP in a
  secure, reliable manner

4
Basic Security Fundamentals
Privacy message content privacy via data
encryption The document can only be viewed by the
Sender/Receiver Authentication via senders
digital signature The sender is actually who they
claim to be Integrity hash totals are enclosed
in MDNs Document cannot be altered w/o the
receiver detecting a change Non-repudiation
signed MDN receipt acknowledgment The receiver
cannot claim they did not receive the document
5
How does AS2 Work?
Internet
EDI X12 850
Partner A
2
1
Verify signature decrypt data (Authentication
Integrity)
HTTP server
Sign, Encrypt Send data (Privacy)
Certified AS2 Server (BizConnect)
3
Certified AS2 Server (BizLink)
MDN
Create, Sign Send MDN (Non-repudiation)
Translator
Translator
ERP System
ERP System
Partner B
6
What do you need to use AS2?

• Access to the Internet DSL, cable, T1, T3,
  etc..
• Certified AS2 Server
• HTTP server
• SMTP server (optional)
• Firewalls depending on company policy
• If AS2 Server in DMZ open up port
• If AS2 Server behind firewalls - relay server

7
Who Uses AS2?
8
Reasons for using AS2?

• Pressure from larger trading partners, retailer
  and manufacturers
• Reduced costs (VAN, manual processing, etc.)
• Staying current latest technology
• Preparing for the future (UCCnet, CPFR, etc)
• Other

9
What are the benefits of AS2?

• Interoperable
• A standard supported by UCC and others
• eBusinessReady Certified
• Cost-effective
• Leverages the Internet
• Speed Efficiency
• Offers near real-time transaction processing
• Faster and more dependable than bisync
• Secure
• Security and non-repudiation via digital
  certificates
• Uses SSL to secure the transport pipe

10
What are the benefits of AS2?

• Control
• You retain transaction and data management
  control
• Control transport schedule for batch processing
• Supportable
• Quick to set up
• Easier to support and maintain compared to bisync
• Extendable
• Exchange large transactions such as POS and sales
  forecasts
• UCCnet and other industry exchanges
• XML via AS2 is used for item synchronization

11
Interoperability Tests

• Conducted by the Drummond Group
• 22 vendors participated in latest AS2 Tests
• http//ebusinessready.org/as2.html
• Inovis was one of the original AS2 providers
• Re-certify when changes are made or after two
  rounds of interoperability tests

12
Interoperability Certification

• eBusiness Ready Interoperability Certified
• AS1 (EDI-INT)
• AS2 (EDI-INT)
• AS3 (EDI-INT)
• ebXML
• UCCnet Certified
• UCCnet Synchronization Suite
• Communication (XML via AS2)
• Message Translation
• Implementation (consulting, education)

13
What is an IDEAL AS2 Solution?

• Certified eBusinessReady by the Drummond Group
• Easy to set up and simple to test
• Scalable solution
• Multiple protocol support
• Out-of-the box support for
• Trading partner management
• Certificate management
• Transaction management
• Integrated mapping solution
• Integrated UCCnet synchronization solution

14
Secure Internet-EDI Other Methods

• Business-to-Business Integration (B2Bi)
• EDI-INT (AS1, AS2, AS3)
• VPN
• Secure FTP
• Web Forms
• VANs / Exchanges

15
Sample Total Solution
16
The path to e-collaboration
e-Collaboration
The Industry UCCnet, UCC, EAN, FMI, GMA,
VICS,Transora, WWRE, ECCC, GCI, Wal-Mart, Kraft,
Wegmans, PG, Ahold, Microsoft, IBM, IPNet, etc
7. Collaborative insight product development
6. Collaborative sales promotion planning
You
5. Collaborative supply chain management
4. Collaborative transaction management
3. Item synchronization
Benefits
2. Single item registry
Time / Degree of trust complexity
1. Common data standards
Source A.T.Kearney for GMA - FMI
17
Q A
